Canon T3 vs Nikon D5
The Canon EOS Rebel T3 (called Canon 1100D in some regions) and the Nikon D5 are two digital cameras that were announced, respectively, in February 2011 and January 2016. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (T3) and a full frame (D5) sensor. The Canon has a resolution of 12.2 megapixels, whereas the Nikon provides 20.7 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel T3 and the Nikon D5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

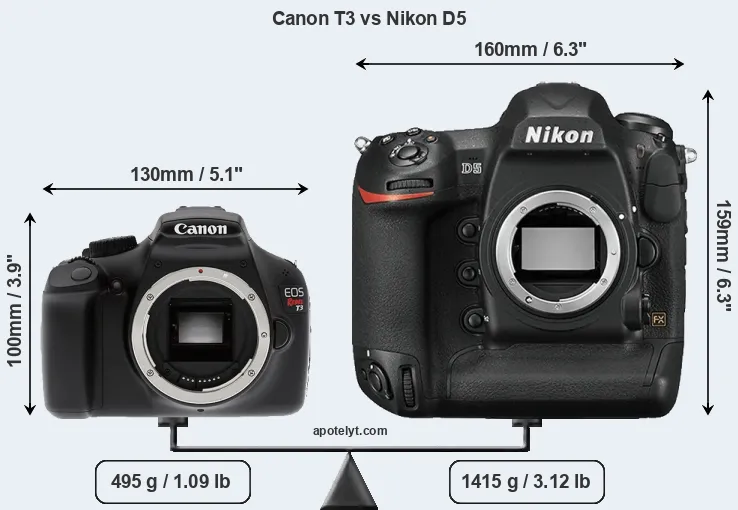

The side-by-side display below illustrates the physical size and weight of the Canon T3 and the Nikon D5. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D5 is considerably larger (96 percent) than the Canon T3. Moreover, the D5 is substantially heavier (186 percent) than the T3. It is noteworthy in this context that the D5 is splash and dust-proof, while the T3 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (T3) and the Nikon Lens Catalog (D5).
Concerning battery life, the T3 gets 700 shots out of its LP-E10 battery, while the D5 can take 3780 images on a single charge of its EN-EL18a power pack. As can be seen in the images above, the D5 has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the T3, there are third party battery grips available as optional accessories (see here on eBay).
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon T3||130 mm||100 mm||78 mm||495 g||700||n||Feb 2011||449|
|2.||Nikon D5||160 mm||159 mm||92 mm||1415 g||3780||Y||Jan 2016||6,499|
|3.||Canon T100||129 mm||102 mm||77 mm||436 g||500||n||Feb 2018||399|
|4.||Canon 1D X Mark II||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999|
|5.||Canon T5||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449|
|6.||Canon G1 X||117 mm||81 mm||65 mm||534 g||250||n||Jan 2012||799|
|7.||Canon SX50||123 mm||87 mm||106 mm||595 g||315||n||Sep 2012||429|
|8.||Canon T4i||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|9.||Canon T3i||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599|
|10.||Canon T2i||129 mm||98 mm||62 mm||530 g||440||n||Feb 2010||699|
|11.||Canon XS||126 mm||98 mm||65 mm||502 g||500||n||Jun 2008||449|
|12.||Canon XSi||129 mm||98 mm||62 mm||524 g||500||n||Jan 2008||799|
|13.||Canon XTi||127 mm||84 mm||65 mm||556 g||370||n||Aug 2006||799|
|14.||Nikon D6||160 mm||163 mm||92 mm||1270 g||3580||Y||Feb 2020||6,499|
|15.||Nikon D4S||160 mm||157 mm||91 mm||1350 g||3020||Y||Feb 2014||6,499|
|16.||Nikon D750||141 mm||113 mm||78 mm||750 g||1230||Y||Sep 2014||2,299|
|17.||Nikon D610||141 mm||113 mm||82 mm||850 g||900||Y||Oct 2013||1,999|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The T3 was launched at a markedly lower price (by 93 percent) than the D5, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon T3 features an APS-C sensor and the Nikon D5 a full frame sensor. The sensor area in the D5 is 166 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
With 20.7MP, the D5 offers a higher resolution than the T3 (12.2MP), but the D5 nevertheless has larger individual pixels (pixel pitch of 6.44μm versus 5.15μm for the T3) due to its larger sensor. Moreover, the D5 is a much more recent model (by 4 years and 10 months) than the T3, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.
The resolution advantage of the Nikon D5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D5 for good quality output (200 dots per inch) amounts to 27.9 x 18.6 inches or 71 x 47.1 cm, for very good quality (250 dpi) 22.4 x 14.8 inches or 56.8 x 37.7 cm, and for excellent quality (300 dpi) 18.6 x 12.4 inches or 47.3 x 31.4 cm. The corresponding values for the Canon T3 are 21.4 x 14.2 inches or 54.3 x 36.2 cm for good quality, 17.1 x 11.4 inches or 43.4 x 28.9 cm for very good quality, and 14.2 x 9.5 inches or 36.2 x 24.1 cm for excellent quality prints.
The Canon EOS Rebel T3 has a native sensitivity range from ISO 100 to ISO 6400. The corresponding ISO settings for the Nikon D5 are ISO 100 to ISO 102400, with the possibility to increase the ISO range to 50-3280000.
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the D5 offers substantially better image quality than the T3 (overall score 26 points higher). The advantage is based on 3.2 bits higher color depth, 1.3 EV in additional dynamic range, and 1.6 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|2.||Nikon D5||Full Frame||20.7||5588||3712||4K/30p||25.1||12.3||2343||88|
|4.||Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|6.||Canon G1 X||1.5-inch||14.2||4352||3264||1080/24p||21.7||10.8||644||60|
|14.||Nikon D6||Full Frame||20.7||5568||3712||4K/30p||25.3||14.3||2886||95|
|15.||Nikon D4S||Full Frame||16.2||4928||3280||1080/60p||24.4||13.3||3074||89|
|16.||Nikon D750||Full Frame||24.2||6016||4016||1080/60p||24.8||14.5||2956||93|
|17.||Nikon D610||Full Frame||24.2||6016||4016||1080/30p||25.1||14.4||2925||94|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the D5 provides a better video resolution than the T3. It can shoot movie footage at 4K/30p, while the Canon is limited to 720/30p.
Apart from body and sensor, cameras can and do differ across a range of features. The T3 and the D5 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the D5 offers a wider field of view (100%) than the one in the T3 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the D5 has a higher magnification (0.72x vs 0.50x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon T3 and Nikon D5 along with similar information for a selection of comparators.
|1.||Canon T3||optical||n||2.7 / 230||fixed||n||1/4000s||3.0||Y||n|
|2.||Nikon D5||optical||Y||3.2 / 2359||fixed||Y||1/8000s||14.0||n||n|
|3.||Canon T100||optical||n||2.7 / 230||fixed||n||1/4000s||3.0||Y||n|
|4.||Canon 1D X Mark II||optical||Y||3.2 / 1620||fixed||Y||1/8000s||16.0||n||n|
|5.||Canon T5||optical||n||3.0 / 460||fixed||n||1/4000s||3.0||Y||n|
|6.||Canon G1 X||optical||n||3.0 / 922||swivel||n||1/4000s||1.9||Y||Y|
|7.||Canon SX50||202||n||3.0 / 461||swivel||n||1/2000s||2.2||Y||Y|
|8.||Canon T4i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|9.||Canon T3i||optical||n||3.0 / 1040||swivel||n||1/4000s||3.7||Y||n|
|10.||Canon T2i||optical||n||3.0 / 1040||fixed||n||1/4000s||3.7||Y||n|
|11.||Canon XS||optical||n||2.5 / 230||fixed||n||1/4000s||3.0||Y||n|
|12.||Canon XSi||optical||n||3.0 / 230||fixed||n||1/4000s||3.5||Y||n|
|13.||Canon XTi||optical||n||2.5 / 230||fixed||n||1/4000s||3.0||Y||n|
|14.||Nikon D6||optical||Y||3.2 / 2359||fixed||Y||1/8000s||14.0||n||n|
|15.||Nikon D4S||optical||Y||3.2 / 921||fixed||n||1/8000s||11.0||n||n|
|16.||Nikon D750||optical||Y||3.2 / 1229||tilting||n||1/4000s||6.0||Y||n|
|17.||Nikon D610||optical||Y||3.2 / 921||fixed||n||1/4000s||6.0||Y||n|
One difference between the cameras concerns the presence of an on-board flash. The T3 has one, while the D5 does not. While the built-in flash of the T3 is not very powerful, it can at times be useful as a fill-in light.
The Nikon D5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The T3 writes its imaging data to SDXC cards, while the D5 uses Compact Flash or XQD cards. The D5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the T3 only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel T3 and Nikon D5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon T3||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|2.||Nikon D5||Y||stereo / mono||Y||Y||mini||3.0||-||-||-|
|3.||Canon T100||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|4.||Canon 1D X Mark II||Y||mono / mono||Y||Y||mini||3.0||-||-||-|
|5.||Canon T5||Y||mono / mono||-||-||mini||2.0||-||-||-|
|6.||Canon G1 X||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|7.||Canon SX50||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|8.||Canon T4i||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|9.||Canon T3i||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|10.||Canon T2i||Y||stereo / -||Y||-||mini||2.0||-||-||-|
|11.||Canon XS||Y||- / -||-||-||-||2.0||-||-||-|
|12.||Canon XSi||Y||- / -||-||-||mini||2.0||-||-||-|
|13.||Canon XTi||Y||- / -||-||-||-||2.0||-||-||-|
|14.||Nikon D6||Y||stereo / mono||Y||Y||mini||3.1||Y||-||Y|
|15.||Nikon D4S||Y||mono / mono||Y||Y||mini||2.0||-||-||-|
|16.||Nikon D750||Y||stereo / mono||Y||Y||mini||2.0||Y||-||-|
|17.||Nikon D610||Y||mono / mono||Y||Y||mini||2.0||-||-||-|
It is notable that the D5 has a headphone jack, which makes it possible to attach external headphones and monitor the quality of sound during the recording process. The T3 lacks such a headphone port.
Studio photographers will appreciate that the Nikon D5 (unlike the T3) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the T3 and the D5 have been discontinued, but can regularly be found used on eBay. The T3 was replaced by the Canon T5, while the D5 was followed by the Nikon D6. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Nikon websites.
So what is the bottom line? Which of the two cameras – the Canon T3 or the Nikon D5 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.
Arguments in favor of the Canon EOS Rebel T3:
- More compact: Is smaller (130x100mm vs 160x159mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 920g or 65 percent) and hence easier to carry around.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More affordable: Was introduced into a lower priced category (93 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in February 2011).
Advantages of the Nikon D5:
- More detail: Has more megapixels (20.7 vs 12.2MP), which boosts linear resolution by 31%.
- Better image quality: Scores substantially higher (26 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (3.2 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (1.3 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (1.6 stops ISO advantage).
- Better video: Provides higher definition movie capture (4K/30p vs 720/30p).
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.72x vs 0.50x).
- Easier setting verification: Features a control panel on top to check shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 2.7") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (2359k vs 230k dots).
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (14 vs 3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Gets more shots (3780 versus 700) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More modern: Reflects 4 years and 10 months of technical progress since the T3 launch.
If the number of relative strengths (bullet points above) is taken as a guide, the D5 is the clear winner of the contest (24 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon T3 and the Nikon D5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the T3 and the D5 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon T3||..||80/100||..||69/100||4/5||4.5/5||Feb 2011||449|
|2.||Nikon D5||..||..||4/5||89/100||4.5/5||5/5||Jan 2016||6,499|
|3.||Canon T100||..||o||3/5||..||3.5/5||3.5/5||Feb 2018||399|
|4.||Canon 1D X Mark II||..||..||4.5/5||89/100||4.5/5||4.5/5||Feb 2016||5,999|
|5.||Canon T5||3/5||+||..||..||4/5||4.5/5||Feb 2014||449|
|6.||Canon G1 X||5/5||+||..||76/100||4/5||4.5/5||Jan 2012||799|
|7.||Canon SX50||3/5||+ +||..||72/100||4.5/5||4.5/5||Sep 2012||429|
|8.||Canon T4i||4/5||+ +||..||77/100||4.5/5||4.5/5||Jun 2012||849|
|9.||Canon T3i||3/5||o||..||77/100||4.5/5||4.5/5||Feb 2011||599|
|10.||Canon T2i||..||+ +||..||77/100||4/5||4.5/5||Feb 2010||699|
|11.||Canon XS||..||82/100||..||+ +||3.5/5||4.5/5||Jun 2008||449|
|12.||Canon XSi||..||+ +||..||+ +||4/5||4.5/5||Jan 2008||799|
|13.||Canon XTi||..||+ +||..||+ +||o||4/5||Aug 2006||799|
|14.||Nikon D6||..||..||4/5||..||4.5/5||4.5/5||Feb 2020||6,499|
|15.||Nikon D4S||5/5||..||..||..||4.5/5||4.5/5||Feb 2014||6,499|
|16.||Nikon D750||5/5||+ +||4/5||90/100||4.5/5||4.5/5||Sep 2014||2,299|
|17.||Nikon D610||4/5||+ +||..||87/100||4.5/5||4.5/5||Oct 2013||1,999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon T3 vs Nikon D5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon T3||Nikon D5|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Nikon F mount lenses|
|Launch Date||February 2011||January 2016|
|Launch Price||USD 449||USD 6,499|
|Sensor Specs||Canon T3||Nikon D5|
|Sensor Format||APS-C Sensor||Full Frame Sensor|
|Sensor Size||22.0 x 14.7 mm||35.9 x 23.9 mm|
|Sensor Area||323.4 mm2||858.01 mm2|
|Sensor Diagonal||26.5 mm||43.1 mm|
|Sensor Resolution||12.2 Megapixels||20.7 Megapixels|
|Image Resolution||4272 x 2848 pixels||5588 x 3712 pixels|
|Pixel Pitch||5.15 μm||6.44 μm|
|Pixel Density||3.76 MP/cm2||2.42 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||720/30p Video||4K/30p Video|
|ISO Setting||100 - 6,400 ISO||100 - 102,400 ISO|
|ISO Boost||no Enhancement||50 - 3,280,000 ISO|
|Image Processor||DIGIC 4||EXPEED 5|
|DXO Sensor Quality (score)||62||88|
|DXO Color Depth (bits)||21.9||25.1|
|DXO Dynamic Range (EV)||11.0||12.3|
|DXO Low Light (ISO)||755||2343|
|Screen Specs||Canon T3||Nikon D5|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||100%|
|Top-Level Screen||no Top Display||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||2.7inch||3.2inch|
|LCD Resolution||230k dots||2359k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon T3||Nikon D5|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||3 shutter flaps/s||14 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||400 000 actuations|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Built-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||CF or XQD cards|
|Second Storage Option||Single card slot||Dual card slots|
|Connectivity Specs||Canon T3||Nikon D5|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 3.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon T3||Nikon D5|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||700 shots per charge||3780 shots per charge|
130 x 100 x 78 mm
(5.1 x 3.9 x 3.1 in)
160 x 159 x 92 mm
(6.3 x 6.3 x 3.6 in)
|Camera Weight||495 g (17.5 oz)||1415 g (49.9 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
