Canon T1i vs Olympus E-PL5
The Canon EOS Rebel T1i (called Canon 500D in some regions) and the Olympus PEN E-PL5 are two digital cameras that were announced, respectively, in March 2009 and September 2012. The T1i is a DSLR, while the E-PL5 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (T1i) and a Four Thirds (E-PL5) sensor. The Canon has a resolution of 15.1 megapixels, whereas the Olympus provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel T1i and the Olympus PEN E-PL5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

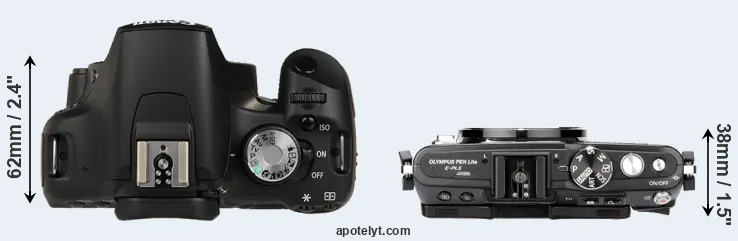

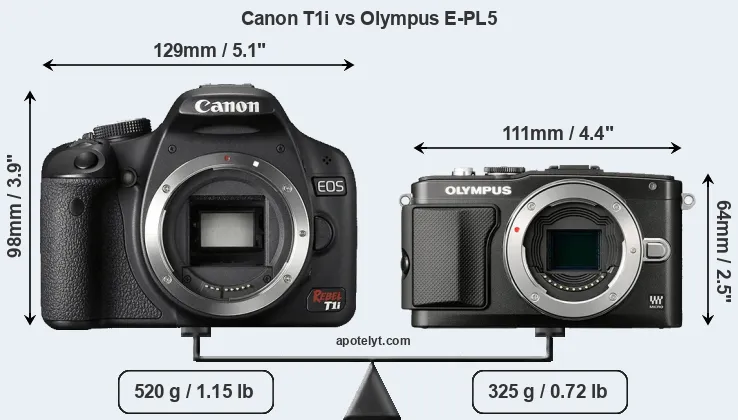

The side-by-side display below illustrates the physical size and weight of the Canon T1i and the Olympus E-PL5. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
The E-PL5 can be obtained in three different colors (black, silver, white), while the T1i is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL5 is considerably smaller (44 percent) than the Canon T1i. Moreover, the E-PL5 is substantially lighter (38 percent) than the T1i. In this context, it is worth noting that neither the T1i nor the E-PL5 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (T1i) and the Micro Four Thirds Lens Catalog (E-PL5). Mirrorless cameras, such as the E-PL5, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon T1i||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799||ebay.com|
|2.||Olympus E-PL5||111 mm||64 mm||38 mm||325 g||360||n||Sep 2012||599||ebay.com|
|3.||Canon T100||129 mm||102 mm||77 mm||436 g||500||n||Feb 2018||399||amazon.com|
|4.||Canon T6i||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749||ebay.com|
|5.||Canon T5||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449||ebay.com|
|6.||Canon T5i||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649||ebay.com|
|7.||Canon T4i||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849||ebay.com|
|8.||Canon T3i||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599||ebay.com|
|9.||Canon T2i||129 mm||98 mm||62 mm||530 g||440||n||Feb 2010||699||ebay.com|
|10.||Canon XSi||129 mm||98 mm||62 mm||524 g||500||n||Jan 2008||799||ebay.com|
|11.||Canon XTi||127 mm||84 mm||65 mm||556 g||370||n||Aug 2006||799||ebay.com|
|12.||Canon XT||127 mm||94 mm||64 mm||540 g||400||n||Feb 2005||899||ebay.com|
|13.||Olympus E-M10 II||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649||ebay.com|
|14.||Olympus E-M10||119 mm||82 mm||46 mm||396 g||320||n||Jan 2014||699||ebay.com|
|15.||Olympus E-PL6||111 mm||64 mm||38 mm||325 g||360||n||May 2013||599||ebay.com|
|16.||Olympus E-PM2||110 mm||64 mm||34 mm||269 g||360||n||Sep 2012||499||ebay.com|
|17.||Olympus E-PL3||110 mm||64 mm||37 mm||313 g||300||n||Jun 2011||599||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-PL5 was launched at a somewhat lower price (by 25 percent) than the T1i, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon T1i features an APS-C sensor and the Olympus E-PL5 a Four Thirds sensor. The sensor area in the E-PL5 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the T1i has a native 3:2 aspect ratio, while the one in the E-PL5 offers a 4:3 aspect.
Despite having a smaller sensor, the E-PL5 offers a slightly higher resolution of 15.9 megapixels, compared with 15.1 MP of the T1i. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 4.69μm for the T1i). However, it should be noted that the E-PL5 is much more recent (by 3 years and 5 months) than the T1i, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The Canon EOS Rebel T1i has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Olympus PEN E-PL5 are ISO 200 to ISO 25600 (no boost).
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the E-PL5 has a markedly higher DXO score than the T1i (overall score 9 points higher), which will translate into better image quality. The advantage is based on 1.1 bits higher color depth, 0.8 EV in additional dynamic range, and 0.4 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|2.||Olympus E-PL5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||889||72|
|13.||Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|14.||Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
|15.||Olympus E-PL6||Four Thirds||15.9||4608||3456||1080/30p||22.5||12.0||717||68|
|16.||Olympus E-PM2||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.2||932||72|
|17.||Olympus E-PL3||Four Thirds||12.2||4032||3024||1080/60i||20.9||10.3||499||52|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the E-PL5 provides a faster frame rate than the T1i. It can shoot movie footage at 1080/30p, while the Canon is limited to 1080/20p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the T1i has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-PL5 relies on live view and the rear LCD for framing. That said, the E-PL5 can be equipped with an optional viewfinder – the VF-3. The following table reports on some other key feature differences and similarities of the Canon T1i, the Olympus E-PL5, and comparable cameras.
|1.||Canon T1i||optical||n||3.0 / 920||fixed||n||1/4000s||3.4/s||Y||n|
|2.||Olympus E-PL5||optional||n||3.0 / 460||tilting||Y||1/4000s||8.0/s||n||Y|
|3.||Canon T100||optical||n||2.7 / 230||fixed||n||1/4000s||3.0/s||Y||n|
|4.||Canon T6i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|5.||Canon T5||optical||n||3.0 / 460||fixed||n||1/4000s||3.0/s||Y||n|
|6.||Canon T5i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|7.||Canon T4i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|8.||Canon T3i||optical||n||3.0 / 1040||swivel||n||1/4000s||3.7/s||Y||n|
|9.||Canon T2i||optical||n||3.0 / 1040||fixed||n||1/4000s||3.7/s||Y||n|
|10.||Canon XSi||optical||n||3.0 / 230||fixed||n||1/4000s||3.5/s||Y||n|
|11.||Canon XTi||optical||n||2.5 / 230||fixed||n||1/4000s||3.0/s||Y||n|
|12.||Canon XT||optical||n||1.8 / 115||fixed||n||1/4000s||3.0/s||Y||n|
|13.||Olympus E-M10 II||2360||n||3.0 / 1040||tilting||Y||1/4000s||8.0/s||Y||Y|
|14.||Olympus E-M10||1440||n||3.0 / 1037||tilting||Y||1/4000s||8.0/s||Y||Y|
|15.||Olympus E-PL6||optional||n||3.0 / 460||tilting||Y||1/4000s||8.0/s||n||Y|
|16.||Olympus E-PM2||optional||n||3.0 / 460||fixed||Y||1/4000s||8.0/s||n||Y|
|17.||Olympus E-PL3||optional||n||3.0 / 460||tilting||n||1/4000s||5.5/s||n||Y|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One difference between the cameras concerns the presence of an on-board flash. The T1i has one, while the E-PL5 does not. While the built-in flash of the T1i is not very powerful, it can at times be useful as a fill-in light.The E-PL5 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the T1i does not have a selfie-screen.
The T1i writes its imaging data to SDHC cards, while the E-PL5 uses SDXC cards. The E-PL5 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the T1i cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel T1i and Olympus PEN E-PL5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon T1i||Y||mono / mono||-||-||mini||2.0||-||-||-|
|2.||Olympus E-PL5||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|3.||Canon T100||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|4.||Canon T6i||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|5.||Canon T5||Y||mono / mono||-||-||mini||2.0||-||-||-|
|6.||Canon T5i||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|7.||Canon T4i||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|8.||Canon T3i||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|9.||Canon T2i||Y||stereo / -||Y||-||mini||2.0||-||-||-|
|10.||Canon XSi||Y||- / -||-||-||mini||2.0||-||-||-|
|11.||Canon XTi||Y||- / -||-||-||-||2.0||-||-||-|
|12.||Canon XT||Y||- / -||-||-||-||2.0||-||-||-|
|13.||Olympus E-M10 II||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|14.||Olympus E-M10||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|15.||Olympus E-PL6||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|16.||Olympus E-PM2||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|17.||Olympus E-PL3||Y||stereo / -||-||-||mini||2.0||-||-||-|
Both the T1i and the E-PL5 have been discontinued, but can regularly be found used on ebay. The T1i was replaced by the Canon T2i, while the E-PL5 was followed by the Olympus E-PL6. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what is the bottom line? Is the Canon T1i better than the Olympus E-PL5 or vice versa? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Canon EOS Rebel T1i:
- Easier framing: Has an optical viewfinder for image composition and settings control.
- More detailed LCD: Has a higher resolution rear screen (920k vs 460k dots).
- Longer lasting: Can take more shots (400 versus 360) on a single battery charge.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More heavily discounted: Has been available for much longer (launched in March 2009).
Arguments in favor of the Olympus PEN E-PL5:
- Better image quality: Scores markedly higher (9 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (1.1 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (0.8 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (0.4 stops ISO advantage).
- Better video: Provides higher movie framerates (1080/30p versus 1080/20p).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (8 vs 3.4 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (111x64mm vs 129x98mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 195g or 37 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More affordable: Was released into a lower priced segment (25 percent cheaper at launch).
- More modern: Reflects 3 years and 5 months of technical progress since the T1i launch.
If the count of relative strengths (bullet points above) is taken as a measure, the E-PL5 is the clear winner of the contest (16 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon T1i and the Olympus E-PL5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the T1i or the E-PL5. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon T1i||..||+ +||..||74/100||4.5/5||4.5/5||Mar 2009||799||ebay.com|
|2.||Olympus E-PL5||3/5||+ +||..||..||4.5/5||4.5/5||Sep 2012||599||ebay.com|
|3.||Canon T100||..||o||3/5||..||3.5/5||3.5/5||Feb 2018||399||amazon.com|
|4.||Canon T6i||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749||ebay.com|
|5.||Canon T5||3/5||+||..||..||4/5||4.5/5||Feb 2014||449||ebay.com|
|6.||Canon T5i||..||..||..||76/100||4.5/5||4.5/5||Mar 2013||649||ebay.com|
|7.||Canon T4i||4/5||+ +||..||77/100||4.5/5||4.5/5||Jun 2012||849||ebay.com|
|8.||Canon T3i||3/5||o||..||77/100||4.5/5||4.5/5||Feb 2011||599||ebay.com|
|9.||Canon T2i||..||+ +||..||77/100||4/5||4.5/5||Feb 2010||699||ebay.com|
|10.||Canon XSi||..||+ +||..||+ +||4/5||4.5/5||Jan 2008||799||ebay.com|
|11.||Canon XTi||..||+ +||..||+ +||o||4/5||Aug 2006||799||ebay.com|
|12.||Canon XT||..||80/100||..||+ +||o||..||Feb 2005||899||ebay.com|
|13.||Olympus E-M10 II||4.5/5||+ +||..||80/100||5/5||5/5||Aug 2015||649||ebay.com|
|14.||Olympus E-M10||4/5||..||..||80/100||5/5||5/5||Jan 2014||699||ebay.com|
|15.||Olympus E-PL6||..||..||..||..||..||..||May 2013||599||ebay.com|
|16.||Olympus E-PM2||3/5||..||..||77/100||5/5||4.5/5||Sep 2012||499||ebay.com|
|17.||Olympus E-PL3||3/5||+ +||..||72/100||4.5/5||4/5||Jun 2011||599||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon T1i vs Leica X2
- Canon T1i vs Pentax K-1
- Canon T1i vs Sony A6300
- Canon T1i vs Sony HX80
- Canon T1i vs Sony RX100 III
- Canon T1i vs Sony RX100 V
- Leica S Typ 006 vs Olympus E-PL5
- Leica X-U Typ 113 vs Olympus E-PL5
- Nikon D3300 vs Olympus E-PL5
- Nikon D4 vs Olympus E-PL5
- Nikon D5300 vs Olympus E-PL5
- Olympus E-PL5 vs Sony RX10 II
Specifications: Canon T1i vs Olympus E-PL5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon T1i||Olympus E-PL5|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Micro Four Thirds lenses|
|Launch Date||March 2009||September 2012|
|Launch Price||USD 799||USD 599|
|Sensor Specs||Canon T1i||Olympus E-PL5|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.3 x 14.9 mm||17.3 x 13.0 mm|
|Sensor Area||332.27 mm2||224.9 mm2|
|Sensor Diagonal||26.8 mm||21.6 mm|
|Sensor Resolution||15.1 Megapixels||15.9 Megapixels|
|Image Resolution||4752 x 3168 pixels||4608 x 3456 pixels|
|Pixel Pitch||4.69 μm||3.76 μm|
|Pixel Density||4.53 MP/cm2||7.08 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/20p Video||1080/30p Video|
|ISO Setting||100 - 6,400 ISO||200 - 25,600 ISO|
|ISO Boost||100 - 12,800 ISO||no Enhancement|
|Image Processor||DIGIC 4||TruePic VI|
|DXO Sensor Quality (score)||63||72|
|DXO Color Depth (bits)||21.7||22.8|
|DXO Dynamic Range (EV)||11.5||12.3|
|DXO Low Light (ISO)||663||889|
|Screen Specs||Canon T1i||Olympus E-PL5|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||95%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||920k dots||460k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon T1i||Olympus E-PL5|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||3.4 shutter flaps/s||8 shutter flaps/s|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Built-in Flash||no On-Board Flash|
|Storage Medium||SDHC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||no||UHS-I|
|Connectivity Specs||Canon T1i||Olympus E-PL5|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon T1i||Olympus E-PL5|
|Battery Life (CIPA)||400 shots per charge||360 shots per charge|
129 x 98 x 62 mm
(5.1 x 3.9 x 2.4 in)
111 x 64 x 38 mm
(4.4 x 2.5 x 1.5 in)
|Camera Weight||520 g (18.3 oz)||325 g (11.5 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
