Canon SX540 vs Sony HX350

The Canon PowerShot SX540 HS and the Sony Cyber-shot DSC-HX350 are two digital cameras that were revealed to the public, respectively, in January 2016 and December 2016. Both the SX540 and the HX350 are fixed lens compact cameras that are equipped with a 1/2.3-inch sensor. The Canon has a resolution of 20.2 megapixels, whereas the Sony provides 19.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX540		Sony HX350
Fixed lens compact camera		Fixed lens compact camera
24-1200mm f/3.4-6.5		24-1200mm f/2.8-6.3
20.2 MP – 1/2.3" sensor		19.9 MP – 1/2.3" sensor
1080/60p Video		1080/60p Video
ISO 80-3,200		ISO 80-3,200 (80 - 12,800)
No viewfinder, LCD framing		Electronic viewfinder (202k dots)
3.0" LCD – 461k dots		3.0" LCD – 922k dots
Fixed screen (not touch-sensitive)		Tilting screen (no touchscreen)
5.9 shutter flaps per second		10 shutter flaps per second
205 shots per battery charge		300 shots per battery charge
120 x 82 x 92 mm, 442 g		130 x 93 x 103 mm, 652 g

Check SX540 offers at
ebay.com
Check HX350 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX540 HS and the Sony Cyber-shot DSC-HX350? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

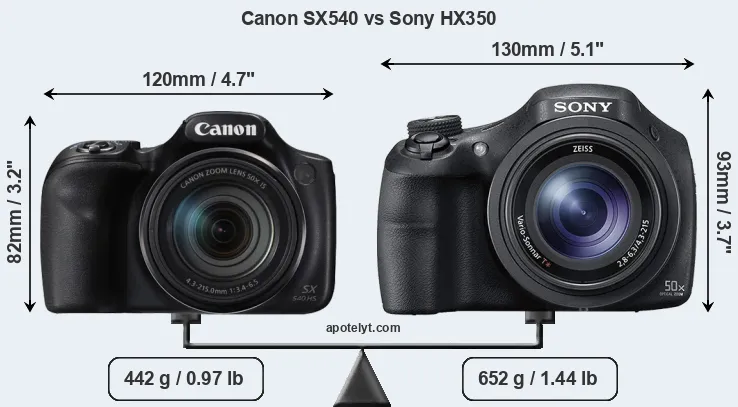

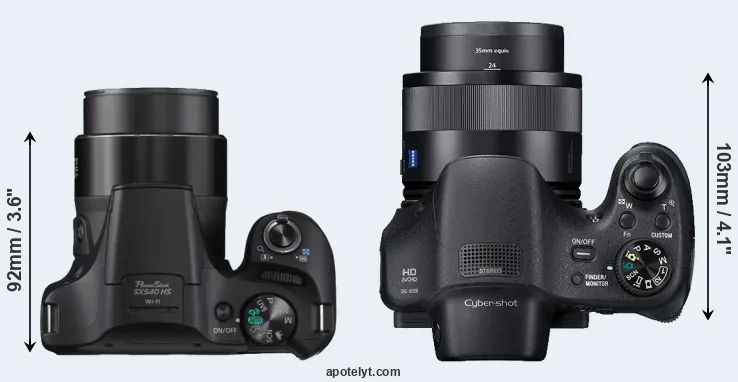

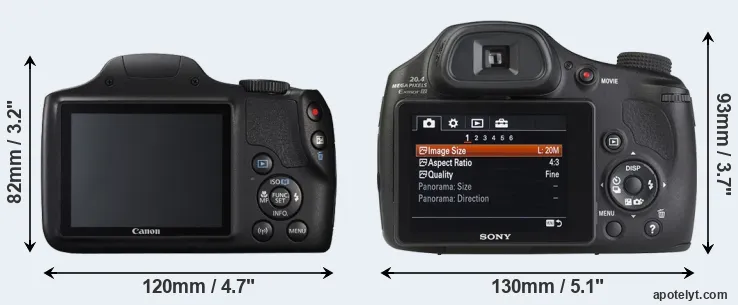

The physical size and weight of the Canon SX540 and the Sony HX350 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony HX350 is notably larger (23 percent) than the Canon SX540. Moreover, the HX350 is substantially heavier (48 percent) than the SX540. In this context, it is worth noting that neither the SX540 nor the HX350 are weather-sealed.

Concerning battery life, the SX540 gets 205 shots out of its Canon NB-6LH battery, while the HX350 can take 300 images on a single charge of its Sony NP-BX1 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon SX540	120 mm	82 mm	92 mm	442 g	205	n	Jan 2016	399	ebay.com
2.		Sony HX350	130 mm	93 mm	103 mm	652 g	300	n	Dec 2016	449	ebay.com
3.		Canon SX410	104 mm	69 mm	85 mm	325 g	185	n	Feb 2015	279	ebay.com
4.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	299	ebay.com
5.		Canon SX530	120 mm	82 mm	92 mm	442 g	210	n	Jan 2015	429	ebay.com
6.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	349	ebay.com
7.		Canon SX720	110 mm	64 mm	36 mm	270 g	250	n	Feb 2016	379	ebay.com
8.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	399	ebay.com
9.		Canon SX740	110 mm	64 mm	40 mm	299 g	265	n	Jul 2018	399	amazon.com
10.		Canon T6	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	449	ebay.com
11.		Kodak AZ901	139 mm	104 mm	119 mm	777 g	400	n	Jan 2016	499	amazon.com
12.		Nikon B700	125 mm	85 mm	107 mm	565 g	350	n	Feb 2016	499	ebay.com
13.		Panasonic FZ80	130 mm	94 mm	119 mm	616 g	330	n	Jan 2017	399	ebay.com
14.		Panasonic ZS70	112 mm	67 mm	41 mm	322 g	380	n	Apr 2017	449	ebay.com
15.		Sony HX90V	102 mm	58 mm	36 mm	245 g	360	n	Apr 2015	429	ebay.com
16.		Sony HX400V	130 mm	93 mm	103 mm	660 g	300	n	Feb 2014	499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX540 was launched at a somewhat lower price (by 11 percent) than the HX350, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

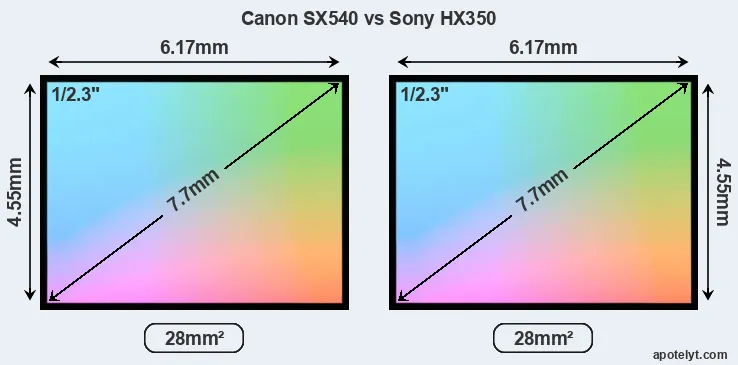

Both cameras under consideration feature a 1/2.3-inch sensor and have a format factor (sometimes also referred to as "crop factor") of 5.6. Within the spectrum of camera sensors, this places the review cameras among the smaller-sensor digicams that favor affordability and compact design. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

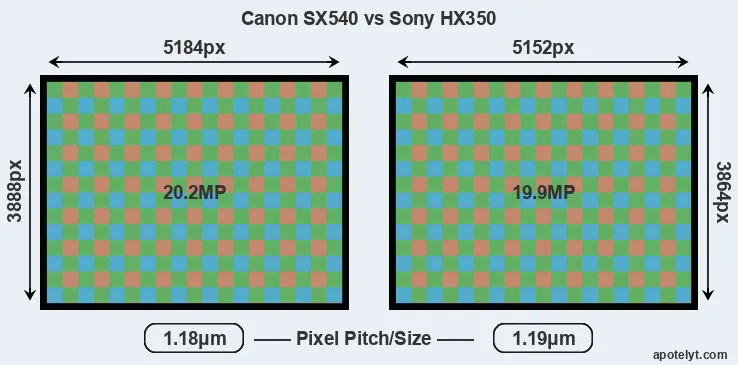

While the two cameras under review share the same sensor size, the SX540 offers a slightly higher resolution of 20.2 megapixels, compared with 19.9 MP of the HX350. This megapixels advantage translates into a 0.59999999999999 percent gain in linear resolution. On the other hand, these sensor specs imply that the SX540 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.18μm versus 1.19μm for the HX350). Moreover, it should be noted that the HX350 is a somewhat more recent model (by 11 months) than the SX540, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of individual pixels. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The Canon PowerShot SX540 HS has a native sensitivity range from ISO 80 to ISO 3200. The corresponding ISO settings for the Sony Cyber-shot DSC-HX350 are ISO 80 to ISO 3200, with the possibility to increase the ISO range to 80-12800.

Technology-wise, both cameras are equipped with BSI-CMOS (Backside Illuminated Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX540	1/2.3	20.2	5184	3888	1080/60p	20.3	11.7	806	48
2.		Sony HX350	1/2.3	19.9	5152	3864	1080/60p	20.5	11.9	896	49
3.		Canon SX410	1/2.3	19.9	5152	3864	720/30p	20.2	11.6	720	47
4.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
5.		Canon SX530	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	712	47
6.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
7.		Canon SX720	1/2.3	20.2	5184	3888	1080/60p	20.3	11.8	817	48
8.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
9.		Canon SX740	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1050	51
10.		Canon T6	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
11.		Kodak AZ901	1/2.3	20.2	5184	3888	1080/30p	20.3	11.7	806	48
12.		Nikon B700	1/2.3	20.2	5184	3888	4K/30p	20.4	11.8	818	48
13.		Panasonic FZ80	1/2.3	18.0	4896	3672	4K/30p	20.5	11.9	900	49
14.		Panasonic ZS70	1/2.3	20.2	5184	3888	4K/30p	19.1	10.6	106	36
15.		Sony HX90V	1/2.3	18.0	4896	3672	1080/60p	20.2	11.6	738	47
16.		Sony HX400V	1/2.3	20.2	5184	3888	1080/60p	20.1	11.4	629	45
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (1080/60p).

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the HX350 has an electronic viewfinder (202k dots), which can be very helpful when shooting in bright sunlight. In contrast, the SX540 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon SX540, the Sony HX350, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX540	none	n	3.0 / 461	fixed	n	1/2000s	5.9/s	Y	Y
2.		Sony HX350	202	n	3.0 / 922	tilting	n	1/4000s	10.0/s	Y	Y
3.		Canon SX410	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
4.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
5.		Canon SX530	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
6.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
7.		Canon SX720	none	n	3.0 / 922	fixed	n	1/3200s	5.9/s	Y	Y
8.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
9.		Canon SX740	none	n	3.0 / 922	tilting	n	1/3200s	10.0/s	Y	Y
10.		Canon T6	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
11.		Kodak AZ901	202	n	3.0 / 920	swivel	n	1/2000s	5.0/s	Y	Y
12.		Nikon B700	921	n	3.0 / 921	swivel	n	1/4000s	5.0/s	Y	Y
13.		Panasonic FZ80	1166	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	Y	Y
14.		Panasonic ZS70	1166	n	3.0 / 1040	tilting	Y	1/2000s	10.0/s	Y	Y
15.		Sony HX90V	638	n	3.0 / 921	tilting	n	1/2000s	10.0/s	Y	Y
16.		Sony HX400V	210	n	3.0 / 921	tilting	n	1/4000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

Both the SX540 and the HX350 have zoom lenses built in. The SX540 has a 24-1200mm f/3.4-6.5 optic and the HX350 offers a 24-1200mm f/2.8-6.3 (focal lengths in full frame equivalent terms). The HX350 offers the faster maximum aperture.

The SX540 writes its imaging data to SDXC cards, while the HX350 uses SDXC or Memory Stick PRO Duo cards. The SX540 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the HX350 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX540 HS and Sony Cyber-shot DSC-HX350 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX540	-	stereo / mono	-	-	mini	2.0	Y	Y	-
2.		Sony HX350	-	stereo / mono	-	-	micro	2.0	-	-	-
3.		Canon SX410	-	stereo / mono	-	-	-	2.0	-	-	-
4.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
5.		Canon SX530	-	stereo / mono	-	-	mini	2.0	Y	Y	-
6.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Canon SX720	-	stereo / mono	-	-	micro	2.0	Y	Y	-
8.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
9.		Canon SX740	-	stereo / mono	-	-	micro	2.0	Y	-	Y
10.		Canon T6	Y	mono / mono	-	-	mini	2.0	Y	Y	-
11.		Kodak AZ901	-	stereo / mono	-	-	micro	2.0	Y	-	-
12.		Nikon B700	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
13.		Panasonic FZ80	Y	stereo / mono	-	-	micro	2.0	Y	-	-
14.		Panasonic ZS70	-	stereo / mono	-	-	micro	2.0	Y	-	-
15.		Sony HX90V	-	stereo / mono	-	-	micro	2.0	Y	Y	-
16.		Sony HX400V	Y	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the SX540 offers wifi support, while the HX350 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the SX540 and the HX350 have been discontinued, but can regularly be found used on ebay. Neither of the two has a direct successor, so they represent the end of the respective camera lines from Canon and Sony. Further information on the features and operation of the SX540 and HX350 can be found, respectively, in the Canon SX540 Manual (free pdf) or the online Sony HX350 Manual.

Review summary

So how do things add up? Which of the two cameras – the Canon SX540 or the Sony HX350 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Canon PowerShot SX540 HS:

• More compact: Is smaller (120x82mm vs 130x93mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 210g or 32 percent) and hence easier to carry around.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More affordable: Was introduced into a lower priced segment (11 percent cheaper at launch).
• More heavily discounted: Has been on the market for longer (launched in January 2016).

Reasons to prefer the Sony Cyber-shot DSC-HX350:

• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (922k vs 461k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (10 vs 5.9 flaps/sec) to capture the decisive moment.
• Better light gathering: Has a lens with a wider maximum aperture (f/2.8 vs f/3.4).
• Longer lasting: Gets more shots (300 versus 205) out of a single battery charge.
• More modern: Was introduced somewhat (11 months) more recently.

If the count of individual advantages (bullet points above) is taken as a guide, the HX350 comes out slightly ahead of the SX540 (8 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX540 and the Sony HX350 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the SX540 or the HX350. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon SX540	..	..	..	..	..	..	Jan 2016	399	ebay.com
2.		Sony HX350	..	..	..	..	..	4/5	Dec 2016	449	ebay.com
3.		Canon SX410	..	o	..	..	..	..	Feb 2015	279	ebay.com
4.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	299	ebay.com
5.		Canon SX530	..	+ +	..	..	4/5	4/5	Jan 2015	429	ebay.com
6.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	349	ebay.com
7.		Canon SX720	..	+	..	..	4/5	4.5/5	Feb 2016	379	ebay.com
8.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	399	ebay.com
9.		Canon SX740	..	+	3.5/5	..	4/5	4/5	Jul 2018	399	amazon.com
10.		Canon T6	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	449	ebay.com
11.		Kodak AZ901	..	..	..	..	3.5/5	3/5	Jan 2016	499	amazon.com
12.		Nikon B700	..	+	..	..	4/5	4/5	Feb 2016	499	ebay.com
13.		Panasonic FZ80	..	+ +	..	..	4.5/5	4.5/5	Jan 2017	399	ebay.com
14.		Panasonic ZS70	..	+ +	..	..	4/5	4/5	Apr 2017	449	ebay.com
15.		Sony HX90V	4/5	+ +	..	..	4/5	4.5/5	Apr 2015	429	ebay.com
16.		Sony HX400V	4/5	+ +	..	..	4/5	4/5	Feb 2014	499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
