Canon SX510 vs Panasonic GH1
The Canon PowerShot SX510 HS and the Panasonic Lumix DMC-GH1 are two digital cameras that were revealed to the public, respectively, in August 2013 and March 2009. The SX510 is a fixed lens compact, while the GH1 is a mirrorless interchangeable lens camera. The cameras are based on a 1/2.3-inch (SX510) and a Four Thirds (GH1) sensor. The Canon has a resolution of 15.9 megapixels, whereas the Panasonic provides 12 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX510 HS and the Panasonic Lumix DMC-GH1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison
The side-by-side display below illustrates the physical size and weight of the Canon SX510 and the Panasonic GH1. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The GH1 can be obtained in two different colors (black, red), while the SX510 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GH1 is considerably larger (53 percent) than the Canon SX510. In this context, it is worth noting that neither the SX510 nor the GH1 are weather-sealed.

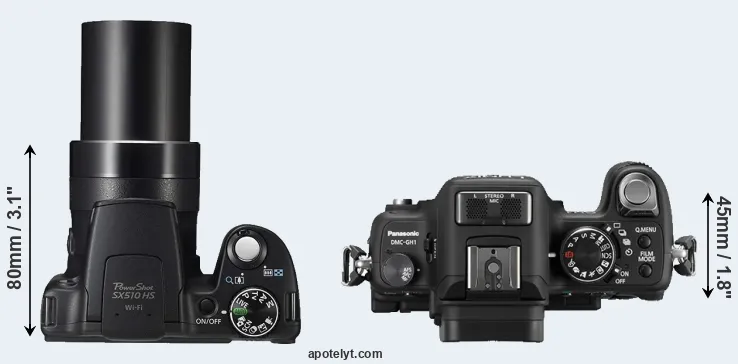

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX510 has a lens built in, whereas the GH1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the GH1 and their specifications in the Micro Four Thirds Lens Catalog.
Concerning battery life, the SX510 gets 250 shots out of its Canon NB-6LH battery, while the GH1 can take 300 images on a single charge of its Panasonic DMW-BLB13 power pack.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
Camera Model |
Camera Width |
Camera Height |
Camera Depth |
Camera Weight |
Battery Life |
Weather Sealing |
Camera Launch |
Launch Price |
Street Price |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon SX510 | 104 mm | 70 mm | 80 mm | 349 g | 250 | n | Aug 2013 | US$ 249 | ebay.com | |
2. | Panasonic GH1 | 124 mm | 90 mm | 45 mm | 385 g | 300 | n | Mar 2009 | US$ 899 | ebay.com | |
3. | Canon SX60 | 128 mm | 93 mm | 114 mm | 650 g | 340 | n | Sep 2014 | US$ 549 | ebay.com | |
4. | Canon SX400 | 104 mm | 69 mm | 80 mm | 313 g | 190 | n | Jul 2014 | US$ 249 | ebay.com | |
5. | Canon SX410 | 104 mm | 69 mm | 85 mm | 325 g | 185 | n | Feb 2015 | US$ 279 | ebay.com | |
6. | Canon SX420 | 104 mm | 69 mm | 85 mm | 325 g | 195 | n | Jan 2016 | US$ 299 | ebay.com | |
7. | Canon SX430 | 104 mm | 69 mm | 85 mm | 323 g | 195 | n | Jan 2017 | US$ 299 | ebay.com | |
8. | Canon SX500 | 104 mm | 70 mm | 80 mm | 341 g | 195 | n | Aug 2012 | US$ 329 | ebay.com | |
9. | Canon SX520 | 120 mm | 82 mm | 92 mm | 441 g | 210 | n | Jul 2014 | US$ 399 | ebay.com | |
10. | Canon SX600 | 104 mm | 61 mm | 26 mm | 188 g | 290 | n | Jan 2014 | US$ 249 | ebay.com | |
11. | Canon SX700 | 113 mm | 66 mm | 35 mm | 269 g | 250 | n | Feb 2014 | US$ 349 | ebay.com | |
12. | Panasonic G1 | 124 mm | 84 mm | 45 mm | 360 g | 410 | n | Sep 2008 | US$ 599 | ebay.com | |
13. | Panasonic G2 | 124 mm | 84 mm | 74 mm | 428 g | 360 | n | Mar 2010 | US$ 599 | ebay.com | |
14. | Panasonic G10 | 124 mm | 84 mm | 74 mm | 388 g | 380 | n | Mar 2010 | US$ 499 | ebay.com | |
15. | Panasonic GH2 | 124 mm | 90 mm | 76 mm | 442 g | 330 | n | Sep 2010 | US$ 899 | ebay.com | |
16. | Panasonic LX100 | 115 mm | 66 mm | 55 mm | 393 g | 300 | n | Sep 2014 | US$ 899 | ebay.com | |
17. | Sony H200 | 123 mm | 83 mm | 87 mm | 530 g | 240 | n | Jan 2013 | US$ 249 | ebay.com | |
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders. | |||||||||||
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The SX510 was launched at a lower price than the GH1, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
Sensor comparison
The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

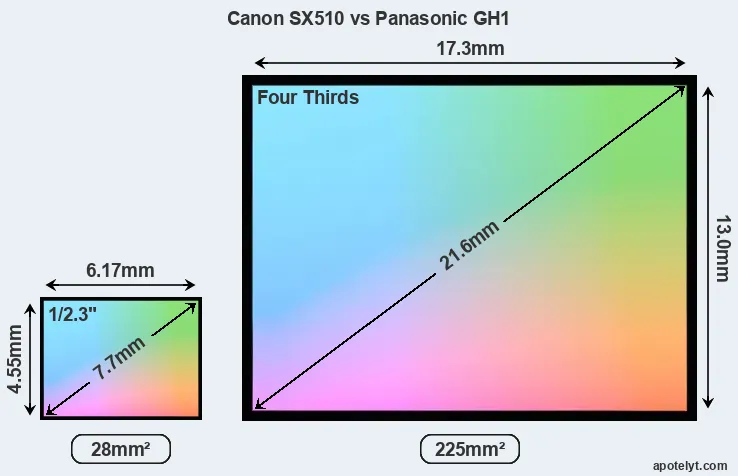

Of the two cameras under consideration, the Canon SX510 features a 1/2.3-inch sensor and the Panasonic GH1 a Four Thirds sensor. The sensor area in the GH1 is 704 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.
Despite having a smaller sensor, the Canon SX510 offers a higher resolution of 15.9 megapixels, compared with 12 MP of the Panasonic GH1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.33μm versus 4.33μm for the GH1). However, it should be noted that the SX510 is much more recent (by 4 years and 5 months) than the GH1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the SX510 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon SX510 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX510 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Panasonic GH1 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.
The Canon PowerShot SX510 HS has a native sensitivity range from ISO 80 to ISO 3200. The corresponding ISO settings for the Panasonic Lumix DMC-GH1 are ISO 100 to ISO 1600, with the possibility to increase the ISO range to 100-3200.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
Camera Model |
Sensor Class |
Resolution (MP) |
Horiz. Pixels |
Vert. Pixels |
Video Format |
DXO Portrait |
DXO Landscape |
DXO Sports |
DXO Overall |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon SX510 | 1/2.3 | 15.9 | 4608 | 3456 | 1080/24p | 20.0 | 11.3 | 586 | 45 | |
2. | Panasonic GH1 | Four Thirds | 12.0 | 4000 | 3000 | 1080/24p | 21.6 | 11.6 | 772 | 64 | |
3. | Canon SX60 | 1/2.3 | 14.2 | 4608 | 3072 | 1080/60p | 19.2 | 10.8 | 127 | 39 | |
4. | Canon SX400 | 1/2.3 | 15.9 | 4608 | 3456 | 720/30p | 20.1 | 11.5 | 672 | 46 | |
5. | Canon SX410 | 1/2.3 | 19.9 | 5152 | 3864 | 720/30p | 20.2 | 11.6 | 720 | 47 | |
6. | Canon SX420 | 1/2.3 | 19.9 | 5152 | 3864 | 720/25p | 20.3 | 11.7 | 806 | 48 | |
7. | Canon SX430 | 1/2.3 | 19.9 | 5152 | 3864 | 720/25p | 20.5 | 11.9 | 900 | 49 | |
8. | Canon SX500 | 1/2.3 | 15.9 | 4608 | 3456 | 720/30p | 19.8 | 11.1 | 494 | 43 | |
9. | Canon SX520 | 1/2.3 | 15.9 | 4608 | 3456 | 1080/30p | 20.1 | 11.5 | 672 | 46 | |
10. | Canon SX600 | 1/2.3 | 15.9 | 4608 | 3456 | 1080/30p | 20.0 | 11.4 | 620 | 45 | |
11. | Canon SX700 | 1/2.3 | 15.9 | 4608 | 3456 | 1080/60p | 20.1 | 11.4 | 629 | 45 | |
12. | Panasonic G1 | Four Thirds | 12.0 | 4000 | 3000 | none | 21.1 | 10.3 | 463 | 53 | |
13. | Panasonic G2 | Four Thirds | 12.0 | 4000 | 3000 | 720/30p | 21.2 | 10.3 | 493 | 53 | |
14. | Panasonic G10 | Four Thirds | 12.0 | 4000 | 3000 | 720/30p | 21.2 | 10.1 | 411 | 52 | |
15. | Panasonic GH2 | Four Thirds | 15.9 | 4608 | 3456 | 1080/60i | 21.2 | 11.3 | 655 | 60 | |
16. | Panasonic LX100 | Four Thirds | 12.7 | 4112 | 3088 | 4K/30p | 22.3 | 12.5 | 553 | 67 | |
17. | Sony H200 | 1/2.3 | 15.2 | 5184 | 2930 | 720/30p | 19.9 | 11.2 | 529 | 44 | |
Note: DXO values in italics represent estimates based on sensor size and age. |
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (1080/24p).
Feature comparison
Apart from body and sensor, cameras can and do differ across a range of features. For example, the GH1 has an electronic viewfinder (1440k dots), which can be very helpful when shooting in bright sunlight. In contrast, the SX510 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon SX510, the Panasonic GH1, and comparable cameras.
Camera Model |
Viewfinder (Type or 000 dots) |
Control Panel (yes/no) |
LCD Specifications (inch/000 dots) |
LCD Attach- ment |
Touch Screen (yes/no) |
Max Shutter Speed * |
Max Shutter Flaps * |
Built-in Flash (yes/no) |
Built-in Image Stab |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon SX510 | none | n | 3.0 / 461 | fixed | n | 1/1600s | 3.8/s | Y | Y | |
2. | Panasonic GH1 | 1440 | n | 3.0 / 460 | swivel | n | 1/4000s | 3.0/s | Y | n | |
3. | Canon SX60 | 922 | n | 3.0 / 922 | swivel | n | 1/2000s | 6.4/s | Y | Y | |
4. | Canon SX400 | none | n | 3.0 / 230 | fixed | n | 1/1600s | 0.8/s | Y | Y | |
5. | Canon SX410 | none | n | 3.0 / 230 | fixed | n | 1/4000s | 0.5/s | Y | Y | |
6. | Canon SX420 | none | n | 3.0 / 230 | fixed | n | 1/4000s | 0.5/s | Y | Y | |
7. | Canon SX430 | none | n | 3.0 / 230 | fixed | n | 1/4000s | 0.5/s | Y | Y | |
8. | Canon SX500 | none | n | 3.0 / 461 | fixed | n | 1/1600s | 0.8/s | Y | Y | |
9. | Canon SX520 | none | n | 3.0 / 461 | fixed | n | 1/2000s | 1.6/s | Y | Y | |
10. | Canon SX600 | none | n | 3.0 / 461 | fixed | n | 1/2000s | 3.9/s | Y | Y | |
11. | Canon SX700 | none | n | 3.0 / 922 | fixed | n | 1/3200s | 8.5/s | Y | Y | |
12. | Panasonic G1 | 1440 | n | 3.0 / 460 | swivel | n | 1/4000s | 3.0/s | Y | n | |
13. | Panasonic G2 | 1440 | n | 3.0 / 460 | swivel | Y | 1/4000s | 2.6/s | Y | n | |
14. | Panasonic G10 | 202 | n | 3.0 / 460 | fixed | n | 1/4000s | 2.6/s | Y | n | |
15. | Panasonic GH2 | 1534 | n | 3.0 / 460 | swivel | n | 1/4000s | 3.0/s | Y | n | |
16. | Panasonic LX100 | 2764 | n | 3.0 / 921 | fixed | n | 1/4000s | 11.0/s | n | Y | |
17. | Sony H200 | none | n | 3.0 / 460 | fixed | n | 1/1500s | 0.8/s | Y | Y | |
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one. |
The SX510 writes its imaging data to SDXC cards, while the GH1 uses SDHC cards.
Connectivity comparison
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX510 HS and Panasonic Lumix DMC-GH1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Camera Model |
Hotshoe Port |
Internal Mic / Speaker |
Microphone Port |
Headphone Port |
HDMI Port |
USB Port |
WiFi Support |
NFC Support |
Bluetooth Support |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon SX510 | - | stereo / mono | - | - | mini | 2.0 | Y | - | - | |
2. | Panasonic GH1 | Y | stereo / - | Y | - | mini | 2.0 | - | - | - | |
3. | Canon SX60 | Y | stereo / mono | Y | - | mini | 2.0 | Y | Y | - | |
4. | Canon SX400 | - | stereo / mono | - | - | - | 2.0 | - | - | - | |
5. | Canon SX410 | - | stereo / mono | - | - | - | 2.0 | - | - | - | |
6. | Canon SX420 | - | mono / mono | - | - | - | 2.0 | Y | Y | - | |
7. | Canon SX430 | - | mono / mono | - | - | - | 2.0 | Y | Y | - | |
8. | Canon SX500 | - | stereo / mono | - | - | - | 2.0 | - | - | - | |
9. | Canon SX520 | - | stereo / mono | - | - | mini | 2.0 | - | - | - | |
10. | Canon SX600 | - | mono / mono | - | - | micro | 2.0 | Y | Y | - | |
11. | Canon SX700 | - | stereo / mono | - | - | micro | 2.0 | Y | Y | - | |
12. | Panasonic G1 | Y | - / - | - | - | mini | 2.0 | - | - | - | |
13. | Panasonic G2 | Y | stereo / mono | - | - | mini | 2.0 | - | - | - | |
14. | Panasonic G10 | Y | mono / - | - | - | mini | 2.0 | - | - | - | |
15. | Panasonic GH2 | Y | stereo / mono | Y | - | mini | 2.0 | - | - | - | |
16. | Panasonic LX100 | Y | stereo / mono | - | - | micro | 2.0 | Y | Y | - | |
17. | Sony H200 | - | mono / mono | - | - | - | 2.0 | - | - | - |
It is notable that the SX510 offers wifi support, while the GH1 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Both the SX510 and the GH1 have been discontinued, but can regularly be found used on ebay. The GH1 was replaced by the Panasonic GH2, while the SX510 was followed by the Canon SX520. Further information on the features and operation of the SX510 and GH1 can be found, respectively, in the Canon SX510 Manual (free pdf) or the online Panasonic GH1 Manual.
Review summary
So what is the bottom line? Is there a clear favorite between the Canon SX510 and the Panasonic GH1? Which camera is better? The listing below highlights the relative strengths of the two models.
Arguments in favor of the Canon PowerShot SX510 HS:
- More detail: Offers more megapixels (15.9 vs 12MP) with a 15% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Faster burst: Shoots at higher frequency (3.8 vs 3 flaps/sec) to capture the decisive moment.
- Ready to shoot: Has a lens built-in, whereas the GH1 requires a separate lens.
- More compact: Is smaller (104x70mm vs 124x90mm) and thus needs less room in the bag.
- Less heavy: Is lighter even though it comes with a built-in lens (unlike the GH1).
- Sharper images: Has hand-shake reducing image stabilization built-in.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Reflects 4 years and 5 months of technical progress since the GH1 launch.
Reasons to prefer the Panasonic Lumix DMC-GH1:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/1600s) to freeze action.
- More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
- Longer lasting: Gets more shots (300 versus 250) out of a single battery charge.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- More heavily discounted: Has been around for much longer (launched in March 2009).
If the count of individual advantages (bullet points above) is taken as a guide, the GH1 is the clear winner of the contest (14 : 10 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon SX510 and the Panasonic GH1 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the SX510 or the GH1 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
Expert reviews
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
Camera Model |
AP score |
CL score |
DCW score |
DPR score |
EPZ score |
PB score |
Camera Launch |
Launch Price |
Street Price |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon SX510 | .. | + + | .. | .. | 4.5/5 | 4/5 | Aug 2013 | US$ 249 | ebay.com | |
2. | Panasonic GH1 | .. | + + | .. | 72/100 | 4.5/5 | 4.5/5 | Mar 2009 | US$ 899 | ebay.com | |
3. | Canon SX60 | 3/5 | + + | .. | 75/100 | 4/5 | 4.5/5 | Sep 2014 | US$ 549 | ebay.com | |
4. | Canon SX400 | .. | + | .. | .. | .. | .. | Jul 2014 | US$ 249 | ebay.com | |
5. | Canon SX410 | .. | o | .. | .. | .. | .. | Feb 2015 | US$ 279 | ebay.com | |
6. | Canon SX420 | .. | .. | .. | .. | .. | 3/5 | Jan 2016 | US$ 299 | ebay.com | |
7. | Canon SX430 | .. | .. | .. | .. | 3.5/5 | 3.5/5 | Jan 2017 | US$ 299 | ebay.com | |
8. | Canon SX500 | .. | + + | .. | .. | 4/5 | 4/5 | Aug 2012 | US$ 329 | ebay.com | |
9. | Canon SX520 | .. | + | .. | .. | 3.5/5 | 3.5/5 | Jul 2014 | US$ 399 | ebay.com | |
10. | Canon SX600 | .. | + | .. | .. | 4/5 | 4/5 | Jan 2014 | US$ 249 | ebay.com | |
11. | Canon SX700 | .. | + + | .. | .. | 4/5 | 4/5 | Feb 2014 | US$ 349 | ebay.com | |
12. | Panasonic G1 | .. | + + | .. | 70/100 | 4/5 | 4.5/5 | Sep 2008 | US$ 599 | ebay.com | |
13. | Panasonic G2 | .. | .. | .. | 72/100 | 4/5 | 4.5/5 | Mar 2010 | US$ 599 | ebay.com | |
14. | Panasonic G10 | 3/5 | .. | .. | 70/100 | 4/5 | 4/5 | Mar 2010 | US$ 499 | ebay.com | |
15. | Panasonic GH2 | 5/5 | + + | .. | 79/100 | 4.5/5 | 5/5 | Sep 2010 | US$ 899 | ebay.com | |
16. | Panasonic LX100 | 5/5 | + + | .. | 85/100 | 5/5 | 5/5 | Sep 2014 | US$ 899 | ebay.com | |
17. | Sony H200 | .. | .. | .. | .. | 3.5/5 | 3.5/5 | Jan 2013 | US$ 249 | ebay.com | |
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available. |
The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 400D vs Panasonic GH1
- Canon 7D II vs Canon SX510
- Canon SX40 vs Canon SX510
- Canon SX510 vs Canon SX730
- Canon SX510 vs Nikon D3100
- Canon SX510 vs Panasonic FZ150
- Canon SX510 vs Sony RX0
- Nikon D600 vs Panasonic GH1
- Nikon Df vs Panasonic GH1
- Panasonic GH1 vs Panasonic S1H
- Panasonic GH1 vs Pentax MX-1
- Panasonic GH1 vs Sony RX100 V
Specifications: Canon SX510 vs Panasonic GH1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
Camera Model | Canon SX510 | Panasonic GH1 |
---|---|---|
Camera Type | Fixed lens compact camera | Mirrorless system camera |
Camera Lens | 24-720mm f/3.4-5.8 | Micro Four Thirds lenses |
Launch Date | August 2013 | March 2009 |
Launch Price | USD 249 | USD 899 |
Sensor Specs | Canon SX510 | Panasonic GH1 |
Sensor Technology | CMOS | CMOS |
Sensor Format | 1/2.3" Sensor | Four Thirds Sensor |
Sensor Size | 6.17 x 4.55 mm | 17.3 x 13.0 mm |
Sensor Area | 28.0735 mm2 | 224.9 mm2 |
Sensor Diagonal | 7.7 mm | 21.6 mm |
Crop Factor | 5.6x | 2.0x |
Sensor Resolution | 15.9 Megapixels | 12 Megapixels |
Image Resolution | 4608 x 3456 pixels | 4000 x 3000 pixels |
Pixel Pitch | 1.33 μm | 4.33 μm |
Pixel Density | 56.73 MP/cm2 | 5.34 MP/cm2 |
Moiré control | no AA filter | Anti-Alias filter |
Movie Capability | 1080/24p Video | 1080/24p Video |
ISO Setting | 80 - 3,200 ISO | 100 - 1,600 ISO |
ISO Boost | no Enhancement | 100 - 3,200 ISO |
Image Processor | DIGIC 4 | Venus HD |
DXO Sensor Quality (score) | .. | 64 |
DXO Color Depth (bits) | .. | 21.6 |
DXO Dynamic Range (EV) | .. | 11.6 |
DXO Low Light (ISO) | .. | 772 |
Screen Specs | Canon SX510 | Panasonic GH1 |
Viewfinder Type | no viewfinder | Electronic viewfinder |
Viewfinder Field of View | 100% | |
Viewfinder Magnification | 0.70x | |
Viewfinder Resolution | 1440k dots | |
LCD Framing | Live View | Live View |
Rear LCD Size | 3.0inch | 3.0inch |
LCD Resolution | 461k dots | 460k dots |
LCD Attachment | Fixed screen | Swivel screen |
Shooting Specs | Canon SX510 | Panasonic GH1 |
Focus System | Contrast-detect AF | Contrast-detect AF |
Continuous Shooting | 3.8 shutter flaps/s | 3 shutter flaps/s |
Fill Flash | Built-in Flash | Built-in Flash |
Storage Medium | SDXC cards | SDHC cards |
Single or Dual Card Slots | Single card slot | Single card slot |
UHS card support | no | no |
Connectivity Specs | Canon SX510 | Panasonic GH1 |
External Flash | no Hotshoe | Hotshoe |
USB Connector | USB 2.0 | USB 2.0 |
HDMI Port | mini HDMI | mini HDMI |
Microphone Port | no MIC socket | External MIC port |
Wifi Support | Wifi built-in | no Wifi |
Body Specs | Canon SX510 | Panasonic GH1 |
Battery Type | Canon NB-6LH | Panasonic DMW-BLB13 |
Battery Life (CIPA) | 250 shots per charge | 300 shots per charge |
Body Dimensions |
104 x 70 x 80 mm (4.1 x 2.8 x 3.1 in) |
124 x 90 x 45 mm (4.9 x 3.5 x 1.8 in) |
Camera Weight | 349 g (12.3 oz) | 385 g (13.6 oz) |
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
