Canon SX20 vs Fujifilm X-T10

The Canon PowerShot SX20 IS and the Fujifilm X-T10 are two digital cameras that were officially introduced, respectively, in August 2009 and May 2015. The SX20 is a fixed lens compact, while the X-T10 is a mirrorless interchangeable lens camera. The cameras are based on a 1/2.3-inch (SX20) and an APS-C (X-T10) sensor. The Canon has a resolution of 12 megapixels, whereas the Fujifilm provides 16 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX20		Fujifilm X-T10
Fixed lens compact camera		Mirrorless system camera
28-560mm f/2.8-5.7		Fujifilm X mount lenses
12 MP – 1/2.3" sensor		16 MP – APS-C sensor
720/30p Video		1080/60p Video
ISO 100-3,200		ISO 200-6,400 (100 - 51,200)
Electronic viewfinder (202k dots)		Electronic viewfinder (2360k dots)
2.5" LCD – 230k dots		3.0" LCD – 920k dots
Swivel screen (not touch-sensitive)		Tilting screen (no touchscreen)
0.7 shutter flaps per second		8 shutter flaps per second
123 x 88 x 87 mm, 600 g		118 x 83 x 41 mm, 381 g

Check SX20 offers at
ebay.com
Check X-T10 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX20 IS and the Fujifilm X-T10? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

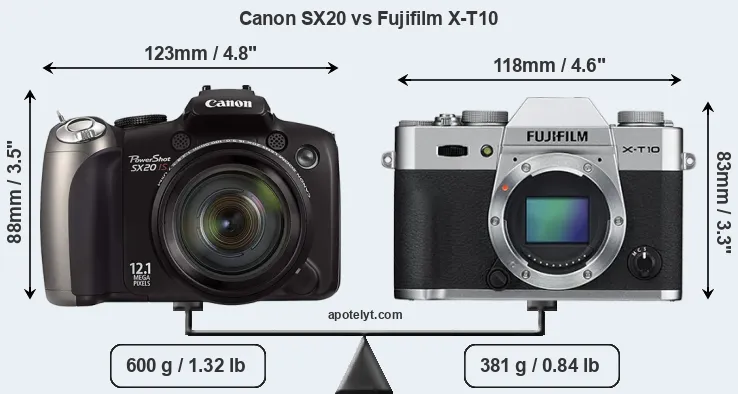

The side-by-side display below illustrates the physical size and weight of the Canon SX20 and the Fujifilm X-T10. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

The X-T10 can be obtained in two different colors (black, silver), while the SX20 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X-T10 is notably smaller (10 percent) than the Canon SX20. In this context, it is worth noting that neither the SX20 nor the X-T10 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX20 has a lens built in, whereas the X-T10 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the X-T10 and their specifications in the Fujinon X Lens Catalog.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon SX20	123 mm	88 mm	87 mm	600 g	..	n	Aug 2009	399	ebay.com
2.		Fujifilm X-T10	118 mm	83 mm	41 mm	381 g	350	n	May 2015	799	ebay.com
3.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	399	ebay.com
4.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	549	ebay.com
5.		Canon SX50	123 mm	87 mm	106 mm	595 g	315	n	Sep 2012	429	ebay.com
6.		Canon SX40	123 mm	92 mm	108 mm	600 g	380	n	Sep 2011	429	ebay.com
7.		Canon SX30	123 mm	92 mm	108 mm	601 g	370	n	Sep 2010	429	ebay.com
8.		Canon SX10	123 mm	88 mm	87 mm	600 g	..	n	Sep 2008	399	ebay.com
9.		Canon SX1	128 mm	88 mm	88 mm	615 g	..	n	Sep 2008	599	ebay.com
10.		Canon XS	126 mm	98 mm	65 mm	502 g	500	n	Jun 2008	449	ebay.com
11.		Fujifilm X-T20	118 mm	83 mm	41 mm	383 g	350	n	Jan 2017	899	ebay.com
12.		Fujifilm X70	113 mm	64 mm	44 mm	340 g	330	n	Jan 2016	799	ebay.com
13.		Fujifilm X-E2S	129 mm	75 mm	37 mm	350 g	350	n	Jan 2016	699	ebay.com
14.		Fujifilm X-E2	129 mm	75 mm	37 mm	350 g	350	n	Oct 2013	999	ebay.com
15.		Fujifilm X-M1	117 mm	67 mm	39 mm	330 g	350	n	Jun 2013	699	ebay.com
16.		Leica V-LUX 2	124 mm	80 mm	95 mm	520 g	410	n	Sep 2010	849	ebay.com
17.		Panasonic FZ100	124 mm	82 mm	92 mm	540 g	410	n	Jul 2010	499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX20 was launched at a lower price than the X-T10, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

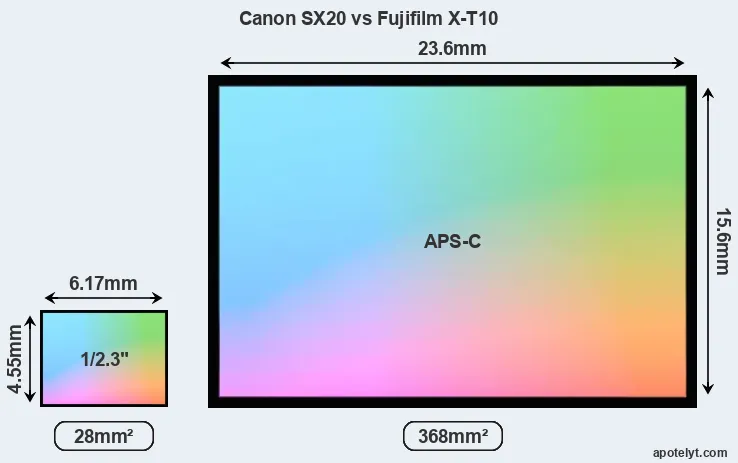

Of the two cameras under consideration, the Canon SX20 features a 1/2.3-inch sensor and the Fujifilm X-T10 an APS-C sensor. The sensor area in the X-T10 is 1214 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.5. The sensor in the SX20 has a native 4:3 aspect ratio, while the one in the X-T10 offers a 3:2 aspect.

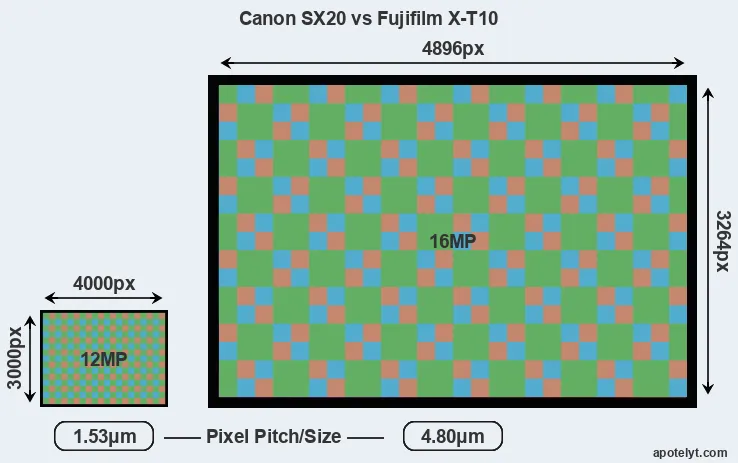

With 16MP, the X-T10 offers a higher resolution than the SX20 (12MP), but the X-T10 nevertheless has larger individual pixels (pixel pitch of 4.80μm versus 1.53μm for the SX20) due to its larger sensor. Moreover, the X-T10 is a much more recent model (by 5 years and 8 months) than the SX20, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Fujifilm X-T10 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the X-T10 for good quality output (200 dots per inch) amounts to 24.5 x 16.3 inches or 62.2 x 41.5 cm, for very good quality (250 dpi) 19.6 x 13.1 inches or 49.7 x 33.2 cm, and for excellent quality (300 dpi) 16.3 x 10.9 inches or 41.5 x 27.6 cm. The corresponding values for the Canon SX20 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The X-T10 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon PowerShot SX20 IS has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Fujifilm X-T10 are ISO 200 to ISO 6400, with the possibility to increase the ISO range to 100-51200.

In terms of underlying technology, the SX20 is build around a CCD sensor, while the X-T10 uses a CMOS imager. Like most digital cameras, the SX20 uses a Bayer filter for capturing RGB colors on a square grid of photosensors. In contrast, the X-T10 employs a more randomized X-Trans layout of photosites, which according to Fujifilm helps to minimize moiré.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX20	1/2.3	12.0	4000	3000	720/30p	19.2	10.5	225	37
2.		Fujifilm X-T10	APS-C	16.0	4896	3264	1080/60p	23.7	12.9	1546	79
3.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
4.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
5.		Canon SX50	1/2.3	12.0	4000	3000	1080/24p	20.3	11.2	179	47
6.		Canon SX40	1/2.3	12.0	4000	3000	1080/24p	19.6	10.9	409	41
7.		Canon SX30	1/2.3	14.0	4320	3240	720/30p	19.4	10.7	320	39
8.		Canon SX10	1/2.3	10.0	3648	2736	480/30p	19.0	10.3	144	35
9.		Canon SX1	1/2.3	10.0	3648	2736	1080/30p	19.0	10.3	144	35
10.		Canon XS	APS-C	10.1	3888	2592	none	22.0	10.9	719	62
11.		Fujifilm X-T20	APS-C	24.0	6000	4000	4K/30p	23.9	13.2	1704	81
12.		Fujifilm X70	APS-C	16.0	4896	3264	1080/60p	23.7	13.0	1608	80
13.		Fujifilm X-E2S	APS-C	16.0	4896	3264	1080/60p	23.7	13.0	1608	80
14.		Fujifilm X-E2	APS-C	16.0	4896	3264	1080/60p	23.4	12.6	1400	77
15.		Fujifilm X-M1	APS-C	16.0	4896	3264	1080/30p	23.4	12.6	1371	76
16.		Leica V-LUX 2	1/2.3	14.0	4320	3240	1080/60i	19.4	10.7	321	39
17.		Panasonic FZ100	1/2.3	14.0	4320	3240	1080/60i	19.4	10.7	306	39
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the X-T10 provides a better video resolution than the SX20. It can shoot movie footage at 1080/60p, while the Canon is limited to 720/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The two cameras under review are similar with respect to both having an electronic viewfinder. However, the one in the X-T10 offers a substantially higher resolution than the one in the SX20 (2360k vs 202k dots). The table below summarizes some of the other core capabilities of the Canon SX20 and Fujifilm X-T10 in connection with corresponding information for a sample of similar cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX20	202	n	2.5 / 230	swivel	n	1/3200s	0.7/s	Y	Y
2.		Fujifilm X-T10	2360	n	3.0 / 920	tilting	n	1/4000s	8.0/s	Y	n
3.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
4.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
5.		Canon SX50	202	n	3.0 / 461	swivel	n	1/2000s	2.2/s	Y	Y
6.		Canon SX40	202	n	2.7 / 230	swivel	n	1/3200s	10.3/s	Y	Y
7.		Canon SX30	202	n	2.7 / 230	swivel	n	1/3200s	0.6/s	Y	Y
8.		Canon SX10	202	n	2.5 / 230	swivel	n	1/3200s	0.7/s	Y	Y
9.		Canon SX1	202	n	2.8 / 230	swivel	n	1/3200s	4.0/s	Y	Y
10.		Canon XS	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
11.		Fujifilm X-T20	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
12.		Fujifilm X70	optional	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
13.		Fujifilm X-E2S	2360	n	3.0 / 1040	fixed	n	1/4000s	7.0/s	Y	n
14.		Fujifilm X-E2	2360	n	3.0 / 1040	fixed	n	1/4000s	7.0/s	Y	n
15.		Fujifilm X-M1	none	n	3.0 / 920	tilting	n	1/4000s	5.6/s	Y	n
16.		Leica V-LUX 2	202	n	3.0 / 460	swivel	n	1/2000s	11.0/s	Y	Y
17.		Panasonic FZ100	202	n	3.0 / 460	swivel	n	1/2000s	11.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Fujifilm X-T10 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The SX20 writes its imaging data to SDHC cards, while the X-T10 uses SDXC cards. The X-T10 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the SX20 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX20 IS and Fujifilm X-T10 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX20	Y	stereo / mono	-	-	YES	2.0	-	-	-
2.		Fujifilm X-T10	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
3.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
4.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
5.		Canon SX50	Y	stereo / mono	-	-	mini	2.0	-	-	-
6.		Canon SX40	Y	stereo / mono	-	-	YES	2.0	-	-	-
7.		Canon SX30	Y	stereo / mono	-	-	YES	2.0	-	-	-
8.		Canon SX10	Y	stereo / mono	-	-	-	2.0	-	-	-
9.		Canon SX1	Y	stereo / mono	-	-	YES	2.0	-	-	-
10.		Canon XS	Y	- / -	-	-	-	2.0	-	-	-
11.		Fujifilm X-T20	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
12.		Fujifilm X70	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
13.		Fujifilm X-E2S	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
14.		Fujifilm X-E2	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
15.		Fujifilm X-M1	Y	stereo / mono	-	-	mini	2.0	Y	-	-
16.		Leica V-LUX 2	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Panasonic FZ100	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the X-T10 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the SX20 does not provide wifi capability.

Both the SX20 and the X-T10 have been discontinued, but can regularly be found used on ebay. The SX20 was replaced by the Canon SX30, while the X-T10 was followed by the Fujifilm X-T20. Further information on the features and operation of the SX20 and X-T10 can be found, respectively, in the Canon SX20 Manual (free pdf) or the online Fujifilm X-T10 Manual.

Review summary

So what conclusions can be drawn? Is the Canon SX20 better than the Fujifilm X-T10 or vice versa? The listing below highlights the relative strengths of the two models.

Advantages of the Canon PowerShot SX20 IS:

• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Ready to shoot: Has a lens built-in, whereas the X-T10 requires a separate lens.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More heavily discounted: Has been available for much longer (launched in August 2009).

Reasons to prefer the Fujifilm X-T10:

• More detail: Has more megapixels (16 vs 12MP), which boosts linear resolution by 18%.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better video: Provides higher definition movie capture (1080/60p vs 720/30p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• More detailed viewfinder: Has higher resolution electronic viewfinder (2360k vs 202k dots).
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (920k vs 230k dots).
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/3200s) to freeze action.
• Faster burst: Shoots at higher frequency (8 vs 0.7 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Reflects 5 years and 8 months of technical progress since the SX20 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the X-T10 is the clear winner of the contest (18 : 5 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX20 and the Fujifilm X-T10 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the SX20 or the X-T10 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon SX20	..	+ +	..	73/100	..	4/5	Aug 2009	399	ebay.com
2.		Fujifilm X-T10	4.5/5	+ +	..	80/100	5/5	5/5	May 2015	799	ebay.com
3.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	399	ebay.com
4.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	549	ebay.com
5.		Canon SX50	3/5	+ +	..	72/100	4.5/5	4.5/5	Sep 2012	429	ebay.com
6.		Canon SX40	..	+	..	..	4.5/5	4/5	Sep 2011	429	ebay.com
7.		Canon SX30	3/5	+ +	..	..	3.5/5	4/5	Sep 2010	429	ebay.com
8.		Canon SX10	..	+ +	..	..	..	4/5	Sep 2008	399	ebay.com
9.		Canon SX1	..	+ +	..	+	..	3.5/5	Sep 2008	599	ebay.com
10.		Canon XS	..	82/100	..	+ +	3.5/5	4.5/5	Jun 2008	449	ebay.com
11.		Fujifilm X-T20	5/5	+ +	5/5	82/100	5/5	4.5/5	Jan 2017	899	ebay.com
12.		Fujifilm X70	4.5/5	..	..	76/100	4.5/5	4.5/5	Jan 2016	799	ebay.com
13.		Fujifilm X-E2S	4.5/5	..	..	77/100	4.5/5	4.5/5	Jan 2016	699	ebay.com
14.		Fujifilm X-E2	4/5	..	..	80/100	4.5/5	5/5	Oct 2013	999	ebay.com
15.		Fujifilm X-M1	3/5	+	..	77/100	4.5/5	4.5/5	Jun 2013	699	ebay.com
16.		Leica V-LUX 2	..	..	..	..	..	..	Sep 2010	849	ebay.com
17.		Panasonic FZ100	..	+	..	..	4.5/5	4.5/5	Jul 2010	499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
