Canon SL3 vs Fujifilm X-S20

The Canon EOS Rebel SL3 (called Canon 250D in some regions) and the Fujifilm X-S20 are two digital cameras that were announced, respectively, in April 2019 and May 2023. The SL3 is a DSLR, while the X-S20 is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 24 megapixels, whereas the Fujifilm provides 26 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SL3		Fujifilm X-S20
Digital single lens reflex		Mirrorless system camera
Canon EF mount lenses		Fujifilm X mount lenses
24 MP – APS-C sensor		26 MP – APS-C sensor
4K/25p Video		4K/60p Video
ISO 100-25,600 (100 - 51,200)		ISO 160-12,800 (80 - 51,200)
Optical viewfinder		Electronic viewfinder (2360k dots)
3.0" LCD – 1040k dots		3.0" LCD – 1840k dots
Swivel touchscreen		Swivel touchscreen
5 shutter flaps per second		8 shutter flaps per second
Lens stabilization only		In-body stabilization
1070 shots per battery charge		750 shots per battery charge
122 x 93 x 70 mm, 449 g		128 x 85 x 65 mm, 491 g

Check SL3 price at
amazon.com
Check X-S20 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel SL3 and the Fujifilm X-S20? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

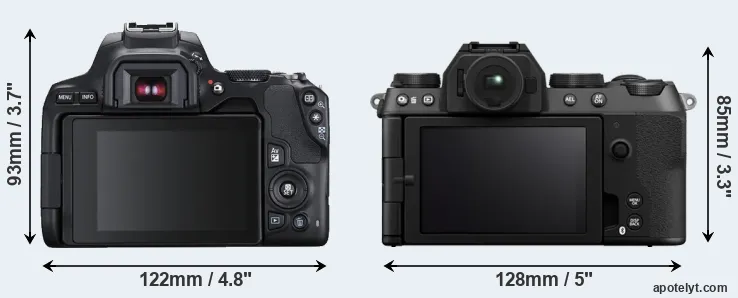

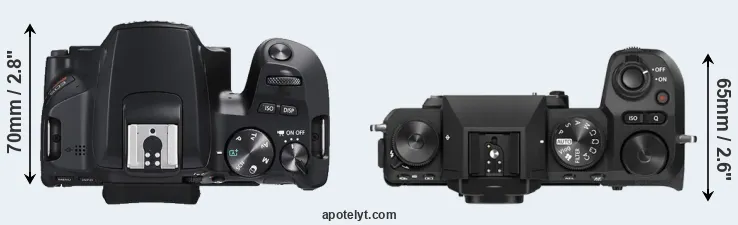

An illustration of the physical size and weight of the Canon SL3 and the Fujifilm X-S20 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

The SL3 can be obtained in two different colors (black, white), while the X-S20 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X-S20 is somewhat smaller (4 percent) than the Canon SL3. However, the X-S20 is markedly heavier (9 percent) than the SL3. In this context, it is worth noting that neither the SL3 nor the X-S20 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (SL3) and the Fujinon X Lens Catalog (X-S20). Mirrorless cameras, such as the X-S20, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the SL3 gets 1070 shots out of its Canon LP-E17 battery, while the X-S20 can take 750 images on a single charge of its Fujifilm NP-W235 power pack. The power pack in the X-S20 can be charged via the USB port, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SL3	122 mm	93 mm	70 mm	449 g	1070	n	Apr 2019	US$ 599	amazon.com
2.		Fujifilm X-S20	128 mm	85 mm	65 mm	491 g	750	n	May 2023	US$ 1 299	amazon.com
3.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	US$ 899	ebay.com
4.		Canon M50	116 mm	88 mm	59 mm	390 g	235	n	Feb 2018	US$ 779	ebay.com
5.		Canon M50 Mark II	116 mm	88 mm	59 mm	387 g	305	n	Oct 2020	US$ 599	ebay.com
6.		Canon SL1	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	US$ 549	ebay.com
7.		Canon SL2	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	US$ 549	ebay.com
8.		Canon T2i	129 mm	98 mm	62 mm	530 g	440	n	Feb 2010	US$ 699	ebay.com
9.		Canon T6s	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	US$ 649	ebay.com
10.		Canon T7	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	US$ 449	amazon.com
11.		Canon T7i	131 mm	100 mm	76 mm	532 g	600	n	Feb 2017	US$ 749	ebay.com
12.		Canon T8i	131 mm	103 mm	76 mm	515 g	800	n	Feb 2020	US$ 749	ebay.com
13.		Fujifilm X-H2S	136 mm	93 mm	85 mm	660 g	580	Y	May 2022	US$ 2 499	amazon.com
14.		Fujifilm X-S10	126 mm	85 mm	65 mm	465 g	325	n	Oct 2020	US$ 999	amazon.com
15.		Fujifilm X-T3	133 mm	93 mm	59 mm	539 g	390	Y	Sep 2018	US$ 1 499	ebay.com
16.		Fujifilm X-T100	121 mm	83 mm	47 mm	448 g	430	n	May 2018	US$ 599	ebay.com
17.		Fujifilm X100F	127 mm	75 mm	52 mm	469 g	390	n	Jan 2017	US$ 1 299	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SL3 was launched at a markedly lower price (by 54 percent) than the X-S20, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the X-S20 is 11 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (SL3) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

With 26MP, the X-S20 offers a higher resolution than the SL3 (24MP), but the X-S20 nevertheless has marginally larger individual pixels (pixel pitch of 3.76μm versus 3.72μm for the SL3) due to its larger sensor. Moreover, the X-S20 is a much more recent model (by 4 years and 1 month) than the SL3, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the X-S20 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Canon EOS Rebel SL3 has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Fujifilm X-S20 are ISO 160 to ISO 12800, with the possibility to increase the ISO range to 80-51200.

In terms of underlying technology, the SL3 is build around a CMOS sensor, while the X-S20 uses a BSI-CMOS imager. Like most digital cameras, the SL3 uses a Bayer filter for capturing RGB colors on a square grid of photosensors. In contrast, the X-S20 employs a more randomized X-Trans layout of photosites, which according to Fujifilm helps to minimize moiré.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SL3	APS-C	24.0	6000	4000	4K/25p	23.9	13.4	1791	82
2.		Fujifilm X-S20	APS-C	26.0	6240	4160	4K/60p	24.3	14.0	2315	86
3.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
4.		Canon M50	APS-C	24.0	6000	4000	4K/24p	23.8	13.3	1684	81
5.		Canon M50 Mark II	APS-C	24.0	6000	4000	4K/24p	24.0	13.6	1939	83
6.		Canon SL1	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
7.		Canon SL2	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
8.		Canon T2i	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	784	66
9.		Canon T6s	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
10.		Canon T7	APS-C	24.0	6000	4000	1080/30p	23.8	13.3	1684	81
11.		Canon T7i	APS-C	24.0	6000	4000	1080/60p	23.7	13.1	1586	80
12.		Canon T8i	APS-C	24.0	6000	4000	4K/24p	24.0	13.5	1873	83
13.		Fujifilm X-H2S	APS-C	26.0	6240	4160	6.2k/30p	24.3	13.9	2224	86
14.		Fujifilm X-S10	APS-C	26.0	6240	4160	4K/30p	24.2	13.7	2057	85
15.		Fujifilm X-T3	APS-C	26.0	6240	4160	4K/60p	24.0	13.4	1853	83
16.		Fujifilm X-T100	APS-C	24.0	6000	4000	4K/15p	24.0	13.4	1829	83
17.		Fujifilm X100F	APS-C	24.0	6000	4000	1080/60p	23.9	13.2	1704	81
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the X-S20 provides a faster frame rate than the SL3. It can shoot movie footage at 4K/60p, while the Canon is limited to 4K/25p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the X-S20 has an electronic viewfinder (2360k dots), while the SL3 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the X-S20 offers a wider field of view (100%) than the one in the SL3 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the X-S20 has a higher magnification (0.62x vs 0.54x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon SL3 and Fujifilm X-S20 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SL3	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
2.		Fujifilm X-S20	2360	n	3.0 / 1840	swivel	Y	1/4000s	8.0/s	Y	Y
3.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
4.		Canon M50	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
5.		Canon M50 Mark II	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
6.		Canon SL1	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
7.		Canon SL2	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
8.		Canon T2i	optical	n	3.0 / 1040	fixed	n	1/4000s	3.7/s	Y	n
9.		Canon T6s	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
10.		Canon T7	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
11.		Canon T7i	optical	n	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
12.		Canon T8i	optical	n	3.0 / 1040	swivel	Y	1/4000s	7.5/s	Y	n
13.		Fujifilm X-H2S	5760	Y	3.0 / 1620	swivel	Y	1/8000s	15.0/s	n	Y
14.		Fujifilm X-S10	2360	n	3.0 / 1040	swivel	Y	1/4000s	8.0/s	Y	Y
15.		Fujifilm X-T3	3690	n	3.0 / 1040	full-flex	Y	1/8000s	11.0/s	n	n
16.		Fujifilm X-T100	2360	n	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
17.		Fujifilm X100F	2360	n	3.0 / 1040	fixed	n	1/4000s	8.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that differentiates the X-S20 and the SL3 is in-body image stabilization (IBIS). The X-S20 reduces the risk of handshake-induced blur with all attached lenses, while the SL3 offers no blur reduction with lenses that themselves do not provide optical image stabilization.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the X-S20 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon SL3 and the Fujifilm X-S20 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the SL3 and the X-S20 write their files to SDXC cards. The X-S20 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the SL3 can use UHS-I cards (up to 104 MB/s).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel SL3 and Fujifilm X-S20 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SL3	Y	stereo / mono	Y	-	mini	2.0	Y	-	Y
2.		Fujifilm X-S20	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
3.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon M50	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
5.		Canon M50 Mark II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
6.		Canon SL1	Y	mono / mono	Y	-	mini	2.0	-	-	-
7.		Canon SL2	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
8.		Canon T2i	Y	stereo / -	Y	-	mini	2.0	-	-	-
9.		Canon T6s	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
10.		Canon T7	Y	mono / mono	-	-	mini	2.0	Y	Y	-
11.		Canon T7i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
12.		Canon T8i	Y	stereo / mono	Y	-	mini	2.0	Y	-	Y
13.		Fujifilm X-H2S	Y	stereo / mono	Y	Y	full	3.0	Y	-	Y
14.		Fujifilm X-S10	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
15.		Fujifilm X-T3	Y	stereo / mono	Y	Y	micro	3.1	Y	-	Y
16.		Fujifilm X-T100	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
17.		Fujifilm X100F	Y	stereo / mono	Y	-	micro	2.0	Y	-	-

It is notable that the X-S20 has a headphone jack, which makes it possible to attach external headphones and monitor the quality of sound during the recording process. The SL3 lacks such a headphone port.

Both the SL3 and the X-S20 are recent models that are part of the current product line-up. The SL3 replaced the earlier Canon SL2, while the X-S20 followed on from the Fujifilm X-S10. Further information on the features and operation of the SL3 and X-S20 can be found, respectively, in the Canon SL3 Manual (free pdf) or the online Fujifilm X-S20 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Canon SL3 and the Fujifilm X-S20? Which camera is better? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Canon EOS Rebel SL3:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Longer lasting: Can take more shots (1070 versus 750) on a single battery charge.
• More affordable: Was introduced into a lower priced category (54 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in April 2019).

Advantages of the Fujifilm X-S20:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better video: Provides higher movie framerates (4K/60p versus 4K/25p).
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• More framing info: Has an electronic viewfinder that displays shooting data.
• More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.62x vs 0.54x).
• More detailed LCD: Has a higher resolution rear screen (1840k vs 1040k dots).
• Faster burst: Shoots at higher frequency (8 vs 5 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier travel charging: Can be conveniently charged via its USB port.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More modern: Reflects 4 years and 1 month of technical progress since the SL3 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the X-S20 is the clear winner of the contest (15 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SL3 and the Fujifilm X-S20 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the SL3 or the X-S20 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SL3	4/5	o	4.5/5	79/100	4/5	4/5	Apr 2019	US$ 599	amazon.com
2.		Fujifilm X-S20	5/5	+ +	5/5	86/100	..	4.5/5	May 2023	US$ 1 299	amazon.com
3.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	US$ 899	ebay.com
4.		Canon M50	..	+	4/5	79/100	..	3.5/5	Feb 2018	US$ 779	ebay.com
5.		Canon M50 Mark II	4/5	..	4/5	..	4.5/5	3.5/5	Oct 2020	US$ 599	ebay.com
6.		Canon SL1	4/5	+	..	78/100	4/5	4/5	Mar 2013	US$ 549	ebay.com
7.		Canon SL2	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	US$ 549	ebay.com
8.		Canon T2i	..	+ +	..	77/100	4/5	4.5/5	Feb 2010	US$ 699	ebay.com
9.		Canon T6s	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	US$ 649	ebay.com
10.		Canon T7	..	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	US$ 449	amazon.com
11.		Canon T7i	4.5/5	..	3.5/5	80/100	4.5/5	4/5	Feb 2017	US$ 749	ebay.com
12.		Canon T8i	4.5/5	+	3/5	80/100	4/5	3.5/5	Feb 2020	US$ 749	ebay.com
13.		Fujifilm X-H2S	5/5	+	5/5	90/100	5/5	5/5	May 2022	US$ 2 499	amazon.com
14.		Fujifilm X-S10	5/5	..	4.5/5	86/100	4.5/5	4.5/5	Oct 2020	US$ 999	amazon.com
15.		Fujifilm X-T3	5/5	+ +	4.5/5	88/100	5/5	5/5	Sep 2018	US$ 1 499	ebay.com
16.		Fujifilm X-T100	4/5	+	4.5/5	79/100	4/5	4.5/5	May 2018	US$ 599	ebay.com
17.		Fujifilm X100F	5/5	+	3.9/5	83/100	4.5/5	4.5/5	Jan 2017	US$ 1 299	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check SL3 price at
amazon.com
Check X-S20 price at
amazon.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

Check SL3 price at
amazon.com
Check X-S20 price at
amazon.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
