Canon SL1 vs Panasonic GX85

The Canon EOS Rebel SL1 (called Canon 100D in some regions) and the Panasonic Lumix DMC-GX85 (labelled Panasonic GX80 in some countries) are two digital cameras that were officially introduced, respectively, in March 2013 and April 2016. The SL1 is a DSLR, while the GX85 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (SL1) and a Four Thirds (GX85) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Panasonic provides 15.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon SL1
versus
Panasonic GX85
Canon SL1   Panasonic GX85
Digital single lens reflex Mirrorless system camera
Canon EF mount lenses Micro Four Thirds lenses
17.9 MP, APS-C Sensor 15.8 MP, Four Thirds Sensor
1080/30p Video 4K/30p Video
ISO 100-12,800 (100 - 25,600) ISO 200-25,600
Optical viewfinder Electronic viewfinder (2765k dots)
3.0 LCD, 1040k dots 3.0 LCD, 1040k dots
Fixed touchscreen Tilting touchscreen
4.9 shutter flaps per second 8 shutter flaps per second
Lens stabilization onlyIn-body stabilization
380 shots per battery charge290 shots per battery charge
117 x 91 x 69 mm, 407 g 122 x 71 x 44 mm, 426 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel SL1 and the Panasonic Lumix DMC-GX85? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

An illustration of the physical size and weight of the Canon SL1 and the Panasonic GX85 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The SL1 can be obtained in two different colors (black, white), while the GX85 is also available in two color-versions, but different ones (black, silver).

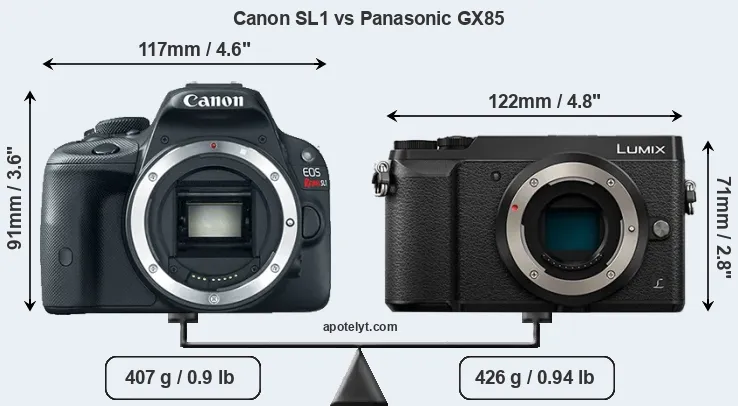

Size Canon SL1 vs Panasonic GX85

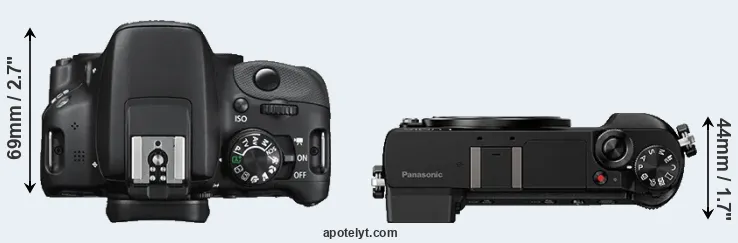

Compare SL1 versus GX85 top

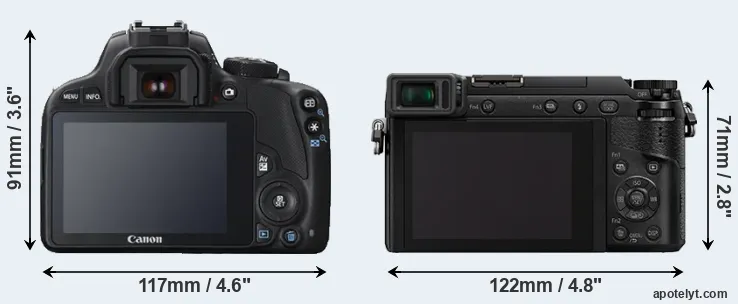

Comparison SL1 or GX85 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GX85 is notably smaller (19 percent) than the Canon SL1. However, the GX85 is markedly heavier (5 percent) than the SL1. In this context, it is worth noting that neither the SL1 nor the GX85 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (SL1) and the Micro Four Thirds Lens Catalog (GX85). Mirrorless cameras, such as the GX85, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the SL1 gets 380 shots out of its LP-E12 battery, while the GX85 can take 290 images on a single charge of its DMW-BLG10 power pack. The power pack in the GX85 can be charged via the USB port, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

scroll hint
Body Specifications
    Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon SL1 117 mm 91 mm 69 mm 407 g 380 n Mar 2013 549 i
2.

Panasonic GX85 122 mm 71 mm 44 mm 426 g 290 n Apr 2016 799 i
3.

Canon T100 129 mm 102 mm 77 mm 436 g 500 n Feb 2018 399 i
4.

Canon SL2 122 mm 93 mm 70 mm 453 g 650 n Jun 2017 549 i
5.

Canon T6 129 mm 101 mm 78 mm 485 g 500 n Mar 2016 449 i
6.

Canon M10 108 mm 67 mm 35 mm 301 g 255 n Oct 2015 499 i
7.

Canon T5 130 mm 100 mm 78 mm 480 g 500 n Feb 2014 449 i
8.

Canon G16 109 mm 76 mm 40 mm 356 g 360 n Aug 2013 549 i
9.

Canon T5i 133 mm 100 mm 79 mm 580 g 440 n Mar 2013 649 i
10.

Canon M 109 mm 66 mm 32 mm 298 g 230 n Jul 2012 599 i
11.

Canon T4i 133 mm 100 mm 79 mm 575 g 440 n Jun 2012 849 i
12.

Canon T3i 133 mm 100 mm 80 mm 570 g 440 n Feb 2011 599 i
13.

Olympus E-M10 II 120 mm 83 mm 47 mm 390 g 320 n Aug 2015 649 i
14.

Panasonic GX9 124 mm 72 mm 47 mm 407 g 260 n Feb 2018 849 i
15.

Panasonic G85 128 mm 89 mm 74 mm 505 g 330 Y Sep 2016 899 i
16.

Panasonic GX7 123 mm 71 mm 55 mm 402 g 350 n Aug 2013 999 i
17.

Panasonic GH2 124 mm 90 mm 76 mm 442 g 330 n Sep 2010 899 i
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The SL1 was launched at a markedly lower price (by 31 percent) than the GX85, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon SL1 features an APS-C sensor and the Panasonic GX85 a Four Thirds sensor. The sensor area in the GX85 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the SL1 has a native 3:2 aspect ratio, while the one in the GX85 offers a 4:3 aspect.

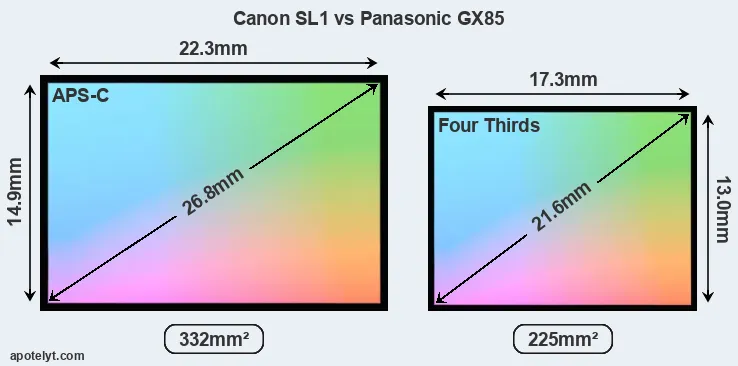

Canon SL1 and Panasonic GX85 sensor measures

With 17.9MP, the SL1 offers a higher resolution than the GX85 (15.8MP), but the SL1 nevertheless has larger individual pixels (pixel pitch of 4.31μm versus 3.77μm for the GX85) due to its larger sensor. However, the GX85 is a much more recent model (by 3 years) than the SL1, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the GX85 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon SL1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SL1 for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Panasonic GX85 are 23 x 17.2 inches or 58.3 x 43.8 cm for good quality, 18.4 x 13.8 inches or 46.7 x 35 cm for very good quality, and 15.3 x 11.5 inches or 38.9 x 29.2 cm for excellent quality prints.

The SL1 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS Rebel SL1 has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Panasonic Lumix DMC-GX85 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.

SL1 versus GX85 MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the GX85 has a markedly higher DXO score than the SL1 (overall score 8 points higher), which will translate into better image quality. The advantage is based on 1.1 bits higher color depth, 1.3 EV in additional dynamic range, and 0.3 stops of reduced low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

scroll hint
Sensor Characteristics
    Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon SL1 APS-C 17.9 5184 34561080/30p21.811.3843 63
2.

Panasonic GX85 Four Thirds 15.8 4592 34484K/30p22.912.6662 71
3.

Canon T100 APS-C 17.9 5184 34561080/30p21.911.4695 63
4.

Canon SL2 APS-C 24.0 6000 40001080/60p23.613.41041 79
5.

Canon T6 APS-C 17.9 5184 34561080/30p...... ..
6.

Canon M10 APS-C 17.9 5184 34561080/30p22.211.4753 65
7.

Canon T5 APS-C 17.9 5184 34561080/30p21.911.3724 63
8.

Canon G16 1/1.7 12.0 4000 30001080/60p21.011.7230 54
9.

Canon T5i APS-C 17.9 5184 34561080/30p21.711.2681 61
10.

Canon M APS-C 17.9 5184 34561080/30p22.111.2827 65
11.

Canon T4i APS-C 17.9 5184 34561080/30p21.711.2722 62
12.

Canon T3i APS-C 17.9 5184 34561080/30p22.111.5793 65
13.

Olympus E-M10 II Four Thirds 15.9 4608 34561080/60p23.112.5842 73
14.

Panasonic GX9 Four Thirds 20.2 5184 38884K/30p...... ..
15.

Panasonic G85 Four Thirds 15.8 4592 34484K/30p22.812.5656 71
16.

Panasonic GX7 Four Thirds 15.8 4592 34481080/60p22.612.2718 70
17.

Panasonic GH2 Four Thirds 15.9 4608 34561080/60i21.211.3655 60

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the GX85 provides a better video resolution than the SL1. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the GX85 has an electronic viewfinder (2765k dots), while the SL1 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the GX85 offers a wider field of view (100%) than the one in the SL1 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the GX85 has a higher magnification (0.70x vs 0.54x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon SL1 and Panasonic GX85 along with similar information for a selection of comparators.

scroll hint
Core Features
    Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
(000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon SL1optical n 3.0 1040 fixed Y 1/4000s 4.9 Y n
2.

Panasonic GX852765 n 3.0 1040 tilting Y 1/4000s 8.0 Y Y
3.

Canon T100optical n 2.7 230 fixed n 1/4000s 3.0 Y n
4.

Canon SL2optical n 3.0 1040 swivel Y 1/4000s 5.0 Y n
5.

Canon T6optical n 3.0 920 fixed n 1/4000s 3.0 Y n
6.

Canon M10none n 3.0 1040 tilting Y 1/4000s 4.6 Y n
7.

Canon T5optical n 3.0 460 fixed n 1/4000s 3.0 Y n
8.

Canon G16optical n 3.0 922 fixed n 1/4000s 2.2 Y Y
9.

Canon T5ioptical n 3.0 1040 swivel Y 1/4000s 5.0 Y n
10.

Canon Mnone n 3.0 1040 fixed Y 1/4000s 4.3 n n
11.

Canon T4ioptical n 3.0 1040 swivel Y 1/4000s 5.0 Y n
12.

Canon T3ioptical n 3.0 1040 swivel n 1/4000s 3.7 Y n
13.

Olympus E-M10 II2360 n 3.0 1040 tilting Y 1/4000s 8.0 Y Y
14.

Panasonic GX92760 n 3.0 1240 tilting Y 1/4000s 9.0 Y Y
15.

Panasonic G852360 n 3.0 1040 swivel Y 1/4000s 9.0 Y Y
16.

Panasonic GX72760 n 3.0 1040 tilting Y 1/8000s 5.0 Y Y
17.

Panasonic GH21534 n 3.0 460 swivel n 1/4000s 3.0 Y n

One feature that differentiates the GX85 and the SL1 is in-body image stabilization (IBIS). The GX85 reduces the risk of handshake-induced blur with all attached lenses, while the SL1 offers no blur reduction with lenses that themselves do not provide optical image stabilization.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the GX85 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Panasonic GX85 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the SL1 and the GX85 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel SL1 and Panasonic Lumix DMC-GX85 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
    Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon SL1YmonomonoY-mini2.0---
2.

Panasonic GX85Ystereomono--micro2.0Y--
3.

Canon T100Ymonomono--mini2.0YY-
4.

Canon SL2YstereomonoY-mini2.0YYY
5.

Canon T6Ymonomono--mini2.0YY-
6.

Canon M10-stereomono--mini2.0YY-
7.

Canon T5Ymonomono--mini2.0---
8.

Canon G16Ystereomono--mini2.0Y--
9.

Canon T5iYstereomonoY-mini2.0---
10.

Canon MYstereomonoY-mini2.0---
11.

Canon T4iYstereomonoY-mini2.0---
12.

Canon T3iYmonomonoY-mini2.0---
13.

Olympus E-M10 IIYstereomono--micro2.0Y--
14.

Panasonic GX9Ystereomono--micro2.0Y-Y
15.

Panasonic G85YstereomonoY-micro2.0Y--
16.

Panasonic GX7Ystereomono--mini2.0YY-
17.

Panasonic GH2YstereomonoY-mini2.0---

It is notable that the SL1 has a microphone port, which is missing on the GX85. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

The GX85 is a recent model that features in the current product line-up of Panasonic. In contrast, the SL1 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the SL1 was succeeded by the Canon SL2. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Panasonic websites.

Review summary

So what is the bottom line? Which of the two cameras – the Canon SL1 or the Panasonic GX85 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

ilogo

Advantages of the Canon EOS Rebel SL1:

  • More detail: Offers more megapixels (17.9 vs 15.8MP) with a 8% higher linear resolution.
  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Better low-light sensitivity: Requires less light for good images (0.3 stops ISO advantage).
  • Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
  • Better sound: Can connect to an external microphone for higher quality sound recording.
  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Longer lasting: Can take more shots (380 versus 290) on a single battery charge.
  • More affordable: Was introduced into a lower priced category (31 percent cheaper at launch).
  • More heavily discounted: Has been available for much longer (launched in March 2013).

ilogo

Arguments in favor of the Panasonic Lumix DMC-GX85:

  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Better image quality: Scores markedly higher (8 points) in the DXO overall evaluation.
  • Richer colors: Generates noticeably more natural colors (1.1 bits more color depth).
  • More dynamic range: Captures a broader range of light and dark details (1.3 EV of extra DR).
  • Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.54x).
  • More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
  • Faster burst: Shoots at higher frequency (8 vs 4.9 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • More compact: Is smaller (122x71mm vs 117x91mm) and will fit more readily into a bag.
  • Easier travel charging: Can be conveniently charged via its USB port.
  • Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • More modern: Reflects 3 years of technical progress since the SL1 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the GX85 is the clear winner of the contest (18 : 9 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

SL1 09:18 GX85

How about other alternatives? Do the specifications of the Canon SL1 and the Panasonic GX85 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the SL1 or the GX85. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
     Camera
 Model
 AP
 score
 CL
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon SL14/5+78/1004/54/5 Mar 2013 549 i
2.

Panasonic GX854.5/5+ +82/1005/55/5 Apr 2016 799 i
3.

Canon T100..o..3.5/53.5/5 Feb 2018 399 i
4.

Canon SL24/5+ +78/1004.5/54.5/5 Jun 2017 549 i
5.

Canon T64/5o73/1004/54/5 Mar 2016 449 i
6.

Canon M10........4/5 Oct 2015 499 i
7.

Canon T53/5+..4/54.5/5 Feb 2014 449 i
8.

Canon G164/5+..4.5/54.5/5 Aug 2013 549 i
9.

Canon T5i....76/1004.5/54.5/5 Mar 2013 649 i
10.

Canon M3/5+..4/54/5 Jul 2012 599 i
11.

Canon T4i4/5+ +77/1004.5/54.5/5 Jun 2012 849 i
12.

Canon T3i3/5o77/1004.5/54.5/5 Feb 2011 599 i
13.

Olympus E-M10 II4.5/5+ +80/1005/55/5 Aug 2015 649 i
14.

Panasonic GX94/5+84/1004.5/54.5/5 Feb 2018 849 i
15.

Panasonic G85..+ +84/1005/54.5/5 Sep 2016 899 i
16.

Panasonic GX74/5+79/1005/55/5 Aug 2013 999 i
17.

Panasonic GH25/5+ +79/1004.5/55/5 Sep 2010 899 i
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Canon SL1:
Check Ebay offers
Panasonic GX85:
Check Amazon price

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader

    Specifications: Canon SL1 vs Panasonic GX85

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon SL1 Panasonic GX85
    Camera Type Digital single lens reflex Mirrorless system camera
    Camera Lens Canon EF mount lenses Micro Four Thirds lenses
    Launch Date March 2013 April 2016
    Launch Price USD 549 USD 799
    Sensor Specs Canon SL1 Panasonic GX85
    Sensor Technology CMOS CMOS
    Sensor Format APS-C Sensor Four Thirds Sensor
    Sensor Size 22.3 x 14.9 mm 17.3 x 13.0 mm
    Sensor Area 332.27 mm2 224.9 mm2
    Sensor Diagonal 26.8 mm 21.6 mm
    Crop Factor 1.6x 2.0x
    Sensor Resolution 17.9 Megapixels 15.8 Megapixels
    Image Resolution 5184 x 3456 pixels 4592 x 3448 pixels
    Pixel Pitch 4.31 μm 3.77 μm
    Pixel Density 5.39 MP/cm2 7.04 MP/cm2
    Moiré control Anti-Alias filter no AA filter
    Movie Capability 1080/30p Video 4K/30p Video
    ISO Setting 100 - 12,800 ISO 200 - 25,600 ISO
    ISO Boost 100 - 25,600 ISO 100 - 25,600 ISO
    Image Processor DIGIC 5 Venus
    DXO Sensor Quality (score) 63 71
    DXO Color Depth (bits) 21.8 22.9
    DXO Dynamic Range (EV) 11.3 12.6
    DXO Low Light (ISO) 843 662
    Screen Specs Canon SL1 Panasonic GX85
    Viewfinder Type Optical viewfinder Electronic viewfinder
    Viewfinder Field of View 95% 100%
    Viewfinder Magnification 0.54x 0.70x
    Viewfinder Resolution 2765k dots
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.0inch
    LCD Resolution 1040k dots 1040k dots
    LCD Attachment Fixed screen Tilting screen
    Touch Input Touchscreen Touchscreen
    Shooting Specs Canon SL1 Panasonic GX85
    Focus System Phase-detect AF Contrast-detect AF
    Manual Focusing Aidno Peaking FeatureFocus Peaking
    Max Shutter Speed (mechanical) 1/4000s 1/4000s
    Continuous Shooting 4.9 shutter flaps/s 8 shutter flaps/s
    Electronic Shutterno E-Shutterup to 1/16000s
    Time-Lapse Photographyno IntervalometerIntervalometer built-in
    Image StabilizationLens stabilization onlyIn-body stabilization
    Fill Flash Built-in Flash Built-in Flash
    Storage Medium SDXC cards SDXC cards
    Second Storage Option Single card slot Single card slot
    UHS card support UHS-I UHS-I
    Connectivity Specs Canon SL1 Panasonic GX85
    External Flash Hotshoe Hotshoe
    USB Connector USB 2.0 USB 2.0
    HDMI Port mini HDMI micro HDMI
    Microphone Port External MIC port no MIC socket
    Wifi Support no Wifi Wifi built-in
    Body Specs Canon SL1 Panasonic GX85
    Battery Type LP-E12 DMW-BLG10
    Battery Life (CIPA)380 shots per charge290 shots per charge
    In-Camera Charging no USB charging USB charging
    Body Dimensions 117 x 91 x 69 mm
    (4.6 x 3.6 x 2.7 in)
    122 x 71 x 44 mm
    (4.8 x 2.8 x 1.7 in)
    Camera Weight 407 g (14.4 oz) 426 g (15.0 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon SL1 vs Panasonic GX85

    Thanks for your vote!

    You rated this page 4 out of 5.


    Rating

    Any additional comment or suggestion for improvement would be welcome.


    If you like it, make sure you share it:

    • Mention this page to your Facebook friends and Twitter followers.
    • Bookmark it in your browser for future reference by pressing "Crtl" + "D".
    • Create a hyperlink by copying the text below into your web-project or discussion forum entry.

    Once again, thanks for taking the time to provide feedback. I appreciate it.
