Canon SL1 vs Nikon D80
The Canon EOS Rebel SL1 (called Canon 100D in some regions) and the Nikon D80 are two digital cameras that were revealed to the public, respectively, in March 2013 and August 2006. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The Canon has a resolution of 17.9 megapixels, whereas the Nikon provides 10 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel SL1 and the Nikon D80? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

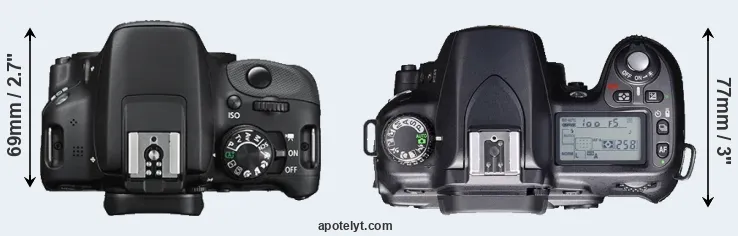

An illustration of the physical size and weight of the Canon SL1 and the Nikon D80 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
The SL1 can be obtained in two different colors (black, white), while the D80 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D80 is notably larger (28 percent) than the Canon SL1. Moreover, the D80 is substantially heavier (64 percent) than the SL1. In this context, it is worth noting that neither the SL1 nor the D80 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Yet, since both cameras are based around an APS-C sensor, their respective lenses will tend to have similar dimensions and heft. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (SL1) and the Nikon Lens Catalog (D80).
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon SL1||117 mm||91 mm||69 mm||407 g||380||n||Mar 2013||549|
|2.||Nikon D80||132 mm||103 mm||77 mm||668 g||600||n||Aug 2006||999|
|3.||Canon T100||129 mm||102 mm||77 mm||436 g||500||n||Feb 2018||399|
|4.||Canon SL2||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549|
|5.||Canon T6||129 mm||101 mm||78 mm||485 g||500||n||Mar 2016||449|
|6.||Canon M10||108 mm||67 mm||35 mm||301 g||255||n||Oct 2015||499|
|7.||Canon T5||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449|
|8.||Canon G16||109 mm||76 mm||40 mm||356 g||360||n||Aug 2013||549|
|9.||Canon T5i||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649|
|10.||Canon M||109 mm||66 mm||32 mm||298 g||230||n||Jul 2012||599|
|11.||Canon T4i||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|12.||Canon T3i||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599|
|13.||Nikon D5000||127 mm||104 mm||80 mm||590 g||510||n||Apr 2009||749|
|14.||Nikon D90||132 mm||103 mm||77 mm||703 g||850||n||Aug 2008||1,299|
|15.||Nikon D50||133 mm||102 mm||76 mm||620 g||400||n||Apr 2005||749|
|16.||Nikon D70s||140 mm||111 mm||78 mm||679 g||500||n||Apr 2005||899|
|17.||Nikon D70||140 mm||111 mm||78 mm||679 g||400||n||Jan 2004||999|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The SL1 was launched at a markedly lower price (by 45 percent) than the D80, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the D80 is 12 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (SL1) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

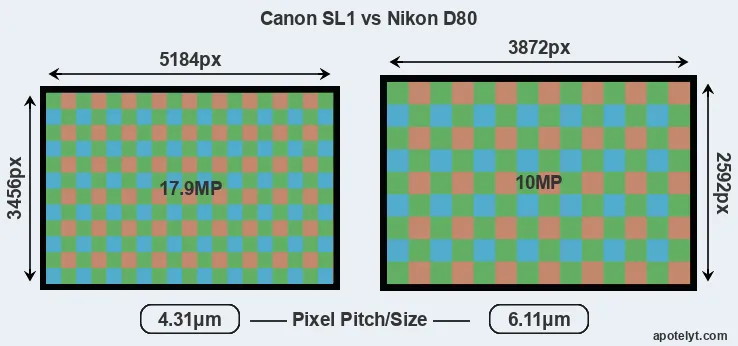

Despite having a smaller sensor, the Canon SL1 offers a higher resolution of 17.9 megapixels, compared with 10 MP of the Nikon D80. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.31μm versus 6.11μm for the D80). However, it should be noted that the SL1 is much more recent (by 6 years and 7 months) than the D80, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Canon SL1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SL1 for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Nikon D80 are 19.4 x 13 inches or 49.2 x 32.9 cm for good quality, 15.5 x 10.4 inches or 39.3 x 26.3 cm for very good quality, and 12.9 x 8.6 inches or 32.8 x 21.9 cm for excellent quality prints.
The SL1 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS Rebel SL1 has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Nikon D80 are ISO 100 to ISO 1600, with the possibility to increase the ISO range to 100-3200.
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
Many modern cameras are not only capable of taking still images, but can also record movies. The SL1 indeed provides movie recording capabilities, while the D80 does not. The highest resolution format that the SL1 can use is 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. The SL1 and the D80 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (95%), but the viewfinder of the D80 has a higher magnification than the one of the SL1 (0.62x vs 0.54x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon SL1 and Nikon D80 in connection with corresponding information for a sample of similar cameras.
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The SL1 has a touchscreen, while the D80 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The SL1 writes its imaging data to SDXC cards, while the D80 uses SDHC cards. The SL1 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the D80 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel SL1 and Nikon D80 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
Both the SL1 and the D80 have been discontinued, but can regularly be found used on eBay. The D80 was replaced by the Nikon D90, while the SL1 was followed by the Canon SL2. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Nikon websites.
So what is the bottom line? Is there a clear favorite between the Canon SL1 and the Nikon D80? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Canon EOS Rebel SL1:
- More detail: Offers more megapixels (17.9 vs 10MP) with a 34% higher linear resolution.
- Better low-light sensitivity: Requires less light for good images (0.7 stops ISO advantage).
- Broader imaging potential: Can record not only still images but also 1080/30p movies.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster burst: Shoots at higher frequency (4.9 vs 3 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (117x91mm vs 132x103mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 261g or 39 percent) and hence easier to carry around.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More affordable: Was introduced into a lower priced category (45 percent cheaper at launch).
- More modern: Reflects 6 years and 7 months of technical progress since the D80 launch.
Advantages of the Nikon D80:
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.62x vs 0.54x).
- Longer lasting: Gets more shots (600 versus 380) out of a single battery charge.
- More heavily discounted: Has been around for much longer (launched in August 2006).
If the count of relative strengths (bullet points above) is taken as a measure, the SL1 is the clear winner of the match-up (13 : 3 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon SL1 and the Nikon D80 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the SL1 and the D80 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon SL1||4/5||+||78/100||4/5||4/5||Mar 2013||549|
|2.||Nikon D80||..||+||+ +||o||4.5/5||Aug 2006||999|
|3.||Canon T100||..||o||..||3.5/5||3.5/5||Feb 2018||399|
|4.||Canon SL2||4/5||+ +||78/100||4.5/5||4.5/5||Jun 2017||549|
|5.||Canon T6||4/5||o||73/100||4/5||4/5||Mar 2016||449|
|6.||Canon M10||..||..||..||..||4/5||Oct 2015||499|
|7.||Canon T5||3/5||+||..||4/5||4.5/5||Feb 2014||449|
|8.||Canon G16||4/5||+||..||4.5/5||4.5/5||Aug 2013||549|
|9.||Canon T5i||..||..||76/100||4.5/5||4.5/5||Mar 2013||649|
|10.||Canon M||3/5||+||..||4/5||4/5||Jul 2012||599|
|11.||Canon T4i||4/5||+ +||77/100||4.5/5||4.5/5||Jun 2012||849|
|12.||Canon T3i||3/5||o||77/100||4.5/5||4.5/5||Feb 2011||599|
|13.||Nikon D5000||..||+ +||75/100||4/5||4.5/5||Apr 2009||749|
|14.||Nikon D90||..||+ +||+ +||4/5||4.5/5||Aug 2008||1,299|
|15.||Nikon D50||..||78/100||+ +||4/5||4.5/5||Apr 2005||749|
|16.||Nikon D70s||..||..||..||..||5/5||Apr 2005||899|
|17.||Nikon D70||..||..||+ +||..||..||Jan 2004||999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon SL1 vs Nikon D80
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon SL1||Nikon D80|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Nikon F mount lenses|
|Launch Date||March 2013||August 2006|
|Launch Price||USD 549||USD 999|
|Sensor Specs||Canon SL1||Nikon D80|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||23.6 x 15.8 mm|
|Sensor Area||332.27 mm2||372.88 mm2|
|Sensor Diagonal||26.8 mm||28.4 mm|
|Sensor Resolution||17.9 Megapixels||10 Megapixels|
|Image Resolution||5184 x 3456 pixels||3872 x 2592 pixels|
|Pixel Pitch||4.31 μm||6.11 μm|
|Pixel Density||5.39 MP/cm2||2.69 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||no Video|
|ISO Setting||100 - 12,800 ISO||100 - 1,600 ISO|
|ISO Boost||100 - 25,600 ISO||100 - 3,200 ISO|
|DXO Sensor Quality (score)||63||61|
|DXO Color Depth (bits)||21.8||22.1|
|DXO Dynamic Range (EV)||11.3||11.2|
|DXO Low Light (ISO)||843||524|
|Screen Specs||Canon SL1||Nikon D80|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||95%|
|LCD Framing||Live View|
|Rear LCD Size||3.0inch||2.5inch|
|LCD Resolution||1040k dots||230k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon SL1||Nikon D80|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||4.9 shutter flaps/s||3 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||100 000 actuations|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDHC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Canon SL1||Nikon D80|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||no HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon SL1||Nikon D80|
|Battery Life (CIPA)||380 shots per charge||600 shots per charge|
117 x 91 x 69 mm
(4.6 x 3.6 x 2.7 in)
132 x 103 x 77 mm
(5.2 x 4.1 x 3.0 in)
|Camera Weight||407 g (14.4 oz)||668 g (23.6 oz)|
