Canon SL1 vs Fujifilm X-Pro2
The Canon EOS Rebel SL1 (called Canon 100D in some regions) and the Fujifilm X-Pro2 are two digital cameras that were revealed to the public, respectively, in March 2013 and January 2016. The SL1 is a DSLR, while the X-Pro2 is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 17.9 megapixels, whereas the Fujifilm provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel SL1 and the Fujifilm X-Pro2? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

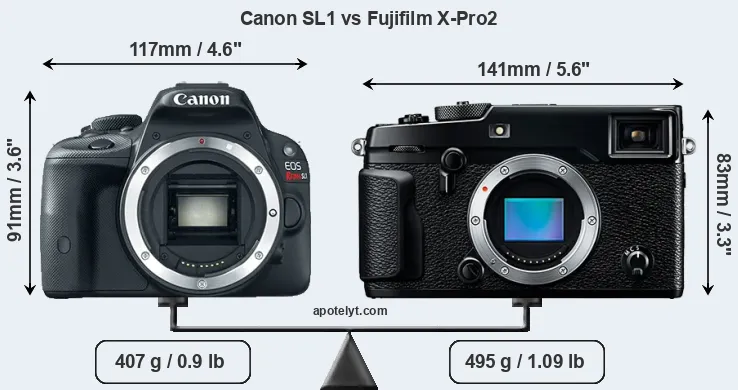

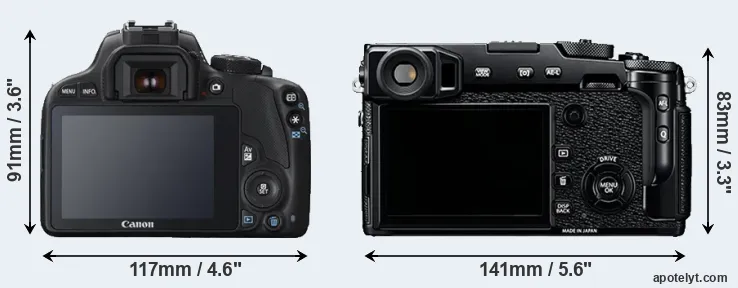

An illustration of the physical size and weight of the Canon SL1 and the Fujifilm X-Pro2 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
The SL1 can be obtained in two different colors (black, white), while the X-Pro2 is also available in two color-versions, but different ones (black, graphite).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X-Pro2 is notably larger (10 percent) than the Canon SL1. Moreover, the X-Pro2 is markedly heavier (22 percent) than the SL1. It is noteworthy in this context that the X-Pro2 is splash and dust-proof, while the SL1 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (SL1) and the Fujinon X Lens Catalog (X-Pro2). Mirrorless cameras, such as the X-Pro2, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon SL1||117 mm||91 mm||69 mm||407 g||380||n||Mar 2013||549|
|2.||Fujifilm X-Pro2||141 mm||83 mm||46 mm||495 g||350||Y||Jan 2016||1,699|
|3.||Canon T100||129 mm||102 mm||77 mm||436 g||500||n||Feb 2018||399|
|4.||Canon SL2||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549|
|5.||Canon T6||129 mm||101 mm||78 mm||485 g||500||n||Mar 2016||449|
|6.||Canon M10||108 mm||67 mm||35 mm||301 g||255||n||Oct 2015||499|
|7.||Canon T5||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449|
|8.||Canon G16||109 mm||76 mm||40 mm||356 g||360||n||Aug 2013||549|
|9.||Canon T5i||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649|
|10.||Canon M||109 mm||66 mm||32 mm||298 g||230||n||Jul 2012||599|
|11.||Canon T4i||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|12.||Canon T3i||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599|
|13.||Fujifilm X100V||128 mm||75 mm||53 mm||478 g||420||Y||Feb 2020||1,399|
|14.||Fujifilm X-Pro3||141 mm||83 mm||46 mm||497 g||440||Y||Oct 2019||1,799|
|15.||Fujifilm X-T3||133 mm||93 mm||59 mm||539 g||390||Y||Sep 2018||1,499|
|16.||Fujifilm X-T2||133 mm||92 mm||49 mm||507 g||340||Y||Jul 2016||1,599|
|17.||Fujifilm X-Pro1||140 mm||82 mm||43 mm||450 g||300||n||Jan 2012||1,699|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The SL1 was launched at a markedly lower price (by 68 percent) than the X-Pro2, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the X-Pro2 is 11 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (SL1) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
In terms of underlying technology, both cameras are build around CMOS sensors.
With 24MP, the X-Pro2 offers a higher resolution than the SL1 (17.9MP), but the X-Pro2 has smaller individual pixels (pixel pitch of 3.92μm versus 4.31μm for the SL1). Yet, the X-Pro2 is a much more recent model (by 2 years and 9 months) than the SL1, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the X-Pro2 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Fujifilm X-Pro2 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the X-Pro2 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon SL1 are 25.9 x 17.3 inches or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inches or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inches or 43.9 x 29.3 cm for excellent quality prints.
The Canon EOS Rebel SL1 has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Fujifilm X-Pro2 are ISO 200 to ISO 12800, with the possibility to increase the ISO range to 100-51200.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the X-Pro2 provides a faster frame rate than the SL1. It can shoot movie footage at 1080/60p, while the Canon is limited to 1080/30p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the X-Pro2 has an electronic viewfinder (2360k dots), while the SL1 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the X-Pro2 offers a wider field of view (100%) than the one in the SL1 (95%), so that a larger proportion of the captured image is visible in the finder. On the other hand, the viewfinder of the SL1 has a higher magnification (0.54x vs 0.39x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon SL1 and Fujifilm X-Pro2 in connection with corresponding information for a sample of similar cameras.
One difference between the cameras concerns the presence of an on-board flash. The SL1 has one, while the X-Pro2 does not. While the built-in flash of the SL1 is not very powerful, it can at times be useful as a fill-in light.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the X-Pro2 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Fujifilm X-Pro2 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the SL1 and the X-Pro2 write their files to SDXC cards. The X-Pro2 features dual card slots, which can be very useful in case a memory card fails. In contrast, the SL1 only has one slot. The X-Pro2 supports UHS-II cards (on its first slot), while the SL1 can use UHS-I cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel SL1 and Fujifilm X-Pro2 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
It is notable that the X-Pro2 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the SL1 does not provide wifi capability.
Studio photographers will appreciate that the Fujifilm X-Pro2 (unlike the SL1) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The X-Pro2 is a recent model that features in the current product line-up of Fujifilm. In contrast, the SL1 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the SL1 was succeeded by the Canon SL2. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Fujifilm websites.
So how do things add up? Is there a clear favorite between the Canon SL1 and the Fujifilm X-Pro2? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Canon EOS Rebel SL1:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.54x vs 0.39x).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Less heavy: Is lighter (by 88g or 18 percent) and hence easier to carry around.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More affordable: Was introduced into a lower priced category (68 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in March 2013).
Reasons to prefer the Fujifilm X-Pro2:
- More detail: Has more megapixels (24 vs 17.9MP), which boosts linear resolution by 16%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- More detailed LCD: Has a higher resolution rear screen (1620k vs 1040k dots).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (8 vs 4.9 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More modern: Reflects 2 years and 9 months of technical progress since the SL1 launch.
If the count of relative strengths (bullet points above) is taken as a measure, the X-Pro2 is the clear winner of the contest (17 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon SL1 and the Fujifilm X-Pro2 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the SL1 and the X-Pro2 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon SL1||4/5||+||78/100||4/5||4/5||Mar 2013||549|
|2.||Fujifilm X-Pro2||..||+||83/100||4.5/5||4.5/5||Jan 2016||1,699|
|3.||Canon T100||..||o||..||3.5/5||3.5/5||Feb 2018||399|
|4.||Canon SL2||4/5||+ +||78/100||4.5/5||4.5/5||Jun 2017||549|
|5.||Canon T6||4/5||o||73/100||4/5||4/5||Mar 2016||449|
|6.||Canon M10||..||..||..||..||4/5||Oct 2015||499|
|7.||Canon T5||3/5||+||..||4/5||4.5/5||Feb 2014||449|
|8.||Canon G16||4/5||+||..||4.5/5||4.5/5||Aug 2013||549|
|9.||Canon T5i||..||..||76/100||4.5/5||4.5/5||Mar 2013||649|
|10.||Canon M||3/5||+||..||4/5||4/5||Jul 2012||599|
|11.||Canon T4i||4/5||+ +||77/100||4.5/5||4.5/5||Jun 2012||849|
|12.||Canon T3i||3/5||o||77/100||4.5/5||4.5/5||Feb 2011||599|
|13.||Fujifilm X100V||5/5||+ +||86/100||5/5||4.5/5||Feb 2020||1,399|
|14.||Fujifilm X-Pro3||4/5||+||85/100||4/5||..||Oct 2019||1,799|
|15.||Fujifilm X-T3||5/5||+ +||88/100||5/5||5/5||Sep 2018||1,499|
|16.||Fujifilm X-T2||5/5||+ +||86/100||4.5/5||5/5||Jul 2016||1,599|
|17.||Fujifilm X-Pro1||5/5||+ +||79/100||4.5/5||4.5/5||Jan 2012||1,699|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon SL1 vs Fujifilm X-Pro2
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon SL1||Fujifilm X-Pro2|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Fujifilm X mount lenses|
|Launch Date||March 2013||January 2016|
|Launch Price||USD 549||USD 1,699|
|Sensor Specs||Canon SL1||Fujifilm X-Pro2|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||23.6 x 15.6 mm|
|Sensor Area||332.27 mm2||368.16 mm2|
|Sensor Diagonal||26.8 mm||28.3 mm|
|Sensor Resolution||17.9 Megapixels||24 Megapixels|
|Image Resolution||5184 x 3456 pixels||6000 x 4000 pixels|
|Pixel Pitch||4.31 μm||3.92 μm|
|Pixel Density||5.39 MP/cm2||6.52 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/30p Video||1080/60p Video|
|ISO Setting||100 - 12,800 ISO||200 - 12,800 ISO|
|ISO Boost||100 - 25,600 ISO||100 - 51,200 ISO|
|Image Processor||DIGIC 5||X Processor Pro|
|DXO Sensor Quality (score)||63||..|
|DXO Color Depth (bits)||21.8||..|
|DXO Dynamic Range (EV)||11.3||..|
|DXO Low Light (ISO)||843||..|
|Screen Specs||Canon SL1||Fujifilm X-Pro2|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||95%||100%|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||1620k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon SL1||Fujifilm X-Pro2|
|Focus System||Phase-detect AF||On-Sensor Phase-detect|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/8000s|
|Continuous Shooting||4.9 shutter flaps/s||8 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/32000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Built-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|UHS card support||UHS-I||Single UHS-II|
|Connectivity Specs||Canon SL1||Fujifilm X-Pro2|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||External MIC port|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Canon SL1||Fujifilm X-Pro2|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||380 shots per charge||350 shots per charge|
117 x 91 x 69 mm
(4.6 x 3.6 x 2.7 in)
141 x 83 x 46 mm
(5.6 x 3.3 x 1.8 in)
|Camera Weight||407 g (14.4 oz)||495 g (17.5 oz)|
