Canon R5 vs SL1
The Canon EOS R5 and the Canon EOS Rebel SL1 (labelled Canon 100D in some countries) are two digital cameras that were announced, respectively, in July 2020 and March 2013. The Canon R5 is a mirrorless interchangeable lens camera, while the SL1 is a DSLR. The cameras are based on a full frame (Canon R5) and an APS-C (SL1) sensor. The Canon R5 has a resolution of 44.8 megapixels, whereas the SL1 provides 17.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS R5 and the Canon EOS Rebel SL1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The side-by-side display below illustrates the physical size and weight of the Canon R5 and the Canon SL1. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The SL1 can be obtained in two different colors (black, white), while the Canon R5 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SL1 is notably smaller (21 percent) than the Canon R5. Moreover, the SL1 is substantially lighter (45 percent) than the Canon R5. It is worth mentioning in this context that the Canon R5 is splash and dust resistant, while the SL1 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
Concerning battery life, the Canon R5 gets 320 shots out of its LP-E6NH battery, while the SL1 can take 380 images on a single charge of its LP-E12 power pack. The power pack in the Canon R5 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon R5||138 mm||98 mm||88 mm||738 g||320||Y||Jul 2020||3,899|
|2.||Canon SL1||117 mm||91 mm||69 mm||407 g||380||n||Mar 2013||549|
|3.||Canon R6||138 mm||98 mm||88 mm||680 g||360||Y||Jul 2020||2,499|
|4.||Canon SL2||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549|
|5.||Canon T5i||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649|
|6.||Canon M||109 mm||66 mm||32 mm||298 g||230||n||Jul 2012||599|
|7.||Canon T4i||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|8.||Canon T3i||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599|
|9.||Nikon Z7 II||134 mm||101 mm||70 mm||705 g||420||Y||Oct 2020||2,999|
|10.||Nikon Z7||134 mm||101 mm||67 mm||675 g||330||Y||Aug 2018||3,399|
|11.||Panasonic S1R||149 mm||110 mm||97 mm||1016 g||380||Y||Feb 2019||3,699|
|12.||Sony A7S III||127 mm||97 mm||81 mm||699 g||600||Y||Jul 2020||3,499|
|13.||Sony A9 II||129 mm||96 mm||76 mm||678 g||690||Y||Oct 2019||4,499|
|14.||Sony A7R IV||129 mm||96 mm||78 mm||665 g||670||Y||Jul 2019||3,499|
|15.||Sony A7R III||127 mm||96 mm||74 mm||650 g||650||Y||Oct 2017||3,199|
|16.||Sony A99 II||143 mm||104 mm||76 mm||849 g||490||Y||Sep 2016||3,199|
|17.||Sony A7R II||127 mm||96 mm||60 mm||625 g||290||Y||Jun 2015||3,199|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The SL1 was launched at a markedly lower price (by 86 percent) than the Canon R5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

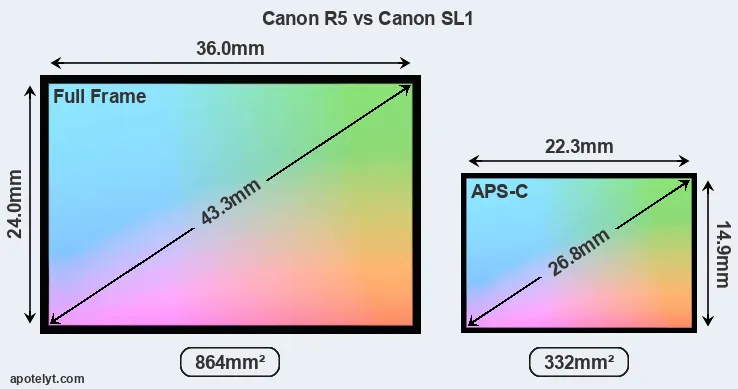

Of the two cameras under consideration, the Canon R5 features a full frame sensor and the Canon SL1 an APS-C sensor. The sensor area in the SL1 is 62 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
In terms of chip-set technology, the Canon R5 uses a more advanced image processing engine (DIGIC X) than the SL1 (DIGIC 5), with benefits for noise reduction, color accuracy, and processing speed.
With 44.8MP, the Canon R5 offers a higher resolution than the SL1 (17.9MP), but the Canon R5 nevertheless has marginally larger individual pixels (pixel pitch of 4.39μm versus 4.31μm for the SL1) due to its larger sensor. Moreover, the Canon R5 is a much more recent model (by 7 years and 3 months) than the SL1, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon R5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the Canon R5 for good quality output (200 dots per inch) amounts to 41 x 27.3 inches or 104 x 69.4 cm, for very good quality (250 dpi) 32.8 x 21.9 inches or 83.2 x 55.5 cm, and for excellent quality (300 dpi) 27.3 x 18.2 inches or 69.4 x 46.3 cm. The corresponding values for the Canon SL1 are 25.9 x 17.3 inches or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inches or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inches or 43.9 x 29.3 cm for excellent quality prints.
The Canon EOS R5 has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-102400. The corresponding ISO settings for the Canon EOS Rebel SL1 are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 100-25600.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the Canon R5 provides substantially higher image quality than the SL1, with an overall score that is 32 points higher. This advantage is based on 3.5 bits higher color depth, 3.3 EV in additional dynamic range, and 1.9 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|1.||Canon R5||Full Frame||44.8||8192||5464||8k/30p||25.3||14.6||3042||95|
|3.||Canon R6||Full Frame||20.0||5472||3648||4k/60p||24.2||14.3||3394||90|
|9.||Nikon Z7 II||Full Frame||45.4||8256||5504||4K/60p||..||..||..||..|
|10.||Nikon Z7||Full Frame||45.4||8256||5504||4K/30p||26.3||14.6||2668||99|
|11.||Panasonic S1R||Full Frame||46.7||8368||5584||4K/60p||26.4||14.1||3525||100|
|12.||Sony A7S III||Full Frame||12.0||4240||2832||4K/120p||23.7||13.9||2520||86|
|13.||Sony A9 II||Full Frame||24.0||6000||4000||4K/30p||25.0||14.0||3434||93|
|14.||Sony A7R IV||Full Frame||60.2||9504||6336||4K/30p||26.0||14.8||3344||99|
|15.||Sony A7R III||Full Frame||42.2||7952||5304||4K/30p||26.0||14.7||3523||100|
|16.||Sony A99 II||Full Frame||42.2||7952||5304||4K/30p||25.4||13.4||2317||92|
|17.||Sony A7R II||Full Frame||42.2||7952||5304||4K/30p||26.0||13.9||3434||98|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the Canon R5 provides a higher video resolution than the SL1. It can shoot video footage at 8k/30p, while the SL1 is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the Canon R5 has an electronic viewfinder (5760k dots), while the SL1 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the Canon R5 offers a wider field of view (100%) than the one in the SL1 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the Canon R5 has a higher magnification (0.76x vs 0.54x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon R5, the Canon SL1, and comparable cameras.
|9.||Nikon Z7 II||3690||Y||3.2||2100||tilting||Y||1/8000s||10.0||n||Y|
|12.||Sony A7S III||9440||n||3.0||1440||swivel||Y||1/8000s||10.0||n||Y|
|13.||Sony A9 II||3686||n||3.0||1440||tilting||Y||1/8000s||10.0||n||Y|
|14.||Sony A7R IV||5760||n||3.0||1440||tilting||Y||1/8000s||10.0||n||Y|
|15.||Sony A7R III||3686||n||3.0||1440||tilting||Y||1/8000s||10.0||n||Y|
|16.||Sony A99 II||2400||Y||3.0||1229||full-flex||n||1/8000s||12.0||n||Y|
|17.||Sony A7R II||2400||n||3.0||1229||tilting||n||1/8000s||5.0||n||Y|
One feature that is present on the Canon R5, but is missing on the SL1 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The Canon R5 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the SL1 does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the Canon R5 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Canon R5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The Canon R5 writes its imaging data to CFexpress or SDXC cards, while the SL1 uses SDXC cards. The Canon R5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the SL1 only has one slot. The Canon R5 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the SL1 can use UHS-I cards (up to 104 MB/s).
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS R5 and Canon EOS Rebel SL1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|9.||Nikon Z7 II||Y||stereo||mono||Y||Y||micro||3.2||Y||-||Y|
|12.||Sony A7S III||Y||stereo||mono||Y||Y||full||3.2||Y||-||Y|
|13.||Sony A9 II||Y||stereo||mono||Y||Y||micro||3.1||Y||Y||Y|
|14.||Sony A7R IV||Y||stereo||mono||Y||Y||micro||3.1||Y||Y||Y|
|15.||Sony A7R III||Y||stereo||mono||Y||Y||micro||3.1||Y||Y||Y|
|16.||Sony A99 II||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||Y|
|17.||Sony A7R II||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||-|
It is notable that the Canon R5 has a headphone jack, which is not present on the SL1 This port makes it possible to attach external headphones and monitor the quality of sound during the recording process.
The Canon R5 is a recent model that features in the current product line-up of Canon. In contrast, the SL1 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the SL1 was succeeded by the Canon SL2. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So what is the bottom line? Is the Canon R5 better than the Canon SL1 or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Canon EOS R5:
- More detail: Offers more megapixels (44.8 vs 17.9MP) with a 58% higher linear resolution.
- Better image quality: Scores substantially higher (32 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (3.5 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (3.3 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (1.9 stops ISO advantage).
- Better jpgs: Has a more modern image processing engine (DIGIC X vs DIGIC 5).
- Better video: Provides higher definition movie capture (8k/30p vs 1080/30p).
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.76x vs 0.54x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (2100k vs 1040k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (10 vs 4.9 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Easier travel charging: Can be conveniently charged via its USB port.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Sharper images: Has hand-shake reducing image stabilization built-in.
- More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
- Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More modern: Reflects 7 years and 3 months of technical progress since the SL1 launch.
Reasons to prefer the Canon EOS Rebel SL1:
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- More compact: Is smaller (117x91mm vs 138x98mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 331g or 45 percent) and is thus easier to take along.
- Longer lasting: Gets more shots (380 versus 320) out of a single battery charge.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More affordable: Was introduced into a lower priced category (86 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in March 2013).
If the number of relative strengths (bullet points above) is taken as a guide, the Canon R5 is the clear winner of the match-up (30 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon R5 and the Canon SL1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the Canon R5 or the SL1 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon R5||4.5/5||..||91/100||4.5/5||4.5/5||Jul 2020||3,899|
|2.||Canon SL1||4/5||+||78/100||4/5||4/5||Mar 2013||549|
|3.||Canon R6||5/5||+ +||90/100||4.5/5||5/5||Jul 2020||2,499|
|4.||Canon SL2||4/5||+ +||78/100||4.5/5||4.5/5||Jun 2017||549|
|5.||Canon T5i||..||..||76/100||4.5/5||4.5/5||Mar 2013||649|
|6.||Canon M||3/5||+||..||4/5||4/5||Jul 2012||599|
|7.||Canon T4i||4/5||+ +||77/100||4.5/5||4.5/5||Jun 2012||849|
|8.||Canon T3i||3/5||o||77/100||4.5/5||4.5/5||Feb 2011||599|
|9.||Nikon Z7 II||4.5/5||..||..||4.5/5||4.5/5||Oct 2020||2,999|
|10.||Nikon Z7||5/5||+||89/100||4.5/5||5/5||Aug 2018||3,399|
|11.||Panasonic S1R||4.5/5||..||89/100||4.5/5||4.5/5||Feb 2019||3,699|
|12.||Sony A7S III||..||+ +||91/100||4.5/5||5/5||Jul 2020||3,499|
|13.||Sony A9 II||..||..||90/100||5/5||5/5||Oct 2019||4,499|
|14.||Sony A7R IV||5/5||+||91/100||4.5/5||5/5||Jul 2019||3,499|
|15.||Sony A7R III||..||+ +||90/100||4.5/5||5/5||Oct 2017||3,199|
|16.||Sony A99 II||..||..||85/100||4.5/5||4.5/5||Sep 2016||3,199|
|17.||Sony A7R II||5/5||+ +||90/100||5/5||5/5||Jun 2015||3,199|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon R5 vs Canon SL1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon R5||Canon SL1|
|Camera Type||Mirrorless system camera||Digital single lens reflex|
|Camera Lens||Canon RF mount lenses||Canon EF mount lenses|
|Launch Date||July 2020||March 2013|
|Launch Price||USD 3,899||USD 549|
|Sensor Specs||Canon R5||Canon SL1|
|Sensor Format||Full Frame Sensor||APS-C Sensor|
|Sensor Size||36.0 x 24.0 mm||22.3 x 14.9 mm|
|Sensor Area||864 mm2||332.27 mm2|
|Sensor Diagonal||43.3 mm||26.8 mm|
|Sensor Resolution||44.8 Megapixels||17.9 Megapixels|
|Image Resolution||8192 x 5464 pixels||5184 x 3456 pixels|
|Pixel Pitch||4.39 μm||4.31 μm|
|Pixel Density||5.18 MP/cm2||5.39 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||8k/30p Video||1080/30p Video|
|ISO Setting||100 - 51,200 ISO||100 - 12,800 ISO|
|ISO Boost||50 - 102,400 ISO||100 - 25,600 ISO|
|Image Processor||DIGIC X||DIGIC 5|
|DXO Sensor Quality (score)||95||63|
|DXO Color Depth (bits)||25.3||21.8|
|DXO Dynamic Range (EV)||14.6||11.3|
|DXO Low Light (ISO)||3042||843|
|Screen Specs||Canon R5||Canon SL1|
|Viewfinder Type||Electronic viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||95%|
|Viewfinder Resolution||5760k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.0inch|
|LCD Resolution||2100k dots||1040k dots|
|LCD Attachment||Swivel screen||Fixed screen|
|Shooting Specs||Canon R5||Canon SL1|
|Focus System||On-Sensor Phase-detect||Phase-detect AF|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||10 shutter flaps/s||4.9 shutter flaps/s|
|Shutter Life Expectancy||300 000 actuations||100 000 actuations|
|Electronic Shutter||up to 1/8000s||no E-Shutter|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Image Stabilization||In-body stabilization||Lens stabilization only|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||CFexpress or SDXC cards||SDXC cards|
|Second Storage Option||Dual card slots||Single card slot|
|UHS card support||UHS-II||UHS-I|
|Connectivity Specs||Canon R5||Canon SL1|
|USB Connector||USB 3.2||USB 2.0|
|HDMI Port||micro HDMI||mini HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||Wifi built-in||no Wifi|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Body Specs||Canon R5||Canon SL1|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||320 shots per charge||380 shots per charge|
|In-Camera Charging||USB charging||no USB charging|
138 x 98 x 88 mm
(5.4 x 3.9 x 3.5 in)
117 x 91 x 69 mm
(4.6 x 3.6 x 2.7 in)
|Camera Weight||738 g (26.0 oz)||407 g (14.4 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
