Canon R vs Nikon D500

The Canon EOS R and the Nikon D500 are two digital cameras that were officially introduced, respectively, in September 2018 and January 2016. The Canon R is a mirrorless interchangeable lens camera, while the D500 is a DSLR. The cameras are based on a full frame (Canon R) and an APS-C (D500) sensor. The Canon has a resolution of 30.1 megapixels, whereas the Nikon provides 20.7 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon R VS Nikon D500
Canon R Nikon D500
Mirrorless system camera Digital single lens reflex
Canon RF mount lenses Nikon F mount lenses
30.1 MP, Full Frame Sensor 20.7 MP, APS-C Sensor
4K/30p Video 4K/30p Video
ISO 100-40000 (50-102400) ISO 100-51200 (50-1640000)
Electronic viewfinder (3690k dots) Optical viewfinder
3.2" LCD, 2100k dots 3.2" LCD, 2359k dots
Swivel touchscreen Tilting touchscreen
8 shutter flaps per second 10 shutter flaps per second
Weathersealed bodyWeathersealed body
370 shots per battery charge1240 shots per battery charge
139 x 98 x 84 mm, 660 g 147 x 115 x 81 mm, 860 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS R and the Nikon D500? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

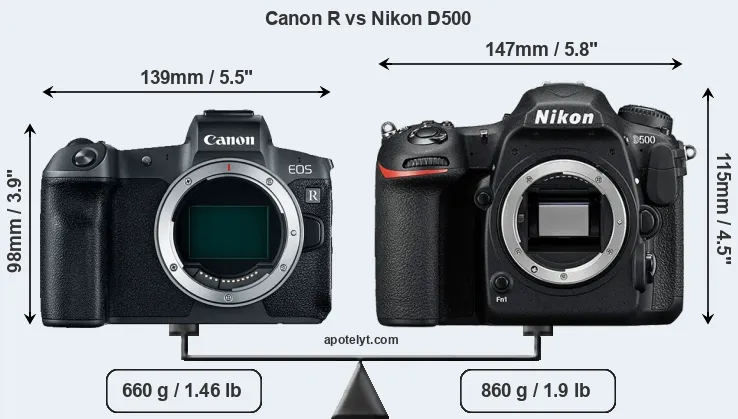

The side-by-side display below illustrates the physical size and weight of the Canon R and the Nikon D500. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

Size Canon R vs Nikon D500
Compare Canon R versus D500 top
Comparison Canon R or D500 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D500 is notably larger (24 percent) than the Canon R. Moreover, the D500 is markedly heavier (30 percent) than the Canon R. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the Canon R gets 370 shots out of its LP-E6N battery, while the D500 can take 1240 images on a single charge of its EN-EL15 power pack. The power pack in the Canon R can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Camera
Model

Canon R» 5.5 in 3.9 in 3.3 in 23.3 oz 370 Y Sep 2018 2,299 iCanon R

Nikon D500« 5.8 in 4.5 in 3.2 in 30.3 oz 1240 Y Jan 2016 1,999 iNikon D500

Canon RP« » 5.2 in 3.3 in 2.8 in 17.1 oz 250 n Feb 2019 1,299 iCanon RP

Canon 90D« » 5.6 in 4.1 in 3.0 in 24.7 oz 1300 Y Aug 2019 1,199 iCanon 90D

Canon 6D Mark II« » 5.7 in 4.4 in 3.0 in 27.0 oz 1200 Y Jun 2017 1,999 iCanon 6D Mark II

Canon 6D« » 5.7 in 4.4 in 2.8 in 27.2 oz 1090 Y Sep 2012 2,099iCanon 6D

Leica Q2« » 5.1 in 3.1 in 3.6 in 25.3 oz 370 Y Mar 2019 4,995 iLeica Q2

Leica M10« » 5.5 in 3.1 in 1.5 in 23.3 oz 210 Y Jan 2017 6,595 iLeica M10

Nikon Z6« » 5.3 in 4.0 in 2.6 in 23.8 oz 310 Y Aug 2018 1,999 iNikon Z6

Nikon D7500« » 5.4 in 4.1 in 2.9 in 25.4 oz 950 Y Apr 2017 1,299 iNikon D7500

Nikon D3400« » 4.9 in 3.9 in 3.0 in 15.7 oz 1200 n Aug 2016 499iNikon D3400

Nikon D5500« » 4.9 in 3.8 in 2.8 in 14.8 oz 820 n Jan 2015 899iNikon D5500

Nikon D7200« » 5.4 in 4.2 in 3.0 in 27.0 oz 1110 Y Mar 2015 1,199iNikon D7200

Nikon D750« » 5.6 in 4.4 in 3.1 in 26.5 oz 1230 Y Sep 2014 2,299iNikon D750

Nikon D300S« » 5.8 in 4.5 in 3.2 in 33.1 oz 950 Y Jul 2009 1,799iNikon D300S

Sony A7 III« » 5.0 in 3.8 in 2.9 in 22.9 oz 610 Y Feb 2018 1,999 iSony A7 III

Sony A7R« » 5.0 in 3.7 in 1.9 in 16.4 oz 340 Y Oct 2013 2,299iSony A7R
Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The D500 was launched at a somewhat lower price (by 13 percent) than the Canon R, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.



Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon R features a full frame sensor and the Nikon D500 an APS-C sensor. The sensor area in the D500 is 57 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.

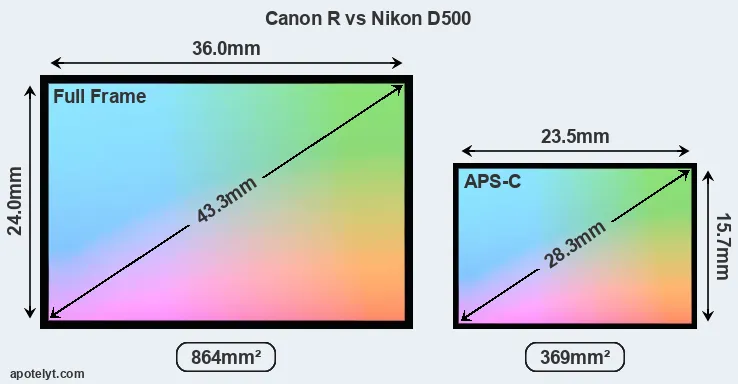

Canon R and Nikon D500 sensor measures

With 30.1MP, the Canon R offers a higher resolution than the D500 (20.7MP), but the Canon R nevertheless has larger individual pixels (pixel pitch of 5.36μm versus 4.22μm for the D500) due to its larger sensor. Moreover, the Canon R is a much more recent model (by 2 years and 8 months) than the D500, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the D500 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon R implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the Canon R for good quality output (200 dots per inch) amounts to 33.6 x 22.4 inch or 85.3 x 56.9 cm, for very good quality (250 dpi) 26.9 x 17.9 inch or 68.3 x 45.5 cm, and for excellent quality (300 dpi) 22.4 x 14.9 inch or 56.9 x 37.9 cm. The corresponding values for the Nikon D500 are 27.8 x 18.6 inch or 70.7 x 47.1 cm for good quality, 22.3 x 14.8 inch or 56.6 x 37.7 cm for very good quality, and 18.6 x 12.4 inch or 47.1 x 31.4 cm for excellent quality prints.

The Canon R has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS R has a native sensitivity range from ISO 100 to ISO 40000, which can be extended to ISO 50-102400. The corresponding ISO settings for the Nikon D500 are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-1640000.

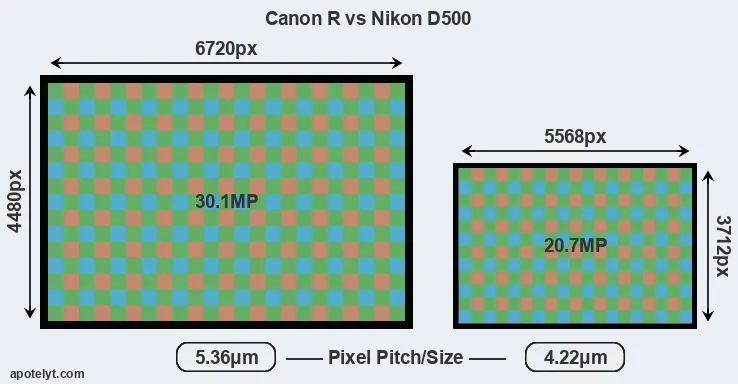

Canon R versus D500 MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the Canon R has a notably higher overall DXO score than the D500 (overall score 6 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.5 bits higher color depth, 0.5 EV of lower dynamic range, and 1.1 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model

Canon R Full Frame 30.1 6720 44804K/30p24.513.5274289Canon R

Nikon D500 APS-C 20.7 5568 37124K/30p24.014.0132483Nikon D500

Canon RP Full Frame 26.2 6240 41604K/30p........Canon RP

Canon 90D APS-C 32.3 6960 46404K/30p........Canon 90D

Canon 6D Mark II Full Frame 26.0 6240 41601080/60p24.411.9286285Canon 6D Mark II

Canon 6D Full Frame 20.0 5472 36481080/30p23.812.1234082Canon 6D

Leica Q2 Full Frame 46.7 8368 55844K/30p26.413.5249196Leica Q2

Leica M10 Full Frame 23.8 5952 3992none24.413.2213386Leica M10

Nikon Z6 Full Frame 24.3 6048 40244K/30p25.314.3329995Nikon Z6

Nikon D7500 APS-C 20.7 5568 37124K/30p24.314.0148386Nikon D7500

Nikon D3400 APS-C 24.0 6000 40001080/60p24.813.9119286Nikon D3400

Nikon D5500 APS-C 24.0 6000 40001080/60p24.114.0143884Nikon D5500

Nikon D7200 APS-C 24.0 6000 40001080/60p24.514.6133387Nikon D7200

Nikon D750 Full Frame 24.2 6016 40161080/60p24.814.5295693Nikon D750

Nikon D300S APS-C 12.2 4288 2848720/24p22.512.278770Nikon D300S

Sony A7 III Full Frame 24.0 6000 40004K/30p25.014.7373096Sony A7 III

Sony A7R Full Frame 36.2 7360 49121080/60p25.614.1274695Sony A7R

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (4K/30p).



Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the Canon R has an electronic viewfinder (3690k dots), while the D500 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the Canon R has a higher magnification than the one of the D500 (0.76x vs 0.67x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon R and Nikon D500 along with similar information for a selection of comparators.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
Camera
Model

Canon R3690 Y 3.2 2100 swivel Y 1/8000s 8.0 n n Canon R

Nikon D500optical Y 3.2 2359 tilting Y 1/8000s 10.0 n n Nikon D500

Canon RP2360 n 3.0 1040 swivel Y 1/4000s 5.0 n n Canon RP

Canon 90Doptical Y 3.0 1040 swivel Y 1/8000s 11.0 Y n Canon 90D

Canon 6D Mark IIoptical Y 3.0 1040 swivel Y 1/4000s 6.5 n n Canon 6D Mark II

Canon 6Doptical Y 3.0 1040 fixed n 1/4000s 4.5 n n Canon 6D

Leica Q23680 n 3.0 1040 fixed Y 1/2000s 20.0 n Y Leica Q2

Leica M10optical n 3.0 1037 fixed n 1/4000s 5.0 n n Leica M10

Nikon Z63690 Y 3.2 2100 tilting Y 1/8000s 12.0 n Y Nikon Z6

Nikon D7500optical Y 3.2 922 tilting Y 1/8000s 8.0 Y n Nikon D7500

Nikon D3400optical n 3.0 921 fixed n 1/4000s 5.0 Y n Nikon D3400

Nikon D5500optical n 3.2 1037 swivel Y 1/4000s 5.0 Y n Nikon D5500

Nikon D7200optical Y 3.2 1229 fixed n 1/8000s 6.0 Y n Nikon D7200

Nikon D750optical Y 3.2 1229 tilting n 1/4000s 6.0 Y n Nikon D750

Nikon D300Soptical Y 3.0 920 fixed n 1/8000s 7.0 Y n Nikon D300S

Sony A7 III2359 n 3.0 922 tilting Y 1/8000s 10.0 n Y Sony A7 III

Sony A7R2400 n 3.0 1230 tilting n 1/8000s 4.0 n n Sony A7R
The Canon R has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the D500 does not have a selfie-screen.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the Canon R is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Nikon D500 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The Canon R writes its imaging data to SDXC cards, while the D500 uses SDHC or XQD cards. The D500 features dual card slots, which can be very useful in case a memory card fails. In contrast, the Canon R only has one slot. Both cameras support UHS-II cards, which provide for Ultra High Speed data transfer of up to 312 MB/s.



Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS R and Nikon D500 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model

Canon RYstereomonoYYmini3.1Y-YCanon R

Nikon D500YstereomonoYYmini3.0YYYNikon D500

Canon RPYstereomonoYYmicro2.0Y-YCanon RP

Canon 90DYstereomonoYYmini2.0Y-YCanon 90D

Canon 6D Mark IIYstereomonoY-mini2.0YYYCanon 6D Mark II

Canon 6DYmonomonoY-mini2.0Y--Canon 6D

Leica Q2Ystereomono--nonenoneY-YLeica Q2

Leica M10Ynonenone--nonenoneY--Leica M10

Nikon Z6YstereomonoYYmicro3.1Y-YNikon Z6

Nikon D7500YstereomonoYYmini2.0Y-YNikon D7500

Nikon D3400Ymonomono--mini2.0--YNikon D3400

Nikon D5500YstereomonoY-mini2.0Y--Nikon D5500

Nikon D7200YstereomonoYYmini2.0YY-Nikon D7200

Nikon D750YstereomonoYYmini2.0Y--Nikon D750

Nikon D300SYstereomonoY-mini2.0---Nikon D300S

Sony A7 IIIYstereomonoYYmicro3.1YYYSony A7 III

Sony A7RYstereomonoYYmicro2.0YY-Sony A7R

Studio photographers will appreciate that the Nikon D500 (unlike the Canon R) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the Canon R and the D500 are recent models that are part of the current product line-up. The D500 replaced the earlier Nikon D300S, while the Canon R does not have a direct predecessor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Nikon websites.

Review summary

So what conclusions can be drawn? Is the Canon R better than the Nikon D500 or vice versa? A synthesis of the relative strong points of each of the models is listed below.

ilogo

Arguments in favor of the Canon EOS R:

  • More detail: Offers more megapixels (30.1 vs 20.7MP) with a 21% higher linear resolution.
  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Better image quality: Scores markedly higher (6 points) in the DXO overall assessment.
  • Better low-light sensitivity: Requires less light for good images (1.1 stops ISO advantage).
  • Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.76x vs 0.67x).
  • More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
  • More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • More compact: Is smaller (139x98mm vs 147x115mm) and thus needs less room in the bag.
  • Less heavy: Is lighter (by 200g or 23 percent) and hence easier to carry around.
  • Easier travel charging: Can be conveniently charged via its USB port.
  • More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
  • More modern: Reflects 2 years and 8 months of technical progress since the D500 launch.

ilogo

Advantages of the Nikon D500:

  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • More detailed LCD: Has a higher resolution rear screen (2359k vs 2100k dots).
  • Faster burst: Shoots at higher frequency (10 vs 8 flaps/sec) to capture the decisive moment.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • Longer lasting: Gets more shots (1240 versus 370) out of a single battery charge.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • More affordable: Was released into a lower priced segment (13 percent cheaper at launch).
  • More heavily discounted: Has been around for much longer (launched in January 2016).

If the count of relative strengths (bullet points above) is taken as a measure, the Canon R emerges as the winner of the contest (14 : 11 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

Canon R 14:11 D500

How about other alternatives? Do the specifications of the Canon R and the Nikon D500 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the Canon R and the D500 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Review Scores
  Camera
Model
cam
era
  labs
dp
re
  view
e
  zine
ima
ging
resource
graphy
  blog
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Camera
Model

Canon Ro79/1004.5/54/54/5 Sep 2018 2,299 iCanon R

Nikon D500+ +91/1004.5/55/55/5 Jan 2016 1,999 iNikon D500

Canon RP+..4.5/54.5/54/5 Feb 2019 1,299 iCanon RP

Canon 90D+85/1004.5/54.5/54.5/5 Aug 2019 1,199 iCanon 90D

Canon 6D Mark II+80/1004.5/54/54/5 Jun 2017 1,999 iCanon 6D Mark II

Canon 6D+ +83/1004.5/54.5/54.5/5 Sep 2012 2,099iCanon 6D

Leica Q2..84/1004.5/5..4/5 Mar 2019 4,995 iLeica Q2

Leica M10....4/5..4.5/5 Jan 2017 6,595 iLeica M10

Nikon Z6....4.5/54.5/55/5 Aug 2018 1,999 iNikon Z6

Nikon D7500+ +86/1005/54.5/54.5/5 Apr 2017 1,299 iNikon D7500

Nikon D3400+76/1004/54.5/54.5/5 Aug 2016 499iNikon D3400

Nikon D5500+79/1004.5/55/54.5/5 Jan 2015 899iNikon D5500

Nikon D7200+ +84/1004.5/54/54.5/5 Mar 2015 1,199iNikon D7200

Nikon D750+ +90/1004.5/55/54.5/5 Sep 2014 2,299iNikon D750

Nikon D300S+ +82/1004/55/54.5/5 Jul 2009 1,799iNikon D300S

Sony A7 III+ +89/1005/55/55/5 Feb 2018 1,999 iSony A7 III

Sony A7R+ +82/1004.5/55/55/5 Oct 2013 2,299iSony A7R
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Canon R:
Check Amazon price
Nikon D500:
Check Amazon price

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

    Specifications: Canon R vs Nikon D500

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon R Nikon D500
    Camera Type Mirrorless system camera Digital single lens reflex
    Camera Lens Canon RF mount lenses Nikon F mount lenses
    Launch Date September 2018 January 2016
    Launch Price USD 2299 USD 1999
    Sensor Specs Canon R Nikon D500
    Sensor Technology CMOS CMOS
    Sensor Format Full Frame Sensor APS-C Sensor
    Sensor Size 36.0 x 24.0 mm 23.5 x 15.7 mm
    Sensor Area 864 mm2 368.95 mm2
    Sensor Diagonal 43.3 mm 28.3 mm
    Crop Factor 1.0x 1.5x
    Sensor Resolution 30.1 Megapixels 20.7 Megapixels
    Image Resolution 6720 x 4480 pixels 5568 x 3712 pixels
    Pixel Pitch 5.36 μm 4.22 μm
    Pixel Density 3.48 MP/cm2 5.60 MP/cm2
    Moiré control Anti-Alias filter no AA filter
    Movie Capability 4K/30p Video 4K/30p Video
    ISO Setting 100-40000 ISO 100-51200 ISO
    ISO Boost 50-102400 ISO 50-1640000 ISO
    Image Processor DIGIC 8 EXPEED 5
    DXO Sensor Quality (score) 89 83
    DXO Color Depth (bits) 24.5 24.0
    DXO Dynamic Range (EV) 13.5 14.0
    DXO Low Light (ISO) 2742 1324
    Screen Specs Canon R Nikon D500
    Viewfinder Type Electronic viewfinder Optical viewfinder
    Viewfinder Field of View 100% 100%
    Viewfinder Magnification 0.76x 0.67x
    Viewfinder Resolution 3690k dots
    Top-Level Screen Control Panel Control Panel
    LCD Framing Live View Live View
    Rear LCD Size 3.2 inch 3.2 inch
    LCD Resolution 2100k dots 2359k dots
    LCD Attachment Swivel screen Tilting screen
    Touch Input Touchscreen Touchscreen
    Shooting Specs Canon R Nikon D500
    Focus System On-Sensor Phase-detect Phase-detect AF
    Manual Focusing AidFocus PeakingNo Peaking Feature
    Continuous Shooting 8 shutter flaps/s 10 shutter flaps/s
    Shutter Life Expectancy200 000 actuations200 000 actuations
    Electronic ShutterYESno E-Shutter
    Time-Lapse Photographyno IntervalometerIntervalometer built-in
    Fill Flash no On-Board Flash no On-Board Flash
    Storage Medium SDXC cards SDXC or XQD cards
    Second Storage Option Single card slot Dual card slots
    UHS card support UHS-II UHS-II
    Connectivity Specs Canon R Nikon D500
    External Flash Hotshoe Hotshoe
    Studio Flash no PC Sync PC Sync socket
    USB Connector USB 3.1 USB 3.0
    HDMI Port mini HDMI mini HDMI
    Microphone Port External MIC port External MIC port
    Headphone Socket Headphone port Headphone port
    Wifi Support Wifi built-in Wifi built-in
    Near-Field Communication no NFC NFC built-in
    Bluetooth Support Bluetooth built-in Bluetooth built-in
    Body Specs Canon R Nikon D500
    Environmental SealingWeathersealed bodyWeathersealed body
    Battery Type LP-E6N EN-EL15
    Battery Life (CIPA)370 shots per charge1240 shots per charge
    In-Camera Charging USB charging no USB charging
    Body Dimensions 139 x 98 x 84 mm
    (5.5 x 3.9 x 3.3 in)
    147 x 115 x 81 mm
    (5.8 x 4.5 x 3.2 in)
    Camera Weight 660 g (23.3 oz) 860 g (30.3 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon R vs Nikon D500
