Canon R vs 5D Mark IV

The Canon EOS R and the Canon EOS 5D Mark IV are two digital cameras that were officially introduced, respectively, in September 2018 and August 2016. The Canon R is a mirrorless interchangeable lens camera, while the 5D Mark IV is a DSLR. Both cameras are equipped with a full frame sensor. Both cameras offer a resolution of 30.1 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon R		Canon 5D Mark IV
Mirrorless system camera		Digital single lens reflex
Canon RF mount lenses		Canon EF mount lenses
30.1 MP – Full Frame sensor		30.1 MP – Full Frame sensor
4K/30p Video		4K/30p Video
ISO 100-40,000 (50 - 102,400)		ISO 100-32,000 (50 - 102,400)
Electronic viewfinder (3690k dots)		Optical viewfinder
3.2" LCD – 2100k dots		3.2" LCD – 1620k dots
Swivel touchscreen		Fixed touchscreen
8 shutter flaps per second		7 shutter flaps per second
Weathersealed body		Weathersealed body
370 shots per battery charge		900 shots per battery charge
139 x 98 x 84 mm, 660 g		151 x 116 x 76 mm, 890 g

Check Canon R offers at
ebay.com
Check 5D Mark IV price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS R and the Canon EOS 5D Mark IV? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

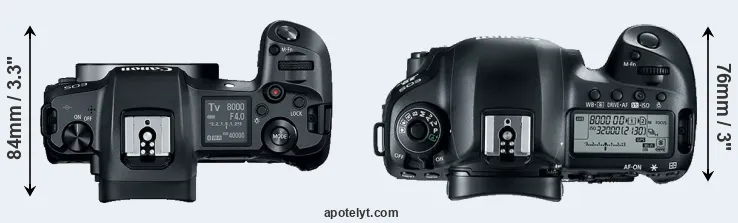

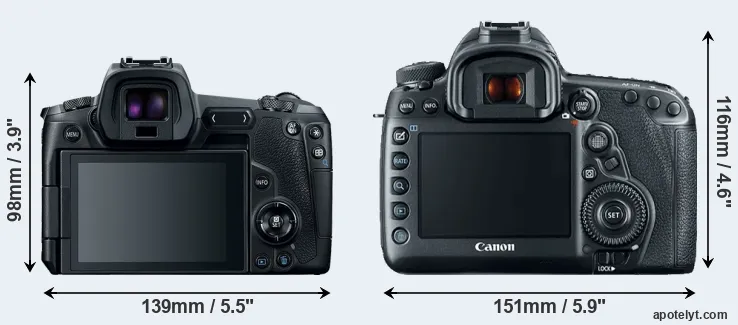

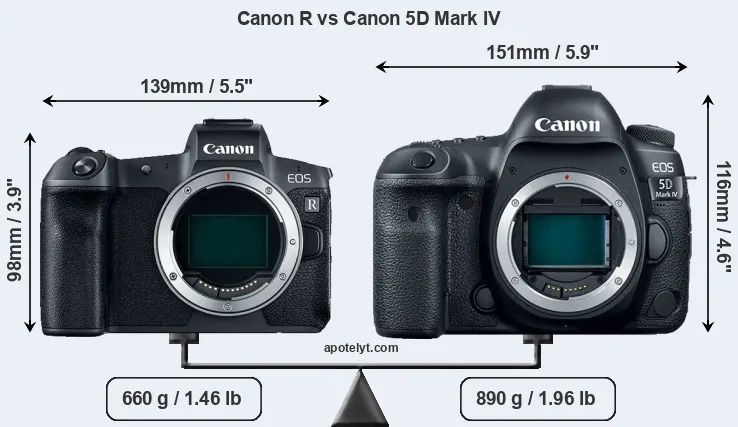

The side-by-side display below illustrates the physical size and weight of the Canon R and the Canon 5D Mark IV. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 5D Mark IV is notably larger (29 percent) than the Canon R. Moreover, the 5D Mark IV is substantially heavier (35 percent) than the Canon R. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The power pack in the Canon R can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon R	139 mm	98 mm	84 mm	660 g	370	Y	Sep 2018	2,299	ebay.com
2.		Canon 5D Mark IV	151 mm	116 mm	76 mm	890 g	900	Y	Aug 2016	3,499	amazon.com
3.		Canon 5D Mark II	152 mm	114 mm	75 mm	850 g	850	Y	Sep 2008	3,499	ebay.com
4.		Canon 5D Mark III	152 mm	116 mm	76 mm	950 g	950	Y	Mar 2012	3,499	ebay.com
5.		Canon 5DS	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	3,699	ebay.com
6.		Canon 5DS R	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	3,699	ebay.com
7.		Canon 6D	145 mm	111 mm	71 mm	770 g	1090	Y	Sep 2012	2,099	ebay.com
8.		Canon 6D Mark II	144 mm	111 mm	75 mm	765 g	1200	Y	Jun 2017	1,999	amazon.com
9.		Canon 80D	139 mm	105 mm	79 mm	730 g	960	Y	Feb 2016	1,199	ebay.com
10.		Canon 90D	141 mm	105 mm	77 mm	701 g	1300	Y	Aug 2019	1,199	amazon.com
11.		Canon R6	138 mm	98 mm	88 mm	680 g	360	Y	Jul 2020	2,499	amazon.com
12.		Canon RP	133 mm	85 mm	70 mm	485 g	250	n	Feb 2019	1,299	amazon.com
13.		Nikon D750	141 mm	113 mm	78 mm	750 g	1230	Y	Sep 2014	2,299	ebay.com
14.		Nikon Df	144 mm	110 mm	67 mm	760 g	1400	Y	Nov 2013	2,749	ebay.com
15.		Panasonic GH5s	139 mm	98 mm	87 mm	660 g	440	Y	Jan 2018	2,499	amazon.com
16.		Sony A7 III	127 mm	96 mm	74 mm	650 g	610	Y	Feb 2018	1,999	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The Canon R was launched at a markedly lower price (by 34 percent) than the 5D Mark IV, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

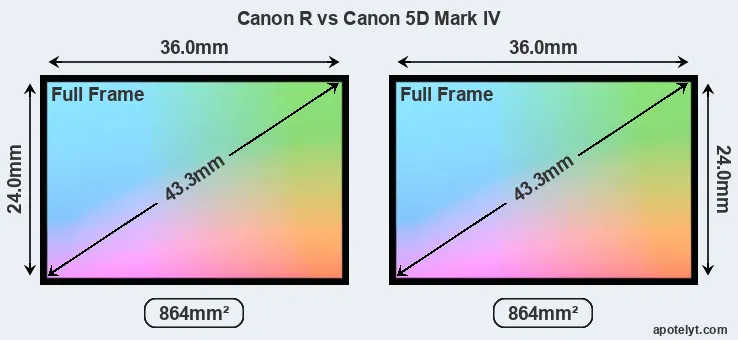

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a full frame sensor and have a format factor (sometimes also referred to as "crop factor") of 1.0. Within the spectrum of camera sensors, this places the review cameras among the large-sensor cameras that aim for top notch image quality. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

In terms of chip-set technology, the Canon R uses a more advanced image processing engine (DIGIC 8) than the 5D Mark IV (DIGIC 6+), with benefits for noise reduction, color accuracy, and processing speed.

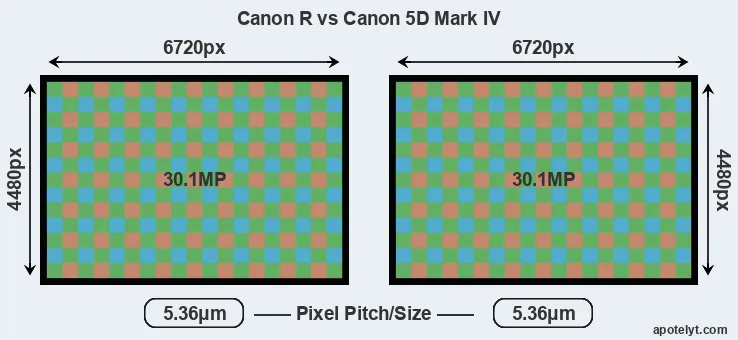

The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 30.1 megapixels. This similarity in sensor specs implies that both the Canon R and the 5D Mark IV have the same pixel density, as well as the same pixel size. It should, however, be noted that the Canon R is much more recent (by 2 years) than the 5D Mark IV, and its sensor will have benefitted from technological advances during this time.

The Canon EOS R has a native sensitivity range from ISO 100 to ISO 40000, which can be extended to ISO 50-102400. The corresponding ISO settings for the Canon EOS 5D Mark IV are ISO 100 to ISO 32000, with the possibility to increase the ISO range to 50-102400.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon R	Full Frame	30.1	6720	4480	4K/30p	24.5	13.5	2742	89
2.		Canon 5D Mark IV	Full Frame	30.1	6720	4480	4K/30p	24.8	13.6	2995	91
3.		Canon 5D Mark II	Full Frame	21.0	5616	3744	1080/30p	23.7	11.9	1815	79
4.		Canon 5D Mark III	Full Frame	22.1	5760	3840	1080/30p	24.0	11.7	2293	81
5.		Canon 5DS	Full Frame	50.3	8688	5792	1080/30p	24.7	12.4	2381	87
6.		Canon 5DS R	Full Frame	50.3	8688	5792	1080/30p	24.6	12.4	2308	86
7.		Canon 6D	Full Frame	20.0	5472	3648	1080/30p	23.8	12.1	2340	82
8.		Canon 6D Mark II	Full Frame	26.0	6240	4160	1080/60p	24.4	11.9	2862	85
9.		Canon 80D	APS-C	24.0	6000	4000	1080/60p	23.6	13.2	1135	79
10.		Canon 90D	APS-C	32.3	6960	4640	4K/30p	24.0	13.5	1848	83
11.		Canon R6	Full Frame	20.0	5472	3648	4k/60p	24.2	14.3	3394	90
12.		Canon RP	Full Frame	26.0	6240	4160	4K/30p	24.3	11.9	2977	85
13.		Nikon D750	Full Frame	24.2	6016	4016	1080/60p	24.8	14.5	2956	93
14.		Nikon Df	Full Frame	16.2	4928	3280	none	24.6	13.1	3279	89
15.		Panasonic GH5s	Four Thirds	9.9	3680	2700	4K/60p	23.1	12.8	1154	74
16.		Sony A7 III	Full Frame	24.0	6000	4000	4K/30p	25.0	14.7	3730	96
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (4K/30p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the Canon R has an electronic viewfinder (3690k dots), while the 5D Mark IV has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the Canon R has a higher magnification than the one of the 5D Mark IV (0.76x vs 0.71x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon R and Canon 5D Mark IV along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon R	3690	Y	3.2 / 2100	swivel	Y	1/8000s	8.0/s	n	n
2.		Canon 5D Mark IV	optical	Y	3.2 / 1620	fixed	Y	1/8000s	7.0/s	n	n
3.		Canon 5D Mark II	optical	Y	3.0 / 920	fixed	n	1/8000s	3.9/s	n	n
4.		Canon 5D Mark III	optical	Y	3.2 / 1040	fixed	n	1/8000s	6.0/s	n	n
5.		Canon 5DS	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
6.		Canon 5DS R	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
7.		Canon 6D	optical	Y	3.0 / 1040	fixed	n	1/4000s	4.5/s	n	n
8.		Canon 6D Mark II	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.5/s	n	n
9.		Canon 80D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
10.		Canon 90D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	11.0/s	Y	n
11.		Canon R6	3690	n	3.0 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
12.		Canon RP	2360	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	n	n
13.		Nikon D750	optical	Y	3.2 / 1229	tilting	n	1/4000s	6.0/s	Y	n
14.		Nikon Df	optical	Y	3.2 / 921	fixed	n	1/4000s	5.5/s	n	n
15.		Panasonic GH5s	3680	n	3.2 / 1620	swivel	Y	1/8000s	12.0/s	n	n
16.		Sony A7 III	2359	n	3.0 / 922	tilting	Y	1/8000s	10.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the Canon R is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon 5D Mark IV has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The Canon R writes its imaging data to SDXC cards, while the 5D Mark IV uses Compact Flash or SDXC cards. The 5D Mark IV features dual card slots, which can be very useful in case a memory card fails. In contrast, the Canon R only has one slot. The Canon R supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the 5D Mark IV can use UHS-I cards (up to 104 MB/s).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS R and Canon EOS 5D Mark IV and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon R	Y	stereo / mono	Y	Y	mini	3.1	Y	-	Y
2.		Canon 5D Mark IV	Y	mono / mono	Y	Y	mini	3.0	Y	Y	-
3.		Canon 5D Mark II	Y	mono / mono	Y	-	mini	2.0	-	-	-
4.		Canon 5D Mark III	Y	mono / mono	Y	Y	mini	2.0	-	-	-
5.		Canon 5DS	Y	mono / mono	Y	-	mini	3.0	-	-	-
6.		Canon 5DS R	Y	mono / mono	Y	-	mini	3.0	-	-	-
7.		Canon 6D	Y	mono / mono	Y	-	mini	2.0	Y	-	-
8.		Canon 6D Mark II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
9.		Canon 80D	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
10.		Canon 90D	Y	stereo / mono	Y	Y	mini	2.0	Y	-	Y
11.		Canon R6	Y	mono / mono	Y	Y	micro	3.2	Y	-	Y
12.		Canon RP	Y	stereo / mono	Y	Y	micro	2.0	Y	-	Y
13.		Nikon D750	Y	stereo / mono	Y	Y	mini	2.0	Y	-	-
14.		Nikon Df	Y	- / -	-	-	mini	2.0	-	-	-
15.		Panasonic GH5s	Y	stereo / mono	Y	Y	full	3.1	Y	-	Y
16.		Sony A7 III	Y	stereo / mono	Y	Y	micro	3.1	Y	Y	Y

Studio photographers will appreciate that the Canon 5D Mark IV (unlike the Canon R) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Travel and landscape photographers will find it useful that the 5D Mark IV has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

The 5D Mark IV is a recent model that features in the current product line-up of Canon. In contrast, the Canon R has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the Canon R from Canon. Further information on the features and operation of the Canon R and 5D Mark IV can be found, respectively, in the Canon R Manual (free pdf) or the online Canon 5D Mark IV Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Canon R and the Canon 5D Mark IV? Which camera is better? The listing below highlights the relative strengths of the two models.

Advantages of the Canon EOS R:

• Better jpgs: Has a more modern image processing engine (DIGIC 8 vs DIGIC 6+).
• More framing info: Has an electronic viewfinder that displays shooting data.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.76x vs 0.71x).
• More detailed LCD: Has a higher resolution rear screen (2100k vs 1620k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (8 vs 7 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• More compact: Is smaller (139x98mm vs 151x116mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 230g or 26 percent) and hence easier to carry around.
• Easier travel charging: Can be conveniently charged via its USB port.
• More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More affordable: Was introduced into a lower priced category (34 percent cheaper at launch).
• More modern: Reflects 2 years of technical progress since the 5D Mark IV launch.

Arguments in favor of the Canon EOS 5D Mark IV:

• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Longer lasting: Gets more shots (900 versus 370) out of a single battery charge.
• Easier geotagging: Features an internal GPS sensor to log localization data.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been around for much longer (launched in August 2016).

If the number of relative strengths (bullet points above) is taken as a guide, the Canon R is the clear winner of the match-up (16 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon R and the Canon 5D Mark IV place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the Canon R or the 5D Mark IV. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon R	4/5	o	4/5	79/100	4.5/5	4/5	Sep 2018	2,299	ebay.com
2.		Canon 5D Mark IV	4.5/5	+ +	4/5	87/100	4.5/5	4.5/5	Aug 2016	3,499	amazon.com
3.		Canon 5D Mark II	4/5	91/100	..	79/100	4/5	..	Sep 2008	3,499	ebay.com
4.		Canon 5D Mark III	..	+ +	..	82/100	4.5/5	4.5/5	Mar 2012	3,499	ebay.com
5.		Canon 5DS	..	+	..	83/100	4.5/5	4.5/5	Feb 2015	3,699	ebay.com
6.		Canon 5DS R	5/5	+	..	83/100	5/5	4.5/5	Feb 2015	3,699	ebay.com
7.		Canon 6D	5/5	+ +	..	83/100	4.5/5	4.5/5	Sep 2012	2,099	ebay.com
8.		Canon 6D Mark II	4/5	+	4/5	80/100	4.5/5	4/5	Jun 2017	1,999	amazon.com
9.		Canon 80D	4/5	+ +	4.5/5	84/100	4.5/5	4.5/5	Feb 2016	1,199	ebay.com
10.		Canon 90D	4/5	+	4.5/5	85/100	4.5/5	4.5/5	Aug 2019	1,199	amazon.com
11.		Canon R6	5/5	+ +	4/5	90/100	4.5/5	5/5	Jul 2020	2,499	amazon.com
12.		Canon RP	4/5	+	4/5	..	4.5/5	4/5	Feb 2019	1,299	amazon.com
13.		Nikon D750	5/5	+ +	4/5	90/100	4.5/5	4.5/5	Sep 2014	2,299	ebay.com
14.		Nikon Df	4/5	..	..	81/100	4/5	4/5	Nov 2013	2,749	ebay.com
15.		Panasonic GH5s	..	..	4.5/5	84/100	4.5/5	4.5/5	Jan 2018	2,499	amazon.com
16.		Sony A7 III	..	+ +	4.5/5	89/100	5/5	5/5	Feb 2018	1,999	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check Canon R offers at
ebay.com
Check 5D Mark IV price at
amazon.com
