Canon M50 vs Pentax 645Z
The Canon EOS M50 and the Pentax 645Z are two digital cameras that were officially introduced, respectively, in February 2018 and April 2014. The M50 is a mirrorless interchangeable lens camera, while the 645Z is a DSLR. The cameras are based on an APS-C (M50) and a medium format (645Z) sensor. The Canon has a resolution of 24 megapixels, whereas the Pentax provides 51.1 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M50 and the Pentax 645Z? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

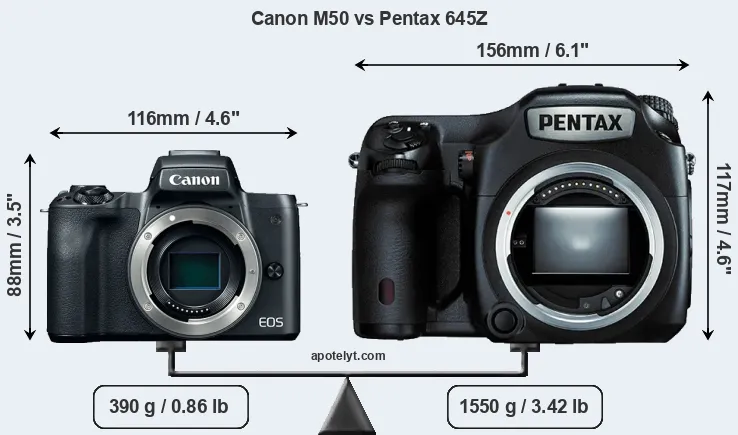

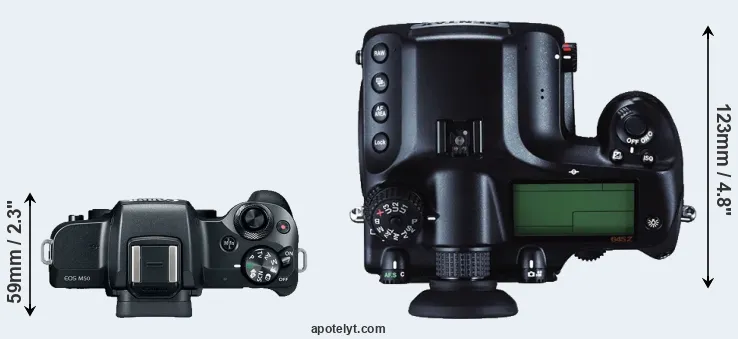

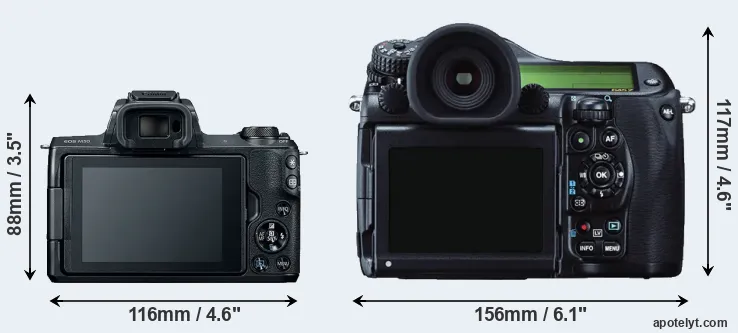

The side-by-side display below illustrates the physical size and weight of the Canon M50 and the Pentax 645Z. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
The M50 can be obtained in two different colors (black, white), while the 645Z is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax 645Z is considerably larger (79 percent) than the Canon M50. Moreover, the 645Z is substantially heavier (297 percent) than the M50. It is noteworthy in this context that the 645Z is splash and dust-proof, while the M50 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon M50||116 mm||88 mm||59 mm||390 g||235||n||Feb 2018||779|
|2.||Pentax 645Z||156 mm||117 mm||123 mm||1550 g||650||Y||Apr 2014||8,499|
|3.||Canon M50 Mark II||116 mm||88 mm||59 mm||387 g||305||n||Oct 2020||599|
|4.||Canon SL3||122 mm||93 mm||70 mm||449 g||1070||n||Apr 2019||599|
|5.||Canon M6 Mark II||120 mm||70 mm||49 mm||408 g||305||n||Aug 2019||849|
|6.||Canon T7||129 mm||101 mm||78 mm||475 g||500||n||Feb 2018||449|
|7.||Canon M6||112 mm||68 mm||45 mm||390 g||295||n||Feb 2017||779|
|8.||Canon M100||108 mm||67 mm||35 mm||302 g||295||n||Aug 2017||499|
|9.||Canon SL2||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549|
|10.||Canon T7i||131 mm||100 mm||76 mm||532 g||600||n||Feb 2017||749|
|11.||Canon M5||116 mm||89 mm||61 mm||427 g||295||n||Sep 2016||979|
|12.||Canon 5DS||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|13.||Canon 5DS R||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|14.||Canon M3||111 mm||68 mm||44 mm||366 g||250||n||Feb 2015||679|
|15.||Hasselblad X1D||150 mm||98 mm||71 mm||725 g||..||Y||Jun 2016||8,995|
|16.||Leica SL||147 mm||104 mm||39 mm||847 g||400||Y||Oct 2015||7,450|
|17.||Pentax 645D||156 mm||117 mm||119 mm||1480 g||800||Y||Mar 2010||9,995|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The M50 was launched at a markedly lower price (by 91 percent) than the 645Z, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

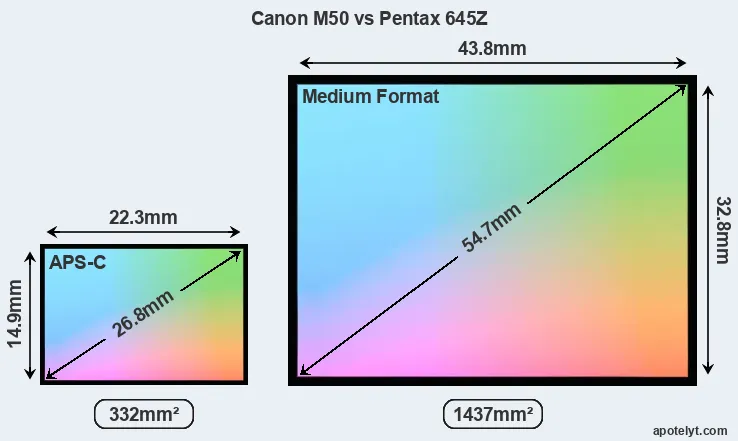

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon M50 features an APS-C sensor and the Pentax 645Z a medium format sensor. The sensor area in the 645Z is 333 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 0.79. The sensor in the M50 has a native 3:2 aspect ratio, while the one in the 645Z offers a 4:3 aspect.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.

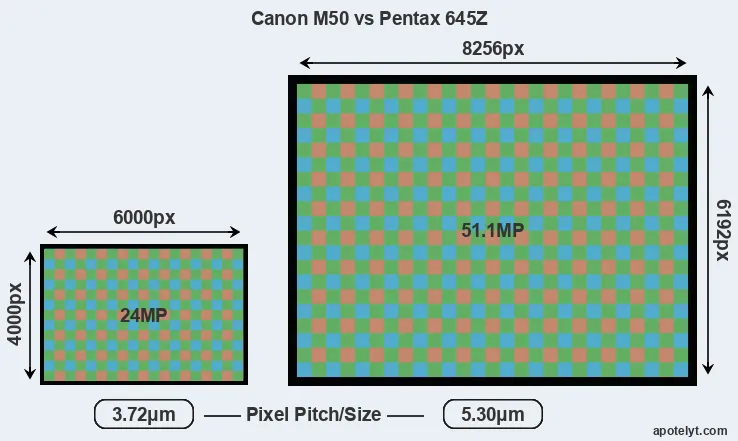

With 51.1MP, the 645Z offers a higher resolution than the M50 (24MP), but the 645Z nevertheless has larger individual pixels (pixel pitch of 5.30μm versus 3.72μm for the M50) due to its larger sensor. However, the M50 is a much more recent model (by 3 years and 10 months) than the 645Z, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the 645Z has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Pentax 645Z implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 645Z for good quality output (200 dots per inch) amounts to 41.3 x 31 inches or 104.9 x 78.6 cm, for very good quality (250 dpi) 33 x 24.8 inches or 83.9 x 62.9 cm, and for excellent quality (300 dpi) 27.5 x 20.6 inches or 69.9 x 52.4 cm. The corresponding values for the Canon M50 are 30 x 20 inches or 76.2 x 50.8 cm for good quality, 24 x 16 inches or 61 x 40.6 cm for very good quality, and 20 x 13.3 inches or 50.8 x 33.9 cm for excellent quality prints.
The M50 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS M50 has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Pentax 645Z are ISO 100 to ISO 204800 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|2.||Pentax 645Z||Medium Format||51.1||8256||6192||1080/60i||26.0||14.7||4505||101|
|3.||Canon M50 Mark II||APS-C||24.0||6000||4000||4K/24p||..||..||..||..|
|5.||Canon M6 Mark II||APS-C||32.3||6960||4640||4K/30p||..||..||..||..|
|12.||Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|13.||Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|15.||Hasselblad X1D||Medium Format||51.3||8272||6200||1080/25p||26.2||14.8||4489||102|
|16.||Leica SL||Full Frame||24.0||6000||4000||4K/30p||25.0||13.4||1821||88|
|17.||Pentax 645D||Medium Format||39.5||7264||5440||none||24.6||12.6||1262||82|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the M50 provides a higher video resolution than the 645Z. It can shoot video footage at 4K/24p, while the Pentax is limited to 1080/60i.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the M50 has an electronic viewfinder (2360k dots), while the 645Z has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The following table reports on some other key feature differences and similarities of the Canon M50, the Pentax 645Z, and comparable cameras.
|1.||Canon M50||2360||n||3.0 / 1040||swivel||Y||1/4000s||10.0||Y||n|
|2.||Pentax 645Z||optical||Y||3.2 / 1037||tilting||n||1/4000s||3.0||n||n|
|3.||Canon M50 Mark II||2360||n||3.0 / 1040||swivel||Y||1/4000s||10.0||Y||n|
|4.||Canon SL3||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|5.||Canon M6 Mark II||optional||n||3.0 / 1040||tilting||Y||1/4000s||14.0||Y||n|
|6.||Canon T7||optical||n||3.0 / 920||fixed||n||1/4000s||3.0||Y||n|
|7.||Canon M6||optional||n||3.0 / 1040||tilting||Y||1/4000s||9.0||Y||n|
|8.||Canon M100||none||n||3.0 / 1040||tilting||Y||1/4000s||6.1||Y||n|
|9.||Canon SL2||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|10.||Canon T7i||optical||n||3.0 / 1040||swivel||Y||1/4000s||6.0||Y||n|
|11.||Canon M5||2360||n||3.2 / 1620||tilting||Y||1/4000s||9.0||Y||n|
|12.||Canon 5DS||optical||Y||3.2 / 1040||fixed||n||1/8000s||5.0||n||n|
|13.||Canon 5DS R||optical||Y||3.2 / 1040||fixed||n||1/8000s||5.0||n||n|
|14.||Canon M3||optional||n||3.0 / 1040||tilting||Y||1/4000s||4.2||Y||n|
|15.||Hasselblad X1D||2360||n||3.0 / 920||fixed||Y||1/2000s||2.3||n||n|
|16.||Leica SL||4400||Y||3.0 / 1040||fixed||Y||1/8000s||11.0||n||n|
|17.||Pentax 645D||optical||Y||3.0 / 921||fixed||n||1/4000s||1.1||n||n|
One difference between the cameras concerns the presence of an on-board flash. The M50 has one, while the 645Z does not. While the built-in flash of the M50 is not very powerful, it can at times be useful as a fill-in light.The M50 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the 645Z does not have a selfie-screen.
The Canon M50 and the Pentax 645Z both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the M50 and the 645Z write their files to SDXC cards. The 645Z features dual card slots, which can be very useful in case a memory card fails. In contrast, the M50 only has one slot. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M50 and Pentax 645Z and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon M50||Y||stereo / mono||Y||-||micro||2.0||Y||-||Y|
|2.||Pentax 645Z||Y||stereo / mono||Y||-||mini||3.0||-||-||-|
|3.||Canon M50 Mark II||Y||stereo / mono||Y||-||micro||2.0||Y||-||Y|
|4.||Canon SL3||Y||stereo / mono||Y||-||mini||2.0||Y||-||Y|
|5.||Canon M6 Mark II||Y||stereo / mono||Y||-||micro||2.0||Y||-||Y|
|6.||Canon T7||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|7.||Canon M6||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|8.||Canon M100||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|9.||Canon SL2||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|10.||Canon T7i||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|11.||Canon M5||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|12.||Canon 5DS||Y||mono / mono||Y||-||mini||3.0||-||-||-|
|13.||Canon 5DS R||Y||mono / mono||Y||-||mini||3.0||-||-||-|
|14.||Canon M3||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|15.||Hasselblad X1D||Y||stereo / mono||Y||Y||mini||3.0||Y||-||-|
|16.||Leica SL||Y||stereo / mono||Y||Y||full||3.0||Y||-||-|
|17.||Pentax 645D||Y||stereo / -||-||-||-||2.0||-||-||-|
It is notable that the M50 offers wifi support, while the 645Z does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Studio photographers will appreciate that the Pentax 645Z (unlike the M50) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The 645Z is a recent model that features in the current product line-up of Pentax. In contrast, the M50 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the M50 was succeeded by the Canon M50 Mark II. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Pentax websites.
So what conclusions can be drawn? Which of the two cameras – the Canon M50 or the Pentax 645Z – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Canon EOS M50:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better video: Provides higher definition movie capture (4K/24p vs 1080/60i).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (10 vs 3 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (116x88mm vs 156x117mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 1160g or 75 percent) and hence easier to carry around.
- More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More affordable: Was introduced into a lower priced category (91 percent cheaper at launch).
- More modern: Reflects 3 years and 10 months of technical progress since the 645Z launch.
Reasons to prefer the Pentax 645Z:
- More detail: Has more megapixels (51.1 vs 24MP), which boosts linear resolution by 43%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Easier setting verification: Features a control panel on top to check shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- Longer lasting: Gets more shots (650 versus 235) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been around for much longer (launched in April 2014).
If the count of individual advantages (bullet points above) is taken as a guide, the M50 is the clear winner of the match-up (16 : 11 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon M50 and the Pentax 645Z place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the M50 or the 645Z perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon M50||..||+||4/5||79/100||..||3.5/5||Feb 2018||779|
|2.||Pentax 645Z||5/5||..||..||..||4.5/5||5/5||Apr 2014||8,499|
|3.||Canon M50 Mark II||4/5||..||4/5||..||4.5/5||3.5/5||Oct 2020||599|
|4.||Canon SL3||..||o||4.5/5||79/100||4/5||4/5||Apr 2019||599|
|5.||Canon M6 Mark II||..||+||4.5/5||85/100||4/5||4/5||Aug 2019||849|
|6.||Canon T7||..||o||..||..||3.5/5||3.5/5||Feb 2018||449|
|7.||Canon M6||..||..||..||80/100||4/5||4/5||Feb 2017||779|
|8.||Canon M100||3/5||+||..||..||4/5||3.5/5||Aug 2017||499|
|9.||Canon SL2||4/5||+ +||4/5||78/100||4.5/5||4.5/5||Jun 2017||549|
|10.||Canon T7i||4.5/5||..||3.5/5||80/100||4.5/5||4/5||Feb 2017||749|
|11.||Canon M5||4/5||+||4/5||82/100||4/5||4/5||Sep 2016||979|
|12.||Canon 5DS||..||+||..||83/100||4.5/5||4.5/5||Feb 2015||3,699|
|13.||Canon 5DS R||5/5||+||..||83/100||5/5||4.5/5||Feb 2015||3,699|
|14.||Canon M3||4/5||o||..||75/100||4.5/5||4/5||Feb 2015||679|
|15.||Hasselblad X1D||..||o||..||81/100||..||4/5||Jun 2016||8,995|
|16.||Leica SL||4/5||..||4/5||84/100||4.5/5||4/5||Oct 2015||7,450|
|17.||Pentax 645D||5/5||..||..||..||..||..||Mar 2010||9,995|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon M50 vs Canon SX70
- Canon M50 vs Fujifilm X-E4
- Canon M50 vs Nikon D500
- Canon M50 vs Olympus XZ-1
- Canon M50 vs Panasonic FZ2000
- Canon M50 vs Pentax KP
- Canon SX530 vs Pentax 645Z
- Leica M8 vs Pentax 645Z
- Olympus E-PL8 vs Pentax 645Z
- Olympus E-PL9 vs Pentax 645Z
- Panasonic G7 vs Pentax 645Z
- Pentax 645Z vs Ricoh GR III
Specifications: Canon M50 vs Pentax 645Z
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon M50||Pentax 645Z|
|Camera Type||Mirrorless system camera||Digital single lens reflex|
|Camera Lens||Canon EF-M mount lenses||Pentax 645 mount lenses|
|Launch Date||February 2018||April 2014|
|Launch Price||USD 779||USD 8,499|
|Sensor Specs||Canon M50||Pentax 645Z|
|Sensor Format||APS-C Sensor||Medium Format Sensor|
|Sensor Size||22.3 x 14.9 mm||43.8 x 32.8 mm|
|Sensor Area||332.27 mm2||1436.64 mm2|
|Sensor Diagonal||26.8 mm||54.7 mm|
|Sensor Resolution||24 Megapixels||51.1 Megapixels|
|Image Resolution||6000 x 4000 pixels||8256 x 6192 pixels|
|Pixel Pitch||3.72 μm||5.30 μm|
|Pixel Density||7.22 MP/cm2||3.56 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||4K/24p Video||1080/60i Video|
|ISO Setting||100 - 25,600 ISO||100 - 204,800 ISO|
|ISO Boost||100 - 51,200 ISO||no Enhancement|
|Image Processor||DIGIC 8||PRIME III|
|DXO Sensor Quality (score)||..||101|
|DXO Color Depth (bits)||..||26.0|
|DXO Dynamic Range (EV)||..||14.7|
|DXO Low Light (ISO)||..||4505|
|Screen Specs||Canon M50||Pentax 645Z|
|Viewfinder Type||Electronic viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||98%|
|Viewfinder Resolution||2360k dots|
|Top-Level Screen||no Top Display||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.2inch|
|LCD Resolution||1040k dots||1037k dots|
|LCD Attachment||Swivel screen||Tilting screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon M50||Pentax 645Z|
|Focus System||On-Sensor Phase-detect||Phase-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/4000s|
|Continuous Shooting||10 shutter flaps/s||3 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||100 000 actuations|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Fill Flash||Built-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon M50||Pentax 645Z|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 3.0|
|HDMI Port||micro HDMI||mini HDMI|
|Microphone Port||External MIC port||External MIC port|
|Wifi Support||Wifi built-in||no Wifi|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Body Specs||Canon M50||Pentax 645Z|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||235 shots per charge||650 shots per charge|
116 x 88 x 59 mm
(4.6 x 3.5 x 2.3 in)
156 x 117 x 123 mm
(6.1 x 4.6 x 4.8 in)
|Camera Weight||390 g (13.8 oz)||1550 g (54.7 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
