Canon M50 Mark II vs Olympus PEN-F

The Canon EOS M50 Mark II and the Olympus PEN-F are two digital cameras that were revealed to the public, respectively, in October 2020 and January 2016. Both the M50 Mark II and the PEN-F are mirrorless interchangeable lens cameras that are based on an APS-C (M50 Mark II) and a Four Thirds (PEN-F) sensor. The Canon has a resolution of 24 megapixels, whereas the Olympus provides 20.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon M50 Mark II
versus
Olympus PEN-F
Canon M50 Mark II   Olympus PEN-F
Mirrorless system camera Mirrorless system camera
Canon EF-M mount lenses Micro Four Thirds lenses
24 MP – APS-C sensor 20.2 MP – Four Thirds sensor
4K/24p Video 1080/60p Video
ISO 100-25,600 (100 - 51,200) ISO 80-25,600
Electronic viewfinder (2360k dots) Electronic viewfinder (2360k dots)
3.0" LCD – 1040k dots 3.0" LCD – 1037k dots
Swivel touchscreen Swivel touchscreen
10 shutter flaps per second 10 shutter flaps per second
Lens stabilization onlyIn-body stabilization
305 shots per battery charge330 shots per battery charge
116 x 88 x 59 mm, 387 g 125 x 72 x 37 mm, 427 g
logo
Check M50 Mark II offers at
ebay.com
logo
Check PEN-F offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M50 Mark II and the Olympus PEN-F? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

The physical size and weight of the Canon M50 Mark II and the Olympus PEN-F are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

The M50 Mark II can be obtained in two different colors (black, white), while the PEN-F is also available in two color-versions, but different ones (black, silver).

Size Canon M50 Mark II vs Olympus PEN-F
Compare M50 Mark II versus PEN-F top

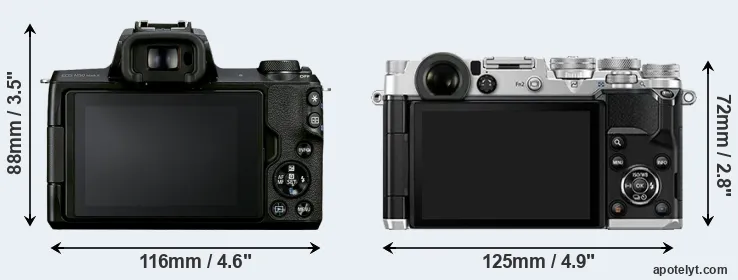

Comparison M50 Mark II or PEN-F rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus PEN-F is notably smaller (12 percent) than the Canon M50 Mark II. However, the PEN-F is markedly heavier (10 percent) than the M50 Mark II. In this context, it is worth noting that neither the M50 Mark II nor the PEN-F are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the M50 Mark II gets 305 shots out of its Canon LP-E12 battery, while the PEN-F can take 330 images on a single charge of its Olympus BLN-1 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

scroll hint
Body Specifications
  empty Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price
Street
Price
1.

Canon M50 Mark II 116 mm 88 mm 59 mm 387 g 305 n Oct 2020 US$ 599ebay.com
2.

Olympus PEN-F 125 mm 72 mm 37 mm 427 g 330 n Jan 2016 US$ 1 199ebay.com
3.

Canon 200D 122 mm 93 mm 70 mm 453 g 650 n Jun 2017 US$ 549ebay.com
4.

Canon 250D 122 mm 93 mm 70 mm 449 g 1070 n Apr 2019 US$ 599 amazon.com
5.

Canon G5 X Mark II 111 mm 61 mm 46 mm 340 g 230 n Jul 2019 US$ 899ebay.com
6.

Canon M3 111 mm 68 mm 44 mm 366 g 250 n Feb 2015 US$ 679ebay.com
7.

Canon M6 112 mm 68 mm 45 mm 390 g 295 n Feb 2017 US$ 779ebay.com
8.

Canon M6 Mark II 120 mm 70 mm 49 mm 408 g 305 n Aug 2019 US$ 849ebay.com
9.

Canon M50 116 mm 88 mm 59 mm 390 g 235 n Feb 2018 US$ 779ebay.com
10.

Canon M200 108 mm 67 mm 35 mm 299 g 315 n Sep 2019 US$ 549ebay.com
11.

Fujifilm X-A7 119 mm 68 mm 41 mm 320 g 440 n Sep 2019 US$ 499ebay.com
12.

Fujifilm X-T200 121 mm 84 mm 55 mm 370 g 270 n Jan 2020 US$ 699ebay.com
13.

Olympus E-M1 II 134 mm 91 mm 67 mm 574 g 440 Y Sep 2016 US$ 1 999ebay.com
14.

Olympus E-M5 II 124 mm 85 mm 45 mm 469 g 310 Y Feb 2015 US$ 1 099ebay.com
15.

Olympus E-M10 II 120 mm 83 mm 47 mm 390 g 320 n Aug 2015 US$ 649ebay.com
16.

Olympus E-P5 122 mm 69 mm 37 mm 420 g 330 n May 2013 US$ 999ebay.com
17.

Panasonic GX8 133 mm 78 mm 63 mm 487 g 330 Y Jul 2015 US$ 1 199ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The M50 Mark II was launched at a markedly lower price (by 50 percent) than the PEN-F, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon M50 Mark II features an APS-C sensor and the Olympus PEN-F a Four Thirds sensor. The sensor area in the PEN-F is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the M50 Mark II has a native 3:2 aspect ratio, while the one in the PEN-F offers a 4:3 aspect.

Canon M50 Mark II and Olympus PEN-F sensor measures

With 24MP, the M50 Mark II offers a higher resolution than the PEN-F (20.2MP), but the M50 Mark II nevertheless has larger individual pixels (pixel pitch of 3.72μm versus 3.34μm for the PEN-F) due to its larger sensor. Moreover, the M50 Mark II is a much more recent model (by 4 years and 8 months) than the PEN-F, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the PEN-F has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon M50 Mark II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M50 Mark II for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus PEN-F are 25.9 x 19.4 inches or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inches or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inches or 43.9 x 32.9 cm for excellent quality prints.

The M50 Mark II has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

Unlike the M50 Mark II, the PEN-F has the capacity to capture high quality composite images (40MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

The Canon EOS M50 Mark II has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Olympus PEN-F are ISO 80 to ISO 25600 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

M50 Mark II versus PEN-F MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

scroll hint
Sensor Characteristics
  empty Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon M50 Mark II APS-C 24.0 6000 40004K/24p24.013.6193983
2.

Olympus PEN-F Four Thirds 20.2 5184 38881080/60p23.112.489474
3.

Canon 200D APS-C 24.0 6000 40001080/60p23.613.4104179
4.

Canon 250D APS-C 24.0 6000 40004K/25p23.913.4179182
5.

Canon G5 X Mark II 1-inch 20.0 5472 36484K/30p22.212.458365
6.

Canon M3 APS-C 24.0 6000 40001080/30p22.811.8116972
7.

Canon M6 APS-C 24.0 6000 40001080/60p23.412.6131778
8.

Canon M6 Mark II APS-C 32.3 6960 46404K/30p24.013.5184883
9.

Canon M50 APS-C 24.0 6000 40004K/24p23.813.3168481
10.

Canon M200 APS-C 24.0 6000 40004k/25p24.013.5183682
11.

Fujifilm X-A7 APS-C 24.0 6000 40004K/30p24.113.6195584
12.

Fujifilm X-T200 APS-C 24.0 6000 40004K/30p24.113.6199184
13.

Olympus E-M1 II Four Thirds 20.2 5184 38884K/30p23.712.8131280
14.

Olympus E-M5 II Four Thirds 15.9 4608 34561080/60p23.012.584273
15.

Olympus E-M10 II Four Thirds 15.9 4608 34561080/60p23.112.584273
16.

Olympus E-P5 Four Thirds 15.9 4608 34561080/30p22.812.489572
17.

Panasonic GX8 Four Thirds 20.2 5184 38884K/30p23.512.680675
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the M50 Mark II provides a higher video resolution than the PEN-F. It can shoot video footage at 4K/24p, while the Olympus is limited to 1080/60p.

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The M50 Mark II and the PEN-F are similar in the sense that both feature an electronic viewfinder, which is helpful when framing images in bright sunlight. Moreover, their viewfinders offer an identical resolution of 2360k dots. The table below summarizes some of the other core capabilities of the Canon M50 Mark II and Olympus PEN-F in connection with corresponding information for a sample of similar cameras.

scroll hint
Core Features
  empty Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon M50 Mark II2360 n3.0 / 1040 swivel Y 1/4000s 10.0/s Y n
2.

Olympus PEN-F2360 n3.0 / 1037 swivel Y 1/8000s 10.0/s n Y
3.

Canon 200Doptical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
4.

Canon 250Doptical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
5.

Canon G5 X Mark II2360 n3.0 / 1040 tilting Y 1/2000s 30/s Y Y
6.

Canon M3optional n3.0 / 1040 tilting Y 1/4000s 4.2/s Y n
7.

Canon M6optional n3.0 / 1040 tilting Y 1/4000s 9.0/s Y n
8.

Canon M6 Mark IIoptional n3.0 / 1040 tilting Y 1/4000s 14.0/s Y n
9.

Canon M502360 n3.0 / 1040 swivel Y 1/4000s 10.0/s Y n
10.

Canon M200none n3.0 / 1040 tilting Y 1/4000s 6.1/s Y n
11.

Fujifilm X-A7none n3.5 / 2760 swivel Y 1/4000s 6.0/s Y n
12.

Fujifilm X-T2002360 n3.5 / 2780 swivel Y 1/4000s 8.0/s Y n
13.

Olympus E-M1 II2360 n3.0 / 1037 swivel Y 1/8000s 18.0/s n Y
14.

Olympus E-M5 II2360 n3.0 / 1037 swivel Y 1/8000s 10.0/s n Y
15.

Olympus E-M10 II2360 n3.0 / 1040 tilting Y 1/4000s 8.0/s Y Y
16.

Olympus E-P5optional n3.0 / 1037 tilting Y 1/8000s 9.0/s Y Y
17.

Panasonic GX82360 n3.0 / 1040 swivel Y 1/8000s 10.0/s n Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The M50 Mark II has one, while the PEN-F does not. While the built-in flash of the M50 Mark II is not very powerful, it can at times be useful as a fill-in light.

Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon M50 Mark II and the Olympus PEN-F both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the M50 Mark II and the PEN-F write their files to SDXC cards. The PEN-F supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the M50 Mark II can use UHS-I cards (up to 104 MB/s).

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M50 Mark II and Olympus PEN-F and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
  empty Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon M50 Mark IIYstereo / monoY-micro2.0Y-Y
2.

Olympus PEN-FYstereo / mono--micro2.0Y--
3.

Canon 200DYstereo / monoY-mini2.0YYY
4.

Canon 250DYstereo / monoY-mini2.0Y-Y
5.

Canon G5 X Mark II-stereo / mono--micro3.1Y-Y
6.

Canon M3Ystereo / monoY-mini2.0YY-
7.

Canon M6Ystereo / monoY-mini2.0YYY
8.

Canon M6 Mark IIYstereo / monoY-micro2.0Y-Y
9.

Canon M50Ystereo / monoY-micro2.0Y-Y
10.

Canon M200-stereo / mono--micro2.0Y-Y
11.

Fujifilm X-A7Ystereo / monoY-micro2.0Y-Y
12.

Fujifilm X-T200Ystereo / monoYYmicro3.1Y-Y
13.

Olympus E-M1 IIYstereo / monoYYmicro3.0Y--
14.

Olympus E-M5 IIYstereo / monoY-micro2.0Y--
15.

Olympus E-M10 IIYstereo / mono--micro2.0Y--
16.

Olympus E-P5Ystereo / mono--micro2.0Y--
17.

Panasonic GX8Ystereo / monoY-micro2.0YY-

It is notable that the M50 Mark II has a microphone port, which is missing on the PEN-F. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Both the M50 Mark II and the PEN-F have been discontinued, but can regularly be found used on ebay. Neither of the two has a direct successor, so they represent the end of the respective camera lines from Canon and Olympus. Further information on the features and operation of the M50 Mark II and PEN-F can be found, respectively, in the Canon M50 Mark II Manual (free pdf) or the online Olympus PEN-F Manual.

ad

Review summary

So what conclusions can be drawn? Is the Canon M50 Mark II better than the Olympus PEN-F or vice versa? A synthesis of the relative strong points of each of the models is listed below.

ilogo

Reasons to prefer the Canon EOS M50 Mark II:

  • More detail: Offers more megapixels (24 vs 20.2MP) with a 11% higher linear resolution.
  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Better image quality: Features a larger and more technologically advanced imaging sensor.
  • Richer colors: The sensor size advantage translates into images with better, more accurate colors.
  • More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
  • Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
  • Better video: Provides higher definition movie capture (4K/24p vs 1080/60p).
  • Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
  • Better sound: Can connect to an external microphone for higher quality sound recording.
  • Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • More affordable: Was introduced into a lower priced category (50 percent cheaper at launch).
  • More modern: Reflects 4 years and 8 months of technical progress since the PEN-F launch.

ilogo

Advantages of the Olympus PEN-F:

  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • High quality composites: Can combine several shots after pixel-shifting its sensor.
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
  • More compact: Is smaller (125x72mm vs 116x88mm) and will fit more readily into a bag.
  • Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
  • Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
  • More heavily discounted: Has been around for much longer (launched in January 2016).

If the number of relative strengths (bullet points above) is taken as a guide, the M50 Mark II is the clear winner of the match-up (13 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

M50 Mark II 13:07 PEN-F

How about other alternatives? Do the specifications of the Canon M50 Mark II and the Olympus PEN-F place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the M50 Mark II and the PEN-F in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
  empty  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price
Street
Price
1.

Canon M50 Mark II4/5..4/5..4.5/53.5/5 Oct 2020 US$ 599ebay.com
2.

Olympus PEN-F....4/582/1004.5/55/5 Jan 2016 US$ 1 199ebay.com
3.

Canon 200D4/5+ +4/578/1004.5/54.5/5 Jun 2017 US$ 549ebay.com
4.

Canon 250D4/5o4.5/579/1004/54/5 Apr 2019 US$ 599 amazon.com
5.

Canon G5 X Mark II4/5+4/582/100..4/5 Jul 2019 US$ 899ebay.com
6.

Canon M34/5o..75/1004.5/54/5 Feb 2015 US$ 679ebay.com
7.

Canon M6......80/1004/54/5 Feb 2017 US$ 779ebay.com
8.

Canon M6 Mark II..+4.5/585/1004/54/5 Aug 2019 US$ 849ebay.com
9.

Canon M50..+4/579/100..3.5/5 Feb 2018 US$ 779ebay.com
10.

Canon M200..+3/579/1004/54/5 Sep 2019 US$ 549ebay.com
11.

Fujifilm X-A73/5..3.5/581/1004/53.5/5 Sep 2019 US$ 499ebay.com
12.

Fujifilm X-T2003.5/5..4/582/1004/54.5/5 Jan 2020 US$ 699ebay.com
13.

Olympus E-M1 II5/5+ +5/585/1004.5/54.5/5 Sep 2016 US$ 1 999ebay.com
14.

Olympus E-M5 II5/5+ +4.5/581/1005/55/5 Feb 2015 US$ 1 099ebay.com
15.

Olympus E-M10 II4.5/5+ +..80/1005/55/5 Aug 2015 US$ 649ebay.com
16.

Olympus E-P55/5+ +..78/1004.5/55/5 May 2013 US$ 999ebay.com
17.

Panasonic GX85/5+..82/1004.5/54.5/5 Jul 2015 US$ 1 199ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

logo
Check M50 Mark II offers at
ebay.com
logo
Check PEN-F offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~
    loader
    ad

    Specifications: Canon M50 Mark II vs Olympus PEN-F

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon M50 Mark II Olympus PEN-F
    Camera Type Mirrorless system camera Mirrorless system camera
    Camera Lens Canon EF-M mount lenses Micro Four Thirds lenses
    Launch Date October 2020 January 2016
    Launch Price USD 599 USD 1,199
    Sensor Specs Canon M50 Mark II Olympus PEN-F
    Sensor Technology CMOS CMOS
    Sensor Format APS-C Sensor Four Thirds Sensor
    Sensor Size 22.3 x 14.9 mm 17.3 x 13.0 mm
    Sensor Area 332.27 mm2 224.9 mm2
    Sensor Diagonal 26.8 mm 21.6 mm
    Crop Factor 1.6x 2.0x
    Sensor Resolution 24 Megapixels 20.2 Megapixels
    Image Resolution 6000 x 4000 pixels 5184 x 3888 pixels
    Pixel Pitch 3.72 μm 3.34 μm
    Pixel Density 7.22 MP/cm2 8.96 MP/cm2
    Moiré control Anti-Alias filter no AA filter
    Movie Capability 4K/24p Video 1080/60p Video
    ISO Setting 100 - 25,600 ISO 80 - 25,600 ISO
    ISO Boost 100 - 51,200 ISO no Enhancement
    Image Processor DIGIC 8 TruePic VII
    DXO Sensor Quality (score) .. 74
    DXO Color Depth (bits) .. 23.1
    DXO Dynamic Range (EV) .. 12.4
    DXO Low Light (ISO) .. 894
    Screen Specs Canon M50 Mark II Olympus PEN-F
    Viewfinder Type Electronic viewfinder Electronic viewfinder
    Viewfinder Field of View 100% 100%
    Viewfinder Magnification 0.62x
    Viewfinder Resolution 2360k dots 2360k dots
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.0inch
    LCD Resolution 1040k dots 1037k dots
    LCD Attachment Swivel screen Swivel screen
    Touch Input Touchscreen Touchscreen
    Shooting Specs Canon M50 Mark II Olympus PEN-F
    Focus System On-Sensor Phase-detect Contrast-detect AF
    Manual Focusing AidFocus PeakingFocus Peaking
    Max Shutter Speed (mechanical) 1/4000s 1/8000s
    Continuous Shooting 10 shutter flaps/s 10 shutter flaps/s
    Electronic ShutterYESup to 1/16000s
    Time-Lapse PhotographyIntervalometer built-inIntervalometer built-in
    Image StabilizationLens stabilization onlyIn-body stabilization
    Fill Flash Built-in Flash no On-Board Flash
    Storage Medium SDXC cards SDXC cards
    Single or Dual Card Slots Single card slot Single card slot
    UHS card support UHS-I UHS-II
    Connectivity Specs Canon M50 Mark II Olympus PEN-F
    External Flash Hotshoe Hotshoe
    USB Connector USB 2.0 USB 2.0
    HDMI Port micro HDMI micro HDMI
    Microphone Port External MIC port no MIC socket
    Wifi Support Wifi built-in Wifi built-in
    Bluetooth Support Bluetooth built-in no Bluetooth
    Body Specs Canon M50 Mark II Olympus PEN-F
    Battery Type Canon LP-E12 Olympus BLN-1
    Battery Life (CIPA)305 shots per charge330 shots per charge
    Body Dimensions 116 x 88 x 59 mm
    (4.6 x 3.5 x 2.3 in)
    125 x 72 x 37 mm
    (4.9 x 2.8 x 1.5 in)
    Camera Weight 387 g (13.7 oz) 427 g (15.1 oz)
    logo
    Check M50 Mark II offers at
    ebay.com
    logo
    Check PEN-F offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon M50 Mark II vs Olympus PEN-F
