Canon M5 vs Panasonic LX15
The Canon EOS M5 and the Panasonic Lumix DMC-LX15 (labelled Panasonic LX10 in some countries) are two digital cameras that were revealed to the public in September 2016. The M5 is a mirrorless interchangeable lens camera, while the LX15 is a fixed lens compact. The cameras are based on an APS-C (M5) and an one-inch (LX15) sensor. The Canon has a resolution of 24 megapixels, whereas the Panasonic provides 20 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M5 and the Panasonic Lumix DMC-LX15? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

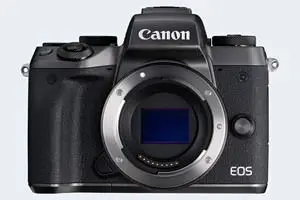

An illustration of the physical size and weight of the Canon M5 and the Panasonic LX15 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
The LX15 can be obtained in two different colors (black, silver), while the M5 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic LX15 is considerably smaller (38 percent) than the Canon M5. In this context, it is worth noting that neither the M5 nor the LX15 are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the LX15 has a lens built in, whereas the M5 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.
Concerning battery life, the M5 gets 295 shots out of its LP-E17 battery, while the LX15 can take 260 images on a single charge of its DMW-BLH7 power pack. The power pack in the LX15 can be charged via the USB port, which can be very convenient when travelling.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon M5||116 mm||89 mm||61 mm||427 g||295||n||Sep 2016||979|
|2.||Panasonic LX15||106 mm||60 mm||42 mm||310 g||260||n||Sep 2016||699|
|3.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899|
|4.||Canon 200D||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549|
|5.||Canon G9 X Mark II||98 mm||58 mm||31 mm||206 g||235||n||Jan 2017||529|
|6.||Canon M6||112 mm||68 mm||45 mm||390 g||295||n||Feb 2017||779|
|7.||Canon M100||108 mm||67 mm||35 mm||302 g||295||n||Aug 2017||499|
|8.||Canon G7 X Mark II||106 mm||61 mm||42 mm||319 g||265||n||Feb 2016||699|
|9.||Canon 760D||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|10.||Canon G5 X||112 mm||76 mm||44 mm||353 g||210||n||Oct 2015||799|
|11.||Canon M3||111 mm||68 mm||44 mm||366 g||250||n||Feb 2015||679|
|12.||Fujifilm X-T20||118 mm||83 mm||41 mm||383 g||350||n||Jan 2017||899|
|13.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699|
|14.||Nikon D5500||124 mm||97 mm||70 mm||420 g||820||n||Jan 2015||899|
|15.||Panasonic TZ200||111 mm||65 mm||45 mm||340 g||370||n||Feb 2018||799|
|16.||Panasonic TZ90||112 mm||67 mm||41 mm||322 g||380||n||Apr 2017||449|
|17.||Panasonic TZ100||111 mm||65 mm||44 mm||312 g||300||n||Jan 2016||699|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The LX15 was launched at a lower price than the M5, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon M5 features an APS-C sensor and the Panasonic LX15 an one-inch sensor. The sensor area in the LX15 is 65 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.7. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2. The LX15 has the particularity of featuring a switch that allows to toggle between multiple aspect ratios, while maintaining the same field of view and full image resolution.
With 24MP, the M5 offers a higher resolution than the LX15 (20MP), but the M5 nevertheless has larger individual pixels (pixel pitch of 3.72μm versus 2.41μm for the LX15) due to its larger sensor. It is noteworthy in this context that the two cameras were released in close succession, so that their sensors are from the same technological generation.
The resolution advantage of the Canon M5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M5 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Panasonic LX15 are 27.4 x 18.2 inches or 69.5 x 46.3 cm for good quality, 21.9 x 14.6 inches or 55.6 x 37.1 cm for very good quality, and 18.2 x 12.2 inches or 46.3 x 30.9 cm for excellent quality prints.
The M5 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS M5 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Panasonic Lumix DMC-LX15 are ISO 125 to ISO 12800, with the possibility to increase the ISO range to 80-25600.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|5.||Canon G9 X Mark II||1-inch||20.0||5472||3648||1080/60p||21.9||12.5||522||65|
|8.||Canon G7 X Mark II||1-inch||20.0||5472||3648||1080/60p||..||..||..||..|
|10.||Canon G5 X||1-inch||20.0||5472||3648||1080/60p||..||..||..||..|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the LX15 provides a better video resolution than the M5. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/60p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the M5 has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the LX15 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon M5 and Panasonic LX15 along with similar information for a selection of comparators.
|1.||Canon M5||2360||n||3.2 / 1620||tilting||Y||1/4000s||9.0||Y||n|
|2.||Panasonic LX15||none||n||3.0 / 1040||tilting||Y||1/4000s||10.0||Y||Y|
|3.||Canon 77D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.0||Y||n|
|4.||Canon 200D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|5.||Canon G9 X Mark II||none||n||3.0 / 1040||fixed||Y||1/2000s||8.2||Y||Y|
|6.||Canon M6||optional||n||3.0 / 1040||tilting||Y||1/4000s||9.0||Y||n|
|7.||Canon M100||none||n||3.0 / 1040||tilting||Y||1/4000s||6.1||Y||n|
|8.||Canon G7 X Mark II||none||n||3.0 / 1040||tilting||Y||1/2000s||8.0||Y||Y|
|9.||Canon 760D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|10.||Canon G5 X||2360||n||3.0 / 1040||swivel||Y||1/2000s||5.9||Y||Y|
|11.||Canon M3||optional||n||3.0 / 1040||tilting||Y||1/4000s||4.2||Y||n|
|12.||Fujifilm X-T20||2360||n||3.0 / 1040||tilting||Y||1/4000s||8.0||Y||n|
|13.||Nikon D5600||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0||Y||n|
|14.||Nikon D5500||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0||Y||n|
|15.||Panasonic TZ200||2330||n||3.0 / 1240||fixed||Y||1/2000s||10.0||Y||Y|
|16.||Panasonic TZ90||1166||n||3.0 / 1040||tilting||Y||1/2000s||10.0||Y||Y|
|17.||Panasonic TZ100||1166||n||3.0 / 1040||fixed||Y||1/2000s||10.0||Y||Y|
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the LX15 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Panasonic LX15 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the M5 and the LX15 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M5 and Panasonic Lumix DMC-LX15 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon M5||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|2.||Panasonic LX15||-||stereo / mono||-||-||micro||2.0||Y||-||-|
|3.||Canon 77D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|4.||Canon 200D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|5.||Canon G9 X Mark II||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|6.||Canon M6||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|7.||Canon M100||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|8.||Canon G7 X Mark II||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|9.||Canon 760D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|10.||Canon G5 X||Y||stereo / mono||-||-||mini||2.0||Y||Y||-|
|11.||Canon M3||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|12.||Fujifilm X-T20||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|13.||Nikon D5600||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|14.||Nikon D5500||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|15.||Panasonic TZ200||-||stereo / mono||-||-||micro||2.0||Y||-||Y|
|16.||Panasonic TZ90||-||stereo / mono||-||-||micro||2.0||Y||-||-|
|17.||Panasonic TZ100||-||stereo / mono||-||-||micro||2.0||Y||-||-|
It is notable that the M5 has a hotshoe, while the LX15 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
Both the M5 and the LX15 are recent models that are part of the current product line-up. The LX15 replaced the earlier Panasonic LX7, while the M5 does not have a direct predecessor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Panasonic websites.
So what is the bottom line? Is the Canon M5 better than the Panasonic LX15 or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Canon EOS M5:
- More detail: Offers more megapixels (24 vs 20MP) with a 10% higher linear resolution.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 1040k dots).
- More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
- Longer lasting: Can take more shots (295 versus 260) on a single battery charge.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
Advantages of the Panasonic Lumix DMC-LX15:
- Flexible image proportions: Has a multi-aspect sensor that allows for alternative image shapes.
- Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Ready to shoot: Has an integrated lens, whereas the M5 necessitates an extra lens.
- More compact: Is smaller (106x60mm vs 116x89mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the M5).
- Easier travel charging: Can be conveniently charged via its USB port.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
If the count of individual advantages (bullet points above) is taken as a guide, the M5 is the clear winner of the match-up (15 : 10 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon M5 and the Panasonic LX15 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the M5 or the LX15 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon M5||4/5||+||4/5||82/100||4/5||4/5||Sep 2016||979|
|2.||Panasonic LX15||..||+ +||..||81/100||4/5||4.5/5||Sep 2016||699|
|3.||Canon 77D||4.5/5||..||4/5||82/100||4.5/5||4/5||Feb 2017||899|
|4.||Canon 200D||4/5||+ +||4/5||78/100||4.5/5||4.5/5||Jun 2017||549|
|5.||Canon G9 X Mark II||4/5||..||4/5||75/100||4.5/5||4.5/5||Jan 2017||529|
|6.||Canon M6||..||..||..||80/100||4/5||4/5||Feb 2017||779|
|7.||Canon M100||3/5||+||..||..||4/5||3.5/5||Aug 2017||499|
|8.||Canon G7 X Mark II||4.5/5||+ +||..||81/100||4.5/5||4.5/5||Feb 2016||699|
|9.||Canon 760D||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649|
|10.||Canon G5 X||5/5||+ +||..||78/100||4.5/5||4.5/5||Oct 2015||799|
|11.||Canon M3||4/5||o||..||75/100||4.5/5||4/5||Feb 2015||679|
|12.||Fujifilm X-T20||5/5||+ +||5/5||82/100||5/5||4.5/5||Jan 2017||899|
|13.||Nikon D5600||4/5||..||4/5||79/100||4.5/5||4/5||Nov 2016||699|
|14.||Nikon D5500||5/5||+||..||79/100||4.5/5||4.5/5||Jan 2015||899|
|15.||Panasonic TZ200||..||+ +||..||81/100||4.5/5||4.5/5||Feb 2018||799|
|16.||Panasonic TZ90||..||+ +||..||..||4/5||4/5||Apr 2017||449|
|17.||Panasonic TZ100||4.5/5||+ +||..||82/100||4.5/5||4.5/5||Jan 2016||699|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 1000D vs Canon M5
- Canon 1Ds vs Panasonic LX15
- Canon 300D vs Canon M5
- Canon 5D Mark IV vs Panasonic LX15
- Canon M5 vs Fujifilm X-T200
- Canon M5 vs Olympus E-M10
- Canon M5 vs Panasonic FZ2500
- Canon M5 vs Samsung NX500
- Canon M50 Mark II vs Panasonic LX15
- Nikon D3300 vs Panasonic LX15
- Olympus E-M1 II vs Panasonic LX15
- Panasonic GM5 vs Panasonic LX15
Specifications: Canon M5 vs Panasonic LX15
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon M5||Panasonic LX15|
|Camera Type||Mirrorless system camera||Fixed lens compact camera|
|Camera Lens||Canon EF-M mount lenses||24-72mm f/1.4-2.8|
|Launch Date||September 2016||September 2016|
|Launch Price||USD 979||USD 699|
|Sensor Specs||Canon M5||Panasonic LX15|
|Sensor Format||APS-C Sensor||1" Sensor|
|Sensor Size||22.3 x 14.9 mm||13.2 x 8.8 mm|
|Sensor Area||332.27 mm2||116.16 mm2|
|Sensor Diagonal||26.8 mm||15.9 mm|
|Sensor Resolution||24 Megapixels||20 Megapixels|
|Image Resolution||6000 x 4000 pixels||5472 x 3648 pixels|
|Pixel Pitch||3.72 μm||2.41 μm|
|Pixel Density||7.22 MP/cm2||17.18 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||4K/30p Video|
|ISO Setting||100 - 25,600 ISO||125 - 12,800 ISO|
|ISO Boost||no Enhancement||80 - 25,600 ISO|
|Image Processor||DIGIC 7||Venus|
|DXO Sensor Quality (score)||77||..|
|DXO Color Depth (bits)||23.4||..|
|DXO Dynamic Range (EV)||12.4||..|
|DXO Low Light (ISO)||1262||..|
|Screen Specs||Canon M5||Panasonic LX15|
|Viewfinder Type||Electronic viewfinder||no viewfinder|
|Viewfinder Field of View||100%|
|Viewfinder Magnification||.. x|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.0inch|
|LCD Resolution||1620k dots||1040k dots|
|LCD Attachment||Tilting screen||Tilting screen|
|Shooting Specs||Canon M5||Panasonic LX15|
|Focus System||On-Sensor Phase-detect||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/4000s|
|Continuous Shooting||9 shutter flaps/s||10 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon M5||Panasonic LX15|
|External Flash||Hotshoe||no Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||no NFC|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Body Specs||Canon M5||Panasonic LX15|
|Battery Life (CIPA)||295 shots per charge||260 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
116 x 89 x 61 mm
(4.6 x 3.5 x 2.4 in)
106 x 60 x 42 mm
(4.2 x 2.4 x 1.7 in)
|Camera Weight||427 g (15.1 oz)||310 g (10.9 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
