Canon M5 vs Nikon D1H
The Canon EOS M5 and the Nikon D1H are two digital cameras that were revealed to the public, respectively, in September 2016 and February 2001. The M5 is a mirrorless interchangeable lens camera, while the D1H is a DSLR. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 24 megapixels, whereas the Nikon provides 2.6 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon M5||Nikon D1H|
|Mirrorless system camera||Digital single lens reflex|
|Canon EF-M mount lenses||Nikon F mount lenses|
|24 MP, APS-C Sensor||2.6 MP, APS-C Sensor|
|1080/60p Video||no Video|
|ISO 100-25600||ISO 200-800 (200-3200)|
|Electronic viewfinder (2360k dots)||Optical viewfinder|
|3.2" LCD, 1620k dots||2.0" LCD, 120k dots|
|Tilting touchscreen||Fixed screen (not touch-sensitive)|
|9 shutter flaps per second||5 shutter flaps per second|
|Not weather sealed||Weathersealed body|
|295 shots per battery charge||1200 shots per battery charge|
|116 x 89 x 61 mm, 427 g||157 x 153 x 85 mm, 1100 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M5 and the Nikon D1H? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

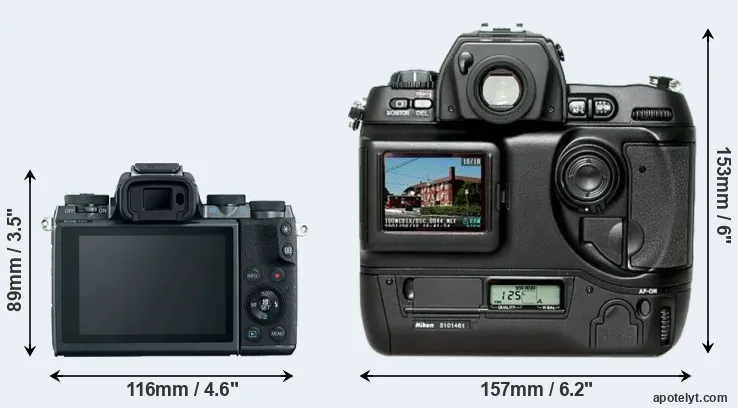

An illustration of the physical size and weight of the Canon M5 and the Nikon D1H is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D1H is considerably larger (133 percent) than the Canon M5. Moreover, the D1H is substantially heavier (158 percent) than the M5. It is noteworthy in this context that the D1H is splash and dust-proof, while the M5 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
Concerning battery life, the M5 gets 295 shots out of its LP-E17 battery, while the D1H can take 1200 images on a single charge of its EN-4 power pack. As can be seen in the images above, the D1H has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Canon M5»||116 mm||89 mm||61 mm||427 g||295||n||Sep 2016||979||Canon M5|
|Nikon D1H«||157 mm||153 mm||85 mm||1100 g||1200||Y||Feb 2001||4,499||Nikon D1H|
|Canon 77D« »||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899||Canon 77D|
|Canon 200D« »||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549||Canon 200D|
|Canon G9 X Mark II« »||98 mm||58 mm||31 mm||206 g||235||n||Jan 2017||529||Canon G9 X Mark II|
|Canon M6« »||112 mm||68 mm||45 mm||390 g||295||n||Feb 2017||779||Canon M6|
|Canon M100« »||108 mm||67 mm||35 mm||302 g||295||n||Aug 2017||499||Canon M100|
|Canon 760D« »||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649||Canon 760D|
|Canon M3« »||111 mm||68 mm||44 mm||366 g||250||n||Feb 2015||679||Canon M3|
|Fujifilm X-T20« »||118 mm||83 mm||41 mm||383 g||350||n||Jan 2017||899||Fujifilm X-T20|
|Nikon D5600« »||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699||Nikon D5600|
|Nikon D5500« »||124 mm||97 mm||70 mm||420 g||820||n||Jan 2015||899||Nikon D5500|
|Nikon D2Xs« »||158 mm||150 mm||86 mm||1252 g||3800||Y||Jun 2006||4,699||Nikon D2Xs|
|Nikon D2X« »||158 mm||150 mm||86 mm||1252 g||3800||Y||Sep 2004||4,999||Nikon D2X|
|Nikon D2H« »||158 mm||150 mm||86 mm||1070 g||2900||Y||Jul 2003||3,499||Nikon D2H|
|Nikon D1X« »||157 mm||153 mm||85 mm||1100 g||1200||Y||Feb 2001||5,999||Nikon D1X|
|Nikon D1« »||157 mm||153 mm||85 mm||1100 g||..||Y||Jun 1999||5,499||Nikon D1|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The M5 was launched at a markedly lower price (by 78 percent) than the D1H, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

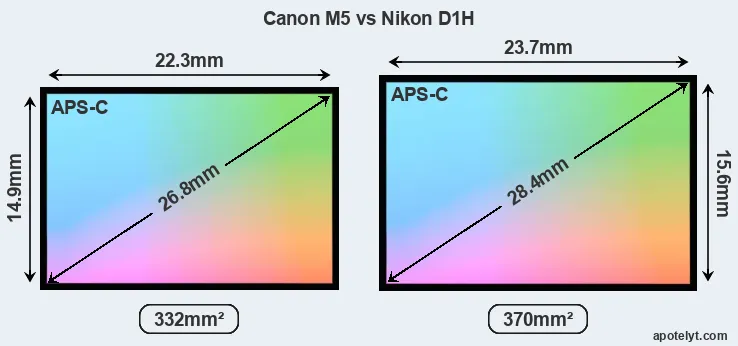

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the D1H is 11 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (M5) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Despite having a smaller sensor, the Canon M5 offers a higher resolution of 24 megapixels, compared with 2.6 MP of the Nikon D1H. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.72μm versus 11.93μm for the D1H). However, it should be noted that the M5 is much more recent (by 15 years and 7 months) than the D1H, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Canon M5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M5 for good quality output (200 dots per inch) amounts to 30 x 20 inch or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inch or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inch or 50.8 x 33.9 cm. The corresponding values for the Nikon D1H are 10 x 6.6 inch or 25.4 x 16.7 cm for good quality, 8 x 5.2 inch or 20.3 x 13.3 cm for very good quality, and 6.7 x 4.4 inch or 16.9 x 11.1 cm for excellent quality prints.
The M5 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS M5 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Nikon D1H are ISO 200 to ISO 800, with the possibility to increase the ISO range to 200-3200.
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Canon M5||APS-C||24.0||6000||4000||1080/60p||23.4||12.4||1262||77||Canon M5|
|Nikon D1H||APS-C||2.6||2000||1312||none||..||..||..||..||Nikon D1H|
|Canon 77D||APS-C||24.0||6000||4000||1080/60p||23.6||13.3||971||78||Canon 77D|
|Canon 200D||APS-C||24.0||6000||4000||1080/60p||23.6||13.4||1041||79||Canon 200D|
|Canon G9 X Mark II||1-inch||20.0||5472||3648||1080/60p||21.9||12.5||522||65||Canon G9 X Mark II|
|Canon M6||APS-C||24.0||6000||4000||1080/60p||..||..||..||..||Canon M6|
|Canon M100||APS-C||24.0||6000||4000||1080/60p||23.5||12.9||1272||78||Canon M100|
|Canon 760D||APS-C||24.0||6000||4000||1080/30p||22.6||12.0||915||70||Canon 760D|
|Canon M3||APS-C||24.0||6000||4000||1080/30p||22.8||11.8||1169||72||Canon M3|
|Fujifilm X-T20||APS-C||24.0||6000||4000||4K/30p||..||..||..||..||Fujifilm X-T20|
|Nikon D5600||APS-C||24.0||6000||4000||1080/60p||24.1||14.0||1306||84||Nikon D5600|
|Nikon D5500||APS-C||24.0||6000||4000||1080/60p||24.1||14.0||1438||84||Nikon D5500|
|Nikon D2Xs||APS-C||12.2||4288||2848||none||22.2||10.9||489||59||Nikon D2Xs|
|Nikon D2X||APS-C||12.2||4288||2848||none||22.1||10.9||476||59||Nikon D2X|
|Nikon D2H||APS-C||4.0||2464||1632||none||18.9||10.0||352||40||Nikon D2H|
|Nikon D1X||APS-C||5.9||3008||1960||none||..||..||..||..||Nikon D1X|
|Nikon D1||APS-C||2.6||2000||1312||none||..||..||..||..||Nikon D1|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The M5 indeed provides movie recording capabilities, while the D1H does not. The highest resolution format that the M5 can use is 1080/60p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the M5 has an electronic viewfinder (2360k dots), while the D1H has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The adjacent table lists some of the other core features of the Canon M5 and Nikon D1H along with similar information for a selection of comparators.
|Canon M5||2360||n||3.2||1620||tilting||Y||1/4000s||9.0||Y||n||Canon M5|
|Nikon D1H||optical||Y||2.0||120||fixed||n||1/16000s||5.0||n||n||Nikon D1H|
|Canon 77D||optical||Y||3.0||1040||swivel||Y||1/4000s||6.0||Y||n||Canon 77D|
|Canon 200D||optical||n||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon 200D|
|Canon G9 X Mark II||none||n||3.0||1040||fixed||Y||1/2000s||8.2||Y||Y||Canon G9 X Mark II|
|Canon M6||optional||n||3.0||1040||tilting||Y||1/4000s||9.0||Y||n||Canon M6|
|Canon M100||none||n||3.0||1040||tilting||Y||1/4000s||6.1||Y||n||Canon M100|
|Canon 760D||optical||Y||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon 760D|
|Canon M3||optional||n||3.0||1040||tilting||Y||1/4000s||4.2||Y||n||Canon M3|
|Fujifilm X-T20||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||n||Fujifilm X-T20|
|Nikon D5600||optical||n||3.2||1037||swivel||Y||1/4000s||5.0||Y||n||Nikon D5600|
|Nikon D5500||optical||n||3.2||1037||swivel||Y||1/4000s||5.0||Y||n||Nikon D5500|
|Nikon D2Xs||optical||Y||2.5||230||fixed||n||1/8000s||5.0||n||n||Nikon D2Xs|
|Nikon D2X||optical||Y||2.5||235||fixed||n||1/8000s||5.0||n||n||Nikon D2X|
|Nikon D2H||optical||Y||2.5||211||fixed||n||1/8000s||8.0||n||n||Nikon D2H|
|Nikon D1X||optical||Y||2.0||120||fixed||n||1/16000s||3.0||n||n||Nikon D1X|
|Nikon D1||optical||Y||2.0||120||fixed||n||1/16000s||1.5||n||n||Nikon D1|
One difference between the cameras concerns the presence of an on-board flash. The M5 has one, while the D1H does not. While the built-in flash of the M5 is not very powerful, it can at times be useful as a fill-in light.The M5 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the D1H does not have a selfie-screen.
The M5 writes its imaging data to SDXC cards, while the D1H uses Compact Flash cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M5 and Nikon D1H and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Canon M5||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon M5|
|Nikon D1H||Y||none||none||-||-||none||FW||-||-||-||Nikon D1H|
|Canon 77D||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon 77D|
|Canon 200D||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon 200D|
|Canon G9 X Mark II||-||stereo||mono||-||-||micro||2.0||Y||Y||Y||Canon G9 X Mark II|
|Canon M6||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon M6|
|Canon M100||-||stereo||mono||-||-||mini||2.0||Y||Y||Y||Canon M100|
|Canon 760D||Y||stereo||mono||Y||-||mini||2.0||Y||Y||-||Canon 760D|
|Canon M3||Y||stereo||mono||Y||-||mini||2.0||Y||Y||-||Canon M3|
|Fujifilm X-T20||Y||stereo||mono||Y||-||micro||2.0||Y||-||-||Fujifilm X-T20|
|Nikon D5600||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Nikon D5600|
|Nikon D5500||Y||stereo||mono||Y||-||mini||2.0||Y||-||-||Nikon D5500|
|Nikon D2Xs||Y||none||none||-||-||none||2.0||-||-||-||Nikon D2Xs|
|Nikon D2X||Y||none||none||-||-||none||2.0||-||-||-||Nikon D2X|
|Nikon D2H||Y||none||none||-||-||none||2.0||-||-||-||Nikon D2H|
|Nikon D1X||Y||none||none||-||-||none||FW||-||-||-||Nikon D1X|
|Nikon D1||Y||none||none||-||-||none||FW||-||-||-||Nikon D1|
It is notable that the M5 offers wifi support, while the D1H does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Studio photographers will appreciate that the Nikon D1H (unlike the M5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The M5 is a recent model that features in the current product line-up of Canon. In contrast, the D1H has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the D1H was succeeded by the Nikon D2H. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Nikon websites.
So what is the bottom line? Is the Canon M5 better than the Nikon D1H or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Canon EOS M5:
- More detail: Offers more megapixels (24 vs 2.6MP) with a 201% higher linear resolution.
- Broader imaging potential: Can record not only still images but also 1080/60p movies.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More framing info: Has an electronic viewfinder that displays shooting data.
- Larger screen: Has a bigger rear LCD (3.2" vs 2.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 120k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (9 vs 5 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (116x89mm vs 157x153mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 673g or 61 percent) and hence easier to carry around.
- More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More affordable: Was introduced into a lower priced category (78 percent cheaper at launch).
- More modern: Reflects 15 years and 7 months of technical progress since the D1H launch.
Advantages of the Nikon D1H:
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Easier setting verification: Features a control panel on top to check shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/16000s vs 1/4000s) to freeze action.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Gets more shots (1200 versus 295) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been around for much longer (launched in February 2001).
If the count of relative strengths (bullet points above) is taken as a measure, the M5 is the clear winner of the match-up (19 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon M5 and the Nikon D1H place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the M5 or the D1H perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 750D vs Canon M5
- Canon G1 X Mark III vs Nikon D1H
- Canon M5 vs Canon M50
- Canon M5 vs Canon SX610
- Canon M5 vs Leica V-LUX 2
- Canon M5 vs Panasonic FZ150
- Canon M5 vs Panasonic GH2
- Fujifilm X-A3 vs Nikon D1H
- Nikon 1 V1 vs Nikon D1H
- Nikon D1H vs Panasonic GX850
- Nikon D1H vs Samsung NX1
- Nikon D1H vs Sony NEX-5T
Specifications: Canon M5 vs Nikon D1H
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon M5||Nikon D1H|
|Camera Type||Mirrorless system camera||Digital single lens reflex|
|Camera Lens||Canon EF-M mount lenses||Nikon F mount lenses|
|Launch Date||September 2016||February 2001|
|Launch Price||USD 979||USD 4499|
|Sensor Specs||Canon M5||Nikon D1H|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||23.7 x 15.6 mm|
|Sensor Area||332.27 mm2||369.72 mm2|
|Sensor Diagonal||26.8 mm||28.4 mm|
|Sensor Resolution||24 Megapixels||2.6 Megapixels|
|Image Resolution||6000 x 4000 pixels||2000 x 1312 pixels|
|Pixel Pitch||3.72 μm||11.93 μm|
|Pixel Density||7.22 MP/cm2||0.71 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||no Video|
|ISO Setting||100-25600 ISO||200-800 ISO|
|ISO Boost||no Enhancement||200-3200 ISO|
|DXO Sensor Quality (score)||77||..|
|DXO Color Depth (bits)||23.4||..|
|DXO Dynamic Range (EV)||12.4||..|
|DXO Low Light (ISO)||1262||..|
|Screen Specs||Canon M5||Nikon D1H|
|Viewfinder Type||Electronic viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||96%|
|Viewfinder Magnification||.. x||0.53x|
|Viewfinder Resolution||2360k dots|
|Top-Level Screen||no Top Display||Control Panel|
|LCD Framing||Live View|
|Rear LCD Size||3.2 inch||2.0 inch|
|LCD Resolution||1620k dots||120k dots|
|LCD Attachment||Tilting screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon M5||Nikon D1H|
|Focus System||On-Sensor Phase-detect||Phase-detect AF|
|Manual Focusing Aid||Focus Peaking||No Peaking Feature|
|Continuous Shooting||9 shutter flaps/s||5 shutter flaps/s|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||CF cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon M5||Nikon D1H|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||Firewire|
|HDMI Port||mini HDMI||no HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Body Specs||Canon M5||Nikon D1H|
|Environmental Sealing||Not weather sealed||Weathersealed body|
|Battery Life (CIPA)||295 shots per charge||1200 shots per charge|
116 x 89 x 61 mm
(4.6 x 3.5 x 2.4 in)
157 x 153 x 85 mm
(6.2 x 6.0 x 3.3 in)
|Camera Weight||427 g (15.1 oz)||1100 g (38.8 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
