Canon M3 vs R8

The Canon EOS M3 and the Canon EOS R8 are two digital cameras that were announced, respectively, in February 2015 and February 2023. Both the M3 and the R8 are mirrorless interchangeable lens cameras that are based on an APS-C (M3) and a full frame (R8) sensor. Both cameras offer a resolution of 24 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M3		Canon R8
Mirrorless system camera		Mirrorless system camera
Canon EF-M mount lenses		Canon RF mount lenses
24 MP – APS-C sensor		24 MP – Full Frame sensor
1080/30p Video		4k/60p Video
ISO 100-12,800 (100 - 25,600)		ISO 100-102,400 (100 - 204,800)
Viewfinder optional		Electronic viewfinder (2360k dots)
3.0" LCD – 1040k dots		3.0" LCD – 1620k dots
Tilting touchscreen		Swivel touchscreen
4.2 shutter flaps per second		6 shutter flaps per second
250 shots per battery charge		220 shots per battery charge
111 x 68 x 44 mm, 366 g		133 x 86 x 70 mm, 461 g

Check M3 offers at
ebay.com
Check R8 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M3 and the Canon EOS R8? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The side-by-side display below illustrates the physical size and weight of the Canon M3 and the Canon R8. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

The M3 can be obtained in two different colors (black, white), while the R8 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon R8 is considerably larger (52 percent) than the Canon M3. Moreover, the R8 is markedly heavier (26 percent) than the M3. In this context, it is worth noting that neither the M3 nor the R8 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The power pack in the R8 can be charged via the USB port, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	US$ 679	ebay.com
2.		Canon R8	133 mm	86 mm	70 mm	461 g	220	n	Feb 2023	US$ 1 499	amazon.com
3.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	US$ 899	ebay.com
4.		Canon G5 X	112 mm	76 mm	44 mm	353 g	210	n	Oct 2015	US$ 799	ebay.com
5.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	US$ 699	ebay.com
6.		Canon M	109 mm	66 mm	32 mm	298 g	230	n	Jul 2012	US$ 599	ebay.com
7.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	US$ 979	ebay.com
8.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	US$ 779	ebay.com
9.		Canon M50	116 mm	88 mm	59 mm	390 g	235	n	Feb 2018	US$ 779	ebay.com
10.		Canon M50 Mark II	116 mm	88 mm	59 mm	387 g	305	n	Oct 2020	US$ 599	ebay.com
11.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	US$ 499	ebay.com
12.		Canon RP	133 mm	85 mm	70 mm	485 g	250	n	Feb 2019	US$ 1 299	amazon.com
13.		Canon SL2	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	US$ 549	ebay.com
14.		Canon T6i	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	US$ 749	ebay.com
15.		Canon T6s	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	US$ 649	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The M3 was launched at a markedly lower price (by 55 percent) than the R8, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

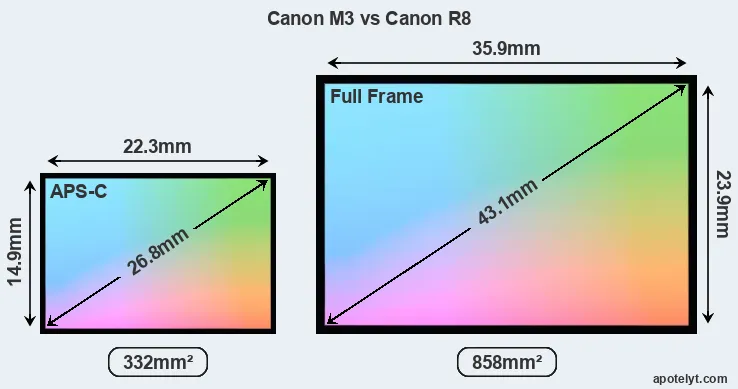

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon M3 features an APS-C sensor and the Canon R8 a full frame sensor. The sensor area in the R8 is 158 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, the R8 uses a more advanced image processing engine (DIGIC X) than the M3 (DIGIC 6), with benefits for noise reduction, color accuracy, and processing speed.

Even though the R8 has a larger sensor, both cameras offer the same resolution of 24 megapixels. This implies that the R8 has a lower pixel density and larger individual pixels (with a pixel pitch of 5.98μm versus 3.72μm for the M3), which gives it a potential advantage in terms of light gathering capacity. In addition, the R8 is much more recent (by 8 years) than the M3, and its sensor will have benefitted from technological advances during this time.

The Canon EOS M3 has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Canon EOS R8 are ISO 100 to ISO 102400, with the possibility to increase the ISO range to 100-204800.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the R8 offers substantially better image quality than the M3 (overall score 21 points higher). The advantage is based on 1.7 bits higher color depth, 2.9 EV in additional dynamic range, and 1.5 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
2.		Canon R8	Full Frame	24.0	6000	4000	4k/60p	24.5	14.7	3295	93
3.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
4.		Canon G5 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	471	62
5.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
6.		Canon M	APS-C	17.9	5184	3456	1080/30p	22.1	11.2	827	65
7.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
8.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
9.		Canon M50	APS-C	24.0	6000	4000	4K/24p	23.8	13.3	1684	81
10.		Canon M50 Mark II	APS-C	24.0	6000	4000	4K/24p	24.0	13.6	1939	83
11.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
12.		Canon RP	Full Frame	26.0	6240	4160	4K/30p	24.3	11.9	2977	85
13.		Canon SL2	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
14.		Canon T6i	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
15.		Canon T6s	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the R8 provides a better video resolution than the M3. It can shoot movie footage at 4k/60p, while the M3 is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the R8 has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the M3 relies on live view and the rear LCD for framing. That said, the M3 can be equipped with an optional viewfinder – the EVF-DC1. The adjacent table lists some of the other core features of the Canon M3 and Canon R8 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
2.		Canon R8	2360	n	3.0 / 1620	swivel	Y	1/4000s	6.0/s	n	n
3.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
4.		Canon G5 X	2360	n	3.0 / 1040	swivel	Y	1/2000s	5.9/s	Y	Y
5.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
6.		Canon M	none	n	3.0 / 1040	fixed	Y	1/4000s	4.3/s	n	n
7.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
8.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
9.		Canon M50	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
10.		Canon M50 Mark II	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
11.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
12.		Canon RP	2360	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	n	n
13.		Canon SL2	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
14.		Canon T6i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
15.		Canon T6s	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The M3 has one, while the R8 does not. While the built-in flash of the M3 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the R8 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon R8 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the M3 and the R8 write their files to SDXC cards. The R8 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the M3 can use UHS-I cards (up to 104 MB/s).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M3 and Canon EOS R8 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
2.		Canon R8	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
3.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon G5 X	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
5.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Canon M	Y	stereo / mono	Y	-	mini	2.0	-	-	-
7.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
8.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
9.		Canon M50	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
10.		Canon M50 Mark II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
11.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
12.		Canon RP	Y	stereo / mono	Y	Y	micro	2.0	Y	-	Y
13.		Canon SL2	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
14.		Canon T6i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
15.		Canon T6s	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-

It is notable that the R8 has a headphone jack, which makes it possible to attach external headphones and monitor the quality of sound during the recording process. The M3 lacks such a headphone port.

The R8 is a recent model that features in the current product line-up of Canon. In contrast, the M3 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the M3 was succeeded by the Canon M6. Further information on the features and operation of the M3 and R8 can be found, respectively, in the Canon M3 Manual (free pdf) or the online Canon R8 Manual.

Review summary

So what is the bottom line? Which of the two cameras – the Canon M3 or the Canon R8 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Canon EOS M3:

• More compact: Is smaller (111x68mm vs 133x86mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 95g or 21 percent) and hence easier to carry around.
• Longer lasting: Can take more shots (250 versus 220) on a single battery charge.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced into a lower priced category (55 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in February 2015).

Advantages of the Canon EOS R8:

• Better image quality: Scores substantially higher (21 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (1.7 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (2.9 EV of extra DR).
• Better low-light sensitivity: Can shoot in dim conditions (1.5 stops ISO advantage).
• Better jpgs: Has a more modern image processing engine (DIGIC X vs DIGIC 6).
• Better video: Provides higher definition movie capture (4k/60p vs 1080/30p).
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (1620k vs 1040k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Faster burst: Shoots at higher frequency (6 vs 4.2 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Easier travel charging: Can be conveniently charged via its USB port.
• Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More modern: Reflects 8 years of technical progress since the M3 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the R8 is the clear winner of the contest (18 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M3 and the Canon R8 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the M3 and the R8 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	US$ 679	ebay.com
2.		Canon R8	4.5/5	+ +	4.5/5	87/100	4/5	4.5/5	Feb 2023	US$ 1 499	amazon.com
3.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	US$ 899	ebay.com
4.		Canon G5 X	5/5	+ +	..	78/100	4.5/5	4.5/5	Oct 2015	US$ 799	ebay.com
5.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	US$ 699	ebay.com
6.		Canon M	3/5	+	..	..	4/5	4/5	Jul 2012	US$ 599	ebay.com
7.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	US$ 979	ebay.com
8.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	US$ 779	ebay.com
9.		Canon M50	..	+	4/5	79/100	..	3.5/5	Feb 2018	US$ 779	ebay.com
10.		Canon M50 Mark II	4/5	..	4/5	..	4.5/5	3.5/5	Oct 2020	US$ 599	ebay.com
11.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	US$ 499	ebay.com
12.		Canon RP	4/5	+	4/5	..	4.5/5	4/5	Feb 2019	US$ 1 299	amazon.com
13.		Canon SL2	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	US$ 549	ebay.com
14.		Canon T6i	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	US$ 749	ebay.com
15.		Canon T6s	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	US$ 649	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
