Canon M vs Ricoh GR IIIx

The Canon EOS M and the Ricoh GR IIIx are two digital cameras that were announced, respectively, in July 2012 and September 2021. The Canon M is a mirrorless interchangeable lens camera, while the GR IIIx is a fixed lens compact. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 17.9 megapixels, whereas the Ricoh provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M		Ricoh GR IIIx
Mirrorless system camera		Fixed lens compact camera
Canon EF-M mount lenses		40mm f/2.8
17.9 MP – APS-C sensor		24 MP – APS-C sensor
1080/30p Video		1080/60p Video
ISO 100-12,800 (100 - 25,600)		ISO 100-102,400
No viewfinder, LCD framing		Viewfinder optional
3.0" LCD – 1040k dots		3.0" LCD – 1037k dots
Fixed touchscreen		Fixed touchscreen
4.3 shutter flaps per second		4 shutter flaps per second
Lens stabilization only		In-body stabilization
230 shots per battery charge		200 shots per battery charge
109 x 66 x 32 mm, 298 g		109 x 62 x 35 mm, 262 g

Check Canon M offers at
ebay.com
Check GR IIIx price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M and the Ricoh GR IIIx? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The side-by-side display below illustrates the physical size and weight of the Canon M and the Ricoh GR IIIx. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The Canon M can be obtained in two different colors (black, white), while the GR IIIx is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Ricoh GR IIIx is notably smaller (6 percent) than the Canon M. In this context, it is worth noting that neither the Canon M nor the GR IIIx are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the GR IIIx has a lens built in, whereas the Canon M is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

Concerning battery life, the Canon M gets 230 shots out of its Canon LP-E12 battery, while the GR IIIx can take 200 images on a single charge of its Ricoh DB-110 power pack. The power pack in the GR IIIx can be charged via the USB port, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon M	109 mm	66 mm	32 mm	298 g	230	n	Jul 2012	US$ 599	ebay.com
2.		Ricoh GR IIIx	109 mm	62 mm	35 mm	262 g	200	n	Sep 2021	US$ 999	amazon.com
3.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	US$ 699	ebay.com
4.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
5.		Canon M10	108 mm	67 mm	35 mm	301 g	255	n	Oct 2015	US$ 499	ebay.com
6.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	US$ 499	ebay.com
7.		Canon SL1	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	US$ 549	ebay.com
8.		Canon T3i	133 mm	100 mm	80 mm	570 g	440	n	Feb 2011	US$ 599	ebay.com
9.		Canon T5i	133 mm	100 mm	79 mm	580 g	440	n	Mar 2013	US$ 649	ebay.com
10.		Fujifilm X-S10	126 mm	85 mm	65 mm	465 g	325	n	Oct 2020	US$ 999	amazon.com
11.		Panasonic G3	115 mm	84 mm	47 mm	336 g	270	n	May 2011	US$ 599	ebay.com
12.		Panasonic GF6	111 mm	65 mm	38 mm	323 g	340	n	Apr 2013	US$ 499	ebay.com
13.		Ricoh GR II	117 mm	63 mm	35 mm	251 g	320	n	Jun 2015	US$ 699	ebay.com
14.		Ricoh GR III	109 mm	62 mm	33 mm	257 g	200	n	Feb 2019	US$ 899	amazon.com
15.		Sony NEX-3N	110 mm	62 mm	35 mm	269 g	480	n	Feb 2013	US$ 499	ebay.com
16.		Sony RX100 V	102 mm	58 mm	41 mm	299 g	220	n	Oct 2016	US$ 999	ebay.com
17.		Sony RX100 VI	102 mm	58 mm	43 mm	301 g	240	n	Jun 2018	US$ 1 199	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

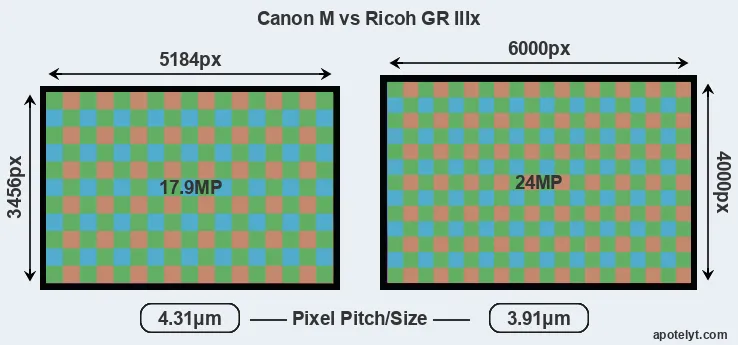

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the GR IIIx is 11 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (Canon M) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

With 24MP, the GR IIIx offers a higher resolution than the Canon M (17.9MP), but the GR IIIx has smaller individual pixels (pixel pitch of 3.91μm versus 4.31μm for the Canon M). Yet, the GR IIIx is a much more recent model (by 9 years and 1 month) than the Canon M, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the GR IIIx has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Ricoh GR IIIx implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the GR IIIx for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon M are 25.9 x 17.3 inches or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inches or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inches or 43.9 x 29.3 cm for excellent quality prints.

The Canon EOS M has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Ricoh GR IIIx are ISO 100 to ISO 102400 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M	APS-C	17.9	5184	3456	1080/30p	22.1	11.2	827	65
2.		Ricoh GR IIIx	APS-C	24.0	6000	4000	1080/60p	24.2	13.8	2146	85
3.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
4.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
5.		Canon M10	APS-C	17.9	5184	3456	1080/30p	22.2	11.4	753	65
6.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
7.		Canon SL1	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
8.		Canon T3i	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	793	65
9.		Canon T5i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	681	61
10.		Fujifilm X-S10	APS-C	26.0	6240	4160	4K/30p	24.2	13.7	2057	85
11.		Panasonic G3	Four Thirds	15.8	4592	3448	1080/60i	21.0	10.6	667	56
12.		Panasonic GF6	Four Thirds	15.8	4592	3448	1080/60i	20.7	10.6	622	54
13.		Ricoh GR II	APS-C	16.1	4928	3264	1080/30p	23.6	13.7	1078	80
14.		Ricoh GR III	APS-C	24.0	6000	4000	1080/60p	24.1	13.5	1897	83
15.		Sony NEX-3N	APS-C	16.0	4912	3264	1080/60i	22.8	12.5	1067	74
16.		Sony RX100 V	1-inch	20.0	5472	3648	4K/30p	22.8	12.4	586	70
17.		Sony RX100 VI	1-inch	20.0	5472	3648	4K/30p	22.1	12.3	478	64
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the GR IIIx provides a faster frame rate than the Canon M. It can shoot movie footage at 1080/60p, while the Canon is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The Canon M and the GR IIIx are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the GR IIIx can be equipped with an optional viewfinder – the GV-3. The adjacent table lists some of the other core features of the Canon M and Ricoh GR IIIx along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M	none	n	3.0 / 1040	fixed	Y	1/4000s	4.3/s	n	n
2.		Ricoh GR IIIx	optional	n	3.0 / 1037	fixed	Y	1/4000s	4.0/s	n	Y
3.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
4.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
5.		Canon M10	none	n	3.0 / 1040	tilting	Y	1/4000s	4.6/s	Y	n
6.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
7.		Canon SL1	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
8.		Canon T3i	optical	n	3.0 / 1040	swivel	n	1/4000s	3.7/s	Y	n
9.		Canon T5i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
10.		Fujifilm X-S10	2360	n	3.0 / 1040	swivel	Y	1/4000s	8.0/s	Y	Y
11.		Panasonic G3	1440	n	3.0 / 460	swivel	Y	1/4000s	4.0/s	Y	n
12.		Panasonic GF6	none	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
13.		Ricoh GR II	optional	n	3.0 / 1230	fixed	n	1/4000s	4.0/s	Y	n
14.		Ricoh GR III	optional	n	3.0 / 1037	fixed	Y	1/4000s	4.0/s	n	Y
15.		Sony NEX-3N	optional	n	3.0 / 460	tilting	n	1/4000s	4.0/s	Y	n
16.		Sony RX100 V	2359	n	3.0 / 1229	tilting	n	1/2000s	24.0/s	Y	Y
17.		Sony RX100 VI	2359	n	3.0 / 1229	tilting	Y	1/2000s	24.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Ricoh GR IIIx has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the Canon M and the GR IIIx write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M and Ricoh GR IIIx and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M	Y	stereo / mono	Y	-	mini	2.0	-	-	-
2.		Ricoh GR IIIx	Y	stereo / mono	-	-	-	3.0	Y	-	Y
3.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
4.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
5.		Canon M10	-	stereo / mono	-	-	mini	2.0	Y	Y	-
6.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
7.		Canon SL1	Y	mono / mono	Y	-	mini	2.0	-	-	-
8.		Canon T3i	Y	mono / mono	Y	-	mini	2.0	-	-	-
9.		Canon T5i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
10.		Fujifilm X-S10	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
11.		Panasonic G3	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Panasonic GF6	-	stereo / mono	-	-	mini	2.0	Y	Y	-
13.		Ricoh GR II	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
14.		Ricoh GR III	Y	stereo / mono	-	-	-	3.0	Y	-	Y
15.		Sony NEX-3N	-	stereo / mono	-	-	micro	2.0	-	-	-
16.		Sony RX100 V	-	stereo / mono	-	-	micro	2.0	Y	Y	-
17.		Sony RX100 VI	-	stereo / mono	-	-	micro	2.0	Y	Y	Y

It is notable that the Canon M has a microphone port, which is missing on the GR IIIx. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

The GR IIIx is a recent model that features in the current product line-up of Ricoh. In contrast, the Canon M has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the Canon M was succeeded by the Canon EOS M3. Further information on the features and operation of the Canon M and GR IIIx can be found, respectively, in the Canon M Manual (free pdf) or the online Ricoh GR IIIx Manual.

Review summary

So what is the bottom line? Which of the two cameras – the Canon M or the Ricoh GR IIIx – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Canon EOS M:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• Longer lasting: Can take more shots (230 versus 200) on a single battery charge.
• More heavily discounted: Has been available for much longer (launched in July 2012).

Advantages of the Ricoh GR IIIx:

• More detail: Has more megapixels (24 vs 17.9MP), which boosts linear resolution by 16%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
• More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Has an integrated lens, whereas the Canon M necessitates an extra lens.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the Canon M).
• Easier travel charging: Can be conveniently charged via its USB port.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More modern: Reflects 9 years and 1 month of technical progress since the Canon M launch.

If the number of relative strengths (bullet points above) is taken as a guide, the GR IIIx is the clear winner of the contest (13 : 5 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M and the Ricoh GR IIIx place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Prime Lens Compact Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the Canon M and the GR IIIx in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon M	3/5	+	..	..	4/5	4/5	Jul 2012	US$ 599	ebay.com
2.		Ricoh GR IIIx	..	..	4.5/5	..	..	..	Sep 2021	US$ 999	amazon.com
3.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	US$ 699	ebay.com
4.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
5.		Canon M10	..	..	..	..	..	4/5	Oct 2015	US$ 499	ebay.com
6.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	US$ 499	ebay.com
7.		Canon SL1	4/5	+	..	78/100	4/5	4/5	Mar 2013	US$ 549	ebay.com
8.		Canon T3i	3/5	o	..	77/100	4.5/5	4.5/5	Feb 2011	US$ 599	ebay.com
9.		Canon T5i	..	..	..	76/100	4.5/5	4.5/5	Mar 2013	US$ 649	ebay.com
10.		Fujifilm X-S10	5/5	..	4.5/5	86/100	4.5/5	4.5/5	Oct 2020	US$ 999	amazon.com
11.		Panasonic G3	3/5	+ +	..	75/100	4.5/5	5/5	May 2011	US$ 599	ebay.com
12.		Panasonic GF6	..	+ +	..	..	4.5/5	4.5/5	Apr 2013	US$ 499	ebay.com
13.		Ricoh GR II	..	..	..	..	4.5/5	4.5/5	Jun 2015	US$ 699	ebay.com
14.		Ricoh GR III	4/5	..	3.5/5	81/100	4/5	..	Feb 2019	US$ 899	amazon.com
15.		Sony NEX-3N	3/5	..	..	..	4.5/5	4.5/5	Feb 2013	US$ 499	ebay.com
16.		Sony RX100 V	4.5/5	+ +	..	83/100	4/5	4.5/5	Oct 2016	US$ 999	ebay.com
17.		Sony RX100 VI	4.5/5	+ +	..	83/100	4/5	4.5/5	Jun 2018	US$ 1 199	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
