Canon M vs Pentax K-70
The Canon EOS M and the Pentax K-70 are two digital cameras that were officially introduced, respectively, in July 2012 and June 2016. The Canon M is a mirrorless interchangeable lens camera, while the K-70 is a DSLR. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 17.9 megapixels, whereas the Pentax provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M and the Pentax K-70? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

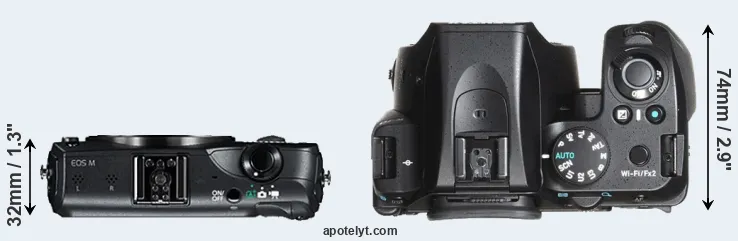

An illustration of the physical size and weight of the Canon M and the Pentax K-70 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
The Canon M can be obtained in two different colors (black, white), while the K-70 is also available in two color-versions, but different ones (black, silver).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax K-70 is considerably larger (63 percent) than the Canon M. Moreover, the K-70 is substantially heavier (131 percent) than the Canon M. It is noteworthy in this context that the K-70 is splash and dust-proof, while the Canon M does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon M||109 mm||66 mm||32 mm||298 g||230||n||Jul 2012||599||ebay.com|
|2.||Pentax K-70||126 mm||93 mm||74 mm||688 g||410||Y||Jun 2016||649||amazon.com|
|3.||Canon M100||108 mm||67 mm||35 mm||302 g||295||n||Aug 2017||499||ebay.com|
|4.||Canon M10||108 mm||67 mm||35 mm||301 g||255||n||Oct 2015||499||ebay.com|
|5.||Canon G7 X||103 mm||60 mm||40 mm||304 g||210||n||Sep 2014||699||ebay.com|
|6.||Canon G16||109 mm||76 mm||40 mm||356 g||360||n||Aug 2013||549||ebay.com|
|7.||Canon SL1||117 mm||91 mm||69 mm||407 g||380||n||Mar 2013||549||ebay.com|
|8.||Canon T5i||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649||ebay.com|
|9.||Canon T3i||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599||ebay.com|
|10.||Panasonic GF6||111 mm||65 mm||38 mm||323 g||340||n||Apr 2013||499||ebay.com|
|11.||Panasonic G3||115 mm||84 mm||47 mm||336 g||270||n||May 2011||599||ebay.com|
|12.||Pentax K-3 III||135 mm||104 mm||74 mm||820 g||800||Y||Mar 2021||1,999||amazon.com|
|13.||Pentax KP||132 mm||101 mm||76 mm||703 g||390||Y||Jan 2017||1,099||ebay.com|
|14.||Pentax K-S2||123 mm||91 mm||73 mm||678 g||410||Y||Feb 2015||749||ebay.com|
|15.||Pentax K-3 II||131 mm||100 mm||77 mm||800 g||720||Y||Apr 2015||1,099||ebay.com|
|16.||Pentax K-50||130 mm||97 mm||71 mm||650 g||410||Y||Jun 2013||599||ebay.com|
|17.||Sony NEX-3N||110 mm||62 mm||35 mm||269 g||480||n||Feb 2013||499||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The Canon M was somewhat cheaper (by 8 percent) than the K-70 at launch, but both cameras fall into the same price category. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the K-70 is 11 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (Canon M) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

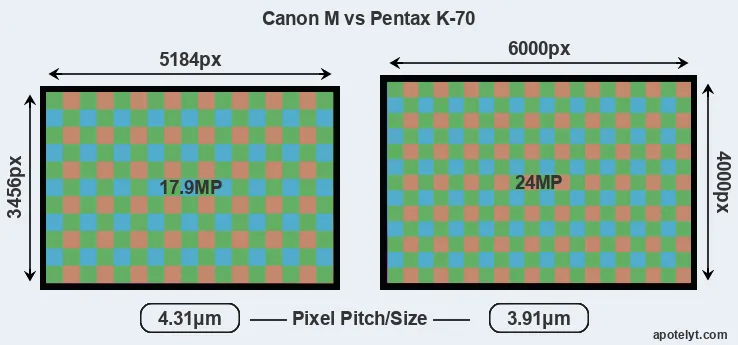

With 24MP, the K-70 offers a higher resolution than the Canon M (17.9MP), but the K-70 has smaller individual pixels (pixel pitch of 3.91μm versus 4.31μm for the Canon M). Yet, the K-70 is a much more recent model (by 3 years and 10 months) than the Canon M, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the K-70 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Pentax K-70 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the K-70 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon M are 25.9 x 17.3 inches or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inches or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inches or 43.9 x 29.3 cm for excellent quality prints.
Unlike the Canon M, the K-70 has the capacity to capture high quality composite images by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Canon EOS M has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Pentax K-70 are ISO 100 to ISO 102400 (no boost).
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|5.||Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71|
|10.||Panasonic GF6||Four Thirds||15.8||4592||3448||1080/60i||20.7||10.6||622||54|
|11.||Panasonic G3||Four Thirds||15.8||4592||3448||1080/60i||21.0||10.6||667||56|
|12.||Pentax K-3 III||APS-C||25.6||6192||4128||4K/30p||24.2||13.7||2083||85|
|15.||Pentax K-3 II||APS-C||24.1||6016||4000||1080/60i||23.6||13.6||1106||80|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the K-70 provides a faster frame rate than the Canon M. It can shoot movie footage at 1080/60i, while the Canon is limited to 1080/30p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the K-70 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the Canon M relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon M, the Pentax K-70, and comparable cameras.
|1.||Canon M||none||n||3.0 / 1040||fixed||Y||1/4000s||4.3/s||n||n|
|2.||Pentax K-70||optical||n||3.0 / 921||swivel||n||1/6000s||6.0/s||Y||Y|
|3.||Canon M100||none||n||3.0 / 1040||tilting||Y||1/4000s||6.1/s||Y||n|
|4.||Canon M10||none||n||3.0 / 1040||tilting||Y||1/4000s||4.6/s||Y||n|
|5.||Canon G7 X||none||n||3.0 / 1040||tilting||Y||1/2000s||6.5/s||Y||Y|
|6.||Canon G16||optical||n||3.0 / 922||fixed||n||1/4000s||2.2/s||Y||Y|
|7.||Canon SL1||optical||n||3.0 / 1040||fixed||Y||1/4000s||4.9/s||Y||n|
|8.||Canon T5i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|9.||Canon T3i||optical||n||3.0 / 1040||swivel||n||1/4000s||3.7/s||Y||n|
|10.||Panasonic GF6||none||n||3.0 / 1040||tilting||Y||1/4000s||4.2/s||Y||n|
|11.||Panasonic G3||1440||n||3.0 / 460||swivel||Y||1/4000s||4.0/s||Y||n|
|12.||Pentax K-3 III||optical||Y||3.2 / 1620||fixed||Y||1/8000s||12.0/s||n||Y|
|13.||Pentax KP||optical||n||3.0 / 921||tilting||n||1/6000s||7.0/s||Y||Y|
|14.||Pentax K-S2||optical||n||3.0 / 921||swivel||n||1/6000s||5.4/s||Y||Y|
|15.||Pentax K-3 II||optical||Y||3.2 / 1037||fixed||n||1/8000s||8.3/s||n||Y|
|16.||Pentax K-50||optical||n||3.0 / 921||fixed||n||1/6000s||6.0/s||Y||Y|
|17.||Sony NEX-3N||optional||n||3.0 / 460||tilting||n||1/4000s||4.0/s||Y||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The Canon M has a touchscreen, while the K-70 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.The K-70 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the Canon M does not have a selfie-screen.
The Pentax K-70 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the Canon M and the K-70 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M and Pentax K-70 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon M||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|2.||Pentax K-70||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|3.||Canon M100||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|4.||Canon M10||-||stereo / mono||-||-||mini||2.0||Y||Y||-|
|5.||Canon G7 X||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|6.||Canon G16||Y||stereo / mono||-||-||mini||2.0||Y||-||-|
|7.||Canon SL1||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|8.||Canon T5i||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|9.||Canon T3i||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|10.||Panasonic GF6||-||stereo / mono||-||-||mini||2.0||Y||Y||-|
|11.||Panasonic G3||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|12.||Pentax K-3 III||Y||stereo / mono||Y||Y||micro||3.2||Y||-||Y|
|13.||Pentax KP||Y||stereo / mono||Y||-||-||2.0||Y||-||-|
|14.||Pentax K-S2||Y||mono / mono||Y||-||micro||2.0||Y||Y||-|
|15.||Pentax K-3 II||Y||mono / mono||Y||Y||mini||3.0||-||-||-|
|16.||Pentax K-50||Y||mono / mono||-||-||micro||2.0||-||-||-|
|17.||Sony NEX-3N||-||stereo / mono||-||-||micro||2.0||-||-||-|
It is notable that the K-70 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the Canon M does not provide wifi capability.
The K-70 is a recent model that features in the current product line-up of Pentax. In contrast, the Canon M has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the Canon M was succeeded by the Canon EOS M3. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Pentax websites.
So what is the bottom line? Is the Canon M better than the Pentax K-70 or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Canon EOS M:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 921k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More compact: Is smaller (109x66mm vs 126x93mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 390g or 57 percent) and hence easier to carry around.
- More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
- More heavily discounted: Has been available for much longer (launched in July 2012).
Arguments in favor of the Pentax K-70:
- More detail: Has more megapixels (24 vs 17.9MP), which boosts linear resolution by 16%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Better video: Provides higher movie framerates (1080/60i versus 1080/30p).
- Easier framing: Has an optical viewfinder for image composition and settings control.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/6000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (6 vs 4.3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Gets more shots (410 versus 230) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More modern: Reflects 3 years and 10 months of technical progress since the Canon M launch.
If the count of relative strengths (bullet points above) is taken as a measure, the K-70 is the clear winner of the contest (16 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon M and the Pentax K-70 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the Canon M and the K-70 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon M||3/5||+||..||..||4/5||4/5||Jul 2012||599||ebay.com|
|2.||Pentax K-70||4.5/5||..||..||79/100||4.5/5||4.5/5||Jun 2016||649||amazon.com|
|3.||Canon M100||3/5||+||..||..||4/5||3.5/5||Aug 2017||499||ebay.com|
|4.||Canon M10||..||..||..||..||..||4/5||Oct 2015||499||ebay.com|
|5.||Canon G7 X||4/5||+ +||..||77/100||4.5/5||4.5/5||Sep 2014||699||ebay.com|
|6.||Canon G16||4/5||+||..||..||4.5/5||4.5/5||Aug 2013||549||ebay.com|
|7.||Canon SL1||4/5||+||..||78/100||4/5||4/5||Mar 2013||549||ebay.com|
|8.||Canon T5i||..||..||..||76/100||4.5/5||4.5/5||Mar 2013||649||ebay.com|
|9.||Canon T3i||3/5||o||..||77/100||4.5/5||4.5/5||Feb 2011||599||ebay.com|
|10.||Panasonic GF6||..||+ +||..||..||4.5/5||4.5/5||Apr 2013||499||ebay.com|
|11.||Panasonic G3||3/5||+ +||..||75/100||4.5/5||5/5||May 2011||599||ebay.com|
|12.||Pentax K-3 III||4/5||..||3/5||..||4.5/5||..||Mar 2021||1,999||amazon.com|
|13.||Pentax KP||4/5||..||3/5||82/100||5/5||4.5/5||Jan 2017||1,099||ebay.com|
|14.||Pentax K-S2||4.5/5||..||..||..||5/5||4.5/5||Feb 2015||749||ebay.com|
|15.||Pentax K-3 II||4.5/5||..||..||..||5/5||5/5||Apr 2015||1,099||ebay.com|
|16.||Pentax K-50||5/5||..||..||..||5/5||4.5/5||Jun 2013||599||ebay.com|
|17.||Sony NEX-3N||3/5||..||..||..||4.5/5||4.5/5||Feb 2013||499||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 550D vs Canon M
- Canon 7D II vs Canon M
- Canon 800D vs Canon M
- Canon G9 X Mark II vs Canon M
- Canon M vs Fujifilm X-Pro2
- Canon M vs Sony A6500
- Canon M10 vs Pentax K-70
- Canon M50 Mark II vs Pentax K-70
- Leica M Typ 240 vs Pentax K-70
- Leica V-LUX 1 vs Pentax K-70
- Nikon D40X vs Pentax K-70
- Olympus E-PL6 vs Pentax K-70
Specifications: Canon M vs Pentax K-70
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon M||Pentax K-70|
|Camera Type||Mirrorless system camera||Digital single lens reflex|
|Camera Lens||Canon EF-M mount lenses||Pentax K mount lenses|
|Launch Date||July 2012||June 2016|
|Launch Price||USD 599||USD 649|
|Sensor Specs||Canon M||Pentax K-70|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||23.5 x 15.6 mm|
|Sensor Area||332.27 mm2||366.6 mm2|
|Sensor Diagonal||26.8 mm||28.2 mm|
|Sensor Resolution||17.9 Megapixels||24 Megapixels|
|Image Resolution||5184 x 3456 pixels||6000 x 4000 pixels|
|Pixel Pitch||4.31 μm||3.91 μm|
|Pixel Density||5.39 MP/cm2||6.55 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/30p Video||1080/60i Video|
|ISO Setting||100 - 12,800 ISO||100 - 102,400 ISO|
|ISO Boost||100 - 25,600 ISO||no Enhancement|
|Image Processor||DIGIC V||PRIME MII|
|DXO Sensor Quality (score)||65||..|
|DXO Color Depth (bits)||22.1||..|
|DXO Dynamic Range (EV)||11.2||..|
|DXO Low Light (ISO)||827||..|
|Screen Specs||Canon M||Pentax K-70|
|Viewfinder Type||no viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||921k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon M||Pentax K-70|
|Focus System||On-Sensor Phase-detect||Phase-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/6000s|
|Continuous Shooting||4.3 shutter flaps/s||6 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||100 000 actuations|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||no On-Board Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon M||Pentax K-70|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||External MIC port|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Canon M||Pentax K-70|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||230 shots per charge||410 shots per charge|
109 x 66 x 32 mm
(4.3 x 2.6 x 1.3 in)
126 x 93 x 74 mm
(5.0 x 3.7 x 2.9 in)
|Camera Weight||298 g (10.5 oz)||688 g (24.3 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
