Canon M vs M100
The Canon EOS M and the Canon EOS M100 are two digital cameras that were officially introduced, respectively, in July 2012 and August 2017. Both the Canon M and the M100 are mirrorless interchangeable lens cameras that are equipped with an APS-C sensor. The Canon M has a resolution of 17.9 megapixels, whereas the M100 provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M and the Canon EOS M100? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

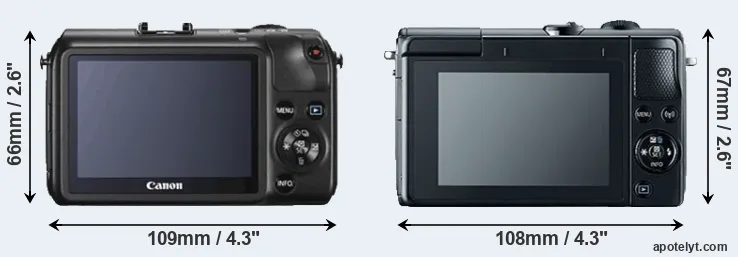

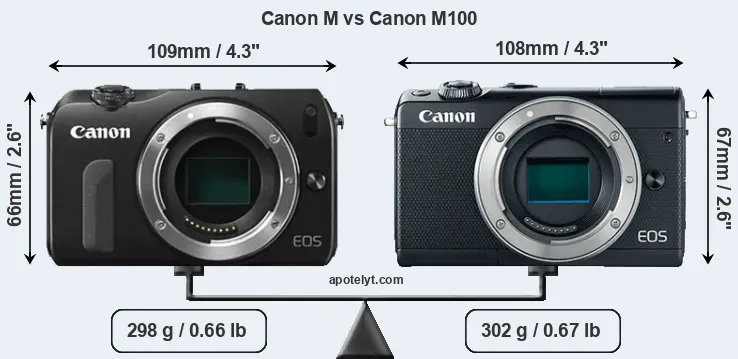

The side-by-side display below illustrates the physical size and weight of the Canon M and the Canon M100. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
Both cameras are available in two different colors (black, white).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon M and the Canon M100 are of equal size. However, the M100 is slightly heavier (1 percent) than the Canon M. In this context, it is worth noting that neither the Canon M nor the M100 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon M||109 mm||66 mm||32 mm||298 g||230||n||Jul 2012||599|
|2.||Canon M100||108 mm||67 mm||35 mm||302 g||295||n||Aug 2017||499|
|3.||Canon M200||108 mm||67 mm||35 mm||299 g||315||n||Sep 2019||549|
|4.||Canon M6||112 mm||68 mm||45 mm||390 g||295||n||Feb 2017||779|
|5.||Canon M5||116 mm||89 mm||61 mm||427 g||295||n||Sep 2016||979|
|6.||Canon M3||111 mm||68 mm||44 mm||366 g||250||n||Feb 2015||679|
|7.||Canon M10||108 mm||67 mm||35 mm||301 g||255||n||Oct 2015||499|
|8.||Canon G7 X||103 mm||60 mm||40 mm||304 g||210||n||Sep 2014||699|
|9.||Canon G16||109 mm||76 mm||40 mm||356 g||360||n||Aug 2013||549|
|10.||Canon SL1||117 mm||91 mm||69 mm||407 g||380||n||Mar 2013||549|
|11.||Canon T5i||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649|
|12.||Canon T3i||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599|
|13.||Panasonic GF6||111 mm||65 mm||38 mm||323 g||340||n||Apr 2013||499|
|14.||Panasonic G3||115 mm||84 mm||47 mm||336 g||270||n||May 2011||599|
|15.||Sony NEX-3N||110 mm||62 mm||35 mm||269 g||480||n||Feb 2013||499|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The M100 was launched at a somewhat lower price (by 17 percent) than the Canon M, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

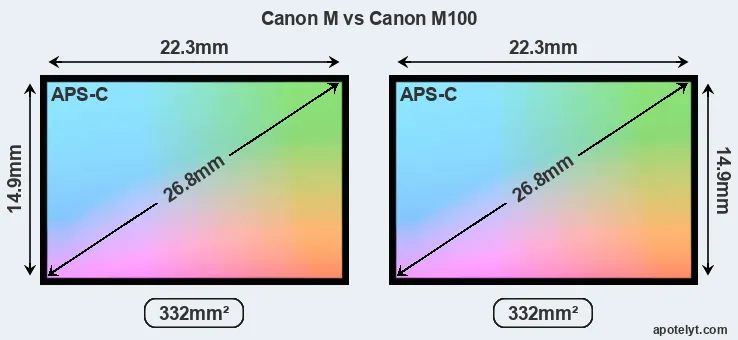

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature an APS-C sensor and have a format factor (sometimes also referred to as "crop factor") of 1.6. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, the M100 uses a more advanced image processing engine (DIGIC 7) than the Canon M (DIGIC V), with benefits for noise reduction, color accuracy, and processing speed.

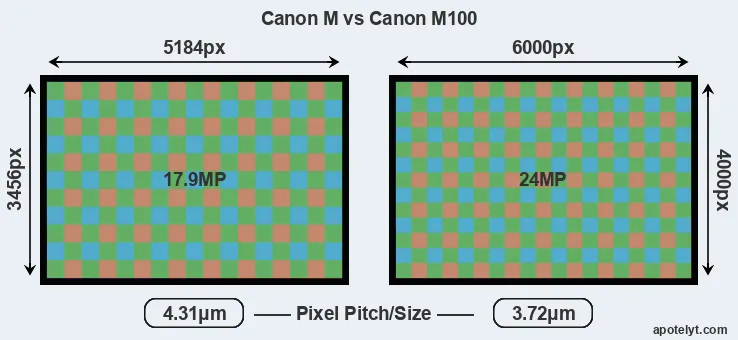

While the two cameras under review share the same sensor size, the M100 offers a higher resolution of 24 megapixels, compared with 17.9 MP of the Canon M. This megapixels advantage translates into a 16 percent gain in linear resolution. On the other hand, these sensor specs imply that the M100 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.72μm versus 4.31μm for the Canon M). However, it should be noted that the M100 is much more recent (by 5 years and 1 month) than the Canon M, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size.
The resolution advantage of the Canon M100 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M100 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon M are 25.9 x 17.3 inches or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inches or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inches or 43.9 x 29.3 cm for excellent quality prints.
The Canon EOS M has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Canon EOS M100 are ISO 100 to ISO 25600 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the M100 offers substantially better image quality than the Canon M (overall score 13 points higher). The advantage is based on 1.4 bits higher color depth, 1.7 EV in additional dynamic range, and 0.6 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|8.||Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71|
|13.||Panasonic GF6||Four Thirds||15.8||4592||3448||1080/60i||20.7||10.6||622||54|
|14.||Panasonic G3||Four Thirds||15.8||4592||3448||1080/60i||21.0||10.6||667||56|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the M100 provides a faster frame rate than the Canon M. It can shoot movie footage at 1080/60p, while the Canon M is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. The Canon M and the M100 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The following table reports on some other key feature differences and similarities of the Canon M, the Canon M100, and comparable cameras.
|1.||Canon M||none||n||3.0 / 1040||fixed||Y||1/4000s||4.3/s||n||n|
|2.||Canon M100||none||n||3.0 / 1040||tilting||Y||1/4000s||6.1/s||Y||n|
|3.||Canon M200||none||n||3.0 / 1040||tilting||Y||1/4000s||6.1/s||Y||n|
|4.||Canon M6||optional||n||3.0 / 1040||tilting||Y||1/4000s||9.0/s||Y||n|
|5.||Canon M5||2360||n||3.2 / 1620||tilting||Y||1/4000s||9.0/s||Y||n|
|6.||Canon M3||optional||n||3.0 / 1040||tilting||Y||1/4000s||4.2/s||Y||n|
|7.||Canon M10||none||n||3.0 / 1040||tilting||Y||1/4000s||4.6/s||Y||n|
|8.||Canon G7 X||none||n||3.0 / 1040||tilting||Y||1/2000s||6.5/s||Y||Y|
|9.||Canon G16||optical||n||3.0 / 922||fixed||n||1/4000s||2.2/s||Y||Y|
|10.||Canon SL1||optical||n||3.0 / 1040||fixed||Y||1/4000s||4.9/s||Y||n|
|11.||Canon T5i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|12.||Canon T3i||optical||n||3.0 / 1040||swivel||n||1/4000s||3.7/s||Y||n|
|13.||Panasonic GF6||none||n||3.0 / 1040||tilting||Y||1/4000s||4.2/s||Y||n|
|14.||Panasonic G3||1440||n||3.0 / 460||swivel||Y||1/4000s||4.0/s||Y||n|
|15.||Sony NEX-3N||optional||n||3.0 / 460||tilting||n||1/4000s||4.0/s||Y||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One difference between the cameras concerns the presence of an on-board flash. The M100 has one, while the Canon M does not. While the built-in flash of the M100 is not very powerful, it can at times be useful as a fill-in light.The M100 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the Canon M does not have a selfie-screen.
Concerning the storage of imaging data, both the Canon M and the M100 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M and Canon EOS M100 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon M||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|2.||Canon M100||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|3.||Canon M200||-||stereo / mono||-||-||micro||2.0||Y||-||Y|
|4.||Canon M6||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|5.||Canon M5||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|6.||Canon M3||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|7.||Canon M10||-||stereo / mono||-||-||mini||2.0||Y||Y||-|
|8.||Canon G7 X||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|9.||Canon G16||Y||stereo / mono||-||-||mini||2.0||Y||-||-|
|10.||Canon SL1||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|11.||Canon T5i||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|12.||Canon T3i||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|13.||Panasonic GF6||-||stereo / mono||-||-||mini||2.0||Y||Y||-|
|14.||Panasonic G3||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|15.||Sony NEX-3N||-||stereo / mono||-||-||micro||2.0||-||-||-|
It is notable that the Canon M has a hotshoe, while the M100 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
Both the Canon M and the M100 have been discontinued, but can regularly be found used on eBay. The Canon M was replaced by the Canon EOS M3, while the M100 was followed by the Canon M200. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So what conclusions can be drawn? Is there a clear favorite between the Canon M and the Canon M100? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Canon EOS M:
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- More heavily discounted: Has been available for much longer (launched in July 2012).
Reasons to prefer the Canon EOS M100:
- More detail: Has more megapixels (24 vs 17.9MP), which boosts linear resolution by 16%.
- Better image quality: Scores substantially higher (13 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (1.4 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (1.7 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (0.6 stops ISO advantage).
- Better jpgs: Has a more modern image processing engine (DIGIC 7 vs DIGIC V).
- Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (6.1 vs 4.3 flaps/sec) to capture the decisive moment.
- Longer lasting: Gets more shots (295 versus 230) out of a single battery charge.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More affordable: Was released into a lower priced segment (17 percent cheaper at launch).
- More modern: Reflects 5 years and 1 month of technical progress since the Canon M launch.
If the count of individual advantages (bullet points above) is taken as a guide, the M100 is the clear winner of the contest (17 : 3 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon M and the Canon M100 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the Canon M or the M100 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon M||3/5||+||..||..||4/5||4/5||Jul 2012||599|
|2.||Canon M100||3/5||+||..||..||4/5||3.5/5||Aug 2017||499|
|3.||Canon M200||..||+||3/5||79/100||4/5||4/5||Sep 2019||549|
|4.||Canon M6||..||..||..||80/100||4/5||4/5||Feb 2017||779|
|5.||Canon M5||4/5||+||4/5||82/100||4/5||4/5||Sep 2016||979|
|6.||Canon M3||4/5||o||..||75/100||4.5/5||4/5||Feb 2015||679|
|7.||Canon M10||..||..||..||..||..||4/5||Oct 2015||499|
|8.||Canon G7 X||4/5||+ +||..||77/100||4.5/5||4.5/5||Sep 2014||699|
|9.||Canon G16||4/5||+||..||..||4.5/5||4.5/5||Aug 2013||549|
|10.||Canon SL1||4/5||+||..||78/100||4/5||4/5||Mar 2013||549|
|11.||Canon T5i||..||..||..||76/100||4.5/5||4.5/5||Mar 2013||649|
|12.||Canon T3i||3/5||o||..||77/100||4.5/5||4.5/5||Feb 2011||599|
|13.||Panasonic GF6||..||+ +||..||..||4.5/5||4.5/5||Apr 2013||499|
|14.||Panasonic G3||3/5||+ +||..||75/100||4.5/5||5/5||May 2011||599|
|15.||Sony NEX-3N||3/5||..||..||..||4.5/5||4.5/5||Feb 2013||499|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon M vs Canon M100
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon M||Canon M100|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Canon EF-M mount lenses||Canon EF-M mount lenses|
|Launch Date||July 2012||August 2017|
|Launch Price||USD 599||USD 499|
|Sensor Specs||Canon M||Canon M100|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||22.3 x 14.9 mm|
|Sensor Area||332.27 mm2||332.27 mm2|
|Sensor Diagonal||26.8 mm||26.8 mm|
|Sensor Resolution||17.9 Megapixels||24 Megapixels|
|Image Resolution||5184 x 3456 pixels||6000 x 4000 pixels|
|Pixel Pitch||4.31 μm||3.72 μm|
|Pixel Density||5.39 MP/cm2||7.22 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||1080/60p Video|
|ISO Setting||100 - 12,800 ISO||100 - 25,600 ISO|
|ISO Boost||100 - 25,600 ISO||no Enhancement|
|Image Processor||DIGIC V||DIGIC 7|
|DXO Sensor Quality (score)||65||78|
|DXO Color Depth (bits)||22.1||23.5|
|DXO Dynamic Range (EV)||11.2||12.9|
|DXO Low Light (ISO)||827||1272|
|Screen Specs||Canon M||Canon M100|
|Viewfinder Type||no viewfinder||no viewfinder|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||1040k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Shooting Specs||Canon M||Canon M100|
|Focus System||On-Sensor Phase-detect||On-Sensor Phase-detect|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/4000s|
|Continuous Shooting||4.3 shutter flaps/s||6.1 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||100 000 actuations|
|Fill Flash||no On-Board Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon M||Canon M100|
|External Flash||Hotshoe||no Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Canon M||Canon M100|
|Battery Life (CIPA)||230 shots per charge||295 shots per charge|
109 x 66 x 32 mm
(4.3 x 2.6 x 1.3 in)
108 x 67 x 35 mm
(4.3 x 2.6 x 1.4 in)
|Camera Weight||298 g (10.5 oz)||302 g (10.7 oz)|
