Canon G1 X vs Olympus E-PM1

The Canon PowerShot G1 X and the Olympus PEN E-PM1 are two digital cameras that were revealed to the public, respectively, in January 2012 and June 2011. The G1X is a fixed lens compact, while the E-PM1 is a mirrorless interchangeable lens camera. The cameras are based on an 1.5-inch (G1X) and a Four Thirds (E-PM1) sensor. The Canon has a resolution of 14.2 megapixels, whereas the Olympus provides 12.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon G1 X		Olympus E-PM1
Fixed lens compact camera		Mirrorless system camera
28-112mm f/2.8-5.8		Micro Four Thirds lenses
14.2 MP – 1.5" sensor		12.2 MP – Four Thirds sensor
1080/24p Video		1080/60i Video
ISO 100-12,800		ISO 100-12,800
Optical viewfinder		Viewfinder optional
3.0" LCD – 922k dots		3.0" LCD – 460k dots
Swivel screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
1.9 shutter flaps per second		5.5 shutter flaps per second
Lens-based stabilization		In-body stabilization
250 shots per battery charge		330 shots per battery charge
117 x 81 x 65 mm, 534 g		110 x 64 x 34 mm, 265 g

Check G1X offers at
ebay.com
Check E-PM1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot G1 X and the Olympus PEN E-PM1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

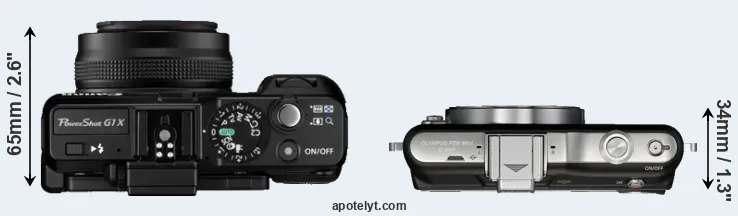

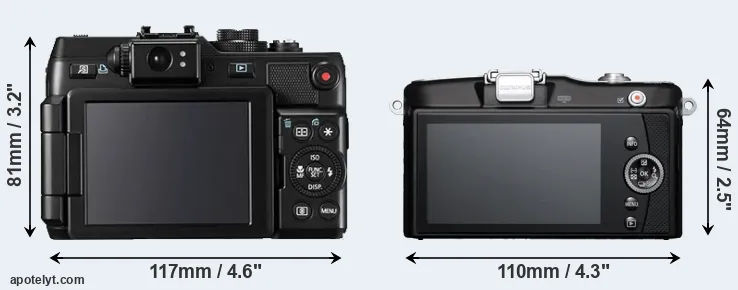

An illustration of the physical size and weight of the Canon G1 X and the Olympus E-PM1 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

The E-PM1 can be obtained in six different colors (black, silver, brown, pink, purple, white), while the G1X is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PM1 is notably smaller (26 percent) than the Canon G1 X. In this context, it is worth noting that neither the G1X nor the E-PM1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the G1X has a lens built in, whereas the E-PM1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-PM1 and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the G1X gets 250 shots out of its Canon NB-10L battery, while the E-PM1 can take 330 images on a single charge of its Olympus BLS-5 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon G1 X	117 mm	81 mm	65 mm	534 g	250	n	Jan 2012	US$ 799	ebay.com
2.		Olympus E-PM1	110 mm	64 mm	34 mm	265 g	330	n	Jun 2011	US$ 499	ebay.com
3.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	US$ 799	ebay.com
4.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
5.		Canon S120	100 mm	59 mm	29 mm	217 g	230	n	Aug 2013	US$ 449	ebay.com
6.		Canon SX50	123 mm	87 mm	106 mm	595 g	315	n	Sep 2012	US$ 429	ebay.com
7.		Canon T1i	129 mm	98 mm	62 mm	520 g	400	n	Mar 2009	US$ 799	ebay.com
8.		Canon T3	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	US$ 449	ebay.com
9.		Canon T4i	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	US$ 849	ebay.com
10.		Canon XSi	129 mm	98 mm	62 mm	524 g	500	n	Jan 2008	US$ 799	ebay.com
11.		Leica V-LUX 3	124 mm	81 mm	95 mm	540 g	410	n	Dec 2011	US$ 949	ebay.com
12.		Leica V-LUX 4	125 mm	87 mm	110 mm	588 g	540	n	Sep 2012	US$ 949	ebay.com
13.		Olympus E-PL1	115 mm	72 mm	42 mm	334 g	290	n	Feb 2010	US$ 599	ebay.com
14.		Olympus E-PL2	114 mm	72 mm	42 mm	362 g	280	n	Jan 2011	US$ 599	ebay.com
15.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	US$ 599	ebay.com
16.		Olympus E-PM2	110 mm	64 mm	34 mm	269 g	360	n	Sep 2012	US$ 499	ebay.com
17.		Panasonic G2	124 mm	84 mm	74 mm	428 g	360	n	Mar 2010	US$ 599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon G1 X features an 1.5-inch sensor and the Olympus E-PM1 a Four Thirds sensor. The sensor area in the E-PM1 is 14 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.85 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

With 14.2MP, the G1X offers a higher resolution than the E-PM1 (12.2MP), but the G1X nevertheless has marginally larger individual pixels (pixel pitch of 4.30μm versus 4.29μm for the E-PM1) due to its larger sensor. Moreover, the G1X is a somewhat more recent model (by 6 months) than the E-PM1, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon G1 X implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the G1X for good quality output (200 dots per inch) amounts to 21.8 x 16.3 inches or 55.3 x 41.5 cm, for very good quality (250 dpi) 17.4 x 13.1 inches or 44.2 x 33.2 cm, and for excellent quality (300 dpi) 14.5 x 10.9 inches or 36.8 x 27.6 cm. The corresponding values for the Olympus E-PM1 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.

The Canon PowerShot G1 X has a native sensitivity range from ISO 100 to ISO 12800. The Olympus PEN E-PM1 offers exactly the same ISO settings.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the G1X has a notably higher overall DXO score than the E-PM1 (overall score 8 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.7 bits higher color depth, 0.5 EV in additional dynamic range, and 0.4 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon G1 X	1.5-inch	14.2	4352	3264	1080/24p	21.7	10.8	644	60
2.		Olympus E-PM1	Four Thirds	12.2	4032	3024	1080/60i	21.0	10.3	499	52
3.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
4.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
5.		Canon S120	1/1.7	12.0	4000	3000	1080/60p	21.3	11.9	246	56
6.		Canon SX50	1/2.3	12.0	4000	3000	1080/24p	20.3	11.2	179	47
7.		Canon T1i	APS-C	15.1	4752	3168	1080/20p	21.7	11.5	663	63
8.		Canon T3	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
9.		Canon T4i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
10.		Canon XSi	APS-C	12.2	4272	2848	none	21.9	10.8	692	61
11.		Leica V-LUX 3	1/2.3	12.0	4000	3000	1080/60p	19.7	11.0	430	42
12.		Leica V-LUX 4	1/2.3	12.0	4000	3000	1080/60p	19.8	11.1	501	43
13.		Olympus E-PL1	Four Thirds	12.2	4032	3024	720/30p	21.5	10.1	487	54
14.		Olympus E-PL2	Four Thirds	12.2	4032	3024	720/30p	21.4	10.2	573	55
15.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
16.		Olympus E-PM2	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.2	932	72
17.		Panasonic G2	Four Thirds	12.0	4000	3000	720/30p	21.2	10.3	493	53
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the E-PM1 provides a faster frame rate than the G1X. It can shoot movie footage at 1080/60i, while the Canon is limited to 1080/24p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the G1X has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-PM1 relies on live view and the rear LCD for framing. That said, the E-PM1 can be equipped with an optional viewfinder – the VF-2. The adjacent table lists some of the other core features of the Canon G1 X and Olympus E-PM1 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon G1 X	optical	n	3.0 / 922	swivel	n	1/4000s	1.9/s	Y	Y
2.		Olympus E-PM1	optional	n	3.0 / 460	fixed	n	1/4000s	5.5/s	n	Y
3.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
4.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
5.		Canon S120	none	n	3.0 / 922	fixed	Y	1/2000s	12.1/s	Y	Y
6.		Canon SX50	202	n	3.0 / 461	swivel	n	1/2000s	2.2/s	Y	Y
7.		Canon T1i	optical	n	3.0 / 920	fixed	n	1/4000s	3.4/s	Y	n
8.		Canon T3	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
9.		Canon T4i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
10.		Canon XSi	optical	n	3.0 / 230	fixed	n	1/4000s	3.5/s	Y	n
11.		Leica V-LUX 3	202	n	3.0 / 460	swivel	n	1/2000s	12.0/s	Y	Y
12.		Leica V-LUX 4	1312	n	3.0 / 460	swivel	n	1/4000s	12.0/s	Y	Y
13.		Olympus E-PL1	optional	n	2.7 / 230	fixed	n	1/2000s	3.0/s	Y	Y
14.		Olympus E-PL2	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	Y
15.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
16.		Olympus E-PM2	optional	n	3.0 / 460	fixed	Y	1/4000s	8.0/s	n	Y
17.		Panasonic G2	1440	n	3.0 / 460	swivel	Y	1/4000s	2.6/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The G1X has one, while the E-PM1 does not. While the built-in flash of the G1X is not very powerful, it can at times be useful as a fill-in light.

Concerning the storage of imaging data, both the G1X and the E-PM1 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot G1 X and Olympus PEN E-PM1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon G1 X	Y	stereo / mono	-	-	mini	2.0	-	-	-
2.		Olympus E-PM1	Y	stereo / mono	-	-	mini	2.0	-	-	-
3.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
4.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
5.		Canon S120	-	stereo / mono	-	-	mini	2.0	Y	-	-
6.		Canon SX50	Y	stereo / mono	-	-	mini	2.0	-	-	-
7.		Canon T1i	Y	mono / mono	-	-	mini	2.0	-	-	-
8.		Canon T3	Y	stereo / mono	-	-	mini	2.0	-	-	-
9.		Canon T4i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
10.		Canon XSi	Y	- / -	-	-	mini	2.0	-	-	-
11.		Leica V-LUX 3	Y	stereo / -	-	-	mini	2.0	-	-	-
12.		Leica V-LUX 4	Y	stereo / mono	Y	-	mini	2.0	-	-	-
13.		Olympus E-PL1	Y	stereo / -	-	-	mini	2.0	-	-	-
14.		Olympus E-PL2	Y	stereo / -	-	-	mini	2.0	-	-	-
15.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
16.		Olympus E-PM2	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Panasonic G2	Y	stereo / mono	-	-	mini	2.0	-	-	-

Both the G1X and the E-PM1 have been discontinued, but can regularly be found used on ebay. The E-PM1 was replaced by the Olympus E-PM2, while the G1X was followed by the Canon G1X Mark II. Further information on the features and operation of the G1X and E-PM1 can be found, respectively, in the Canon G1 X Manual (free pdf) or the online Olympus E-PM1 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Canon G1 X and the Olympus E-PM1? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Canon PowerShot G1 X:

• More detail: Offers more megapixels (14.2 vs 12.2MP) with a 8% higher linear resolution.
• Better image quality: Scores markedly higher (8 points) in the DXO overall assessment.
• Better low-light sensitivity: Requires less light for good images (0.4 stops ISO advantage).
• Easier framing: Has an optical viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (922k vs 460k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Ready to shoot: Has a lens built-in, whereas the E-PM1 requires a separate lens.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More modern: Is somewhat more recent (announced 6 months after the E-PM1).

Advantages of the Olympus PEN E-PM1:

• Better video: Provides higher movie framerates (1080/60i versus 1080/24p).
• Faster burst: Shoots at higher frequency (5.5 vs 1.9 flaps/sec) to capture the decisive moment.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• More compact: Is smaller (110x64mm vs 117x81mm) and will fit more readily into a bag.
• Longer lasting: Gets more shots (330 versus 250) out of a single battery charge.
• More heavily discounted: Has been on the market for longer (launched in June 2011).

If the count of individual advantages (bullet points above) is taken as a guide, the G1X is the clear winner of the match-up (10 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon G1 X and the Olympus E-PM1 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the G1X or the E-PM1 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon G1 X	5/5	+	..	76/100	4/5	4.5/5	Jan 2012	US$ 799	ebay.com
2.		Olympus E-PM1	..	86/100	..	71/100	4.5/5	4.5/5	Jun 2011	US$ 499	ebay.com
3.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	US$ 799	ebay.com
4.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
5.		Canon S120	..	+ +	..	..	4.5/5	4.5/5	Aug 2013	US$ 449	ebay.com
6.		Canon SX50	3/5	+ +	..	72/100	4.5/5	4.5/5	Sep 2012	US$ 429	ebay.com
7.		Canon T1i	..	+ +	..	74/100	4.5/5	4.5/5	Mar 2009	US$ 799	ebay.com
8.		Canon T3	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	US$ 449	ebay.com
9.		Canon T4i	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	US$ 849	ebay.com
10.		Canon XSi	..	+ +	..	+ +	4/5	4.5/5	Jan 2008	US$ 799	ebay.com
11.		Leica V-LUX 3	..	..	..	..	..	..	Dec 2011	US$ 949	ebay.com
12.		Leica V-LUX 4	..	..	..	..	..	..	Sep 2012	US$ 949	ebay.com
13.		Olympus E-PL1	..	86/100	..	69/100	4/5	4.5/5	Feb 2010	US$ 599	ebay.com
14.		Olympus E-PL2	3/5	83/100	..	71/100	4.5/5	4.5/5	Jan 2011	US$ 599	ebay.com
15.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	US$ 599	ebay.com
16.		Olympus E-PM2	3/5	..	..	77/100	5/5	4.5/5	Sep 2012	US$ 499	ebay.com
17.		Panasonic G2	..	..	..	72/100	4/5	4.5/5	Mar 2010	US$ 599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
