Canon 90D vs 7D Mark II

The Canon EOS 90D and the Canon EOS 7D Mark II are two enthusiast cameras that were revealed to the public, respectively, in August 2019 and September 2014. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The 90D has a resolution of 32.3 megapixels, whereas the 7D Mark II provides 20 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 90D		Canon 7D II
Digital single lens reflex		Digital single lens reflex
Canon EF mount lenses		Canon EF mount lenses
32.3 MP – APS-C sensor		20 MP – APS-C sensor
4K/30p Video		1080/60p Video
ISO 100-25,600 (100 - 51,200)		ISO 100-16,000 (100 - 51,200)
Optical viewfinder		Optical viewfinder
3.0" LCD – 1040k dots		3.0" LCD – 1040k dots
Swivel touchscreen		Fixed screen (not touch-sensitive)
11 shutter flaps per second		10 shutter flaps per second
Weathersealed body		Weathersealed body
1300 shots per battery charge		670 shots per battery charge
141 x 105 x 77 mm, 701 g		149 x 112 x 78 mm, 910 g

Check 90D price at
amazon.com
Check 7D Mark II offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 90D and the Canon EOS 7D Mark II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

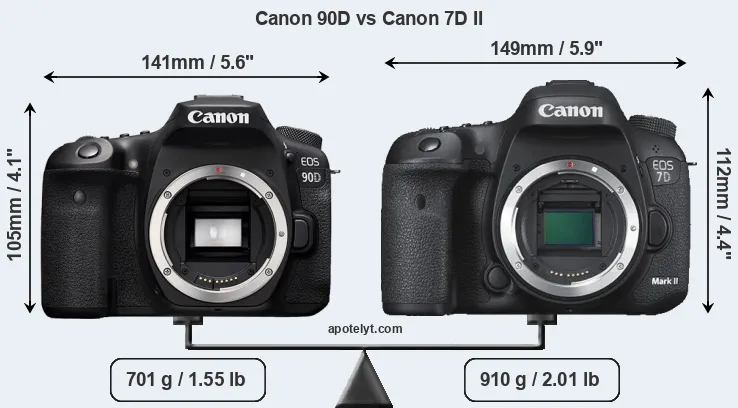

The side-by-side display below illustrates the physical size and weight of the Canon 90D and the Canon 7D II. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 7D II is notably larger (13 percent) than the Canon 90D. Moreover, the 7D Mark II is markedly heavier (30 percent) than the 90D. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

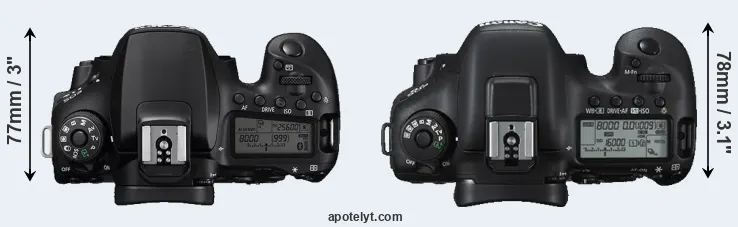

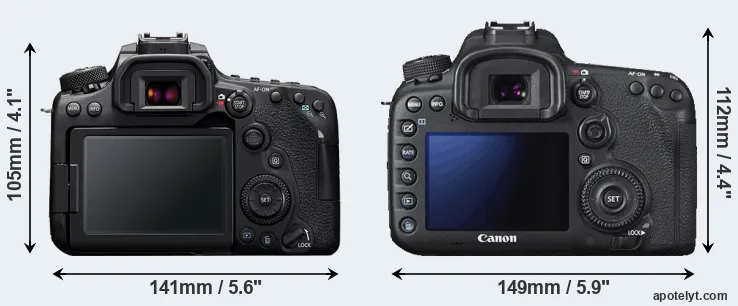

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Canon EF Lens Catalog.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 90D	141 mm	105 mm	77 mm	701 g	1300	Y	Aug 2019	US$ 1 199	amazon.com
2.		Canon 7D II	149 mm	112 mm	78 mm	910 g	670	Y	Sep 2014	US$ 1 799	ebay.com
3.		Canon 6D	145 mm	111 mm	71 mm	770 g	1090	Y	Sep 2012	US$ 2 099	ebay.com
4.		Canon 7D	148 mm	111 mm	74 mm	860 g	800	Y	Sep 2009	US$ 1 699	ebay.com
5.		Canon 30D	144 mm	106 mm	74 mm	785 g	750	n	Feb 2006	US$ 1 399	ebay.com
6.		Canon 40D	146 mm	108 mm	74 mm	822 g	750	n	Aug 2007	US$ 1 299	ebay.com
7.		Canon 50D	146 mm	108 mm	74 mm	822 g	800	Y	Aug 2008	US$ 1 299	ebay.com
8.		Canon 60D	145 mm	106 mm	79 mm	755 g	1100	Y	Aug 2010	US$ 1 399	ebay.com
9.		Canon 70D	139 mm	104 mm	79 mm	755 g	920	Y	Jul 2013	US$ 1 199	ebay.com
10.		Canon 80D	139 mm	105 mm	79 mm	730 g	960	Y	Feb 2016	US$ 1 199	ebay.com
11.		Canon 2000D	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	US$ 449	amazon.com
12.		Canon G3 X	123 mm	77 mm	105 mm	733 g	300	Y	Jun 2015	US$ 999	ebay.com
13.		Canon R	139 mm	98 mm	84 mm	660 g	370	Y	Sep 2018	US$ 2 299	ebay.com
14.		Panasonic GH5s	139 mm	98 mm	87 mm	660 g	440	Y	Jan 2018	US$ 2 499	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The 90D was launched at a markedly lower price (by 33 percent) than the 7D Mark II, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

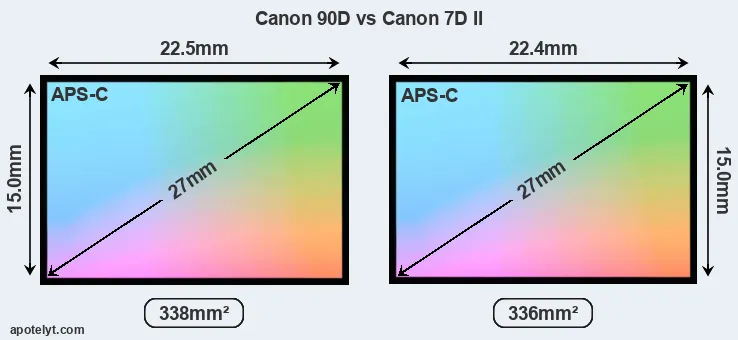

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the 7D Mark II is 1 percent smaller. They nevertheless have the same format factor of 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

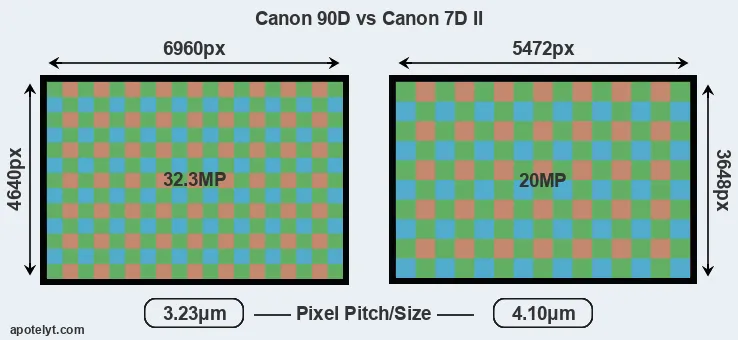

With 32.3MP, the 90D offers a higher resolution than the 7D Mark II (20MP), but the 90D has smaller individual pixels (pixel pitch of 3.23μm versus 4.10μm for the 7D Mark II). However, the 90D is a much more recent model (by 4 years and 11 months) than the 7D Mark II, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon 90D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 90D for good quality output (200 dots per inch) amounts to 34.8 x 23.2 inches or 88.4 x 58.9 cm, for very good quality (250 dpi) 27.8 x 18.6 inches or 70.7 x 47.1 cm, and for excellent quality (300 dpi) 23.2 x 15.5 inches or 58.9 x 39.3 cm. The corresponding values for the Canon 7D II are 27.4 x 18.2 inches or 69.5 x 46.3 cm for good quality, 21.9 x 14.6 inches or 55.6 x 37.1 cm for very good quality, and 18.2 x 12.2 inches or 46.3 x 30.9 cm for excellent quality prints.

The Canon EOS 90D has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Canon EOS 7D Mark II are ISO 100 to ISO 16000, with the possibility to increase the ISO range to 100-51200.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 90D	APS-C	32.3	6960	4640	4K/30p	24.0	13.5	1848	83
2.		Canon 7D II	APS-C	20.0	5472	3648	1080/60p	22.4	11.8	1082	70
3.		Canon 6D	Full Frame	20.0	5472	3648	1080/30p	23.8	12.1	2340	82
4.		Canon 7D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	854	66
5.		Canon 30D	APS-C	8.2	3504	2336	none	21.5	10.8	736	59
6.		Canon 40D	APS-C	10.1	3888	2592	none	22.1	11.3	703	64
7.		Canon 50D	APS-C	15.1	4752	3168	none	21.8	11.4	696	63
8.		Canon 60D	APS-C	17.9	5184	3456	1080/30p	22.2	11.5	813	66
9.		Canon 70D	APS-C	20.0	5472	3648	1080/30p	22.5	11.6	926	68
10.		Canon 80D	APS-C	24.0	6000	4000	1080/60p	23.6	13.2	1135	79
11.		Canon 2000D	APS-C	24.0	6000	4000	1080/30p	22.6	11.9	1009	71
12.		Canon G3 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	521	63
13.		Canon R	Full Frame	30.1	6720	4480	4K/30p	24.5	13.5	2742	89
14.		Panasonic GH5s	Four Thirds	9.9	3680	2700	4K/60p	23.1	12.8	1154	74
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the 90D provides a higher video resolution than the 7D Mark II. It can shoot video footage at 4K/30p, while the 7D Mark II is limited to 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The 90D and the 7D Mark II are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the 7D Mark II has a higher magnification than the one of the 90D (0.63x vs 0.59x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 90D and Canon 7D II in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 90D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	11.0/s	Y	n
2.		Canon 7D II	optical	Y	3.0 / 1040	fixed	n	1/8000s	10.0/s	Y	n
3.		Canon 6D	optical	Y	3.0 / 1040	fixed	n	1/4000s	4.5/s	n	n
4.		Canon 7D	optical	Y	3.0 / 920	fixed	n	1/8000s	8.0/s	Y	n
5.		Canon 30D	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	Y	n
6.		Canon 40D	optical	Y	3.0 / 230	fixed	n	1/8000s	6.5/s	Y	n
7.		Canon 50D	optical	Y	3.0 / 920	fixed	n	1/8000s	6.3/s	Y	n
8.		Canon 60D	optical	Y	3.0 / 1040	swivel	n	1/8000s	5.3/s	Y	n
9.		Canon 70D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
10.		Canon 80D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
11.		Canon 2000D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
12.		Canon G3 X	optional	n	3.2 / 1620	tilting	Y	1/2000s	5.9/s	Y	Y
13.		Canon R	3690	Y	3.2 / 2100	swivel	Y	1/8000s	8.0/s	n	n
14.		Panasonic GH5s	3680	n	3.2 / 1620	swivel	Y	1/8000s	12.0/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The 90D has a touchscreen, while the 7D Mark II has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the 90D is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon 90D and the Canon 7D II both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The 90D writes its imaging data to SDXC cards, while the 7D Mark II uses Compact Flash or SDXC cards. The 7D Mark II features dual card slots, which can be very useful in case a memory card fails. In contrast, the 90D only has one slot. The 90D supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the 7D Mark II can use UHS-I cards (up to 104 MB/s).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 90D and Canon EOS 7D Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 90D	Y	stereo / mono	Y	Y	mini	2.0	Y	-	Y
2.		Canon 7D II	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
3.		Canon 6D	Y	mono / mono	Y	-	mini	2.0	Y	-	-
4.		Canon 7D	Y	mono / -	Y	-	mini	2.0	-	-	-
5.		Canon 30D	Y	- / -	-	-	-	2.0	-	-	-
6.		Canon 40D	Y	- / -	-	-	-	2.0	-	-	-
7.		Canon 50D	Y	- / -	-	-	mini	2.0	-	-	-
8.		Canon 60D	Y	mono / mono	Y	-	mini	2.0	-	-	-
9.		Canon 70D	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
10.		Canon 80D	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
11.		Canon 2000D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
12.		Canon G3 X	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
13.		Canon R	Y	stereo / mono	Y	Y	mini	3.1	Y	-	Y
14.		Panasonic GH5s	Y	stereo / mono	Y	Y	full	3.1	Y	-	Y

It is notable that the 90D offers wifi support, while the 7D Mark II does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Studio photographers will appreciate that the Canon 7D II (unlike the 90D) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Travel and landscape photographers will find it useful that the 7D Mark II has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

The 90D is a recent model that features in the current product line-up of Canon. In contrast, the 7D Mark II has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the 7D Mark II from Canon. Further information on the features and operation of the 90D and 7D Mark II can be found, respectively, in the Canon 90D Manual (free pdf) or the online Canon 7D II Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Canon 90D or the Canon 7D II – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Canon EOS 90D:

• More detail: Offers more megapixels (32.3 vs 20MP) with a 27% higher linear resolution.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• More compact: Is smaller (141x105mm vs 149x112mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 209g or 23 percent) and hence easier to carry around.
• Longer lasting: Can take more shots (1300 versus 670) on a single battery charge.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More affordable: Was introduced into a lower priced category (33 percent cheaper at launch).
• More modern: Reflects 4 years and 11 months of technical progress since the 7D Mark II launch.

Reasons to prefer the Canon EOS 7D Mark II:

• Larger viewfinder image: Features a viewfinder with a higher magnification (0.63x vs 0.59x).
• Easier geotagging: Features an internal GPS sensor to log localization data.
• Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been around for much longer (launched in September 2014).

If the count of relative strengths (bullet points above) is taken as a measure, the 90D is the clear winner of the match-up (14 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 90D and the Canon 7D II place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the 90D or the 7D Mark II perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 90D	4/5	+	4.5/5	85/100	4.5/5	4.5/5	Aug 2019	US$ 1 199	amazon.com
2.		Canon 7D II	4.5/5	+	3.5/5	84/100	4/5	4.5/5	Sep 2014	US$ 1 799	ebay.com
3.		Canon 6D	5/5	+ +	..	83/100	4.5/5	4.5/5	Sep 2012	US$ 2 099	ebay.com
4.		Canon 7D	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2009	US$ 1 699	ebay.com
5.		Canon 30D	..	+ +	..	+ +	o	..	Feb 2006	US$ 1 399	ebay.com
6.		Canon 40D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2007	US$ 1 299	ebay.com
7.		Canon 50D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2008	US$ 1 299	ebay.com
8.		Canon 60D	5/5	+	..	79/100	4/5	4.5/5	Aug 2010	US$ 1 399	ebay.com
9.		Canon 70D	5/5	+ +	..	83/100	4.5/5	5/5	Jul 2013	US$ 1 199	ebay.com
10.		Canon 80D	4/5	+ +	4.5/5	84/100	4.5/5	4.5/5	Feb 2016	US$ 1 199	ebay.com
11.		Canon 2000D	3/5	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	US$ 449	amazon.com
12.		Canon G3 X	3.5/5	+	..	..	4.5/5	4/5	Jun 2015	US$ 999	ebay.com
13.		Canon R	4/5	o	4/5	79/100	4.5/5	4/5	Sep 2018	US$ 2 299	ebay.com
14.		Panasonic GH5s	..	..	4.5/5	84/100	4.5/5	4.5/5	Jan 2018	US$ 2 499	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
