Canon 800D vs M200
The Canon EOS 800D (called Canon T7i in some regions) and the Canon EOS M200 are two digital cameras that were announced, respectively, in February 2017 and September 2019. The 800D is a DSLR, while the M200 is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. Both cameras offer a resolution of 24 megapixels.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 800D and the Canon EOS M200? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The side-by-side display below illustrates the physical size and weight of the Canon 800D and the Canon M200. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
The M200 can be obtained in two different colors (black, white), while the 800D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon M200 is considerably smaller (45 percent) than the Canon 800D. Moreover, the M200 is substantially lighter (44 percent) than the 800D. In this context, it is worth noting that neither the 800D nor the M200 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon 800D||131 mm||100 mm||76 mm||532 g||600||n||Feb 2017||749||ebay.com|
|2.||Canon M200||108 mm||67 mm||35 mm||299 g||315||n||Sep 2019||549||amazon.com|
|3.||Canon 850D||131 mm||103 mm||76 mm||515 g||800||n||Feb 2020||749||amazon.com|
|4.||Canon M50 Mark II||116 mm||88 mm||59 mm||387 g||305||n||Oct 2020||599||amazon.com|
|5.||Canon 2000D||129 mm||101 mm||78 mm||475 g||500||n||Feb 2018||449||amazon.com|
|6.||Canon M50||116 mm||88 mm||59 mm||390 g||235||n||Feb 2018||779||ebay.com|
|7.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899||ebay.com|
|8.||Canon 200D||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549||ebay.com|
|9.||Canon M6||112 mm||68 mm||45 mm||390 g||295||n||Feb 2017||779||ebay.com|
|10.||Canon M100||108 mm||67 mm||35 mm||302 g||295||n||Aug 2017||499||ebay.com|
|11.||Canon 1300D||129 mm||101 mm||78 mm||485 g||500||n||Mar 2016||449||ebay.com|
|12.||Canon G7 X Mark II||106 mm||61 mm||42 mm||319 g||265||n||Feb 2016||699||ebay.com|
|13.||Canon 750D||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749||ebay.com|
|14.||Canon 760D||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649||ebay.com|
|15.||Canon M10||108 mm||67 mm||35 mm||301 g||255||n||Oct 2015||499||ebay.com|
|16.||Fujifilm XF10||113 mm||64 mm||41 mm||279 g||330||n||Jul 2018||499||ebay.com|
|17.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699||amazon.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The M200 was launched at a markedly lower price (by 27 percent) than the 800D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Both cameras under consideration feature an APS-C sensor and have a format factor (sometimes also referred to as "crop factor") of 1.6. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, the M200 uses a more advanced image processing engine (DIGIC 8) than the 800D (DIGIC 7), with benefits for noise reduction, color accuracy, and processing speed.
The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 24 megapixels. This similarity in sensor specs implies that both the 800D and the M200 have the same pixel density, as well as the same pixel size. It should, however, be noted that the M200 is much more recent (by 2 years and 7 months) than the 800D, and its sensor will have benefitted from technological advances during this time.
The Canon EOS 800D has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Canon EOS M200 are ISO 100 to ISO 25600 (no boost).
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|4.||Canon M50 Mark II||APS-C||24.0||6000||4000||4K/24p||24.0||13.6||1939||83|
|12.||Canon G7 X Mark II||1-inch||20.0||5472||3648||1080/60p||21.8||11.9||260||62|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the M200 provides a better video resolution than the 800D. It can shoot movie footage at 4k/25p, while the 800D is limited to 1080/60p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the 800D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the M200 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon 800D, the Canon M200, and comparable cameras.
|1.||Canon 800D||optical||n||3.0 / 1040||swivel||Y||1/4000s||6.0/s||Y||n|
|2.||Canon M200||none||n||3.0 / 1040||tilting||Y||1/4000s||6.1/s||Y||n|
|3.||Canon 850D||optical||n||3.0 / 1040||swivel||Y||1/4000s||7.5/s||Y||n|
|4.||Canon M50 Mark II||2360||n||3.0 / 1040||swivel||Y||1/4000s||10.0/s||Y||n|
|5.||Canon 2000D||optical||n||3.0 / 920||fixed||n||1/4000s||3.0/s||Y||n|
|6.||Canon M50||2360||n||3.0 / 1040||swivel||Y||1/4000s||10.0/s||Y||n|
|7.||Canon 77D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.0/s||Y||n|
|8.||Canon 200D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|9.||Canon M6||optional||n||3.0 / 1040||tilting||Y||1/4000s||9.0/s||Y||n|
|10.||Canon M100||none||n||3.0 / 1040||tilting||Y||1/4000s||6.1/s||Y||n|
|11.||Canon 1300D||optical||n||3.0 / 920||fixed||n||1/4000s||3.0/s||Y||n|
|12.||Canon G7 X Mark II||none||n||3.0 / 1040||tilting||Y||1/2000s||8.0/s||Y||Y|
|13.||Canon 750D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|14.||Canon 760D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|15.||Canon M10||none||n||3.0 / 1040||tilting||Y||1/4000s||4.6/s||Y||n|
|16.||Fujifilm XF10||none||n||3.0 / 1040||fixed||Y||1/4000s||6.0/s||Y||n|
|17.||Nikon D5600||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0/s||Y||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
Concerning the storage of imaging data, both the 800D and the M200 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 800D and Canon EOS M200 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon 800D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|2.||Canon M200||-||stereo / mono||-||-||micro||2.0||Y||-||Y|
|3.||Canon 850D||Y||stereo / mono||Y||-||mini||2.0||Y||-||Y|
|4.||Canon M50 Mark II||Y||stereo / mono||Y||-||micro||2.0||Y||-||Y|
|5.||Canon 2000D||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|6.||Canon M50||Y||stereo / mono||Y||-||micro||2.0||Y||-||Y|
|7.||Canon 77D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|8.||Canon 200D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|9.||Canon M6||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|10.||Canon M100||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|11.||Canon 1300D||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|12.||Canon G7 X Mark II||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|13.||Canon 750D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|14.||Canon 760D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|15.||Canon M10||-||stereo / mono||-||-||mini||2.0||Y||Y||-|
|16.||Fujifilm XF10||-||stereo / mono||Y||-||micro||2.0||Y||-||Y|
|17.||Nikon D5600||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
It is notable that the 800D has a hotshoe, while the M200 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
The M200 is a recent model that features in the current product line-up of Canon. In contrast, the 800D has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the 800D was succeeded by the Canon 850D. Further information on the features and operation of the 800D and M200 can be found, respectively, in the Canon 800D Manual (free pdf) or the online Canon M200 Manual.
So how do things add up? Is the Canon 800D better than the Canon M200 or vice versa? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Canon EOS 800D:
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Longer lasting: Can take more shots (600 versus 315) on a single battery charge.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More heavily discounted: Has been available for much longer (launched in February 2017).
Arguments in favor of the Canon EOS M200:
- Better jpgs: Has a more modern image processing engine (DIGIC 8 vs DIGIC 7).
- Better video: Provides higher definition movie capture (4k/25p vs 1080/60p).
- More compact: Is smaller (108x67mm vs 131x100mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 233g or 44 percent) and is thus easier to take along.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- More affordable: Was introduced into a lower priced category (27 percent cheaper at launch).
- More modern: Reflects 2 years and 7 months of technical progress since the 800D launch.
If the count of relative strengths (bullet points above) is taken as a measure, the match-up finishes in a tie (7 points each). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 800D and the Canon M200 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 800D or the M200. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 800D||4.5/5||..||3.5/5||80/100||4.5/5||4/5||Feb 2017||749||ebay.com|
|2.||Canon M200||..||+||3/5||79/100||4/5||4/5||Sep 2019||549||amazon.com|
|3.||Canon 850D||4/5||+||3/5||80/100||4/5||3.5/5||Feb 2020||749||amazon.com|
|4.||Canon M50 Mark II||4/5||..||4/5||..||4.5/5||3.5/5||Oct 2020||599||amazon.com|
|5.||Canon 2000D||3/5||o||3.5/5||..||3.5/5||3.5/5||Feb 2018||449||amazon.com|
|6.||Canon M50||..||+||4/5||79/100||..||3.5/5||Feb 2018||779||ebay.com|
|7.||Canon 77D||4.5/5||..||4/5||82/100||4.5/5||4/5||Feb 2017||899||ebay.com|
|8.||Canon 200D||4/5||+ +||4/5||78/100||4.5/5||4.5/5||Jun 2017||549||ebay.com|
|9.||Canon M6||..||..||..||80/100||4/5||4/5||Feb 2017||779||ebay.com|
|10.||Canon M100||3/5||+||..||..||4/5||3.5/5||Aug 2017||499||ebay.com|
|11.||Canon 1300D||4/5||o||4/5||73/100||4/5||4/5||Mar 2016||449||ebay.com|
|12.||Canon G7 X Mark II||4.5/5||+ +||..||81/100||4.5/5||4.5/5||Feb 2016||699||ebay.com|
|13.||Canon 750D||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749||ebay.com|
|14.||Canon 760D||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649||ebay.com|
|15.||Canon M10||..||..||..||..||..||4/5||Oct 2015||499||ebay.com|
|16.||Fujifilm XF10||..||..||4/5||75/100||4/5||4.5/5||Jul 2018||499||ebay.com|
|17.||Nikon D5600||4/5||..||4/5||79/100||4.5/5||4/5||Nov 2016||699||amazon.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 500D vs Canon M200
- Canon 800D vs Fujifilm X-T30
- Canon 800D vs Fujifilm X100V
- Canon 800D vs Leica D-LUX 7
- Canon 800D vs Nikon D5200
- Canon 800D vs Nikon D780
- Canon 800D vs Olympus E-M10 IV
- Canon D30 vs Canon M200
- Canon G5 X Mark II vs Canon M200
- Canon M200 vs Fujifilm X-T5
- Canon M200 vs Nikon D3500
- Canon M200 vs Olympus E-M10 II
Specifications: Canon 800D vs Canon M200
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 800D||Canon M200|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Canon EF-M mount lenses|
|Launch Date||February 2017||September 2019|
|Launch Price||USD 749||USD 549|
|Sensor Specs||Canon 800D||Canon M200|
|Sensor Format||APS-C Sensor||APS-C Sensor|

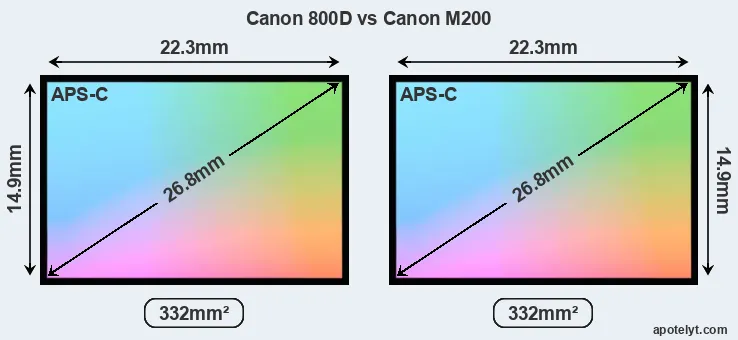

|Sensor Size||22.3 x 14.9 mm||22.3 x 14.9 mm|
|Sensor Area||332.27 mm2||332.27 mm2|
|Sensor Diagonal||26.8 mm||26.8 mm|

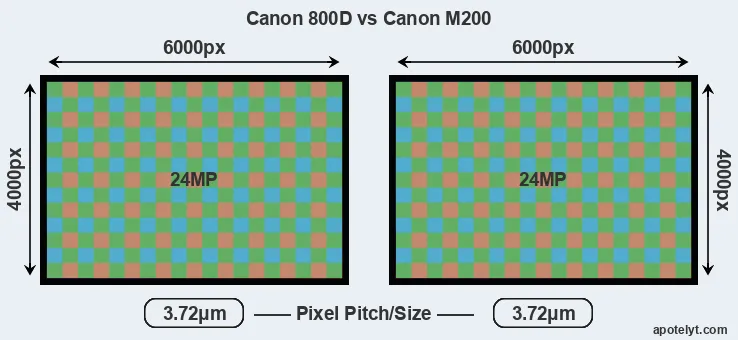

|Sensor Resolution||24 Megapixels||24 Megapixels|
|Image Resolution||6000 x 4000 pixels||6000 x 4000 pixels|
|Pixel Pitch||3.72 μm||3.72 μm|
|Pixel Density||7.22 MP/cm2||7.22 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||4k/25p Video|
|ISO Setting||100 - 25,600 ISO||100 - 25,600 ISO|
|ISO Boost||100 - 51,200 ISO||no Enhancement|
|Image Processor||DIGIC 7||DIGIC 8|
|Screen Specs||Canon 800D||Canon M200|
|Viewfinder Type||Optical viewfinder||no viewfinder|
|Viewfinder Field of View||95%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||1040k dots|
|LCD Attachment||Swivel screen||Tilting screen|
|Shooting Specs||Canon 800D||Canon M200|
|Focus System||Phase-detect AF||On-Sensor Phase-detect|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/4000s|
|Continuous Shooting||6 shutter flaps/s||6.1 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||100 000 actuations|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Single or Dual Card Slots||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon 800D||Canon M200|
|External Flash||Hotshoe||no Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||no NFC|
|Bluetooth Support||Bluetooth built-in||Bluetooth built-in|
|Body Specs||Canon 800D||Canon M200|
|Battery Life (CIPA)||600 shots per charge||315 shots per charge|
131 x 100 x 76 mm
(5.2 x 3.9 x 3.0 in)
108 x 67 x 35 mm
(4.3 x 2.6 x 1.4 in)
|Camera Weight||532 g (18.8 oz)||299 g (10.5 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
