Canon 800D versus Canon 80D
The Canon EOS 800D (called Canon T7i in some regions) and the Canon EOS 80D are two digital cameras that were officially introduced, respectively, in February 2017 and February 2016. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. Both cameras offer a resolution of 24 megapixel.

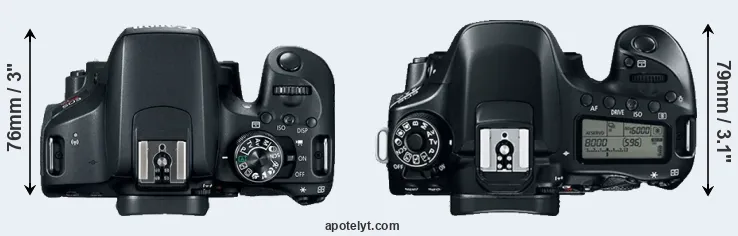

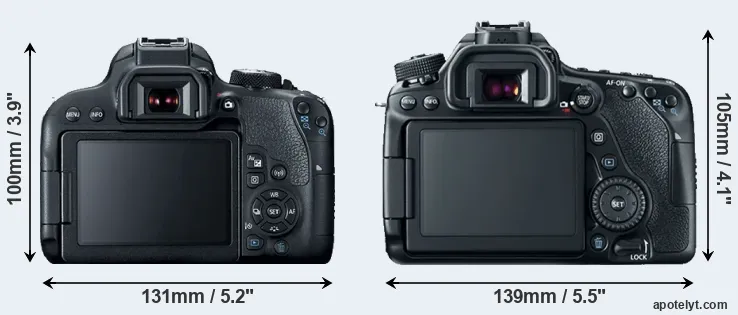

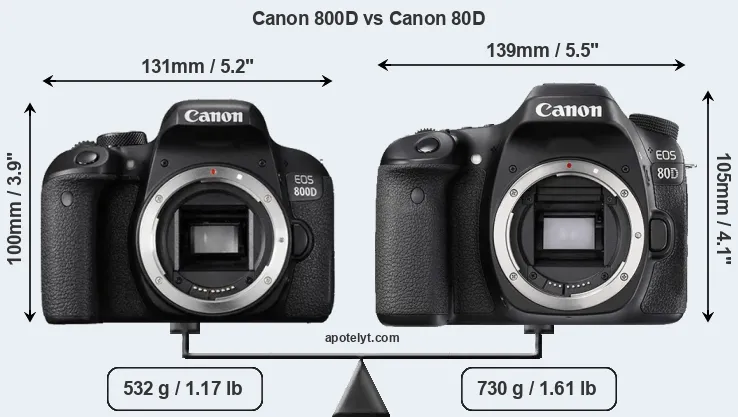

An illustration of the physical size and weight of the Canon 800D and the Canon 80D is provided in the side-by-side display below. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter. You can also use the toggle button to switch to a percentage comparison if you prefer that the measures are being expressed in relative terms (in this case, the camera on the left side – the 800D – represents the basis for the calculations across all the size and weight measures).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 80D is notably larger (11 percent) than the Canon 800D. Moreover, the 80D is substantially heavier (37 percent) than the 800D. It is noteworthy in this context that the 80D is splash and dust-proof, while the 800D does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can find an overview of suitable optics in the Canon EF Lens Catalog.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible comparisons there.
|Camera Body Specifications
|Canon 800D (⇒ rgt)||131 mm||100 mm||76 mm||532 g||600||no||2017||749||latest||check|
|Canon 80D (⇒ lft)||139 mm||105 mm||79 mm||730 g||960||YES||2016||1,199||latest||check|
|Canon 200D (⇒ lft | rgt)||122 mm||93 mm||70 mm||453 g||650||no||2017||549||latest||check|
|Canon 77D (⇒ lft | rgt)||131 mm||100 mm||76 mm||540 g||600||no||2017||899||latest||check|
|Canon M6 (⇒ lft | rgt)||112 mm||68 mm||45 mm||390 g||295||no||2017||779||latest||check|
|Canon 1300D (⇒ lft | rgt)||129 mm||101 mm||78 mm||485 g||500||no||2016||449||latest||check|
|Canon G7 X Mark II (⇒ lft | rgt)||106 mm||61 mm||42 mm||319 g||265||no||2016||699||latest||check|
|Canon 750D (⇒ lft | rgt)||132 mm||101 mm||78 mm||555 g||440||no||2015||749||discont.||check|
|Canon 760D (⇒ lft | rgt)||132 mm||101 mm||78 mm||565 g||440||no||2015||849||discont.||check|
|Canon G3 X (⇒ lft | rgt)||123 mm||77 mm||105 mm||733 g||300||YES||2015||999||latest||check|
|Canon 700D (⇒ lft | rgt)||133 mm||100 mm||79 mm||580 g||440||no||2013||649||discont.||check|
|Canon 70D (⇒ lft | rgt)||139 mm||104 mm||79 mm||755 g||920||YES||2013||1,199||discont.||check|
|Canon 650D (⇒ lft | rgt)||133 mm||100 mm||79 mm||575 g||440||no||2012||849||discont.||check|
|Canon 60D (⇒ lft | rgt)||145 mm||106 mm||79 mm||755 g||1100||YES||2010||1,399||discont.||check|
|Nikon D5600 (⇒ lft | rgt)||124 mm||97 mm||70 mm||465 g||970||no||2016||699||latest||check|
|Nikon D7200 (⇒ lft | rgt)||136 mm||107 mm||76 mm||765 g||1110||YES||2015||1,199||discont.||check|
|Sony RX10 II (⇒ lft | rgt)||129 mm||88 mm||102 mm||813 g||400||YES||2015||1,299||discont.||check|
The listed prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 800D was launched at a markedly lower price (by 38 percent) than the 80D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

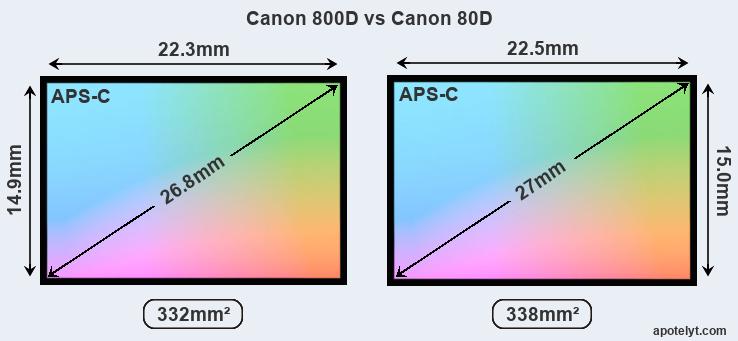

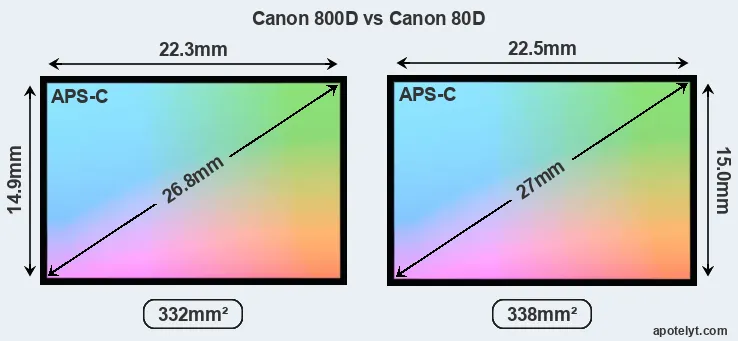

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the 80D is 2 percent bigger. They nevertheless have the same format factor of 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

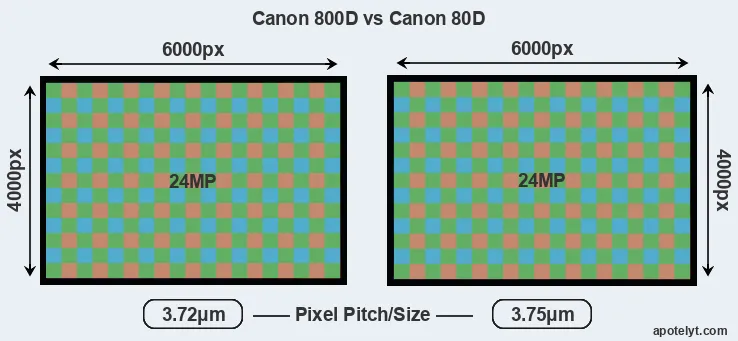

Even though the 80D has a slightly larger sensor, both cameras offer the same resolution of 24 megapixel. This implies that the 80D has a lower pixel density and marginally larger individual pixels (with a pixel pitch of 3.75μm versus 3.72μm for the 800D), which gives it a potential advantage in terms of light gathering capacity. It should, however, be noted that the 800D is a somewhat more recent model (by 11 months) than the 80D, and its sensor might have benefitted from technological advances during this time that at least partly compensate for the smaller pixel size.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Canon 800D (⇒ rgt)||APS-C||24.0||6000||4000||1080/60p||..||..||..||..|
|Canon 80D (⇒ lft)||APS-C||24.0||6000||4000||1080/60p||23.6||13.2||1135||79|
|Canon 200D (⇒ lft | rgt)||APS-C||24.0||6000||4000||1080/60p||23.6||13.4||1041||79|
|Canon 77D (⇒ lft | rgt)||APS-C||24.0||6000||4000||1080/60p||..||..||..||..|
|Canon M6 (⇒ lft | rgt)||APS-C||24.0||6000||4000||1080/60p||..||..||..||..|
|Canon 1300D (⇒ lft | rgt)||APS-C||17.9||5184||3456||1080/30p||-||-||-||-|
|Canon G7 X Mark II (⇒ lft | rgt)||1-inch||20.0||5472||3648||1080/60p||-||-||-||-|
|Canon 750D (⇒ lft | rgt)||APS-C||24.0||6000||4000||1080/60p||22.7||12.0||919||71|
|Canon 760D (⇒ lft | rgt)||APS-C||24.0||6000||4000||1080/30p||22.6||12.0||915||70|
|Canon G3 X (⇒ lft | rgt)||1-inch||20.0||5472||3648||1080/60p||21.4||12.3||521||63|
|Canon 700D (⇒ lft | rgt)||APS-C||17.9||5184||3456||1080/30p||21.7||11.2||681||61|
|Canon 70D (⇒ lft | rgt)||APS-C||20.0||5472||3648||1080/30p||22.5||11.6||926||68|
|Canon 650D (⇒ lft | rgt)||APS-C||17.9||5184||3456||1080/30p||21.7||11.2||722||62|
|Canon 60D (⇒ lft | rgt)||APS-C||17.9||5184||3456||1080/30p||22.2||11.5||813||66|
|Nikon D5600 (⇒ lft | rgt)||APS-C||24.0||6000||4000||1080/60p||24.1||14.0||1306||84|
|Nikon D7200 (⇒ lft | rgt)||APS-C||24.0||6000||4000||1080/60p||24.5||14.6||1333||87|
|Sony RX10 II (⇒ lft | rgt)||1-inch||20.0||5472||3648||4K/30p||23.0||12.6||531||70|
Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (1080/60p).
Apart from body and sensor, cameras can and do differ across a range of features. The 800D and the 80D are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The table below summarizes some of the other core capabilities of the Canon 800D and Canon 80D in connection with corresponding information for a sample of similar cameras. The full specs-sheets can be found in the camera manual or, for example, in the dpreview camera hub.
|Canon 800D (⇒ rgt)||optical||no||3.0||1040||swivel||YES||4000||6.0||12||no|
|Canon 80D (⇒ lft)||optical||YES||3.0||1040||swivel||YES||8000||7.0||12||no|
|Canon 200D (⇒ lft | rgt)||optical||no||3.0||1040||swivel||YES||4000||5.0||9.8||no|
|Canon 77D (⇒ lft | rgt)||optical||YES||3.0||1040||swivel||YES||4000||6.0||12||no|
|Canon M6 (⇒ lft | rgt)||no||no||3.0||1040||tilting||YES||4000||9.0||5||no|
|Canon 1300D (⇒ lft | rgt)||optical||no||3.0||920||fixed||no||4000||3.0||9.2||no|
|Canon G7 X Mark II (⇒ lft | rgt)||no||no||3.0||1040||tilting||YES||2000||8.0||7||YES|
|Canon 750D (⇒ lft | rgt)||optical||no||3.0||1040||swivel||YES||4000||5.0||12||no|
|Canon 760D (⇒ lft | rgt)||optical||YES||3.0||1040||swivel||YES||4000||5.0||12||no|
|Canon G3 X (⇒ lft | rgt)||no||no||3.2||1620||tilting||YES||2000||5.9||6.8||YES|
|Canon 700D (⇒ lft | rgt)||optical||no||3.0||1040||swivel||YES||4000||5.0||13||no|
|Canon 70D (⇒ lft | rgt)||optical||YES||3.0||1040||swivel||YES||8000||7.0||12||no|
|Canon 650D (⇒ lft | rgt)||optical||no||3||1040||swivel||YES||4000||5.0||YES||no|
|Canon 60D (⇒ lft | rgt)||optical||YES||3.0||1040||swivel||no||8000||5.3||13||no|
|Nikon D5600 (⇒ lft | rgt)||optical||no||3.2||1037||swivel||YES||4000||5.0||12||no|
|Nikon D7200 (⇒ lft | rgt)||optical||YES||3.2||1229||fixed||no||8000||6.0||12||no|
|Sony RX10 II (⇒ lft | rgt)||2359||YES||3.0||1229||tilting||no||3200||14.0||10.2||YES|
Both the 800D and the 80D are current models that good online retailers will have in stock. You can check the latest prices, for example, at amazon. The 80D replaced the earlier Canon 70D, while the 800D followed on from the Canon 750D.
So what is the bottom line? Is there a clear favorite between the Canon 800D and the Canon 800D? The listing below highlights the relative strengths of the two models.
Advantages of the Canon EOS 800D:
- More compact: Is smaller (131x100mm vs 139x105mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 198g or 27 percent) and hence easier to carry around.
- More affordable: Was introduced into a lower priced category (38 percent cheaper at launch).
- More modern: Is somewhat more recent (announced 11 months after the 80D).
Reasons to prefer the Canon EOS 80D:
- Easier setting verification: Has a control panel on top to check shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (8000/sec vs 4000/sec) to freeze action.
- Faster burst: Shoots at higher frequency (7 vs 6 flaps/sec) to capture the decisive moment.
- Longer lasting: Gets more shots (960 versus 600) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- More heavily discounted: Has been on the market for longer (launched in February 2016).
If the count of individual advantages (bullet points above) is taken as a guide, the 80D emerges as the winner of the match-up (6 : 4 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the 800D or the 80D handle or perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate. This is where reviews by experts come in. The adjacent table relays the overall verdicts of several of the most popular camera review sites. The detailed reviews can be accessed, respectively, on the websites of cameralabs.com, dpreview.com, ephotozine.com, imaging-resource.com, and photographyblog.com.
|Canon 800D (⇒ rgt)||..||80/100 Gold||4.5/5||..||4/5||2017||749||latest||check|
|Canon 80D (⇒ lft)||HiRec||84/100 Silver||4.5/5||4.5/5||4.5/5||2016||1,199||latest||check|
|Canon 200D (⇒ lft | rgt)||HiRec||78/100 Silver||4.5/5||-||4.5/5||2017||549||latest||check|
|Canon 77D (⇒ lft | rgt)||..||82/100 Silver||4.5/5||..||4/5||2017||899||latest||check|
|Canon M6 (⇒ lft | rgt)||-||80/100 Silver||4/5||4.5/5||4/5||2017||779||latest||check|
|Canon 1300D (⇒ lft | rgt)||reviewed||73/100||4/5||3.5/5||4/5||2016||449||latest||check|
|Canon G7 X Mark II (⇒ lft | rgt)||HiRec||81/100 Silver||4.5/5||4/5||4.5/5||2016||699||latest||check|
|Canon 750D (⇒ lft | rgt)||-||75/100||4.5/5||4.5/5||4.5/5||2015||749||discont.||check|
|Canon 760D (⇒ lft | rgt)||Rec||77/100 Silver||4.5/5||4.5/5||4.5/5||2015||849||discont.||check|
|Canon G3 X (⇒ lft | rgt)||Rec||-||4.5/5||3.5/5||4/5||2015||999||latest||check|
|Canon 700D (⇒ lft | rgt)||-||76/100 Silver||4.5/5||4.5/5||4.5/5||2013||649||discont.||check|
|Canon 70D (⇒ lft | rgt)||HiRec||83/100 Gold||4.5/5||4.5/5||5/5||2013||1,199||discont.||check|
|Canon 650D (⇒ lft | rgt)||HiRec||77/100 Silver||4.5/5||4.5/5||4.5/5||2012||849||discont.||check|
|Canon 60D (⇒ lft | rgt)||87/100 Rec||79/100 Silver||4/5||5/5||4.5/5||2010||1,399||discont.||check|
|Nikon D5600 (⇒ lft | rgt)||-||79/100 Silver||4.5/5||4.5/5||4/5||2016||699||latest||check|
|Nikon D7200 (⇒ lft | rgt)||HiRec||84/100 Silver||4.5/5||4/5||4.5/5||2015||1,199||discont.||check|
|Sony RX10 II (⇒ lft | rgt)||HiRec||82/100 Gold||4.5/5||4.5/5||4/5||2015||1,299||discont.||check|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
