Canon 7D II vs Samsung NX1

The Canon EOS 7D Mark II and the Samsung NX1 are two enthusiast cameras that were announced in September 2014. The 7D Mark II is a DSLR, while the NX1 is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 20 megapixels, whereas the Samsung provides 28 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon 7D II
versus
Samsung NX1
Canon 7D II   Samsung NX1
Digital single lens reflex Mirrorless system camera
Canon EF mount lenses Samsung NX mount lenses
20 MP – APS-C sensor 28 MP – APS-C sensor
1080/60p Video 4K/30p Video
ISO 100-16,000 (100 - 51,200) ISO 100-25,600 (100 - 51,200)
Optical viewfinder Electronic viewfinder (2360k dots)
3.0" LCD – 1040k dots 3.0" LCD – 1036k dots
Fixed screen (not touch-sensitive) Tilting touchscreen
10 shutter flaps per second 15 shutter flaps per second
Weathersealed bodyWeathersealed body
670 shots per battery charge500 shots per battery charge
149 x 112 x 78 mm, 910 g 139 x 102 x 66 mm, 550 g
logo
Check 7D Mark II offers at
ebay.com
logo
Check NX1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 7D Mark II and the Samsung NX1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

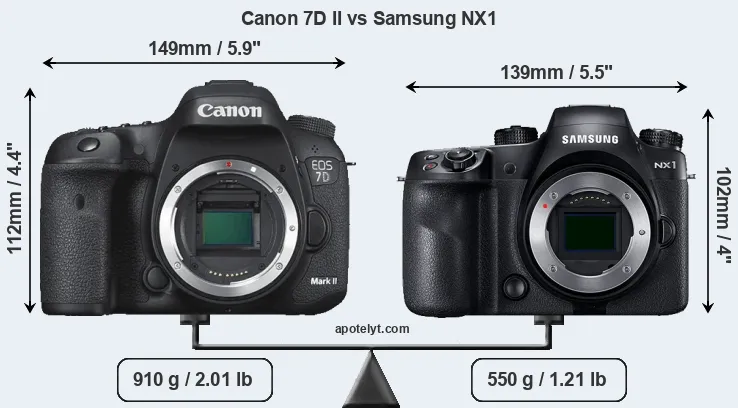

The physical size and weight of the Canon 7D II and the Samsung NX1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

Size Canon 7D II vs Samsung NX1
Compare 7D Mark II versus NX1 top
Comparison 7D Mark II or NX1 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Samsung NX1 is notably smaller (15 percent) than the Canon 7D II. Moreover, the NX1 is substantially lighter (40 percent) than the 7D Mark II. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The power pack in the NX1 can be charged via the USB port, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

scroll hint
Body Specifications
  empty Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price
Street
Price
1.

Canon 7D II 149 mm 112 mm 78 mm 910 g 670 Y Sep 2014 US$ 1 799ebay.com
2.

Samsung NX1 139 mm 102 mm 66 mm 550 g 500 Y Sep 2014 US$ 1 499ebay.com
3.

Canon 6D 145 mm 111 mm 71 mm 770 g 1090 Y Sep 2012 US$ 2 099ebay.com
4.

Canon 7D 148 mm 111 mm 74 mm 860 g 800 Y Sep 2009 US$ 1 699ebay.com
5.

Canon 20D 144 mm 106 mm 72 mm 770 g 700 n Aug 2004 US$ 1 499ebay.com
6.

Canon 50D 146 mm 108 mm 74 mm 822 g 800 Y Aug 2008 US$ 1 299ebay.com
7.

Canon 60D 145 mm 106 mm 79 mm 755 g 1100 Y Aug 2010 US$ 1 399ebay.com
8.

Canon 70D 139 mm 104 mm 79 mm 755 g 920 Y Jul 2013 US$ 1 199ebay.com
9.

Canon SL1 117 mm 91 mm 69 mm 407 g 380 n Mar 2013 US$ 549ebay.com
10.

Canon T5 130 mm 100 mm 78 mm 480 g 500 n Feb 2014 US$ 449ebay.com
11.

Canon T5i 133 mm 100 mm 79 mm 580 g 440 n Mar 2013 US$ 649ebay.com
12.

Canon T6i 132 mm 101 mm 78 mm 555 g 440 n Feb 2015 US$ 749ebay.com
13.

Fujifilm X-Pro2 141 mm 83 mm 46 mm 495 g 350 Y Jan 2016 US$ 1 699ebay.com
14.

Fujifilm X-T2 133 mm 92 mm 49 mm 507 g 340 Y Jul 2016 US$ 1 599ebay.com
15.

Nikon D5300 125 mm 98 mm 76 mm 480 g 600 n Oct 2013 US$ 799ebay.com
16.

Samsung NX500 120 mm 64 mm 43 mm 287 g 370 n Feb 2015 US$ 799ebay.com
17.

Sony A7 127 mm 94 mm 48 mm 474 g 340 Y Oct 2013 US$ 1 699ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The NX1 was launched at a somewhat lower price (by 17 percent) than the 7D Mark II, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

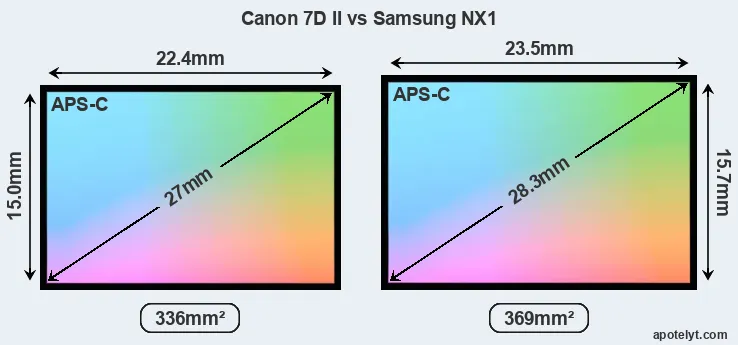

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the NX1 is 10 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (7D Mark II) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Canon 7D II and Samsung NX1 sensor measures

With 28MP, the NX1 offers a higher resolution than the 7D Mark II (20MP), but the NX1 has smaller individual pixels (pixel pitch of 3.63μm versus 4.10μm for the 7D Mark II). It is noteworthy in this context that the two cameras were released in close succession, so that their sensors are from the same technological generation. Coming back to sensor resolution, it should be mentioned that the NX1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Samsung NX1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the NX1 for good quality output (200 dots per inch) amounts to 32.4 x 21.6 inches or 82.3 x 54.9 cm, for very good quality (250 dpi) 25.9 x 17.3 inches or 65.8 x 43.9 cm, and for excellent quality (300 dpi) 21.6 x 14.4 inches or 54.9 x 36.6 cm. The corresponding values for the Canon 7D II are 27.4 x 18.2 inches or 69.5 x 46.3 cm for good quality, 21.9 x 14.6 inches or 55.6 x 37.1 cm for very good quality, and 18.2 x 12.2 inches or 46.3 x 30.9 cm for excellent quality prints.

The Canon EOS 7D Mark II has a native sensitivity range from ISO 100 to ISO 16000, which can be extended to ISO 100-51200. The corresponding ISO settings for the Samsung NX1 are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.

In terms of underlying technology, the 7D Mark II is build around a CMOS sensor, while the NX1 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

7D Mark II versus NX1 MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the NX1 offers substantially better image quality than the 7D Mark II (overall score 13 points higher). The advantage is based on 1.8 bits higher color depth, 1.4 EV in additional dynamic range, and 0.3 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

scroll hint
Sensor Characteristics
  empty Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon 7D II APS-C 20.0 5472 36481080/60p22.411.8108270
2.

Samsung NX1 APS-C 28.0 6480 43204K/30p24.213.2136383
3.

Canon 6D Full Frame 20.0 5472 36481080/30p23.812.1234082
4.

Canon 7D APS-C 17.9 5184 34561080/30p22.011.785466
5.

Canon 20D APS-C 8.2 3504 2336none21.911.072162
6.

Canon 50D APS-C 15.1 4752 3168none21.811.469663
7.

Canon 60D APS-C 17.9 5184 34561080/30p22.211.581366
8.

Canon 70D APS-C 20.0 5472 36481080/30p22.511.692668
9.

Canon SL1 APS-C 17.9 5184 34561080/30p21.811.384363
10.

Canon T5 APS-C 17.9 5184 34561080/30p21.911.372463
11.

Canon T5i APS-C 17.9 5184 34561080/30p21.711.268161
12.

Canon T6i APS-C 24.0 6000 40001080/30p22.712.091971
13.

Fujifilm X-Pro2 APS-C 24.0 6000 40001080/60p23.713.0160880
14.

Fujifilm X-T2 APS-C 24.0 6000 40004K/30p23.813.1165381
15.

Nikon D5300 APS-C 24.0 6000 40001080/60p24.013.9133883
16.

Samsung NX500 APS-C 28.0 6480 43204K/30p24.813.9137987
17.

Sony A7 Full Frame 24.0 6000 40001080/60p24.814.2224890
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the NX1 provides a better video resolution than the 7D Mark II. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/60p.

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the NX1 has an electronic viewfinder (2360k dots), while the 7D Mark II has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the NX1 has a higher magnification than the one of the 7D Mark II (0.69x vs 0.63x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 7D II, the Samsung NX1, and comparable cameras.

scroll hint
Core Features
  empty Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon 7D IIoptical Y3.0 / 1040 fixed n 1/8000s 10.0/s Y n
2.

Samsung NX12360 Y3.0 / 1036 tilting Y 1/8000s 15.0/s Y n
3.

Canon 6Doptical Y3.0 / 1040 fixed n 1/4000s 4.5/s n n
4.

Canon 7Doptical Y3.0 / 920 fixed n 1/8000s 8.0/s Y n
5.

Canon 20Doptical Y1.8 / 118 fixed n 1/8000s 5.0/s Y n
6.

Canon 50Doptical Y3.0 / 920 fixed n 1/8000s 6.3/s Y n
7.

Canon 60Doptical Y3.0 / 1040 swivel n 1/8000s 5.3/s Y n
8.

Canon 70Doptical Y3.0 / 1040 swivel Y 1/8000s 7.0/s Y n
9.

Canon SL1optical n3.0 / 1040 fixed Y 1/4000s 4.9/s Y n
10.

Canon T5optical n3.0 / 460 fixed n 1/4000s 3.0/s Y n
11.

Canon T5ioptical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
12.

Canon T6ioptical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
13.

Fujifilm X-Pro22360 n3.0 / 1620 fixed n 1/8000s 8.0/s n n
14.

Fujifilm X-T22360 n3.0 / 1040 full-flex n 1/8000s 8.0/s n n
15.

Nikon D5300optical n3.2 / 1037 swivel n 1/4000s 5.0/s Y n
16.

Samsung NX500none n3.0 / 1036 tilting Y 1/6000s 9.0/s Y n
17.

Sony A72400 n3.0 / 1230 tilting n 1/8000s 5.0/s n n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The NX1 has a touchscreen, while the 7D Mark II has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the NX1 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon 7D II and the Samsung NX1 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The 7D Mark II writes its imaging data to Compact Flash or SDXC cards, while the NX1 uses SDXC cards. The 7D Mark II features dual card slots, which can be very useful in case a memory card fails. In contrast, the NX1 only has one slot. The NX1 supports UHS-II cards (on its first slot), while the 7D Mark II can use UHS-I cards.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 7D Mark II and Samsung NX1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
  empty Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon 7D IIYstereo / monoYYmini3.0---
2.

Samsung NX1Ystereo / monoYYmicro3.0YYY
3.

Canon 6DYmono / monoY-mini2.0Y--
4.

Canon 7DYmono / -Y-mini2.0---
5.

Canon 20DY- / ----1.1---
6.

Canon 50DY- / ---mini2.0---
7.

Canon 60DYmono / monoY-mini2.0---
8.

Canon 70DYstereo / monoY-mini2.0Y--
9.

Canon SL1Ymono / monoY-mini2.0---
10.

Canon T5Ymono / mono--mini2.0---
11.

Canon T5iYstereo / monoY-mini2.0---
12.

Canon T6iYstereo / monoY-mini2.0YY-
13.

Fujifilm X-Pro2Ystereo / monoY-micro2.0Y--
14.

Fujifilm X-T2Ystereo / monoY-micro3.0Y--
15.

Nikon D5300Ystereo / monoY-mini2.0Y--
16.

Samsung NX500Ystereo / mono--micro2.0YYY
17.

Sony A7Ystereo / monoYYmicro2.0YY-

It is notable that the NX1 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 7D Mark II does not provide wifi capability.

Studio photographers will appreciate that the Canon 7D II (unlike the NX1) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Travel and landscape photographers will find it useful that the 7D Mark II has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

Both the 7D Mark II and the NX1 have been discontinued, but can regularly be found used on ebay. Neither of the two has a direct successor, so they represent the end of the respective camera lines from Canon and Samsung. Further information on the features and operation of the 7D Mark II and NX1 can be found, respectively, in the Canon 7D II Manual (free pdf) or the online Samsung NX1 Manual.

ad

Review summary

So what conclusions can be drawn? Which of the two cameras – the Canon 7D II or the Samsung NX1 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

ilogo

Arguments in favor of the Canon EOS 7D Mark II:

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Longer lasting: Can take more shots (670 versus 500) on a single battery charge.
  • Easier geotagging: Features an internal GPS sensor to log localization data.
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.

ilogo

Reasons to prefer the Samsung NX1:

  • More detail: Has more megapixels (28 vs 20MP), which boosts linear resolution by 18%.
  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Better image quality: Scores substantially higher (13 points) in the DXO overall evaluation.
  • Richer colors: Generates noticeably more natural colors (1.8 bits more color depth).
  • More dynamic range: Captures a broader range of light and dark details (1.4 EV of extra DR).
  • Better low-light sensitivity: Can shoot in dim conditions (0.3 stops ISO advantage).
  • Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.69x vs 0.63x).
  • More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
  • Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
  • Faster burst: Shoots at higher frequency (15 vs 10 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • More compact: Is smaller (139x102mm vs 149x112mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 360g or 40 percent) and is thus easier to take along.
  • Easier travel charging: Can be conveniently charged via its USB port.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
  • More affordable: Was released into a lower priced segment (17 percent cheaper at launch).

If the count of relative strengths (bullet points above) is taken as a measure, the NX1 is the clear winner of the contest (22 : 6 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

7D Mark II 06:22 NX1

How about other alternatives? Do the specifications of the Canon 7D II and the Samsung NX1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the 7D Mark II or the NX1 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
  empty  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price
Street
Price
1.

Canon 7D II4.5/5+3.5/584/1004/54.5/5 Sep 2014 US$ 1 799ebay.com
2.

Samsung NX15/5....87/1005/55/5 Sep 2014 US$ 1 499ebay.com
3.

Canon 6D5/5+ +..83/1004.5/54.5/5 Sep 2012 US$ 2 099ebay.com
4.

Canon 7D5/5+ +..84/1004.5/54.5/5 Sep 2009 US$ 1 699ebay.com
5.

Canon 20D......+ +.... Aug 2004 US$ 1 499ebay.com
6.

Canon 50D..+ +..+ +4.5/54.5/5 Aug 2008 US$ 1 299ebay.com
7.

Canon 60D5/5+..79/1004/54.5/5 Aug 2010 US$ 1 399ebay.com
8.

Canon 70D5/5+ +..83/1004.5/55/5 Jul 2013 US$ 1 199ebay.com
9.

Canon SL14/5+..78/1004/54/5 Mar 2013 US$ 549ebay.com
10.

Canon T53/5+....4/54.5/5 Feb 2014 US$ 449ebay.com
11.

Canon T5i......76/1004.5/54.5/5 Mar 2013 US$ 649ebay.com
12.

Canon T6i5/5....75/1004.5/54.5/5 Feb 2015 US$ 749ebay.com
13.

Fujifilm X-Pro2..+..83/1004.5/54.5/5 Jan 2016 US$ 1 699ebay.com
14.

Fujifilm X-T25/5+ +..86/1004.5/55/5 Jul 2016 US$ 1 599ebay.com
15.

Nikon D53004/5+ +..79/1004.5/54.5/5 Oct 2013 US$ 799ebay.com
16.

Samsung NX5004.5/5....81/1005/54.5/5 Feb 2015 US$ 799ebay.com
17.

Sony A75/5+ +..80/1005/55/5 Oct 2013 US$ 1 699ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

logo
Check 7D Mark II offers at
ebay.com
logo
Check NX1 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader
    ad

    Specifications: Canon 7D II vs Samsung NX1

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon 7D II Samsung NX1
    Camera Type Digital single lens reflex Mirrorless system camera
    Camera Lens Canon EF mount lenses Samsung NX mount lenses
    Launch Date September 2014 September 2014
    Launch Price USD 1,799 USD 1,499
    Sensor Specs Canon 7D II Samsung NX1
    Sensor Technology CMOS BSI-CMOS
    Sensor Format APS-C Sensor APS-C Sensor
    Sensor Size 22.4 x 15.0 mm 23.5 x 15.7 mm
    Sensor Area 336 mm2 368.95 mm2
    Sensor Diagonal 27 mm 28.3 mm
    Crop Factor 1.6x 1.5x
    Sensor Resolution 20 Megapixels 28 Megapixels
    Image Resolution 5472 x 3648 pixels 6480 x 4320 pixels
    Pixel Pitch 4.10 μm 3.63 μm
    Pixel Density 5.94 MP/cm2 7.59 MP/cm2
    Moiré control Anti-Alias filter no AA filter
    Movie Capability 1080/60p Video 4K/30p Video
    ISO Setting 100 - 16,000 ISO 100 - 25,600 ISO
    ISO Boost 100 - 51,200 ISO 100 - 51,200 ISO
    Image Processor DIGIC 6 (Dual) DRIMe 5
    DXO Sensor Quality (score) 70 83
    DXO Color Depth (bits) 22.4 24.2
    DXO Dynamic Range (EV) 11.8 13.2
    DXO Low Light (ISO) 1082 1363
    Screen Specs Canon 7D II Samsung NX1
    Viewfinder Type Optical viewfinder Electronic viewfinder
    Viewfinder Field of View 100% 100%
    Viewfinder Magnification 0.63x 0.69x
    Viewfinder Resolution 2360k dots
    Top-Level Screen Control Panel Control Panel
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.0inch
    LCD Resolution 1040k dots 1036k dots
    LCD Attachment Fixed screen Tilting screen
    Touch Input no Touchscreen Touchscreen
    Shooting Specs Canon 7D II Samsung NX1
    Focus System Phase-detect AF On-Sensor Phase-detect
    Manual Focusing Aidno Peaking FeatureFocus Peaking
    Max Shutter Speed (mechanical) 1/8000s 1/8000s
    Continuous Shooting 10 shutter flaps/s 15 shutter flaps/s
    Shutter Life Expectancy200 000 actuations150 000 actuations
    Electronic Shutterno E-ShutterYES
    Time-Lapse PhotographyIntervalometer built-inIntervalometer built-in
    Fill Flash Built-in Flash Built-in Flash
    Storage Medium CF or SDXC cards SDXC cards
    Single or Dual Card Slots Dual card slots Single card slot
    UHS card support UHS-I Single UHS-II
    Connectivity Specs Canon 7D II Samsung NX1
    External Flash Hotshoe Hotshoe
    Studio Flash PC Sync socket no PC Sync
    USB Connector USB 3.0 USB 3.0
    HDMI Port mini HDMI micro HDMI
    Microphone Port External MIC port External MIC port
    Headphone Socket Headphone port Headphone port
    Wifi Support no Wifi Wifi built-in
    Near-Field Communication no NFC NFC built-in
    Bluetooth Support no Bluetooth Bluetooth built-in
    Geotagging GPS built-in no internal GPS
    Body Specs Canon 7D II Samsung NX1
    Environmental SealingWeathersealed bodyWeathersealed body
    Battery Type Canon LP-E6N Samsung BP1900
    Battery Life (CIPA)670 shots per charge500 shots per charge
    In-Camera Charging no USB charging USB charging
    Body Dimensions 149 x 112 x 78 mm
    (5.9 x 4.4 x 3.1 in)
    139 x 102 x 66 mm
    (5.5 x 4.0 x 2.6 in)
    Camera Weight 910 g (32.1 oz) 550 g (19.4 oz)
    logo
    Check 7D Mark II offers at
    ebay.com
    logo
    Check NX1 offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon 7D II vs Samsung NX1
