Canon 77D vs Samsung NX1
The Canon EOS 77D and the Samsung NX1 are two digital cameras that were revealed to the public, respectively, in February 2017 and September 2014. The 77D is a DSLR, while the NX1 is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 24 megapixels, whereas the Samsung provides 28 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 77D and the Samsung NX1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The side-by-side display below illustrates the physical size and weight of the Canon 77D and the Samsung NX1. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Samsung NX1 is notably larger (8 percent) than the Canon 77D. Moreover, the NX1 is slightly heavier (2 percent) than the 77D. It is noteworthy in this context that the NX1 is splash and dust-proof, while the 77D does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The power pack in the NX1 can be charged via the USB port, which can be very convenient when travelling.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899||ebay.com|
|2.||Samsung NX1||139 mm||102 mm||66 mm||550 g||500||Y||Sep 2014||1,499||ebay.com|
|3.||Canon T8i||131 mm||103 mm||76 mm||515 g||800||n||Feb 2020||749||amazon.com|
|4.||Canon T7||129 mm||101 mm||78 mm||475 g||500||n||Feb 2018||449||amazon.com|
|5.||Canon SL2||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549||ebay.com|
|6.||Canon T7i||131 mm||100 mm||76 mm||532 g||600||n||Feb 2017||749||ebay.com|
|7.||Canon M5||116 mm||89 mm||61 mm||427 g||295||n||Sep 2016||979||ebay.com|
|8.||Canon T6||129 mm||101 mm||78 mm||485 g||500||n||Mar 2016||449||ebay.com|
|9.||Canon T6i||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749||ebay.com|
|10.||Canon T6s||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649||ebay.com|
|11.||Canon T4i||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849||ebay.com|
|12.||Canon T3i||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599||ebay.com|
|13.||Fujifilm X-Pro2||141 mm||83 mm||46 mm||495 g||350||Y||Jan 2016||1,699||ebay.com|
|14.||Fujifilm X-T2||133 mm||92 mm||49 mm||507 g||340||Y||Jul 2016||1,599||ebay.com|
|15.||Nikon D5300||125 mm||98 mm||76 mm||480 g||600||n||Oct 2013||799||ebay.com|
|16.||Samsung NX500||120 mm||64 mm||43 mm||287 g||370||n||Feb 2015||799||ebay.com|
|17.||Sony A7||127 mm||94 mm||48 mm||474 g||340||Y||Oct 2013||1,699||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 77D was launched at a markedly lower price (by 40 percent) than the NX1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

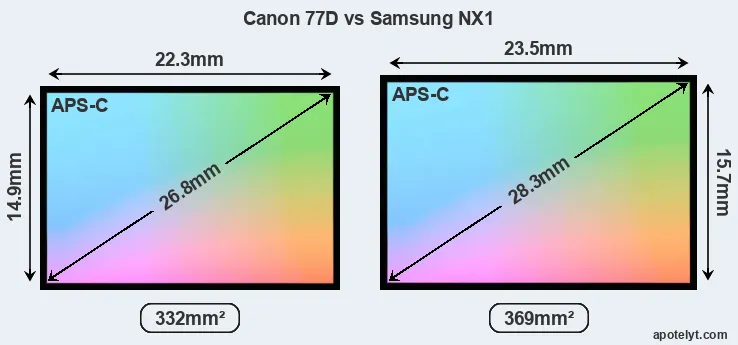

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the NX1 is 11 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (77D) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
With 28MP, the NX1 offers a higher resolution than the 77D (24MP), but the NX1 has marginally smaller individual pixels (pixel pitch of 3.63μm versus 3.72μm for the 77D). Yet, the 77D is a much more recent model (by 2 years and 5 months) than the NX1, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the NX1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Samsung NX1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the NX1 for good quality output (200 dots per inch) amounts to 32.4 x 21.6 inches or 82.3 x 54.9 cm, for very good quality (250 dpi) 25.9 x 17.3 inches or 65.8 x 43.9 cm, and for excellent quality (300 dpi) 21.6 x 14.4 inches or 54.9 x 36.6 cm. The corresponding values for the Canon 77D are 30 x 20 inches or 76.2 x 50.8 cm for good quality, 24 x 16 inches or 61 x 40.6 cm for very good quality, and 20 x 13.3 inches or 50.8 x 33.9 cm for excellent quality prints.
The Canon EOS 77D has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The Samsung NX1 offers exactly the same ISO settings.
In terms of underlying technology, the 77D is build around a CMOS sensor, while the NX1 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the NX1 has a markedly higher DXO score than the 77D (overall score 5 points higher), which will translate into better image quality. The advantage is based on 0.6 bits higher color depth, 0.1 EV of lower dynamic range, and 0.5 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|17.||Sony A7||Full Frame||24.0||6000||4000||1080/60p||24.8||14.2||2248||90|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the NX1 provides a better video resolution than the 77D. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/60p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the NX1 has an electronic viewfinder (2360k dots), while the 77D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the NX1 offers a wider field of view (100%) than the one in the 77D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the NX1 has a higher magnification (0.69x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 77D and Samsung NX1 in connection with corresponding information for a sample of similar cameras.
|1.||Canon 77D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.0/s||Y||n|
|2.||Samsung NX1||2360||Y||3.0 / 1036||tilting||Y||1/8000s||15.0/s||Y||n|
|3.||Canon T8i||optical||n||3.0 / 1040||swivel||Y||1/4000s||7.5/s||Y||n|
|4.||Canon T7||optical||n||3.0 / 920||fixed||n||1/4000s||3.0/s||Y||n|
|5.||Canon SL2||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|6.||Canon T7i||optical||n||3.0 / 1040||swivel||Y||1/4000s||6.0/s||Y||n|
|7.||Canon M5||2360||n||3.2 / 1620||tilting||Y||1/4000s||9.0/s||Y||n|
|8.||Canon T6||optical||n||3.0 / 920||fixed||n||1/4000s||3.0/s||Y||n|
|9.||Canon T6i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|10.||Canon T6s||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|11.||Canon T4i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|12.||Canon T3i||optical||n||3.0 / 1040||swivel||n||1/4000s||3.7/s||Y||n|
|13.||Fujifilm X-Pro2||2360||n||3.0 / 1620||fixed||n||1/8000s||8.0/s||n||n|
|14.||Fujifilm X-T2||2360||n||3.0 / 1040||full-flex||n||1/8000s||8.0/s||n||n|
|15.||Nikon D5300||optical||n||3.2 / 1037||swivel||n||1/4000s||5.0/s||Y||n|
|16.||Samsung NX500||none||n||3.0 / 1036||tilting||Y||1/6000s||9.0/s||Y||n|
|17.||Sony A7||2400||n||3.0 / 1230||tilting||n||1/8000s||5.0/s||n||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
The Canon 77D and the Samsung NX1 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the 77D and the NX1 write their files to SDXC cards. The NX1 supports UHS-II cards (on its first slot), while the 77D can use UHS-I cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 77D and Samsung NX1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon 77D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|2.||Samsung NX1||Y||stereo / mono||Y||Y||micro||3.0||Y||Y||Y|
|3.||Canon T8i||Y||stereo / mono||Y||-||mini||2.0||Y||-||Y|
|4.||Canon T7||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|5.||Canon SL2||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|6.||Canon T7i||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|7.||Canon M5||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|8.||Canon T6||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|9.||Canon T6i||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|10.||Canon T6s||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|11.||Canon T4i||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|12.||Canon T3i||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|13.||Fujifilm X-Pro2||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|14.||Fujifilm X-T2||Y||stereo / mono||Y||-||micro||3.0||Y||-||-|
|15.||Nikon D5300||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|16.||Samsung NX500||Y||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|17.||Sony A7||Y||stereo / mono||Y||Y||micro||2.0||Y||Y||-|
It is notable that the NX1 has a headphone jack, which makes it possible to attach external headphones and monitor the quality of sound during the recording process. The 77D lacks such a headphone port.
Both the 77D and the NX1 have been discontinued, but can regularly be found used on ebay. Neither of the two has a direct successor, so they represent the end of the respective camera lines from Canon and Samsung. Further information on the features and operation of the 77D and NX1 can be found, respectively, in the Canon 77D Manual (free pdf) or the online Samsung NX1 Manual.
So what conclusions can be drawn? Is the Canon 77D better than the Samsung NX1 or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Canon EOS 77D:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Longer lasting: Can take more shots (600 versus 500) on a single battery charge.
- More affordable: Was introduced into a lower priced category (40 percent cheaper at launch).
- More modern: Reflects 2 years and 5 months of technical progress since the NX1 launch.
Advantages of the Samsung NX1:
- More detail: Has more megapixels (28 vs 24MP), which boosts linear resolution by 8%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores markedly higher (5 points) in the DXO overall evaluation.
- Better low-light sensitivity: Can shoot in dim conditions (0.5 stops ISO advantage).
- Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.69x vs 0.51x).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (15 vs 6 flaps/sec) to capture the decisive moment.
- Easier travel charging: Can be conveniently charged via its USB port.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More heavily discounted: Has been around for much longer (launched in September 2014).
If the count of relative strengths (bullet points above) is taken as a measure, the NX1 is the clear winner of the contest (17 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 77D and the Samsung NX1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 77D and the NX1 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 77D||4.5/5||..||4/5||82/100||4.5/5||4/5||Feb 2017||899||ebay.com|
|2.||Samsung NX1||5/5||..||..||87/100||5/5||5/5||Sep 2014||1,499||ebay.com|
|3.||Canon T8i||4.5/5||+||3/5||80/100||4/5||3.5/5||Feb 2020||749||amazon.com|
|4.||Canon T7||..||o||3.5/5||..||3.5/5||3.5/5||Feb 2018||449||amazon.com|
|5.||Canon SL2||4/5||+ +||4/5||78/100||4.5/5||4.5/5||Jun 2017||549||ebay.com|
|6.||Canon T7i||4.5/5||..||3.5/5||80/100||4.5/5||4/5||Feb 2017||749||ebay.com|
|7.||Canon M5||4/5||+||4/5||82/100||4/5||4/5||Sep 2016||979||ebay.com|
|8.||Canon T6||4/5||o||4/5||73/100||4/5||4/5||Mar 2016||449||ebay.com|
|9.||Canon T6i||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749||ebay.com|
|10.||Canon T6s||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649||ebay.com|
|11.||Canon T4i||4/5||+ +||..||77/100||4.5/5||4.5/5||Jun 2012||849||ebay.com|
|12.||Canon T3i||3/5||o||..||77/100||4.5/5||4.5/5||Feb 2011||599||ebay.com|
|13.||Fujifilm X-Pro2||..||+||..||83/100||4.5/5||4.5/5||Jan 2016||1,699||ebay.com|
|14.||Fujifilm X-T2||5/5||+ +||..||86/100||4.5/5||5/5||Jul 2016||1,599||ebay.com|
|15.||Nikon D5300||4/5||+ +||..||79/100||4.5/5||4.5/5||Oct 2013||799||ebay.com|
|16.||Samsung NX500||4.5/5||..||..||81/100||5/5||4.5/5||Feb 2015||799||ebay.com|
|17.||Sony A7||5/5||+ +||..||80/100||5/5||5/5||Oct 2013||1,699||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon 77D vs Samsung NX1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 77D||Samsung NX1|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Samsung NX mount lenses|
|Launch Date||February 2017||September 2014|
|Launch Price||USD 899||USD 1,499|
|Sensor Specs||Canon 77D||Samsung NX1|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||23.5 x 15.7 mm|
|Sensor Area||332.27 mm2||368.95 mm2|
|Sensor Diagonal||26.8 mm||28.3 mm|
|Sensor Resolution||24 Megapixels||28 Megapixels|
|Image Resolution||6000 x 4000 pixels||6480 x 4320 pixels|
|Pixel Pitch||3.72 μm||3.63 μm|
|Pixel Density||7.22 MP/cm2||7.59 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/60p Video||4K/30p Video|
|ISO Setting||100 - 25,600 ISO||100 - 25,600 ISO|
|ISO Boost||100 - 51,200 ISO||100 - 51,200 ISO|
|Image Processor||DIGIC 7||DRIMe 5|
|DXO Sensor Quality (score)||78||83|
|DXO Color Depth (bits)||23.6||24.2|
|DXO Dynamic Range (EV)||13.3||13.2|
|DXO Low Light (ISO)||971||1363|
|Screen Specs||Canon 77D||Samsung NX1|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||95%||100%|
|Viewfinder Resolution||2360k dots|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||1036k dots|
|LCD Attachment||Swivel screen||Tilting screen|
|Shooting Specs||Canon 77D||Samsung NX1|
|Focus System||Phase-detect AF||On-Sensor Phase-detect|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/8000s|
|Continuous Shooting||6 shutter flaps/s||15 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||150 000 actuations|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||Single UHS-II|
|Connectivity Specs||Canon 77D||Samsung NX1|
|USB Connector||USB 2.0||USB 3.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||NFC built-in|
|Bluetooth Support||Bluetooth built-in||Bluetooth built-in|
|Body Specs||Canon 77D||Samsung NX1|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||600 shots per charge||500 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
131 x 100 x 76 mm
(5.2 x 3.9 x 3.0 in)
139 x 102 x 66 mm
(5.5 x 4.0 x 2.6 in)
|Camera Weight||540 g (19.0 oz)||550 g (19.4 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
