Canon 77D vs Fujifilm X-T4
The Canon EOS 77D and the Fujifilm X-T4 are two digital cameras that were revealed to the public, respectively, in February 2017 and February 2020. The 77D is a DSLR, while the X-T4 is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 24 megapixels, whereas the Fujifilm provides 26 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 77D and the Fujifilm X-T4? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

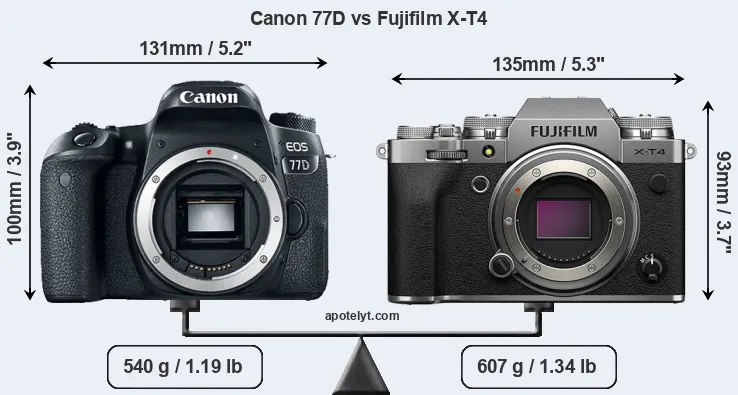

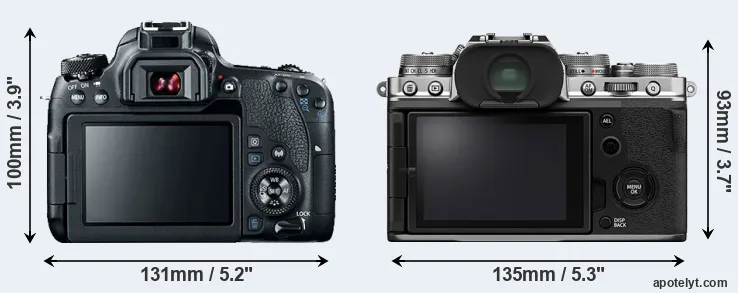

The side-by-side display below illustrates the physical size and weight of the Canon 77D and the Fujifilm X-T4. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The X-T4 can be obtained in two different colors (black, silver), while the 77D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X-T4 is somewhat smaller (4 percent) than the Canon 77D. However, the X-T4 is markedly heavier (12 percent) than the 77D. It is noteworthy in this context that the X-T4 is splash and dust-proof, while the 77D does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (77D) and the Fujinon X Lens Catalog (X-T4). Mirrorless cameras, such as the X-T4, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
Concerning battery life, the 77D gets 600 shots out of its LP-E17 battery, while the X-T4 can take 500 images on a single charge of its NP-W235 power pack. The power pack in the X-T4 can be charged via the USB port, which can be very convenient when travelling.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899|
|2.||Fujifilm X-T4||135 mm||93 mm||64 mm||607 g||500||Y||Feb 2020||1,699|
|3.||Canon T8i||131 mm||103 mm||76 mm||515 g||800||n||Feb 2020||749|
|4.||Canon T7||129 mm||101 mm||78 mm||475 g||500||n||Feb 2018||449|
|5.||Canon SL2||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549|
|6.||Canon T7i||131 mm||100 mm||76 mm||532 g||600||n||Feb 2017||749|
|7.||Canon M5||116 mm||89 mm||61 mm||427 g||295||n||Sep 2016||979|
|8.||Canon T6||129 mm||101 mm||78 mm||485 g||500||n||Mar 2016||449|
|9.||Canon T6i||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749|
|10.||Canon T6s||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|11.||Canon T4i||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|12.||Canon T3i||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599|
|13.||Fujifilm X-Pro3||141 mm||83 mm||46 mm||497 g||440||Y||Oct 2019||1,799|
|14.||Fujifilm X-T3||133 mm||93 mm||59 mm||539 g||390||Y||Sep 2018||1,499|
|15.||Fujifilm X-H1||140 mm||97 mm||86 mm||673 g||310||Y||Feb 2018||1,899|
|16.||Fujifilm X-T2||133 mm||92 mm||49 mm||507 g||340||Y||Jul 2016||1,599|
|17.||Sony A6600||120 mm||67 mm||69 mm||503 g||810||Y||Aug 2019||1,399|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 77D was launched at a markedly lower price (by 47 percent) than the X-T4, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

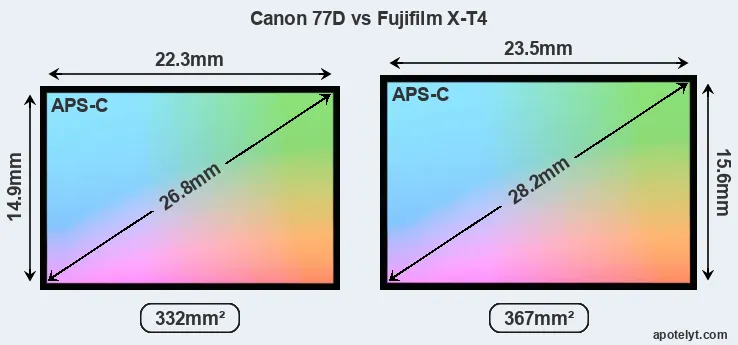

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the X-T4 is 11 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (77D) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

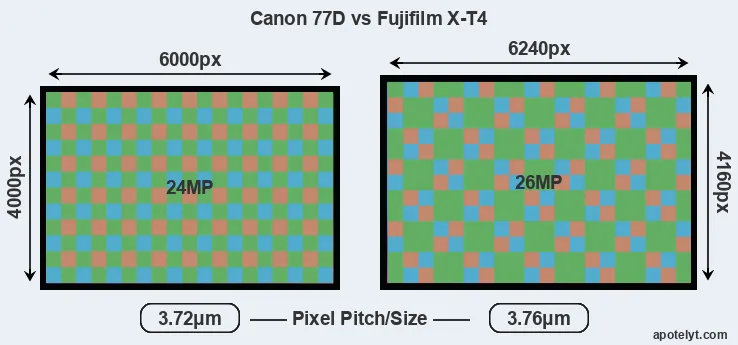

With 26MP, the X-T4 offers a higher resolution than the 77D (24MP), but the X-T4 nevertheless has marginally larger individual pixels (pixel pitch of 3.76μm versus 3.72μm for the 77D) due to its larger sensor. Moreover, the X-T4 is a much more recent model (by 3 years) than the 77D, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the X-T4 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The Canon EOS 77D has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Fujifilm X-T4 are ISO 160 to ISO 12800, with the possibility to increase the ISO range to 80-51200.
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the X-T4 provides a better video resolution than the 77D. It can shoot movie footage at 4K/60p, while the Canon is limited to 1080/60p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the X-T4 has an electronic viewfinder (3690k dots), while the 77D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the X-T4 offers a wider field of view (100%) than the one in the 77D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the X-T4 has a higher magnification (0.75x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 77D and Fujifilm X-T4 along with similar information for a selection of comparators.
|1.||Canon 77D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.0/s||Y||n|
|2.||Fujifilm X-T4||3690||n||3.0 / 1620||swivel||Y||1/8000s||15.0/s||n||Y|
|3.||Canon T8i||optical||n||3.0 / 1040||swivel||Y||1/4000s||7.5/s||Y||n|
|4.||Canon T7||optical||n||3.0 / 920||fixed||n||1/4000s||3.0/s||Y||n|
|5.||Canon SL2||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|6.||Canon T7i||optical||n||3.0 / 1040||swivel||Y||1/4000s||6.0/s||Y||n|
|7.||Canon M5||2360||n||3.2 / 1620||tilting||Y||1/4000s||9.0/s||Y||n|
|8.||Canon T6||optical||n||3.0 / 920||fixed||n||1/4000s||3.0/s||Y||n|
|9.||Canon T6i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|10.||Canon T6s||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|11.||Canon T4i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|12.||Canon T3i||optical||n||3.0 / 1040||swivel||n||1/4000s||3.7/s||Y||n|
|13.||Fujifilm X-Pro3||3690||n||3.0 / 1620||tilting||Y||1/8000s||8.0/s||n||n|
|14.||Fujifilm X-T3||3690||n||3.0 / 1040||tilting||Y||1/8000s||11.0/s||n||n|
|15.||Fujifilm X-H1||3690||Y||3.0 / 1040||full-flex||Y||1/8000s||14.0/s||n||Y|
|16.||Fujifilm X-T2||2360||n||3.0 / 1040||tilting||n||1/8000s||8.0/s||n||n|
|17.||Sony A6600||2359||n||3.0 / 922||tilting||Y||1/4000s||11.0/s||n||Y|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One difference between the cameras concerns the presence of an on-board flash. The 77D has one, while the X-T4 does not. While the built-in flash of the 77D is not very powerful, it can at times be useful as a fill-in light.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the X-T4 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Canon 77D and the Fujifilm X-T4 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the 77D and the X-T4 write their files to SDXC cards. The X-T4 features dual card slots, which can be very useful in case a memory card fails. In contrast, the 77D only has one slot. The X-T4 supports UHS-II cards (on both slots), while the 77D can use UHS-I cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 77D and Fujifilm X-T4 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon 77D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|2.||Fujifilm X-T4||Y||stereo / mono||Y||-||micro||3.1||Y||-||Y|
|3.||Canon T8i||Y||stereo / mono||Y||-||mini||2.0||Y||-||Y|
|4.||Canon T7||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|5.||Canon SL2||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|6.||Canon T7i||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|7.||Canon M5||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|8.||Canon T6||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|9.||Canon T6i||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|10.||Canon T6s||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|11.||Canon T4i||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|12.||Canon T3i||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|13.||Fujifilm X-Pro3||Y||stereo / mono||Y||-||-||3.1||Y||-||Y|
|14.||Fujifilm X-T3||Y||stereo / mono||Y||Y||micro||3.1||Y||-||Y|
|15.||Fujifilm X-H1||Y||stereo / mono||Y||-||micro||3.0||Y||-||-|
|16.||Fujifilm X-T2||Y||stereo / mono||Y||-||micro||3.0||Y||-||-|
|17.||Sony A6600||Y||stereo / mono||Y||Y||YES||2.0||Y||Y||Y|
Studio photographers will appreciate that the Fujifilm X-T4 (unlike the 77D) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 77D and the X-T4 are recent models that are part of the current product line-up. The 77D replaced the earlier Canon T6s, while the X-T4 followed on from the Fujifilm X-T3. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Fujifilm websites.
So what conclusions can be drawn? Is the Canon 77D better than the Fujifilm X-T4 or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Canon EOS 77D:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Less heavy: Is lighter (by 67g or 11 percent) and hence easier to carry around.
- Longer lasting: Can take more shots (600 versus 500) on a single battery charge.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More affordable: Was introduced into a lower priced category (47 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in February 2017).
Advantages of the Fujifilm X-T4:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better video: Provides higher definition movie capture (4K/60p vs 1080/60p).
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.75x vs 0.51x).
- More detailed LCD: Has a higher resolution rear screen (1620k vs 1040k dots).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (15 vs 6 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier travel charging: Can be conveniently charged via its USB port.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More modern: Reflects 3 years of technical progress since the 77D launch.
If the number of relative strengths (bullet points above) is taken as a guide, the X-T4 is the clear winner of the contest (18 : 9 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 77D and the Fujifilm X-T4 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 77D or the X-T4. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 77D||4.5/5||..||4/5||82/100||4.5/5||4/5||Feb 2017||899|
|2.||Fujifilm X-T4||5/5||+ +||5/5||88/100||5/5||5/5||Feb 2020||1,699|
|3.||Canon T8i||4.5/5||+||3/5||80/100||4/5||3.5/5||Feb 2020||749|
|4.||Canon T7||..||o||..||..||3.5/5||3.5/5||Feb 2018||449|
|5.||Canon SL2||4/5||+ +||4/5||78/100||4.5/5||4.5/5||Jun 2017||549|
|6.||Canon T7i||4.5/5||..||3.5/5||80/100||4.5/5||4/5||Feb 2017||749|
|7.||Canon M5||4/5||+||4/5||82/100||4/5||4/5||Sep 2016||979|
|8.||Canon T6||4/5||o||4/5||73/100||4/5||4/5||Mar 2016||449|
|9.||Canon T6i||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749|
|10.||Canon T6s||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649|
|11.||Canon T4i||4/5||+ +||..||77/100||4.5/5||4.5/5||Jun 2012||849|
|12.||Canon T3i||3/5||o||..||77/100||4.5/5||4.5/5||Feb 2011||599|
|13.||Fujifilm X-Pro3||4/5||+||4/5||85/100||4/5||..||Oct 2019||1,799|
|14.||Fujifilm X-T3||5/5||+ +||4.5/5||88/100||5/5||5/5||Sep 2018||1,499|
|15.||Fujifilm X-H1||..||+||5/5||86/100||4.5/5||4.5/5||Feb 2018||1,899|
|16.||Fujifilm X-T2||5/5||+ +||..||86/100||4.5/5||5/5||Jul 2016||1,599|
|17.||Sony A6600||4/5||+||4/5||83/100||4.5/5||4/5||Aug 2019||1,399|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 77D vs Nikon D610
- Canon 77D vs Olympus E-600
- Canon 77D vs Olympus E-P5
- Canon 77D vs Olympus PEN-F
- Canon 77D vs Pentax K-1
- Canon 77D vs Sony RX1R
- Canon R5 vs Fujifilm X-T4
- Canon R6 vs Fujifilm X-T4
- Fujifilm X-A5 vs Fujifilm X-T4
- Fujifilm X-Pro3 vs Fujifilm X-T4
- Fujifilm X-T4 vs Nikon D750
- Fujifilm X-T4 vs Panasonic LF1
Specifications: Canon 77D vs Fujifilm X-T4
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 77D||Fujifilm X-T4|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Fujifilm X mount lenses|
|Launch Date||February 2017||February 2020|
|Launch Price||USD 899||USD 1,699|
|Sensor Specs||Canon 77D||Fujifilm X-T4|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||23.5 x 15.6 mm|
|Sensor Area||332.27 mm2||366.6 mm2|
|Sensor Diagonal||26.8 mm||28.2 mm|
|Sensor Resolution||24 Megapixels||26 Megapixels|
|Image Resolution||6000 x 4000 pixels||6240 x 4160 pixels|
|Pixel Pitch||3.72 μm||3.76 μm|
|Pixel Density||7.22 MP/cm2||7.08 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/60p Video||4K/60p Video|
|ISO Setting||100 - 25,600 ISO||160 - 12,800 ISO|
|ISO Boost||100 - 51,200 ISO||80 - 51,200 ISO|
|Image Processor||DIGIC 7||X-Processor 4|
|DXO Sensor Quality (score)||78||..|
|DXO Color Depth (bits)||23.6||..|
|DXO Dynamic Range (EV)||13.3||..|
|DXO Low Light (ISO)||971||..|
|Screen Specs||Canon 77D||Fujifilm X-T4|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||95%||100%|
|Viewfinder Resolution||3690k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||1620k dots|
|LCD Attachment||Swivel screen||Swivel screen|
|Shooting Specs||Canon 77D||Fujifilm X-T4|
|Focus System||Phase-detect AF||On-Sensor Phase-detect|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/8000s|
|Continuous Shooting||6 shutter flaps/s||15 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||300 000 actuations|
|Electronic Shutter||no E-Shutter||up to 1/32000s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Built-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|UHS card support||UHS-I||Dual UHS-II|
|Connectivity Specs||Canon 77D||Fujifilm X-T4|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 3.1|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||External MIC port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||no NFC|
|Bluetooth Support||Bluetooth built-in||Bluetooth built-in|
|Body Specs||Canon 77D||Fujifilm X-T4|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||600 shots per charge||500 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
131 x 100 x 76 mm
(5.2 x 3.9 x 3.0 in)
135 x 93 x 64 mm
(5.3 x 3.7 x 2.5 in)
|Camera Weight||540 g (19.0 oz)||607 g (21.4 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
