Canon 760D vs Olympus E-410
The Canon EOS 760D (called Canon T6s in some regions) and the Olympus E-410 are two digital cameras that were officially introduced, respectively, in February 2015 and March 2007. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (760D) and a Four Thirds (E-410) sensor. The Canon has a resolution of 24 megapixels, whereas the Olympus provides 10 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 760D and the Olympus E-410? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

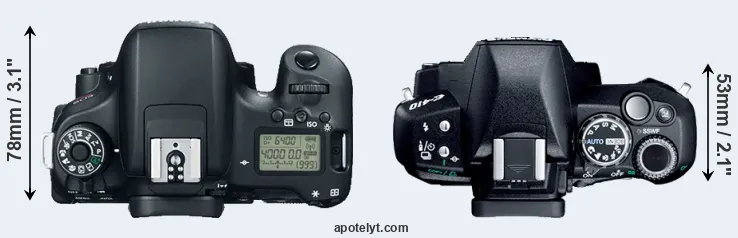

The side-by-side display below illustrates the physical size and weight of the Canon 760D and the Olympus E-410. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-410 is notably smaller (11 percent) than the Canon 760D. Moreover, the E-410 is markedly lighter (23 percent) than the 760D. In this context, it is worth noting that neither the 760D nor the E-410 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (760D) and the Four Thirds Lens Catalog (E-410).
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon 760D||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|2.||Olympus E-410||130 mm||91 mm||53 mm||435 g||500||n||Mar 2007||699|
|3.||Canon 2000D||129 mm||101 mm||78 mm||475 g||500||n||Feb 2018||449|
|4.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899|
|5.||Canon 800D||131 mm||100 mm||76 mm||532 g||600||n||Feb 2017||749|
|6.||Canon M5||116 mm||89 mm||61 mm||427 g||295||n||Sep 2016||979|
|7.||Canon 750D||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749|
|8.||Canon 1200D||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449|
|9.||Canon G1 X Mark II||116 mm||74 mm||66 mm||553 g||240||n||Feb 2014||799|
|10.||Canon G7 X||103 mm||60 mm||40 mm||304 g||210||n||Sep 2014||699|
|11.||Canon 650D||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|12.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699|
|13.||Olympus E-420||130 mm||91 mm||53 mm||440 g||500||n||Mar 2008||599|
|14.||Olympus E-520||136 mm||92 mm||68 mm||535 g||750||n||May 2008||699|
|15.||Olympus E-510||136 mm||92 mm||68 mm||538 g||750||n||Mar 2007||799|
|16.||Olympus E-400||130 mm||91 mm||53 mm||435 g||500||n||Sep 2006||699|
|17.||Panasonic L10||135 mm||96 mm||78 mm||556 g||450||n||Aug 2007||599|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The 760D was somewhat cheaper (by 7 percent) than the E-410 at launch, but both cameras fall into the same price category. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 760D features an APS-C sensor and the Olympus E-410 a Four Thirds sensor. The sensor area in the E-410 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 760D has a native 3:2 aspect ratio, while the one in the E-410 offers a 4:3 aspect.
In terms of underlying technology, both cameras are build around CMOS sensors.
With 24MP, the 760D offers a higher resolution than the E-410 (10MP), but the 760D has smaller individual pixels (pixel pitch of 3.72μm versus 4.74μm for the E-410). However, the 760D is a much more recent model (by 7 years and 11 months) than the E-410, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon 760D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 760D for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus E-410 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.
The 760D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 760D has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Olympus E-410 are ISO 100 to ISO 1600 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the 760D provides substantially higher image quality than the E-410, with an overall score that is 19 points higher. This advantage is based on 1.5 bits higher color depth, 2 EV in additional dynamic range, and 0.9 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|2.||Olympus E-410||Four Thirds||10.0||3648||2736||none||21.1||10.0||494||51|
|9.||Canon G1 X Mark II||1.5-inch||13.0||4160||3120||1080/30p||21.5||10.8||581||58|
|10.||Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71|
|13.||Olympus E-420||Four Thirds||10.0||3648||2736||none||21.5||10.4||527||56|
|14.||Olympus E-520||Four Thirds||10.0||3648||2736||none||21.4||10.4||548||55|
|15.||Olympus E-510||Four Thirds||10.0||3648||2736||none||21.2||10.0||442||52|
|16.||Olympus E-400||Four Thirds||10.0||3648||2736||none||21.0||10.6||127||53|
|17.||Panasonic L10||Four Thirds||10.0||3648||2736||none||21.3||10.8||429||55|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras cannot only take still pictures, but also record videos. The 760D indeed provides movie recording capabilities, while the E-410 does not. The highest resolution format that the 760D can use is 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. The 760D and the E-410 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (95%), but the viewfinder of the 760D has a higher magnification than the one of the E-410 (0.51x vs 0.46x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 760D and Olympus E-410 in connection with corresponding information for a sample of similar cameras.
|1.||Canon 760D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|2.||Olympus E-410||optical||n||2.5 / 215||fixed||n||1/4000s||3.0||Y||n|
|3.||Canon 2000D||optical||n||3.0 / 920||fixed||n||1/4000s||3.0||Y||n|
|4.||Canon 77D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.0||Y||n|
|5.||Canon 800D||optical||n||3.0 / 1040||swivel||Y||1/4000s||6.0||Y||n|
|6.||Canon M5||2360||n||3.2 / 1620||tilting||Y||1/4000s||9.0||Y||n|
|7.||Canon 750D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|8.||Canon 1200D||optical||n||3.0 / 460||fixed||n||1/4000s||3.0||Y||n|
|9.||Canon G1 X Mark II||optional||n||3.0 / 1040||tilting||Y||1/4000s||5.2||Y||Y|
|10.||Canon G7 X||none||n||3.0 / 1040||tilting||Y||1/2000s||6.5||Y||Y|
|11.||Canon 650D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|12.||Nikon D5600||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0||Y||n|
|13.||Olympus E-420||optical||n||2.7 / 215||fixed||n||1/4000s||3.5||Y||n|
|14.||Olympus E-520||optical||n||2.7 / 215||fixed||n||1/4000s||3.5||Y||Y|
|15.||Olympus E-510||optical||n||2.5 / 215||fixed||n||1/4000s||3.0||Y||Y|
|16.||Olympus E-400||optical||n||2.5 / 215||fixed||n||1/4000s||3.0||Y||n|
|17.||Panasonic L10||optical||n||2.5 / 207||swivel||n||1/4000s||3.0||Y||n|
One feature that is present on the 760D, but is missing on the E-410 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The 760D has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the E-410 does not have a selfie-screen.
The 760D writes its imaging data to SDXC cards, while the E-410 uses Compact Flash or xD Picture cards. The E-410 features dual card slots, which can be very useful in case a memory card fails. In contrast, the 760D only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 760D and Olympus E-410 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon 760D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|2.||Olympus E-410||Y||- / -||-||-||-||2.0||-||-||-|
|3.||Canon 2000D||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|4.||Canon 77D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|5.||Canon 800D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|6.||Canon M5||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|7.||Canon 750D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|8.||Canon 1200D||Y||mono / mono||-||-||mini||2.0||-||-||-|
|9.||Canon G1 X Mark II||Y||stereo / mono||-||-||mini||2.0||Y||Y||-|
|10.||Canon G7 X||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|11.||Canon 650D||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|12.||Nikon D5600||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|13.||Olympus E-420||Y||- / -||-||-||-||2.0||-||-||-|
|14.||Olympus E-520||Y||- / -||-||-||-||2.0||-||-||-|
|15.||Olympus E-510||Y||- / -||-||-||-||2.0||-||-||-|
|16.||Olympus E-400||Y||- / -||-||-||-||2.0||-||-||-|
|17.||Panasonic L10||Y||- / -||-||-||-||2.0||-||-||-|
It is notable that the 760D offers wifi support, while the E-410 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Both the 760D and the E-410 have been discontinued, but can regularly be found used on eBay. The E-410 was replaced by the Olympus E-420, while the 760D was followed by the Canon 77D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what conclusions can be drawn? Is the Canon 760D better than the Olympus E-410 or vice versa? The listing below highlights the relative strengths of the two models.
Advantages of the Canon EOS 760D:
- More detail: Offers more megapixels (24 vs 10MP) with a 58% higher linear resolution.
- Better image quality: Scores substantially higher (19 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (1.5 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (2 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (0.9 stops ISO advantage).
- Broader imaging potential: Can record not only still images but also 1080/30p movies.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.51x vs 0.46x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 215k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (5 vs 3 flaps/sec) to capture the decisive moment.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More modern: Reflects 7 years and 11 months of technical progress since the E-410 launch.
Reasons to prefer the Olympus E-410:
- More compact: Is smaller (130x91mm vs 132x101mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 130g or 23 percent) and is thus easier to take along.
- Longer lasting: Gets more shots (500 versus 440) out of a single battery charge.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been around for much longer (launched in March 2007).
If the number of relative strengths (bullet points above) is taken as a guide, the 760D is the clear winner of the match-up (18 : 5 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 760D and the Olympus E-410 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the 760D or the E-410 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 760D||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649|
|2.||Olympus E-410||..||86/100||..||+ +||4/5||4.5/5||Mar 2007||699|
|3.||Canon 2000D||..||o||..||..||3.5/5||3.5/5||Feb 2018||449|
|4.||Canon 77D||4.5/5||..||4/5||82/100||4.5/5||4/5||Feb 2017||899|
|5.||Canon 800D||4.5/5||..||3.5/5||80/100||4.5/5||4/5||Feb 2017||749|
|6.||Canon M5||4/5||+||4/5||82/100||4/5||4/5||Sep 2016||979|
|7.||Canon 750D||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749|
|8.||Canon 1200D||3/5||+||..||..||4/5||4.5/5||Feb 2014||449|
|9.||Canon G1 X Mark II||3/5||+||..||77/100||4/5||4.5/5||Feb 2014||799|
|10.||Canon G7 X||4/5||+ +||..||77/100||4.5/5||4.5/5||Sep 2014||699|
|11.||Canon 650D||4/5||+ +||..||77/100||4.5/5||4.5/5||Jun 2012||849|
|12.||Nikon D5600||4/5||..||4/5||79/100||4.5/5||4/5||Nov 2016||699|
|13.||Olympus E-420||..||85/100||..||+ +||4/5||4.5/5||Mar 2008||599|
|14.||Olympus E-520||..||87/100||..||+ +||4.5/5||4.5/5||May 2008||699|
|15.||Olympus E-510||..||89/100||..||+ +||3.5/5||4.5/5||Mar 2007||799|
|16.||Olympus E-400||..||85/100||..||..||4/5||4/5||Sep 2006||699|
|17.||Panasonic L10||..||85/100||..||+||3.5/5||4/5||Aug 2007||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 760D vs Canon G15
- Canon 760D vs Canon R6
- Canon 760D vs Kodak S-1
- Canon 760D vs Panasonic FZ1000
- Canon 760D vs Panasonic S1
- Canon 760D vs Sony H300
- Canon R vs Olympus E-410
- Canon RP vs Olympus E-410
- Fujifilm XP140 vs Olympus E-410
- Leica Q2 vs Olympus E-410
- Olympus E-410 vs Panasonic S1R
- Olympus E-410 vs Sony NEX-F3
Specifications: Canon 760D vs Olympus E-410
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 760D||Olympus E-410|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Four Thirds lenses|
|Launch Date||February 2015||March 2007|
|Launch Price||USD 649||USD 699|
|Sensor Specs||Canon 760D||Olympus E-410|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.3 x 14.9 mm||17.3 x 13.0 mm|
|Sensor Area||332.27 mm2||224.9 mm2|
|Sensor Diagonal||26.8 mm||21.6 mm|
|Sensor Resolution||24 Megapixels||10 Megapixels|
|Image Resolution||6000 x 4000 pixels||3648 x 2736 pixels|
|Pixel Pitch||3.72 μm||4.74 μm|
|Pixel Density||7.22 MP/cm2||4.44 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||no Video|
|ISO Setting||100 - 12,800 ISO||100 - 1,600 ISO|
|ISO Boost||100 - 25,600 ISO||no Enhancement|
|Image Processor||DIGIC 6||TruePic III|
|DXO Sensor Quality (score)||70||51|
|DXO Color Depth (bits)||22.6||21.1|
|DXO Dynamic Range (EV)||12.0||10.0|
|DXO Low Light (ISO)||915||494|
|Screen Specs||Canon 760D||Olympus E-410|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||2.5inch|
|LCD Resolution||1040k dots||215k dots|
|LCD Attachment||Swivel screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon 760D||Olympus E-410|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||5 shutter flaps/s||3 shutter flaps/s|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||CF or XD cards|
|Second Storage Option||Single card slot||Dual card slots|
|Connectivity Specs||Canon 760D||Olympus E-410|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||no HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Body Specs||Canon 760D||Olympus E-410|
|Battery Life (CIPA)||440 shots per charge||500 shots per charge|
132 x 101 x 78 mm
(5.2 x 4.0 x 3.1 in)
130 x 91 x 53 mm
(5.1 x 3.6 x 2.1 in)
|Camera Weight||565 g (19.9 oz)||435 g (15.3 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
