Canon 760D vs Nikon D1
The Canon EOS 760D (called Canon T6s in some regions) and the Nikon D1 are two digital cameras that were officially introduced, respectively, in February 2015 and June 1999. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The Canon has a resolution of 24 megapixels, whereas the Nikon provides 2.6 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 760D and the Nikon D1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

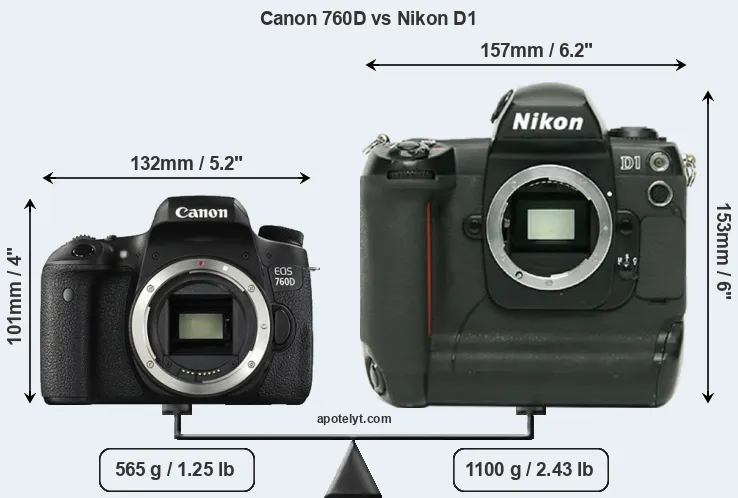

The physical size and weight of the Canon 760D and the Nikon D1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D1 is considerably larger (80 percent) than the Canon 760D. Moreover, the D1 is substantially heavier (95 percent) than the 760D. It is noteworthy in this context that the D1 is splash and dust-proof, while the 760D does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Yet, since both cameras are based around an APS-C sensor, their respective lenses will tend to have similar dimensions and heft. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (760D) and the Nikon Lens Catalog (D1).
As can be seen in the images above, the D1 has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the 760D, Canon provides the BG-E18 vertical grip as an optional accessory (see here on eBay).
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon 760D||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|2.||Nikon D1||157 mm||153 mm||85 mm||1100 g||..||Y||Jun 1999||5,499|
|3.||Canon 2000D||129 mm||101 mm||78 mm||475 g||500||n||Feb 2018||449|
|4.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899|
|5.||Canon 800D||131 mm||100 mm||76 mm||532 g||600||n||Feb 2017||749|
|6.||Canon M5||116 mm||89 mm||61 mm||427 g||295||n||Sep 2016||979|
|7.||Canon 750D||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749|
|8.||Canon 1200D||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449|
|9.||Canon G1 X Mark II||116 mm||74 mm||66 mm||553 g||240||n||Feb 2014||799|
|10.||Canon G7 X||103 mm||60 mm||40 mm||304 g||210||n||Sep 2014||699|
|11.||Canon 650D||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|12.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699|
|13.||Nikon D300S||147 mm||115 mm||81 mm||938 g||950||Y||Jul 2009||1,799|
|14.||Nikon D300||147 mm||114 mm||74 mm||925 g||1000||Y||Aug 2007||1,799|
|15.||Nikon D2Xs||158 mm||150 mm||86 mm||1252 g||3800||Y||Jun 2006||4,699|
|16.||Nikon D200||147 mm||113 mm||74 mm||920 g||400||Y||Nov 2005||1,699|
|17.||Nikon D1X||157 mm||153 mm||85 mm||1100 g||1200||Y||Feb 2001||5,999|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The 760D was launched at a markedly lower price (by 88 percent) than the D1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the D1 is 11 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (760D) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Despite having a smaller sensor, the Canon 760D offers a higher resolution of 24 megapixels, compared with 2.6 MP of the Nikon D1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.72μm versus 11.93μm for the D1). However, it should be noted that the 760D is much more recent (by 15 years and 7 months) than the D1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Canon 760D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 760D for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Nikon D1 are 10 x 6.6 inches or 25.4 x 16.7 cm for good quality, 8 x 5.2 inches or 20.3 x 13.3 cm for very good quality, and 6.7 x 4.4 inches or 16.9 x 11.1 cm for excellent quality prints.
The 760D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 760D has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Nikon D1 are ISO 200 to ISO 1600, with the possibility to increase the ISO range to 200-6400.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|9.||Canon G1 X Mark II||1.5-inch||13.0||4160||3120||1080/30p||21.5||10.8||581||58|
|10.||Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but can also record movies. The 760D indeed provides movie recording capabilities, while the D1 does not. The highest resolution format that the 760D can use is 1080/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. The 760D and the D1 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the D1 offers a wider field of view (96%) than the one in the 760D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the D1 has a higher magnification (0.53x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 760D and Nikon D1 in connection with corresponding information for a sample of similar cameras.
|1.||Canon 760D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|2.||Nikon D1||optical||Y||2.0 / 120||fixed||n||1/16000s||1.5||n||n|
|3.||Canon 2000D||optical||n||3.0 / 920||fixed||n||1/4000s||3.0||Y||n|
|4.||Canon 77D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.0||Y||n|
|5.||Canon 800D||optical||n||3.0 / 1040||swivel||Y||1/4000s||6.0||Y||n|
|6.||Canon M5||2360||n||3.2 / 1620||tilting||Y||1/4000s||9.0||Y||n|
|7.||Canon 750D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|8.||Canon 1200D||optical||n||3.0 / 460||fixed||n||1/4000s||3.0||Y||n|
|9.||Canon G1 X Mark II||optional||n||3.0 / 1040||tilting||Y||1/4000s||5.2||Y||Y|
|10.||Canon G7 X||none||n||3.0 / 1040||tilting||Y||1/2000s||6.5||Y||Y|
|11.||Canon 650D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|12.||Nikon D5600||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0||Y||n|
|13.||Nikon D300S||optical||Y||3.0 / 920||fixed||n||1/8000s||7.0||Y||n|
|14.||Nikon D300||optical||Y||3.0 / 922||fixed||n||1/8000s||6.0||Y||n|
|15.||Nikon D2Xs||optical||Y||2.5 / 230||fixed||n||1/8000s||5.0||n||n|
|16.||Nikon D200||optical||Y||2.5 / 230||fixed||n||1/8000s||5.0||Y||n|
|17.||Nikon D1X||optical||Y||2.0 / 120||fixed||n||1/16000s||3.0||n||n|
One difference between the cameras concerns the presence of an on-board flash. The 760D has one, while the D1 does not. While the built-in flash of the 760D is not very powerful, it can at times be useful as a fill-in light.The 760D has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the D1 does not have a selfie-screen.
The 760D writes its imaging data to SDXC cards, while the D1 uses Compact Flash cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 760D and Nikon D1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon 760D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|2.||Nikon D1||Y||- / -||-||-||-||FW||-||-||-|
|3.||Canon 2000D||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|4.||Canon 77D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|5.||Canon 800D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|6.||Canon M5||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|7.||Canon 750D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|8.||Canon 1200D||Y||mono / mono||-||-||mini||2.0||-||-||-|
|9.||Canon G1 X Mark II||Y||stereo / mono||-||-||mini||2.0||Y||Y||-|
|10.||Canon G7 X||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|11.||Canon 650D||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|12.||Nikon D5600||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|13.||Nikon D300S||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|14.||Nikon D300||Y||- / -||-||-||mini||2.0||-||-||-|
|15.||Nikon D2Xs||Y||- / -||-||-||-||2.0||-||-||-|
|16.||Nikon D200||Y||- / -||-||-||-||2.0||-||-||-|
|17.||Nikon D1X||Y||- / -||-||-||-||FW||-||-||-|
It is notable that the 760D offers wifi support, while the D1 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Studio photographers will appreciate that the Nikon D1 (unlike the 760D) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 760D and the D1 have been discontinued, but can regularly be found used on eBay. The D1 was replaced by the Nikon D1X, while the 760D was followed by the Canon 77D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Nikon websites.
So how do things add up? Is there a clear favorite between the Canon 760D and the Nikon D1? Which camera is better? The listing below highlights the relative strengths of the two models.
Advantages of the Canon EOS 760D:
- More detail: Offers more megapixels (24 vs 2.6MP) with a 201% higher linear resolution.
- Broader imaging potential: Can record not only still images but also 1080/30p movies.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 120k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (5 vs 1.5 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (132x101mm vs 157x153mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 535g or 49 percent) and hence easier to carry around.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More affordable: Was introduced into a lower priced category (88 percent cheaper at launch).
- More modern: Reflects 15 years and 7 months of technical progress since the D1 launch.
Reasons to prefer the Nikon D1:
- More complete view: Has a viewfinder with a larger field of view (96% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.53x vs 0.51x).
- Faster shutter: Has higher mechanical shutter speed (1/16000s vs 1/4000s) to freeze action.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been around for much longer (launched in June 1999).
If the count of individual advantages (bullet points above) is taken as a guide, the 760D is the clear winner of the match-up (16 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 760D and the Nikon D1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the 760D or the D1 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 760D||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649|
|2.||Nikon D1||..||..||..||+ +||..||..||Jun 1999||5,499|
|3.||Canon 2000D||..||o||..||..||3.5/5||3.5/5||Feb 2018||449|
|4.||Canon 77D||4.5/5||..||4/5||82/100||4.5/5||4/5||Feb 2017||899|
|5.||Canon 800D||4.5/5||..||3.5/5||80/100||4.5/5||4/5||Feb 2017||749|
|6.||Canon M5||4/5||+||4/5||82/100||4/5||4/5||Sep 2016||979|
|7.||Canon 750D||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749|
|8.||Canon 1200D||3/5||+||..||..||4/5||4.5/5||Feb 2014||449|
|9.||Canon G1 X Mark II||3/5||+||..||77/100||4/5||4.5/5||Feb 2014||799|
|10.||Canon G7 X||4/5||+ +||..||77/100||4.5/5||4.5/5||Sep 2014||699|
|11.||Canon 650D||4/5||+ +||..||77/100||4.5/5||4.5/5||Jun 2012||849|
|12.||Nikon D5600||4/5||..||4/5||79/100||4.5/5||4/5||Nov 2016||699|
|13.||Nikon D300S||5/5||+ +||..||82/100||4/5||4.5/5||Jul 2009||1,799|
|14.||Nikon D300||..||+ +||..||+ +||5/5||4.5/5||Aug 2007||1,799|
|15.||Nikon D2Xs||..||..||..||..||..||..||Jun 2006||4,699|
|16.||Nikon D200||..||+ +||..||+ +||o||..||Nov 2005||1,699|
|17.||Nikon D1X||..||..||..||+ +||..||..||Feb 2001||5,999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Canon 760D vs Nikon D1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 760D||Nikon D1|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Nikon F mount lenses|
|Launch Date||February 2015||June 1999|
|Launch Price||USD 649||USD 5,499|
|Sensor Specs||Canon 760D||Nikon D1|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||23.7 x 15.6 mm|
|Sensor Area||332.27 mm2||369.72 mm2|
|Sensor Diagonal||26.8 mm||28.4 mm|
|Sensor Resolution||24 Megapixels||2.6 Megapixels|
|Image Resolution||6000 x 4000 pixels||2000 x 1312 pixels|
|Pixel Pitch||3.72 μm||11.93 μm|
|Pixel Density||7.22 MP/cm2||0.71 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||no Video|
|ISO Setting||100 - 12,800 ISO||200 - 1,600 ISO|
|ISO Boost||100 - 25,600 ISO||200 - 6,400 ISO|
|DXO Sensor Quality (score)||70||..|
|DXO Color Depth (bits)||22.6||..|
|DXO Dynamic Range (EV)||12.0||..|
|DXO Low Light (ISO)||915||..|
|Screen Specs||Canon 760D||Nikon D1|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||96%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View|
|Rear LCD Size||3.0inch||2.0inch|
|LCD Resolution||1040k dots||120k dots|
|LCD Attachment||Swivel screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon 760D||Nikon D1|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||5 shutter flaps/s||1.5 shutter flaps/s|
|Fill Flash||Built-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||CF cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon 760D||Nikon D1|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||Firewire|
|HDMI Port||mini HDMI||no HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Body Specs||Canon 760D||Nikon D1|
|Environmental Sealing||not weather sealed||Weathersealed body|
132 x 101 x 78 mm
(5.2 x 4.0 x 3.1 in)
157 x 153 x 85 mm
(6.2 x 6.0 x 3.3 in)
|Camera Weight||565 g (19.9 oz)||1100 g (38.8 oz)|
