Canon 70D vs Sony HX400V

The Canon EOS 70D and the Sony Cyber-shot DSC-HX400V are two digital cameras that were revealed to the public, respectively, in July 2013 and February 2014. The 70D is a DSLR, while the HX400V is a fixed lens compact. The cameras are based on an APS-C (70D) and a 1/2.3-inch (HX400V) sensor. The Canon has a resolution of 20 megapixels, whereas the Sony provides 20.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 70D		Sony HX400V
Digital single lens reflex		Fixed lens compact camera
Canon EF mount lenses		24-1200mm f/2.8-6.3
20 MP – APS-C sensor		20.2 MP – 1/2.3" sensor
1080/30p Video		1080/60p Video
ISO 100-12,800 (100 - 25,600)		ISO 80-3,200 (80 - 12,800)
Optical viewfinder		Electronic viewfinder (210k dots)
3.0" LCD – 1040k dots		3.0" LCD – 921k dots
Swivel touchscreen		Tilting screen (no touchscreen)
7 shutter flaps per second		10 shutter flaps per second
Weathersealed body		not weather sealed
920 shots per battery charge		300 shots per battery charge
139 x 104 x 79 mm, 755 g		130 x 93 x 103 mm, 660 g

Check 70D offers at
ebay.com
Check HX400V offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 70D and the Sony Cyber-shot DSC-HX400V? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

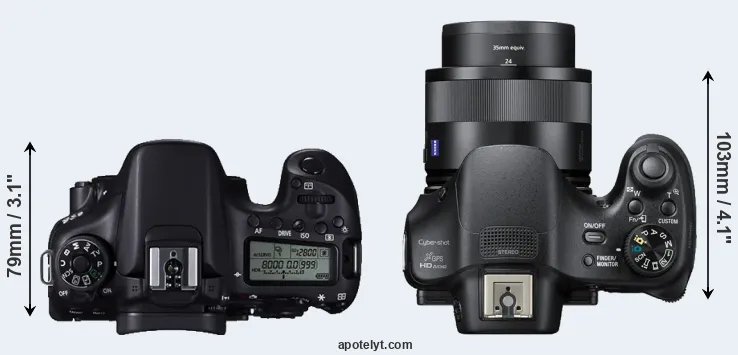

An illustration of the physical size and weight of the Canon 70D and the Sony HX400V is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony HX400V is notably smaller (16 percent) than the Canon 70D. It is worth mentioning in this context that the 70D is splash and dust resistant, while the HX400V does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the HX400V has a lens built in, whereas the 70D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 70D and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the 70D gets 920 shots out of its Canon LP-E6 battery, while the HX400V can take 300 images on a single charge of its Sony NP-BX1 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 70D	139 mm	104 mm	79 mm	755 g	920	Y	Jul 2013	US$ 1 199	ebay.com
2.		Sony HX400V	130 mm	93 mm	103 mm	660 g	300	n	Feb 2014	US$ 499	ebay.com
3.		Canon 6D	145 mm	111 mm	71 mm	770 g	1090	Y	Sep 2012	US$ 2 099	ebay.com
4.		Canon 7D	148 mm	111 mm	74 mm	860 g	800	Y	Sep 2009	US$ 1 699	ebay.com
5.		Canon 7D II	149 mm	112 mm	78 mm	910 g	670	Y	Sep 2014	US$ 1 799	ebay.com
6.		Canon 50D	146 mm	108 mm	74 mm	822 g	800	Y	Aug 2008	US$ 1 299	ebay.com
7.		Canon 60D	145 mm	106 mm	79 mm	755 g	1100	Y	Aug 2010	US$ 1 399	ebay.com
8.		Canon 80D	139 mm	105 mm	79 mm	730 g	960	Y	Feb 2016	US$ 1 199	ebay.com
9.		Canon G3 X	123 mm	77 mm	105 mm	733 g	300	Y	Jun 2015	US$ 999	ebay.com
10.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	US$ 549	ebay.com
11.		Canon T5	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	US$ 449	ebay.com
12.		Nikon D7100	136 mm	107 mm	76 mm	765 g	950	Y	Feb 2013	US$ 1 199	ebay.com
13.		Sony H300	128 mm	89 mm	92 mm	590 g	350	n	Feb 2014	US$ 219	ebay.com
14.		Sony H400	130 mm	95 mm	122 mm	628 g	300	n	Feb 2014	US$ 319	ebay.com
15.		Sony HX90V	102 mm	58 mm	36 mm	245 g	360	n	Apr 2015	US$ 429	ebay.com
16.		Sony HX350	130 mm	93 mm	103 mm	652 g	300	n	Dec 2016	US$ 449	ebay.com
17.		Sony RX10	129 mm	88 mm	102 mm	813 g	420	Y	Oct 2013	US$ 1 299	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The HX400V was launched at a lower price than the 70D, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 70D features an APS-C sensor and the Sony HX400V a 1/2.3-inch sensor. The sensor area in the HX400V is 92 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 5.6. The sensor in the 70D has a native 3:2 aspect ratio, while the one in the HX400V offers a 4:3 aspect.

Despite having a smaller sensor, the HX400V offers a slightly higher resolution of 20.2 megapixels, compared with 20 MP of the 70D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.18μm versus 4.11μm for the 70D). However, it should be noted that the HX400V is a somewhat more recent model (by 7 months) than the 70D, and its sensor might have benefitted from technological advances during this time that partly offset its pixel-size disadvantage. Coming back to sensor resolution, it should be mentioned that the HX400V has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The 70D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS 70D has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Sony Cyber-shot DSC-HX400V are ISO 80 to ISO 3200, with the possibility to increase the ISO range to 80-12800.

In terms of underlying technology, the 70D is build around a CMOS sensor, while the HX400V uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 70D	APS-C	20.0	5472	3648	1080/30p	22.5	11.6	926	68
2.		Sony HX400V	1/2.3	20.2	5184	3888	1080/60p	20.1	11.4	629	45
3.		Canon 6D	Full Frame	20.0	5472	3648	1080/30p	23.8	12.1	2340	82
4.		Canon 7D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	854	66
5.		Canon 7D II	APS-C	20.0	5472	3648	1080/60p	22.4	11.8	1082	70
6.		Canon 50D	APS-C	15.1	4752	3168	none	21.8	11.4	696	63
7.		Canon 60D	APS-C	17.9	5184	3456	1080/30p	22.2	11.5	813	66
8.		Canon 80D	APS-C	24.0	6000	4000	1080/60p	23.6	13.2	1135	79
9.		Canon G3 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	521	63
10.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
11.		Canon T5	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
12.		Nikon D7100	APS-C	24.0	6000	4000	1080/60p	24.2	13.7	1256	83
13.		Sony H300	1/2.3	19.9	5152	3864	720/30p	20.1	11.4	630	45
14.		Sony H400	1/2.3	19.9	5152	3864	720/30p	20.1	11.4	630	45
15.		Sony HX90V	1/2.3	18.0	4896	3672	1080/60p	20.2	11.6	738	47
16.		Sony HX350	1/2.3	19.9	5152	3864	1080/60p	20.5	11.9	896	49
17.		Sony RX10	1-inch	20.0	5472	3648	1080/60p	22.9	12.6	474	69
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the HX400V provides a faster frame rate than the 70D. It can shoot movie footage at 1080/60p, while the Canon is limited to 1080/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the HX400V has an electronic viewfinder (210k dots), while the 70D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The table below summarizes some of the other core capabilities of the Canon 70D and Sony HX400V in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 70D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
2.		Sony HX400V	210	n	3.0 / 921	tilting	n	1/4000s	10.0/s	Y	Y
3.		Canon 6D	optical	Y	3.0 / 1040	fixed	n	1/4000s	4.5/s	n	n
4.		Canon 7D	optical	Y	3.0 / 920	fixed	n	1/8000s	8.0/s	Y	n
5.		Canon 7D II	optical	Y	3.0 / 1040	fixed	n	1/8000s	10.0/s	Y	n
6.		Canon 50D	optical	Y	3.0 / 920	fixed	n	1/8000s	6.3/s	Y	n
7.		Canon 60D	optical	Y	3.0 / 1040	swivel	n	1/8000s	5.3/s	Y	n
8.		Canon 80D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
9.		Canon G3 X	optional	n	3.2 / 1620	tilting	Y	1/2000s	5.9/s	Y	Y
10.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
11.		Canon T5	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
12.		Nikon D7100	optical	Y	3.2 / 1229	fixed	n	1/8000s	6.0/s	Y	n
13.		Sony H300	none	n	3.0 / 460	fixed	n	1/1500s	0.8/s	Y	Y
14.		Sony H400	210	n	3.0 / 460	fixed	n	1/2000s	0.7/s	Y	Y
15.		Sony HX90V	638	n	3.0 / 921	tilting	n	1/2000s	10.0/s	Y	Y
16.		Sony HX350	202	n	3.0 / 922	tilting	n	1/4000s	10.0/s	Y	Y
17.		Sony RX10	1440	Y	3.0 / 1229	tilting	n	1/3200s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the 70D, but is missing on the HX400V is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The 70D writes its imaging data to SDXC cards, while the HX400V uses SDXC or Memory Stick PRO Duo cards. The 70D supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the HX400V cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 70D and Sony Cyber-shot DSC-HX400V and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 70D	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
2.		Sony HX400V	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
3.		Canon 6D	Y	mono / mono	Y	-	mini	2.0	Y	-	-
4.		Canon 7D	Y	mono / -	Y	-	mini	2.0	-	-	-
5.		Canon 7D II	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
6.		Canon 50D	Y	- / -	-	-	mini	2.0	-	-	-
7.		Canon 60D	Y	mono / mono	Y	-	mini	2.0	-	-	-
8.		Canon 80D	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
9.		Canon G3 X	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
10.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
11.		Canon T5	Y	mono / mono	-	-	mini	2.0	-	-	-
12.		Nikon D7100	Y	stereo / mono	Y	Y	mini	2.0	-	-	-
13.		Sony H300	-	mono / mono	-	-	micro	2.0	Y	-	-
14.		Sony H400	-	mono / mono	-	-	micro	2.0	Y	-	-
15.		Sony HX90V	-	stereo / mono	-	-	micro	2.0	Y	Y	-
16.		Sony HX350	-	stereo / mono	-	-	micro	2.0	-	-	-
17.		Sony RX10	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-

It is notable that the 70D has a microphone port, which is missing on the HX400V. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Travel and landscape photographers will find it useful that the HX400V has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

Both the 70D and the HX400V have been discontinued, but can regularly be found used on ebay. The 70D was replaced by the Canon 80D, while the HX400V does not have a direct successor. Further information on the features and operation of the 70D and HX400V can be found, respectively, in the Canon 70D Manual (free pdf) or the online Sony HX400V Manual.

Review summary

So how do things add up? Is there a clear favorite between the Canon 70D and the Sony HX400V? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Canon EOS 70D:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 921k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Longer lasting: Can take more shots (920 versus 300) on a single battery charge.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More heavily discounted: Has been on the market for longer (launched in July 2013).

Reasons to prefer the Sony Cyber-shot DSC-HX400V:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
• More framing info: Has an electronic viewfinder that displays shooting data.
• Faster burst: Shoots at higher frequency (10 vs 7 flaps/sec) to capture the decisive moment.
• Ready to shoot: Comes with an integrated lens, while the 70D requires a separate lens.
• More compact: Is smaller (130x93mm vs 139x104mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the 70D).
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Easier geotagging: Features an internal GPS sensor to log localization data.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Was introduced somewhat (7 months) more recently.

If the count of relative strengths (bullet points above) is taken as a measure, the 70D is the clear winner of the match-up (19 : 12 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 70D and the Sony HX400V place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the 70D and the HX400V in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 70D	5/5	+ +	..	83/100	4.5/5	5/5	Jul 2013	US$ 1 199	ebay.com
2.		Sony HX400V	4/5	+ +	..	..	4/5	4/5	Feb 2014	US$ 499	ebay.com
3.		Canon 6D	5/5	+ +	..	83/100	4.5/5	4.5/5	Sep 2012	US$ 2 099	ebay.com
4.		Canon 7D	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2009	US$ 1 699	ebay.com
5.		Canon 7D II	4.5/5	+	3.5/5	84/100	4/5	4.5/5	Sep 2014	US$ 1 799	ebay.com
6.		Canon 50D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2008	US$ 1 299	ebay.com
7.		Canon 60D	5/5	+	..	79/100	4/5	4.5/5	Aug 2010	US$ 1 399	ebay.com
8.		Canon 80D	4/5	+ +	4.5/5	84/100	4.5/5	4.5/5	Feb 2016	US$ 1 199	ebay.com
9.		Canon G3 X	3.5/5	+	..	..	4.5/5	4/5	Jun 2015	US$ 999	ebay.com
10.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	US$ 549	ebay.com
11.		Canon T5	3/5	+	..	..	4/5	4.5/5	Feb 2014	US$ 449	ebay.com
12.		Nikon D7100	5/5	+ +	..	85/100	4.5/5	4.5/5	Feb 2013	US$ 1 199	ebay.com
13.		Sony H300	..	+	..	..	4.5/5	4/5	Feb 2014	US$ 219	ebay.com
14.		Sony H400	..	o	..	..	3.5/5	3.5/5	Feb 2014	US$ 319	ebay.com
15.		Sony HX90V	4/5	+ +	..	..	4/5	4.5/5	Apr 2015	US$ 429	ebay.com
16.		Sony HX350	..	..	..	..	..	4/5	Dec 2016	US$ 449	ebay.com
17.		Sony RX10	5/5	+	..	80/100	4.5/5	4.5/5	Oct 2013	US$ 1 299	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check 70D offers at
ebay.com
Check HX400V offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

Check 70D offers at
ebay.com
Check HX400V offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
