Canon 70D vs Samsung NX500

The Canon EOS 70D and the Samsung NX500 are two digital cameras that were officially introduced, respectively, in July 2013 and February 2015. The 70D is a DSLR, while the NX500 is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 20 megapixels, whereas the Samsung provides 28 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon 70D
versus
Samsung NX500
Canon 70D   Samsung NX500
Digital single lens reflex Mirrorless system camera
Canon EF mount lenses Samsung NX mount lenses
20 MP – APS-C sensor 28 MP – APS-C sensor
1080/30p Video 4K/30p Video
ISO 100-12,800 (100 - 25,600) ISO 100-25,600 (100 - 51,200)
Optical viewfinder No viewfinder, LCD framing
3.0" LCD – 1040k dots 3.0" LCD – 1036k dots
Swivel touchscreen Tilting touchscreen
7 shutter flaps per second 9 shutter flaps per second
Weathersealed bodynot weather sealed
920 shots per battery charge370 shots per battery charge
139 x 104 x 79 mm, 755 g 120 x 64 x 43 mm, 287 g
logo
Check 70D offers at
ebay.com
logo
Check NX500 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 70D and the Samsung NX500? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

An illustration of the physical size and weight of the Canon 70D and the Samsung NX500 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

Size Canon 70D vs Samsung NX500

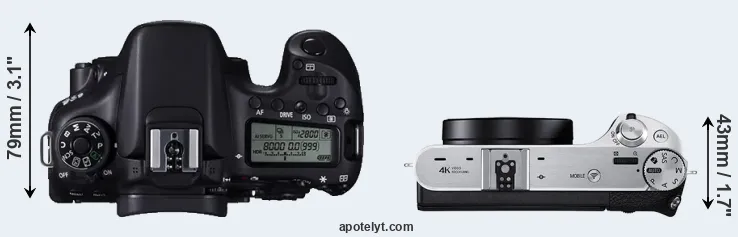

Compare 70D versus NX500 top

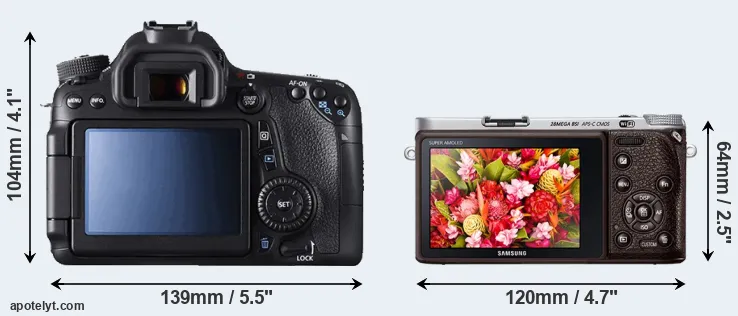

Comparison 70D or NX500 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Samsung NX500 is considerably smaller (47 percent) than the Canon 70D. Moreover, the NX500 is substantially lighter (62 percent) than the 70D. It is worth mentioning in this context that the 70D is splash and dust resistant, while the NX500 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The power pack in the NX500 can be charged via the USB port, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

scroll hint
Body Specifications
# image Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon 70D 139 mm 104 mm 79 mm 755 g 920 Y Jul 2013 1,199ebay.com
2.

Samsung NX500 120 mm 64 mm 43 mm 287 g 370 n Feb 2015 799ebay.com
3.

Canon 80D 139 mm 105 mm 79 mm 730 g 960 Y Feb 2016 1,199ebay.com
4.

Canon G3 X 123 mm 77 mm 105 mm 733 g 300 Y Jun 2015 999ebay.com
5.

Canon 7D II 149 mm 112 mm 78 mm 910 g 670 Y Sep 2014 1,799ebay.com
6.

Canon T5 130 mm 100 mm 78 mm 480 g 500 n Feb 2014 449ebay.com
7.

Canon 6D 145 mm 111 mm 71 mm 770 g 1090 Y Sep 2012 2,099ebay.com
8.

Canon 60D 145 mm 106 mm 79 mm 755 g 1100 Y Aug 2010 1,399ebay.com
9.

Canon 7D 148 mm 111 mm 74 mm 860 g 800 Y Sep 2009 1,699ebay.com
10.

Canon 50D 146 mm 108 mm 74 mm 822 g 800 Y Aug 2008 1,299ebay.com
11.

Nikon D5600 124 mm 97 mm 70 mm 465 g 970 n Nov 2016 699 amazon.com
12.

Nikon D5500 124 mm 97 mm 70 mm 470 g 820 n Jan 2015 899ebay.com
13.

Nikon D7100 136 mm 107 mm 76 mm 765 g 950 Y Feb 2013 1,199ebay.com
14.

Ricoh GR II 117 mm 63 mm 35 mm 251 g 320 n Jun 2015 699ebay.com
15.

Sony A5100 110 mm 63 mm 36 mm 283 g 400 n Aug 2014 549ebay.com
16.

Sony A6000 120 mm 67 mm 45 mm 344 g 360 n Feb 2014 599ebay.com
17.

Sony RX10 129 mm 88 mm 102 mm 813 g 420 Y Oct 2013 1,299ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
padding

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The NX500 was launched at a markedly lower price (by 33 percent) than the 70D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the NX500 is 9 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (70D) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

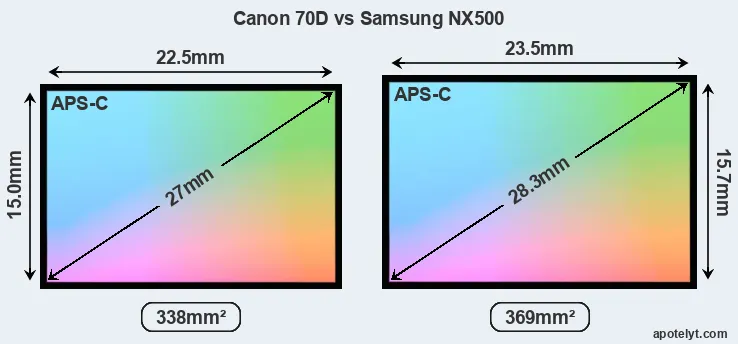

Canon 70D and Samsung NX500 sensor measures

With 28MP, the NX500 offers a higher resolution than the 70D (20MP), but the NX500 has smaller individual pixels (pixel pitch of 3.63μm versus 4.11μm for the 70D). Yet, the NX500 is a somewhat more recent model (by 1 year and 7 months) than the 70D, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the NX500 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Samsung NX500 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the NX500 for good quality output (200 dots per inch) amounts to 32.4 x 21.6 inches or 82.3 x 54.9 cm, for very good quality (250 dpi) 25.9 x 17.3 inches or 65.8 x 43.9 cm, and for excellent quality (300 dpi) 21.6 x 14.4 inches or 54.9 x 36.6 cm. The corresponding values for the Canon 70D are 27.4 x 18.2 inches or 69.5 x 46.3 cm for good quality, 21.9 x 14.6 inches or 55.6 x 37.1 cm for very good quality, and 18.2 x 12.2 inches or 46.3 x 30.9 cm for excellent quality prints.

The Canon EOS 70D has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Samsung NX500 are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.

In terms of underlying technology, the 70D is build around a CMOS sensor, while the NX500 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

70D versus NX500 MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the NX500 offers substantially better image quality than the 70D (overall score 19 points higher). The advantage is based on 2.3 bits higher color depth, 2.3 EV in additional dynamic range, and 0.6 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

scroll hint
Sensor Characteristics
# image Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon 70D APS-C 20.0 5472 36481080/30p22.511.692668
2.

Samsung NX500 APS-C 28.0 6480 43204K/30p24.813.9137987
3.

Canon 80D APS-C 24.0 6000 40001080/60p23.613.2113579
4.

Canon G3 X 1-inch 20.0 5472 36481080/60p21.412.352163
5.

Canon 7D II APS-C 20.0 5472 36481080/60p22.411.8108270
6.

Canon T5 APS-C 17.9 5184 34561080/30p21.911.372463
7.

Canon 6D Full Frame 20.0 5472 36481080/30p23.812.1234082
8.

Canon 60D APS-C 17.9 5184 34561080/30p22.211.581366
9.

Canon 7D APS-C 17.9 5184 34561080/30p22.011.785466
10.

Canon 50D APS-C 15.1 4752 3168none21.811.469663
11.

Nikon D5600 APS-C 24.0 6000 40001080/60p24.114.0130684
12.

Nikon D5500 APS-C 24.0 6000 40001080/60p24.114.0143884
13.

Nikon D7100 APS-C 24.0 6000 40001080/60p24.213.7125683
14.

Ricoh GR II APS-C 16.1 4928 32641080/30p23.613.7107880
15.

Sony A5100 APS-C 24.0 6000 40001080/60p23.812.7134780
16.

Sony A6000 APS-C 24.0 6000 40001080/60p24.113.1134782
17.

Sony RX10 1-inch 20.0 5472 36481080/60p22.912.647469
padding

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the NX500 provides a better video resolution than the 70D. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/30p.

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the 70D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the NX500 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon 70D and Samsung NX500 along with similar information for a selection of comparators.

scroll hint
Core Features
# image Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon 70Doptical Y3.0 / 1040 swivel Y 1/8000s 7.0/s Y n
2.

Samsung NX500none n3.0 / 1036 tilting Y 1/6000s 9.0/s Y n
3.

Canon 80Doptical Y3.0 / 1040 swivel Y 1/8000s 7.0/s Y n
4.

Canon G3 Xoptional n3.2 / 1620 tilting Y 1/2000s 5.9/s Y Y
5.

Canon 7D IIoptical Y3.0 / 1040 fixed n 1/8000s 10.0/s Y n
6.

Canon T5optical n3.0 / 460 fixed n 1/4000s 3.0/s Y n
7.

Canon 6Doptical Y3.0 / 1040 fixed n 1/4000s 4.5/s n n
8.

Canon 60Doptical Y3.0 / 1040 swivel n 1/8000s 5.3/s Y n
9.

Canon 7Doptical Y3.0 / 920 fixed n 1/8000s 8.0/s Y n
10.

Canon 50Doptical Y3.0 / 920 fixed n 1/8000s 6.3/s Y n
11.

Nikon D5600optical n3.2 / 1037 swivel Y 1/4000s 5.0/s Y n
12.

Nikon D5500optical n3.2 / 1037 swivel Y 1/4000s 5.0/s Y n
13.

Nikon D7100optical Y3.2 / 1229 fixed n 1/8000s 6.0/s Y n
14.

Ricoh GR IIoptional n3.0 / 1230 fixed n 1/4000s 4.0/s Y n
15.

Sony A5100none n3.0 / 922 tilting Y 1/4000s 6.0/s Y n
16.

Sony A60001440 n3.0 / 922 tilting n 1/4000s 11.0/s Y n
17.

Sony RX101440 Y3.0 / 1229 tilting n 1/3200s 10.0/s Y Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
padding

One feature that is present on the 70D, but is missing on the NX500 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.

The Samsung NX500 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the 70D and the NX500 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 70D and Samsung NX500 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
# image Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon 70DYstereo / monoY-mini2.0Y--
2.

Samsung NX500Ystereo / mono--micro2.0YYY
3.

Canon 80DYstereo / monoYYmini2.0YY-
4.

Canon G3 XYstereo / monoYYmini2.0YY-
5.

Canon 7D IIYstereo / monoYYmini3.0---
6.

Canon T5Ymono / mono--mini2.0---
7.

Canon 6DYmono / monoY-mini2.0Y--
8.

Canon 60DYmono / monoY-mini2.0---
9.

Canon 7DYmono / -Y-mini2.0---
10.

Canon 50DY- / ---mini2.0---
11.

Nikon D5600Ystereo / monoY-mini2.0YYY
12.

Nikon D5500Ystereo / monoY-mini2.0Y--
13.

Nikon D7100Ystereo / monoYYmini2.0---
14.

Ricoh GR IIYstereo / mono--micro2.0YY-
15.

Sony A5100-stereo / mono--micro2.0YY-
16.

Sony A6000Ystereo / mono--micro2.0YY-
17.

Sony RX10Ystereo / monoYYmicro2.0YY-
padding

It is notable that the 70D has a microphone port, which is missing on the NX500. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Both the 70D and the NX500 have been discontinued, but can regularly be found used on ebay. The 70D was replaced by the Canon 80D, while the NX500 does not have a direct successor. Further information on the features and operation of the 70D and NX500 can be found, respectively, in the Canon 70D Manual (free pdf) or the online Samsung NX500 Manual.

ad

Review summary

So what is the bottom line? Which of the two cameras – the Canon 70D or the Samsung NX500 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

ilogo

Advantages of the Canon EOS 70D:

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Better sound: Can connect to an external microphone for higher quality sound recording.
  • Easier framing: Has an optical viewfinder for image composition and settings control.
  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/6000s) to freeze action.
  • Longer lasting: Can take more shots (920 versus 370) on a single battery charge.
  • Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
  • More heavily discounted: Has been on the market for longer (launched in July 2013).

ilogo

Arguments in favor of the Samsung NX500:

  • More detail: Has more megapixels (28 vs 20MP), which boosts linear resolution by 18%.
  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Better image quality: Scores substantially higher (19 points) in the DXO overall evaluation.
  • Richer colors: Generates noticeably more natural colors (2.3 bits more color depth).
  • More dynamic range: Captures a broader range of light and dark details (2.3 EV of extra DR).
  • Better low-light sensitivity: Can shoot in dim conditions (0.6 stops ISO advantage).
  • Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
  • Faster burst: Shoots at higher frequency (9 vs 7 flaps/sec) to capture the decisive moment.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • More compact: Is smaller (120x64mm vs 139x104mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 468g or 62 percent) and is thus easier to take along.
  • Easier travel charging: Can be conveniently charged via its USB port.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • More affordable: Was introduced into a lower priced category (33 percent cheaper at launch).
  • More modern: Was introduced somewhat (1 year and 7 months) more recently.

If the count of relative strengths (bullet points above) is taken as a measure, the NX500 is the clear winner of the contest (17 : 9 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

70D 09:17 NX500

How about other alternatives? Do the specifications of the Canon 70D and the Samsung NX500 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 70D or the NX500. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
# image  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon 70D5/5+ +..83/1004.5/55/5 Jul 2013 1,199ebay.com
2.

Samsung NX5004.5/5....81/1005/54.5/5 Feb 2015 799ebay.com
3.

Canon 80D4/5+ +4.5/584/1004.5/54.5/5 Feb 2016 1,199ebay.com
4.

Canon G3 X3.5/5+....4.5/54/5 Jun 2015 999ebay.com
5.

Canon 7D II4.5/5+3.5/584/1004/54.5/5 Sep 2014 1,799ebay.com
6.

Canon T53/5+....4/54.5/5 Feb 2014 449ebay.com
7.

Canon 6D5/5+ +..83/1004.5/54.5/5 Sep 2012 2,099ebay.com
8.

Canon 60D5/5+..79/1004/54.5/5 Aug 2010 1,399ebay.com
9.

Canon 7D5/5+ +..84/1004.5/54.5/5 Sep 2009 1,699ebay.com
10.

Canon 50D..+ +..+ +4.5/54.5/5 Aug 2008 1,299ebay.com
11.

Nikon D56004/5..4/579/1004.5/54/5 Nov 2016 699 amazon.com
12.

Nikon D55005/5+..79/1004.5/54.5/5 Jan 2015 899ebay.com
13.

Nikon D71005/5+ +..85/1004.5/54.5/5 Feb 2013 1,199ebay.com
14.

Ricoh GR II........4.5/54.5/5 Jun 2015 699ebay.com
15.

Sony A51004.5/5+....4.5/55/5 Aug 2014 549ebay.com
16.

Sony A60005/5+4.5/580/1004.5/55/5 Feb 2014 599ebay.com
17.

Sony RX105/5+..80/1004.5/54.5/5 Oct 2013 1,299ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
padding

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

logo
Check 70D offers at
ebay.com
logo
Check NX500 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader
    ad

    Specifications: Canon 70D vs Samsung NX500

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon 70D Samsung NX500
    Camera Type Digital single lens reflex Mirrorless system camera
    Camera Lens Canon EF mount lenses Samsung NX mount lenses
    Launch Date July 2013 February 2015
    Launch Price USD 1,199 USD 799
    Sensor Specs Canon 70D Samsung NX500
    Sensor Technology CMOS BSI-CMOS
    Sensor Format APS-C Sensor APS-C Sensor
    Sensor Size 22.5 x 15.0 mm 23.5 x 15.7 mm
    Sensor Area 337.5 mm2 368.95 mm2
    Sensor Diagonal 27 mm 28.3 mm
    Crop Factor 1.6x 1.5x
    Sensor Resolution 20 Megapixels 28 Megapixels
    Image Resolution 5472 x 3648 pixels 6480 x 4320 pixels
    Pixel Pitch 4.11 μm 3.63 μm
    Pixel Density 5.91 MP/cm2 7.59 MP/cm2
    Moiré control Anti-Alias filter no AA filter
    Movie Capability 1080/30p Video 4K/30p Video
    ISO Setting 100 - 12,800 ISO 100 - 25,600 ISO
    ISO Boost 100 - 25,600 ISO 100 - 51,200 ISO
    Image Processor DIGIC 5+ DRIMe Vs
    DXO Sensor Quality (score) 68 87
    DXO Color Depth (bits) 22.5 24.8
    DXO Dynamic Range (EV) 11.6 13.9
    DXO Low Light (ISO) 926 1379
    Screen Specs Canon 70D Samsung NX500
    Viewfinder Type Optical viewfinder no viewfinder
    Viewfinder Field of View 98%
    Viewfinder Magnification 0.59x
    Top-Level Screen Control Panel no Top Display
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.0inch
    LCD Resolution 1040k dots 1036k dots
    LCD Attachment Swivel screen Tilting screen
    Touch Input Touchscreen Touchscreen
    Shooting Specs Canon 70D Samsung NX500
    Focus System Phase-detect AF On-Sensor Phase-detect
    Manual Focusing Aidno Peaking FeatureFocus Peaking
    Max Shutter Speed (mechanical) 1/8000s 1/6000s
    Continuous Shooting 7 shutter flaps/s 9 shutter flaps/s
    Time-Lapse Photographyno IntervalometerIntervalometer built-in
    Fill Flash Built-in Flash Built-in Flash
    Storage Medium SDXC cards SDXC cards
    Single or Dual Card Slots Single card slot Single card slot
    UHS card support UHS-I UHS-I
    Connectivity Specs Canon 70D Samsung NX500
    External Flash Hotshoe Hotshoe
    USB Connector USB 2.0 USB 2.0
    HDMI Port mini HDMI micro HDMI
    Microphone Port External MIC port no MIC socket
    Wifi Support Wifi built-in Wifi built-in
    Near-Field Communication no NFC NFC built-in
    Bluetooth Support no Bluetooth Bluetooth built-in
    Body Specs Canon 70D Samsung NX500
    Environmental SealingWeathersealed bodynot weather sealed
    Battery Type LP-E6 BP1130
    Battery Life (CIPA)920 shots per charge370 shots per charge
    In-Camera Charging no USB charging USB charging
    Body Dimensions 139 x 104 x 79 mm
    (5.5 x 4.1 x 3.1 in)
    120 x 64 x 43 mm
    (4.7 x 2.5 x 1.7 in)
    Camera Weight 755 g (26.6 oz) 287 g (10.1 oz)
    logo
    Check 70D offers at
    ebay.com
    logo
    Check NX500 offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon 70D vs Samsung NX500
