Canon 70D vs RP
The Canon EOS 70D and the Canon EOS RP are two digital cameras that were revealed to the public, respectively, in July 2013 and February 2019. The 70D is a DSLR, while the RP is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (70D) and a full frame (RP) sensor. The 70D has a resolution of 20 megapixels, whereas the RP provides 26 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 70D and the Canon EOS RP? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

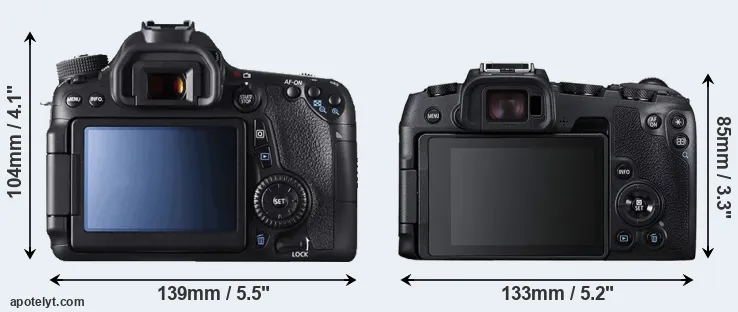

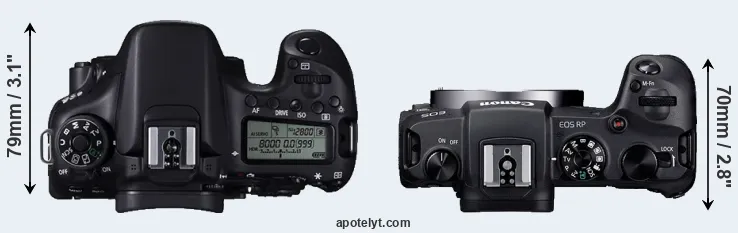

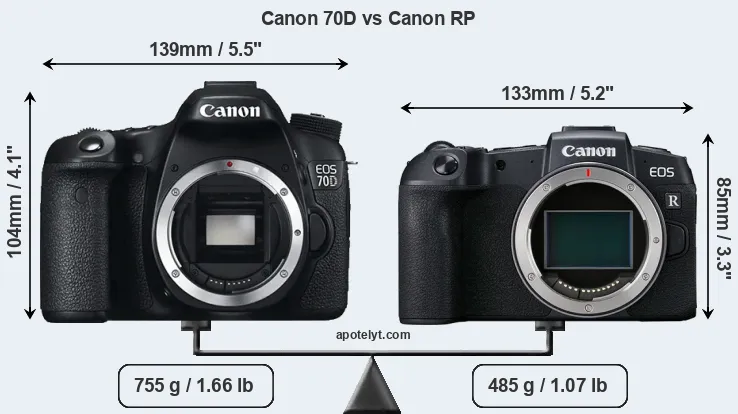

The side-by-side display below illustrates the physical size and weight of the Canon 70D and the Canon RP. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon RP is notably smaller (22 percent) than the Canon 70D. Moreover, the RP is substantially lighter (36 percent) than the 70D. It is worth mentioning in this context that the 70D is splash and dust resistant, while the RP does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
Concerning battery life, the 70D gets 920 shots out of its LP-E6 battery, while the RP can take 250 images on a single charge of its LP-E17 power pack. The power pack in the RP can be charged via the USB port, which can be very convenient when travelling.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon 70D||139 mm||104 mm||79 mm||755 g||920||Y||Jul 2013||1,199|
|2.||Canon RP||133 mm||85 mm||70 mm||485 g||250||n||Feb 2019||1,299|
|3.||Canon 2000D||129 mm||101 mm||78 mm||475 g||500||n||Feb 2018||449|
|4.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899|
|5.||Canon 200D||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549|
|6.||Canon 80D||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199|
|7.||Canon 750D||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749|
|8.||Canon 760D||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|9.||Canon G3 X||123 mm||77 mm||105 mm||733 g||300||Y||Jun 2015||999|
|10.||Canon 7D II||149 mm||112 mm||78 mm||910 g||670||Y||Sep 2014||1,799|
|11.||Canon 6D||145 mm||111 mm||71 mm||770 g||1090||Y||Sep 2012||2,099|
|12.||Canon 60D||145 mm||106 mm||79 mm||755 g||1100||Y||Aug 2010||1,399|
|13.||Canon 7D||148 mm||111 mm||74 mm||860 g||800||Y||Sep 2009||1,699|
|14.||Canon 50D||146 mm||108 mm||74 mm||822 g||800||Y||Aug 2008||1,299|
|15.||Nikon D7100||136 mm||107 mm||76 mm||765 g||950||Y||Feb 2013||1,199|
|16.||Sony RX10 II||129 mm||88 mm||102 mm||813 g||400||Y||Jun 2015||1,299|
|17.||Sony RX10||129 mm||88 mm||102 mm||813 g||420||Y||Oct 2013||1,299|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The 70D was somewhat cheaper (by 8 percent) than the RP at launch, but both cameras fall into the same price category. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

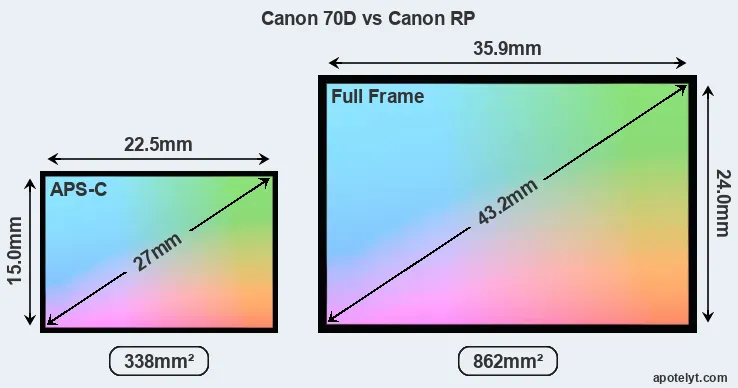

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 70D features an APS-C sensor and the Canon RP a full frame sensor. The sensor area in the RP is 155 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, the RP uses a more advanced image processing engine (DIGIC 8) than the 70D (DIGIC 5+), with benefits for noise reduction, color accuracy, and processing speed.

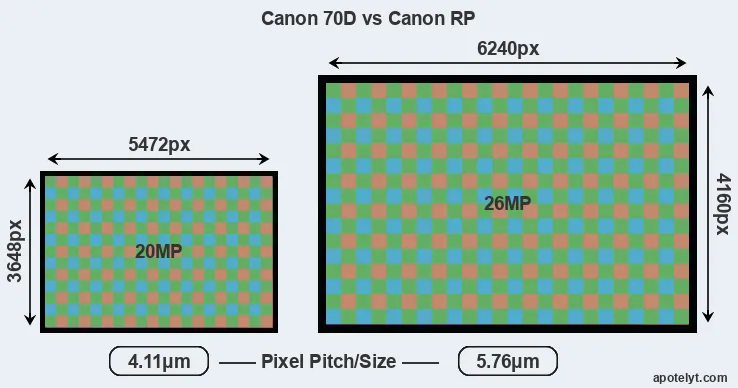

With 26MP, the RP offers a higher resolution than the 70D (20MP), but the RP nevertheless has larger individual pixels (pixel pitch of 5.76μm versus 4.11μm for the 70D) due to its larger sensor. Moreover, the RP is a much more recent model (by 5 years and 7 months) than the 70D, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.
The resolution advantage of the Canon RP implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the RP for good quality output (200 dots per inch) amounts to 31.2 x 20.8 inches or 79.2 x 52.8 cm, for very good quality (250 dpi) 25 x 16.6 inches or 63.4 x 42.3 cm, and for excellent quality (300 dpi) 20.8 x 13.9 inches or 52.8 x 35.2 cm. The corresponding values for the Canon 70D are 27.4 x 18.2 inches or 69.5 x 46.3 cm for good quality, 21.9 x 14.6 inches or 55.6 x 37.1 cm for very good quality, and 18.2 x 12.2 inches or 46.3 x 30.9 cm for excellent quality prints.
The Canon EOS 70D has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Canon EOS RP are ISO 100 to ISO 40000, with the possibility to increase the ISO range to 50-102400.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the RP offers substantially better image quality than the 70D (overall score 17 points higher). The advantage is based on 1.8 bits higher color depth, 0.3 EV in additional dynamic range, and 1.7 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|2.||Canon RP||Full Frame||26.0||6240||4160||4K/30p||24.3||11.9||2977||85|
|9.||Canon G3 X||1-inch||20.0||5472||3648||1080/60p||21.4||12.3||521||63|
|10.||Canon 7D II||APS-C||20.0||5472||3648||1080/60p||22.4||11.8||1082||70|
|11.||Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|16.||Sony RX10 II||1-inch||20.0||5472||3648||4K/30p||23.0||12.6||531||70|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the RP provides a better video resolution than the 70D. It can shoot movie footage at 4K/30p, while the 70D is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the RP has an electronic viewfinder (2360k dots), while the 70D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the RP offers a wider field of view (100%) than the one in the 70D (98%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the RP has a higher magnification (0.70x vs 0.59x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 70D and Canon RP in connection with corresponding information for a sample of similar cameras.
|1.||Canon 70D||optical||Y||3.0 / 1040||swivel||Y||1/8000s||7.0/s||Y||n|
|2.||Canon RP||2360||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||n||n|
|3.||Canon 2000D||optical||n||3.0 / 920||fixed||n||1/4000s||3.0/s||Y||n|
|4.||Canon 77D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.0/s||Y||n|
|5.||Canon 200D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|6.||Canon 80D||optical||Y||3.0 / 1040||swivel||Y||1/8000s||7.0/s||Y||n|
|7.||Canon 750D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|8.||Canon 760D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|9.||Canon G3 X||optional||n||3.2 / 1620||tilting||Y||1/2000s||5.9/s||Y||Y|
|10.||Canon 7D II||optical||Y||3.0 / 1040||fixed||n||1/8000s||10.0/s||Y||n|
|11.||Canon 6D||optical||Y||3.0 / 1040||fixed||n||1/4000s||4.5/s||n||n|
|12.||Canon 60D||optical||Y||3.0 / 1040||swivel||n||1/8000s||5.3/s||Y||n|
|13.||Canon 7D||optical||Y||3.0 / 920||fixed||n||1/8000s||8.0/s||Y||n|
|14.||Canon 50D||optical||Y||3.0 / 920||fixed||n||1/8000s||6.3/s||Y||n|
|15.||Nikon D7100||optical||Y||3.2 / 1229||fixed||n||1/8000s||6.0/s||Y||n|
|16.||Sony RX10 II||2359||Y||3.0 / 1229||tilting||n||1/3200s||14.0/s||Y||Y|
|17.||Sony RX10||1440||Y||3.0 / 1229||tilting||n||1/3200s||10.0/s||Y||Y|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One difference between the cameras concerns the presence of an on-board flash. The 70D has one, while the RP does not. While the built-in flash of the 70D is not very powerful, it can at times be useful as a fill-in light.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The Canon RP has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the 70D and the RP write their files to SDXC cards. The RP supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the 70D can use UHS-I cards (up to 104 MB/s).
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 70D and Canon EOS RP and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon 70D||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|2.||Canon RP||Y||stereo / mono||Y||Y||micro||2.0||Y||-||Y|
|3.||Canon 2000D||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|4.||Canon 77D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|5.||Canon 200D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|6.||Canon 80D||Y||stereo / mono||Y||Y||mini||2.0||Y||Y||-|
|7.||Canon 750D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|8.||Canon 760D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|9.||Canon G3 X||Y||stereo / mono||Y||Y||mini||2.0||Y||Y||-|
|10.||Canon 7D II||Y||stereo / mono||Y||Y||mini||3.0||-||-||-|
|11.||Canon 6D||Y||mono / mono||Y||-||mini||2.0||Y||-||-|
|12.||Canon 60D||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|13.||Canon 7D||Y||mono / -||Y||-||mini||2.0||-||-||-|
|14.||Canon 50D||Y||- / -||-||-||mini||2.0||-||-||-|
|15.||Nikon D7100||Y||stereo / mono||Y||Y||mini||2.0||-||-||-|
|16.||Sony RX10 II||Y||stereo / mono||Y||Y||micro||2.0||Y||Y||-|
|17.||Sony RX10||Y||stereo / mono||Y||Y||micro||2.0||Y||Y||-|
It is notable that the RP has a headphone jack, which makes it possible to attach external headphones and monitor the quality of sound during the recording process. The 70D lacks such a headphone port.
The RP is a recent model that features in the current product line-up of Canon. In contrast, the 70D has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the 70D was succeeded by the Canon 80D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So what is the bottom line? Is there a clear favorite between the Canon 70D and the Canon RP? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Canon EOS 70D:
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (7 vs 5 flaps/sec) to capture the decisive moment.
- Longer lasting: Can take more shots (920 versus 250) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More heavily discounted: Has been available for much longer (launched in July 2013).
Advantages of the Canon EOS RP:
- More detail: Has more megapixels (26 vs 20MP), which boosts linear resolution by 14%.
- Better image quality: Scores substantially higher (17 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (1.8 bits more color depth).
- Better low-light sensitivity: Can shoot in dim conditions (1.7 stops ISO advantage).
- Better jpgs: Has a more modern image processing engine (DIGIC 8 vs DIGIC 5+).
- Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 98%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.59x).
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (133x85mm vs 139x104mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 270g or 36 percent) and is thus easier to take along.
- Easier travel charging: Can be conveniently charged via its USB port.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More modern: Reflects 5 years and 7 months of technical progress since the 70D launch.
If the count of relative strengths (bullet points above) is taken as a measure, the RP is the clear winner of the contest (18 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 70D and the Canon RP place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the 70D and the RP in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 70D||5/5||+ +||..||83/100||4.5/5||5/5||Jul 2013||1,199|
|2.||Canon RP||4/5||+||4/5||..||4.5/5||4/5||Feb 2019||1,299|
|3.||Canon 2000D||..||o||..||..||3.5/5||3.5/5||Feb 2018||449|
|4.||Canon 77D||4.5/5||..||4/5||82/100||4.5/5||4/5||Feb 2017||899|
|5.||Canon 200D||4/5||+ +||4/5||78/100||4.5/5||4.5/5||Jun 2017||549|
|6.||Canon 80D||4/5||+ +||4.5/5||84/100||4.5/5||4.5/5||Feb 2016||1,199|
|7.||Canon 750D||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749|
|8.||Canon 760D||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649|
|9.||Canon G3 X||3.5/5||+||..||..||4.5/5||4/5||Jun 2015||999|
|10.||Canon 7D II||4.5/5||+||3.5/5||84/100||4/5||4.5/5||Sep 2014||1,799|
|11.||Canon 6D||5/5||+ +||..||83/100||4.5/5||4.5/5||Sep 2012||2,099|
|12.||Canon 60D||5/5||+||..||79/100||4/5||4.5/5||Aug 2010||1,399|
|13.||Canon 7D||5/5||+ +||..||84/100||4.5/5||4.5/5||Sep 2009||1,699|
|14.||Canon 50D||..||+ +||..||+ +||4.5/5||4.5/5||Aug 2008||1,299|
|15.||Nikon D7100||5/5||+ +||..||85/100||4.5/5||4.5/5||Feb 2013||1,199|
|16.||Sony RX10 II||5/5||+ +||..||82/100||4.5/5||4/5||Jun 2015||1,299|
|17.||Sony RX10||5/5||+||..||80/100||4.5/5||4.5/5||Oct 2013||1,299|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon 70D vs Canon RP
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 70D||Canon RP|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Canon RF mount lenses|
|Launch Date||July 2013||February 2019|
|Launch Price||USD 1,199||USD 1,299|
|Sensor Specs||Canon 70D||Canon RP|
|Sensor Format||APS-C Sensor||Full Frame Sensor|
|Sensor Size||22.5 x 15.0 mm||35.9 x 24.0 mm|
|Sensor Area||337.5 mm2||861.6 mm2|
|Sensor Diagonal||27 mm||43.2 mm|
|Sensor Resolution||20 Megapixels||26 Megapixels|
|Image Resolution||5472 x 3648 pixels||6240 x 4160 pixels|
|Pixel Pitch||4.11 μm||5.76 μm|
|Pixel Density||5.91 MP/cm2||3.01 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||4K/30p Video|
|ISO Setting||100 - 12,800 ISO||100 - 40,000 ISO|
|ISO Boost||100 - 25,600 ISO||50 - 102,400 ISO|
|Image Processor||DIGIC 5+||DIGIC 8|
|DXO Sensor Quality (score)||68||85|
|DXO Color Depth (bits)||22.5||24.3|
|DXO Dynamic Range (EV)||11.6||11.9|
|DXO Low Light (ISO)||926||2977|
|Screen Specs||Canon 70D||Canon RP|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||98%||100%|
|Viewfinder Resolution||2360k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||1040k dots|
|LCD Attachment||Swivel screen||Swivel screen|
|Shooting Specs||Canon 70D||Canon RP|
|Focus System||Phase-detect AF||On-Sensor Phase-detect|
|Continuous Shooting||7 shutter flaps/s||5 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||100 000 actuations|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Built-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-II|
|Connectivity Specs||Canon 70D||Canon RP|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Canon 70D||Canon RP|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||920 shots per charge||250 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
139 x 104 x 79 mm
(5.5 x 4.1 x 3.1 in)
133 x 85 x 70 mm
(5.2 x 3.3 x 2.8 in)
|Camera Weight||755 g (26.6 oz)||485 g (17.1 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
