Canon 70D vs Canon R

The Canon EOS 70D and the Canon EOS R are two digital cameras that were revealed to the public, respectively, in July 2013 and September 2018. The 70D is a DSLR, while the Canon R is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (70D) and a full frame (Canon R) sensor. The 70D has a resolution of 20 megapixels, whereas the Canon R provides 30.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon 70D   Canon R
Canon 70D Canon R
Digital single lens reflex Mirrorless system camera
Canon EF mount lenses Canon RF mount lenses
20 MP, APS-C Sensor 30.1 MP, Full Frame Sensor
1080/30p Video 4K/30p Video
ISO 100-12800 (100-25600) ISO 100-40000 (50-102400)
Optical viewfinder Electronic viewfinder (3690k dots)
3.0" LCD, 1040k dots 3.2" LCD, 2100k dots
Swivel touchscreen Swivel touchscreen
7 shutter flaps per second 8 shutter flaps per second
Weathersealed bodyWeathersealed body
920 shots per battery charge370 shots per battery charge
139 x 104 x 79 mm, 755 g 139 x 98 x 84 mm, 660 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 70D and the Canon EOS R? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison: Canon 70D vs Canon R

The side-by-side display below illustrates the physical size and weight of the Canon 70D and the Canon R. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

Size Canon 70D vs Canon R

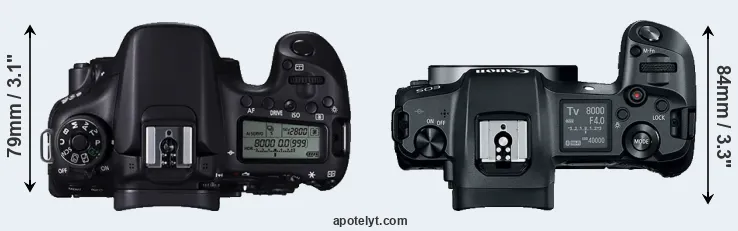

Compare 70D versus Canon R top
Comparison 70D or Canon R rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon R is notably smaller (6 percent) than the Canon 70D. Moreover, the Canon R is markedly lighter (13 percent) than the 70D. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the 70D gets 920 shots out of its LP-E6 battery, while the Canon R can take 370 images on a single charge of its LP-E6N power pack. The power pack in the Canon R can be charged via the USB port, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Canon 70D» 5.5 in 4.1 in 3.1 in 26.6 oz 920 Y Jul 2013 1,199- i Canon 70D

Canon R« 5.5 in 3.9 in 3.3 in 23.3 oz 370 Y Sep 2018 2,299 i i Canon R

Canon RP« » 5.2 in 3.3 in 2.8 in 17.1 oz 250 n Feb 2019 1,299 i i Canon RP

Canon 6D Mark II« » 5.7 in 4.4 in 3.0 in 27.0 oz 1200 Y Jun 2017 1,999 i i Canon 6D Mark II

Canon 5D Mark IV« » 5.9 in 4.6 in 3.0 in 31.4 oz 900 Y Aug 2016 3,499 i i Canon 5D Mark IV

Canon 80D« » 5.5 in 4.1 in 3.1 in 25.8 oz 960 Y Feb 2016 1,199 i i Canon 80D

Canon G3 X« » 4.8 in 3.0 in 4.1 in 25.9 oz 300 Y Jun 2015 999 i i Canon G3 X

Canon 7D II« » 5.9 in 4.4 in 3.1 in 32.1 oz 670 Y Sep 2014 1,799 i i Canon 7D II

Canon T5« » 5.1 in 3.9 in 3.1 in 16.9 oz 500 n Feb 2014 449- i Canon T5

Canon 6D« » 5.7 in 4.4 in 2.8 in 27.2 oz 1090 Y Sep 2012 2,099- i Canon 6D

Canon 60D« » 5.7 in 4.2 in 3.1 in 26.6 oz 1100 Y Aug 2010 1,399- i Canon 60D

Canon 7D« » 5.8 in 4.4 in 2.9 in 30.3 oz 800 Y Sep 2009 1,699- i Canon 7D

Canon 50D« » 5.7 in 4.3 in 2.9 in 29.0 oz 800 Y Aug 2008 1,299- i Canon 50D

Nikon Z6« » 5.3 in 4.0 in 2.6 in 23.8 oz 310 Y Aug 2018 1,999 i i Nikon Z6

Nikon D7100« » 5.4 in 4.2 in 3.0 in 27.0 oz 950 Y Feb 2013 1,199- i Nikon D7100

Sony A7 III« » 5.0 in 3.8 in 2.9 in 22.9 oz 610 Y Feb 2018 1,999 i i Sony A7 III

Sony RX10« » 5.1 in 3.5 in 4.0 in 28.7 oz 420 Y Oct 2013 1,299- i Sony RX10
Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The 70D was launched at a markedly lower price (by 48 percent) than the Canon R, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.



Sensor comparison: Canon 70D vs Canon R

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 70D features an APS-C sensor and the Canon R a full frame sensor. The sensor area in the Canon R is 156 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, the Canon R uses a more advanced image processing engine (DIGIC 8) than the 70D (DIGIC 5+), with benefits for noise reduction, color accuracy, and processing speed.

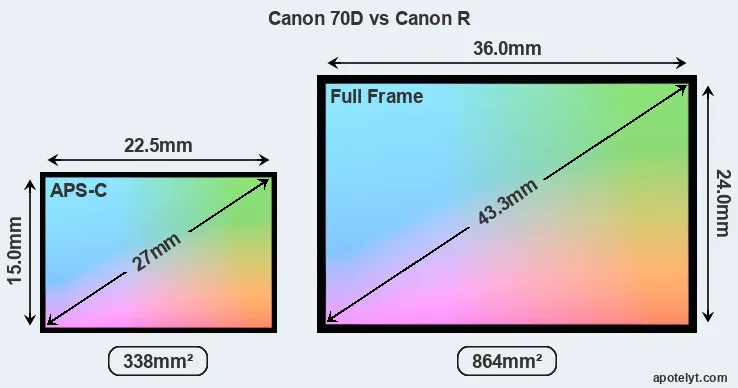

Canon 70D and Canon R sensor measures

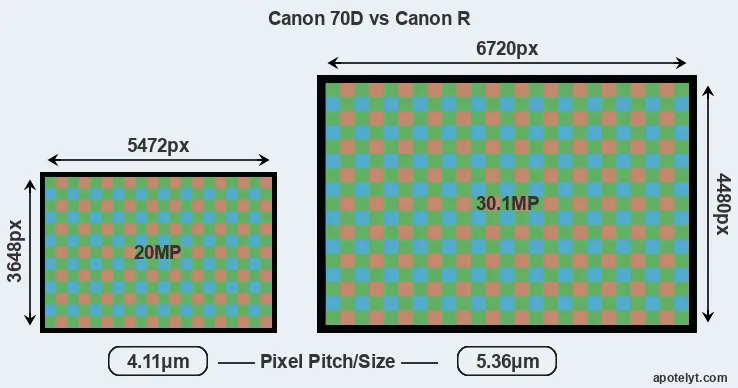

With 30.1MP, the Canon R offers a higher resolution than the 70D (20MP), but the Canon R nevertheless has larger individual pixels (pixel pitch of 5.36μm versus 4.11μm for the 70D) due to its larger sensor. Moreover, the Canon R is a much more recent model (by 5 years and 2 months) than the 70D, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Canon R implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the Canon R for good quality output (200 dots per inch) amounts to 33.6 x 22.4 inch or 85.3 x 56.9 cm, for very good quality (250 dpi) 26.9 x 17.9 inch or 68.3 x 45.5 cm, and for excellent quality (300 dpi) 22.4 x 14.9 inch or 56.9 x 37.9 cm. The corresponding values for the Canon 70D are 27.4 x 18.2 inch or 69.5 x 46.3 cm for good quality, 21.9 x 14.6 inch or 55.6 x 37.1 cm for very good quality, and 18.2 x 12.2 inch or 46.3 x 30.9 cm for excellent quality prints.

The Canon EOS 70D has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Canon EOS R are ISO 100 to ISO 40000, with the possibility to increase the ISO range to 50-102400.

70D versus Canon R MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the Canon R offers substantially better image quality than the 70D (overall score 21 points higher). The advantage is based on 2 bits higher color depth, 1.9 EV in additional dynamic range, and 1.6 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model

Canon 70D» APS-C 20.0 5472 36481080/30p22.511.692668Canon 70D

Canon R« Full Frame 30.1 6720 44804K/30p24.513.5274289Canon R

Canon RP« » Full Frame 26.2 6240 41604K/30p----Canon RP

Canon 6D Mark II« » Full Frame 26.0 6240 41601080/60p24.411.9286285Canon 6D Mark II

Canon 5D Mark IV« » Full Frame 30.1 6720 44804K/30p24.813.6299591Canon 5D Mark IV

Canon 80D« » APS-C 24.0 6000 40001080/60p23.613.2113579Canon 80D

Canon G3 X« » 1-inch 20.0 5472 36481080/60p21.412.352163Canon G3 X

Canon 7D II« » APS-C 20.0 5472 36481080/60p22.411.8108270Canon 7D II

Canon T5« » APS-C 17.9 5184 34561080/30p21.911.372463Canon T5

Canon 6D« » Full Frame 20.0 5472 36481080/30p23.812.1234082Canon 6D

Canon 60D« » APS-C 17.9 5184 34561080/30p22.211.581366Canon 60D

Canon 7D« » APS-C 17.9 5184 34561080/30p22.011.785466Canon 7D

Canon 50D« » APS-C 15.1 4752 3168-21.811.469663Canon 50D

Nikon Z6« » Full Frame 24.3 6048 40244K/30p25.314.3329995Nikon Z6

Nikon D7100« » APS-C 24.0 6000 40001080/60p24.213.7125683Nikon D7100

Sony A7 III« » Full Frame 24.0 6000 40004K/30p25.014.7373096Sony A7 III

Sony RX10« » 1-inch 20.0 5472 36481080/60p22.912.647469Sony RX10

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the Canon R provides a better video resolution than the 70D. It can shoot movie footage at 4K/30p, while the 70D is limited to 1080/30p.



Feature comparison: Canon 70D vs Canon R

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the Canon R has an electronic viewfinder (3690k dots), while the 70D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the Canon R offers a wider field of view (100%) than the one in the 70D (98%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the Canon R has a higher magnification (0.76x vs 0.59x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 70D and Canon R along with similar information for a selection of comparators.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
Camera
Model

Canon 70D»optical Y 3.0 1040 swivel Y 1/8000s 7.0 Y n Canon 70D

Canon R«3690 Y 3.2 2100 swivel Y 1/8000s 8.0 n n Canon R

Canon RP« »2360 n 3.0 1040 swivel Y 1/4000s 5.0 n n Canon RP

Canon 6D Mark II« »optical Y 3.0 1040 swivel Y 1/4000s 6.5 n n Canon 6D Mark II

Canon 5D Mark IV« »optical Y 3.2 1620 fixed Y 1/8000s 7.0 n n Canon 5D Mark IV

Canon 80D« »optical Y 3.0 1040 swivel Y 1/8000s 7.0 Y n Canon 80D

Canon G3 X« »- n 3.2 1620 tilting Y 1/2000s 5.9 Y Y Canon G3 X

Canon 7D II« »optical Y 3.0 1040 fixed n 1/8000s 10.0 Y n Canon 7D II

Canon T5« »optical n 3.0 460 fixed n 1/4000s 3.0 Y n Canon T5

Canon 6D« »optical Y 3.0 1040 fixed n 1/4000s 4.5 n n Canon 6D

Canon 60D« »optical Y 3.0 1040 swivel n 1/8000s 5.3 Y n Canon 60D

Canon 7D« »optical Y 3.0 920 fixed n 1/8000s 8.0 Y n Canon 7D

Canon 50D« »optical Y 3.0 920 fixed n 1/8000s 6.3 Y n Canon 50D

Nikon Z6« »3690 Y 3.2 2100 tilting Y 1/8000s 12.0 n Y Nikon Z6

Nikon D7100« »optical Y 3.2 1229 fixed n 1/8000s 6.0 Y n Nikon D7100

Sony A7 III« »2359 n 3.0 922 tilting Y 1/8000s 10.0 n Y Sony A7 III

Sony RX10« »1440 Y 3.0 1229 tilting n 1/3200s 10.0 Y Y Sony RX10

One difference between the cameras concerns the presence of an on-board flash. The 70D has one, while the Canon R does not. While the built-in flash of the 70D is not very powerful, it can at times be useful as a fill-in light.

Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the Canon R is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

Concerning the storage of imaging data, both the 70D and the Canon R write their files to SDXC cards. The Canon R supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the 70D can use UHS-I cards (up to 104 MB/s).



Connectivity comparison: Canon 70D vs Canon R

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 70D and Canon EOS R and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model

Canon 70D»YstereomonoY-mini2.0Y--Canon 70D

Canon R«YstereomonoY-mini3.1Y-YCanon R

Canon RP« »YstereomonoYYmicro2.0Y-YCanon RP

Canon 6D Mark II« »YstereomonoY-mini2.0YYYCanon 6D Mark II

Canon 5D Mark IV« »YmonomonoYYmini3.0YY-Canon 5D Mark IV

Canon 80D« »YstereomonoYYmini2.0YY-Canon 80D

Canon G3 X« »YstereomonoYYmini2.0YY-Canon G3 X

Canon 7D II« »YstereomonoYYmini3.0---Canon 7D II

Canon T5« »Ymonomono--mini2.0---Canon T5

Canon 6D« »YmonomonoY-mini2.0Y--Canon 6D

Canon 60D« »YmonomonoY-mini2.0---Canon 60D

Canon 7D« »Ymono-Y-mini2.0---Canon 7D

Canon 50D« »Y----mini2.0---Canon 50D

Nikon Z6« »YstereomonoYYmicro3.1Y-YNikon Z6

Nikon D7100« »YstereomonoYYmini2.0---Nikon D7100

Sony A7 III« »YstereomonoYYmicro3.1YYYSony A7 III

Sony RX10« »YstereomonoYYmicro2.0YY-Sony RX10

The Canon R is a recent model that features in the current product line-up of Canon. In contrast, the 70D has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the 70D was succeeded by the Canon 80D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.


Review summary: Canon 70D vs Canon R

So what is the bottom line? Is the Canon 70D better than the Canon R or vice versa? A synthesis of the relative strong points of each of the models is listed below.


Arguments in favor of the Canon EOS 70D:

  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Longer lasting: Can take more shots (920 versus 370) on a single battery charge.
  • Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
  • More affordable: Was introduced into a lower priced category (48 percent cheaper at launch).
  • More heavily discounted: Has been available for much longer (launched in July 2013).


Advantages of the Canon EOS R:

  • More detail: Has more megapixels (30.1 vs 20MP), which boosts linear resolution by 23%.
  • Better image quality: Scores substantially higher (21 points) in the DXO overall evaluation.
  • Richer colors: Generates noticeably more natural colors (2 bits more color depth).
  • More dynamic range: Captures a broader range of light and dark details (1.9 EV of extra DR).
  • Better low-light sensitivity: Can shoot in dim conditions (1.6 stops ISO advantage).
  • Better jpgs: Has a more modern image processing engine (DIGIC 8 vs DIGIC 5+).
  • Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • More complete view: Has a viewfinder with a larger field of view (100% vs 98%).
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.76x vs 0.59x).
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (2100k vs 1040k dots).
  • Faster burst: Shoots at higher frequency (8 vs 7 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • Less heavy: Has a lower weight (by 95g or 13 percent) and is thus easier to take along.
  • Easier travel charging: Can be conveniently charged via its USB port.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
  • More modern: Reflects 5 years and 2 months of technical progress since the 70D launch.

If the count of relative strengths (bullet points above) is taken as a measure, the Canon R is the clear winner of the contest (20 : 5 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

70D 05:20 Canon R

How about other alternatives? Do the specifications of the Canon 70D and the Canon R place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the 70D or the Canon R perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews: Canon 70D vs Canon R

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Canon 70D»+ +83/1004.5/54.5/55/5 Jul 2013 1,199- i Canon 70D

Canon R«o79/1004.5/54/54/5 Sep 2018 2,299 i i Canon R

Canon RP« »+-4.5/5-4/5 Feb 2019 1,299 i i Canon RP

Canon 6D Mark II« »+80/1004.5/54/54/5 Jun 2017 1,999 i i Canon 6D Mark II

Canon 5D Mark IV« »+ +87/1004.5/55/54.5/5 Aug 2016 3,499 i i Canon 5D Mark IV

Canon 80D« »+ +84/1004.5/54.5/54.5/5 Feb 2016 1,199 i i Canon 80D

Canon G3 X« »+-4.5/53.5/54/5 Jun 2015 999 i i Canon G3 X

Canon 7D II« »+84/1004/55/54.5/5 Sep 2014 1,799 i i Canon 7D II

Canon T5« »+-4/54/54.5/5 Feb 2014 449- i Canon T5

Canon 6D« »+ +83/1004.5/54.5/54.5/5 Sep 2012 2,099- i Canon 6D

Canon 60D« »+79/1004/55/54.5/5 Aug 2010 1,399- i Canon 60D

Canon 7D« »+ +84/1004.5/55/54.5/5 Sep 2009 1,699- i Canon 7D

Canon 50D« »+ ++ +4.5/55/54.5/5 Aug 2008 1,299- i Canon 50D

Nikon Z6« »--4.5/5-5/5 Aug 2018 1,999 i i Nikon Z6

Nikon D7100« »+ +85/1004.5/55/54.5/5 Feb 2013 1,199- i Nikon D7100

Sony A7 III« »+ +89/1005/55/55/5 Feb 2018 1,999 i i Sony A7 III

Sony RX10« »+80/1004.5/54.5/54.5/5 Oct 2013 1,299- i Sony RX10
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Canon 70D:
Check Ebay offers
Canon R:
Check Amazon price

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

    Specifications: Canon 70D vs Canon R

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon 70D Canon R
    Camera Type Digital single lens reflex Mirrorless system camera
    Camera Lens Canon EF mount lenses Canon RF mount lenses
    Launch Date July 2013 September 2018
    Launch Price USD 1199 USD 2299
    Sensor Specs Canon 70D Canon R
    Sensor Technology CMOS CMOS
    Sensor Format APS-C Sensor Full Frame Sensor
    Sensor Size 22.5 x 15.0 mm 36.0 x 24.0 mm
    Sensor Area 337.5 mm2 864 mm2
    Sensor Diagonal 27 mm 43.3 mm
    Crop Factor 1.6x 1.0x
    Sensor Resolution 20 Megapixels 30.1 Megapixels
    Image Resolution 5472 x 3648 pixels 6720 x 4480 pixels
    Pixel Pitch 4.11 μm 5.36 μm
    Pixel Density 5.91 MP/cm2 3.48 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 1080/30p Video 4K/30p Video
    ISO Setting 100-12800 ISO 100-40000 ISO
    ISO Boost 100-25600 ISO 50-102400 ISO
    Image Processor DIGIC 5+ DIGIC 8
    DXO Sensor Quality (score) 68 89
    DXO Color Depth (bits) 22.5 24.5
    DXO Dynamic Range (EV) 11.6 13.5
    DXO Low Light (ISO) 926 2742
    Screen Specs Canon 70D Canon R
    Viewfinder Type Optical viewfinder Electronic viewfinder
    Viewfinder Field of View 98% 100%
    Viewfinder Magnification 0.59x 0.76x
    Viewfinder Resolution 3690k dots
    Top-Level Screen Control Panel Control Panel
    LCD Framing Live View Live View
    Rear LCD Size 3.0 inch 3.2 inch
    LCD Resolution 1040k dots 2100k dots
    LCD Attachment Swivel screen Swivel screen
    Touch Input Touchscreen Touchscreen
    Shooting Specs Canon 70D Canon R
    Autofocus System Phase-detect AF On-Sensor Phase-detect
    Manual Focusing AidNo Peaking FeatureFocus Peaking
    Max Shutter Speed (mechanical) 1/8000/s 1/8000/s
    Continuous Shooting 7 shutter flaps/s 8 shutter flaps/s
    Shutter Life Expectancy100 000 actuations200 000 actuations
    Electronic Shutterno E-ShutterYES
    Fill Flash Build-in Flash no On-Board Flash
    Storage Medium SDXC cards SDXC cards
    Second Storage Option Single card slot Single card slot
    UHS card support UHS-I UHS-II
    Connectivity Specs Canon 70D Canon R
    External Flash Hotshoe Hotshoe
    USB Connector USB 2.0 USB 3.1
    HDMI Port mini HDMI mini HDMI
    Microphone Port External MIC port External MIC port
    Wifi Support Wifi built-in Wifi built-in
    Bluetooth Support no Bluetooth Bluetooth built-in
    Body Specs Canon 70D Canon R
    Environmental SealingWeathersealed bodyWeathersealed body
    Battery Type LP-E6 power pack LP-E6N power pack
    Battery Life (CIPA)920 shots per charge370 shots per charge
    In-Camera Charging no USB charging USB charging
    Body Dimensions 139 x 104 x 79 mm
    (5.5 x 4.1 x 3.1 in)
    139 x 98 x 84 mm
    (5.5 x 3.9 x 3.3 in)
    Camera Weight 755 g (26.6 oz) 660 g (23.3 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here  »   »
