Canon 700D vs Panasonic S1R
The Canon EOS 700D (called Canon T5i in some regions) and the Panasonic Lumix DC-S1R are two digital cameras that were revealed to the public, respectively, in March 2013 and February 2019. The 700D is a DSLR, while the S1R is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (700D) and a full frame (S1R) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Panasonic provides 46.7 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 700D and the Panasonic Lumix DC-S1R? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

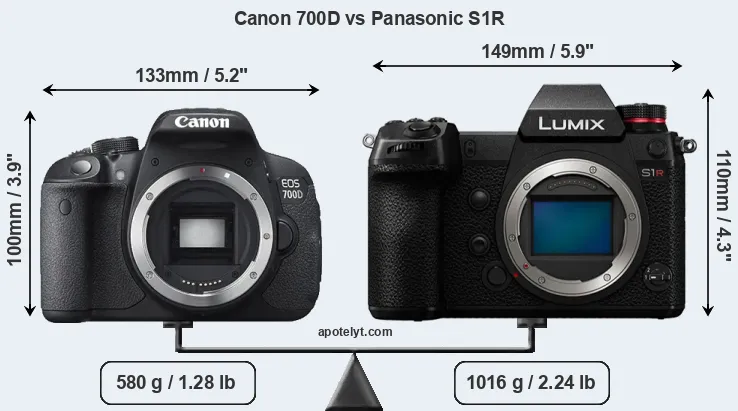

The physical size and weight of the Canon 700D and the Panasonic S1R are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic S1R is notably larger (23 percent) than the Canon 700D. Moreover, the S1R is substantially heavier (75 percent) than the 700D. It is noteworthy in this context that the S1R is splash and dust-proof, while the 700D does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
Concerning battery life, the 700D gets 440 shots out of its LP-E8 battery, while the S1R can take 380 images on a single charge of its DMW-BLJ31 power pack. The power pack in the S1R can be charged via the USB port, which can be very convenient when travelling.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon 700D||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649||ebay.com|
|2.||Panasonic S1R||149 mm||110 mm||97 mm||1016 g||380||Y||Feb 2019||3,699||amazon.com|
|3.||Canon 750D||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749||ebay.com|
|4.||Canon 760D||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649||ebay.com|
|5.||Canon 1200D||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449||ebay.com|
|6.||Canon G7 X||103 mm||60 mm||40 mm||304 g||210||n||Sep 2014||699||ebay.com|
|7.||Canon 100D||117 mm||91 mm||69 mm||407 g||380||n||Mar 2013||549||ebay.com|
|8.||Canon 650D||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849||ebay.com|
|9.||Canon M||109 mm||66 mm||32 mm||298 g||230||n||Jul 2012||599||ebay.com|
|10.||Canon 600D||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599||ebay.com|
|11.||Canon 550D||129 mm||98 mm||62 mm||530 g||440||n||Feb 2010||699||ebay.com|
|12.||Canon 500D||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799||ebay.com|
|13.||Leica SL2||146 mm||107 mm||42 mm||953 g||370||Y||Nov 2019||5,999||amazon.com|
|14.||Nikon Z7||134 mm||101 mm||67 mm||675 g||330||Y||Aug 2018||3,399||ebay.com|
|15.||Panasonic S1||149 mm||110 mm||97 mm||1017 g||400||Y||Feb 2019||2,499||amazon.com|
|16.||Panasonic S1H||151 mm||114 mm||110 mm||1052 g||400||Y||May 2019||3,999||amazon.com|
|17.||Sony A99 II||143 mm||104 mm||76 mm||849 g||490||Y||Sep 2016||3,199||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The 700D was launched at a markedly lower price (by 82 percent) than the S1R, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 700D features an APS-C sensor and the Panasonic S1R a full frame sensor. The sensor area in the S1R is 160 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
With 46.7MP, the S1R offers a higher resolution than the 700D (17.9MP), but the S1R has marginally smaller individual pixels (pixel pitch of 4.30μm versus 4.31μm for the 700D). Yet, the S1R is a much more recent model (by 5 years and 10 months) than the 700D, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the S1R has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Panasonic S1R implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the S1R for good quality output (200 dots per inch) amounts to 41.8 x 27.9 inches or 106.3 x 70.9 cm, for very good quality (250 dpi) 33.5 x 22.3 inches or 85 x 56.7 cm, and for excellent quality (300 dpi) 27.9 x 18.6 inches or 70.8 x 47.3 cm. The corresponding values for the Canon 700D are 25.9 x 17.3 inches or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inches or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inches or 43.9 x 29.3 cm for excellent quality prints.
The 700D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
Unlike the 700D, the S1R has the capacity to capture high quality composite images (187MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Canon EOS 700D has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Panasonic Lumix DC-S1R are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 50-51200.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the S1R offers substantially better image quality than the 700D (overall score 39 points higher). The advantage is based on 4.7 bits higher color depth, 2.9 EV in additional dynamic range, and 2.4 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|2.||Panasonic S1R||Full Frame||46.7||8368||5584||4K/60p||26.4||14.1||3525||100|
|6.||Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71|
|13.||Leica SL2||Full Frame||46.7||8368||5584||4K/60p||25.3||14.3||2866||95|
|14.||Nikon Z7||Full Frame||45.4||8256||5504||4K/30p||26.3||14.6||2668||99|
|15.||Panasonic S1||Full Frame||24.0||6000||4000||4K/60p||25.2||14.5||3333||95|
|16.||Panasonic S1H||Full Frame||24.0||6000||4000||6K/30p||25.2||14.2||2805||94|
|17.||Sony A99 II||Full Frame||42.2||7952||5304||4K/30p||25.4||13.4||2317||92|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the S1R provides a better video resolution than the 700D. It can shoot movie footage at 4K/60p, while the Canon is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the S1R has an electronic viewfinder (5760k dots), while the 700D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the S1R offers a wider field of view (100%) than the one in the 700D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the S1R has a higher magnification (0.78x vs 0.53x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 700D and Panasonic S1R along with similar information for a selection of comparators.
|1.||Canon 700D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|2.||Panasonic S1R||5760||Y||3.2 / 2100||full-flex||Y||1/8000s||9.0/s||n||Y|
|3.||Canon 750D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|4.||Canon 760D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|5.||Canon 1200D||optical||n||3.0 / 460||fixed||n||1/4000s||3.0/s||Y||n|
|6.||Canon G7 X||none||n||3.0 / 1040||tilting||Y||1/2000s||6.5/s||Y||Y|
|7.||Canon 100D||optical||n||3.0 / 1040||fixed||Y||1/4000s||4.9/s||Y||n|
|8.||Canon 650D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|9.||Canon M||none||n||3.0 / 1040||fixed||Y||1/4000s||4.3/s||n||n|
|10.||Canon 600D||optical||n||3.0 / 1040||swivel||n||1/4000s||3.7/s||Y||n|
|11.||Canon 550D||optical||n||3.0 / 1040||fixed||n||1/4000s||3.7/s||Y||n|
|12.||Canon 500D||optical||n||3.0 / 920||fixed||n||1/4000s||3.4/s||Y||n|
|13.||Leica SL2||5760||Y||3.2 / 2100||fixed||Y||1/8000s||10.0/s||n||Y|
|14.||Nikon Z7||3690||Y||3.2 / 2100||tilting||Y||1/8000s||9.0/s||n||Y|
|15.||Panasonic S1||5760||Y||3.2 / 2100||full-flex||Y||1/8000s||9.0/s||n||Y|
|16.||Panasonic S1H||5760||Y||3.2 / 2330||swivel||Y||1/8000s||9.0/s||n||Y|
|17.||Sony A99 II||2400||Y||3.0 / 1229||full-flex||n||1/8000s||12.0/s||n||Y|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One difference between the cameras concerns the presence of an on-board flash. The 700D has one, while the S1R does not. While the built-in flash of the 700D is not very powerful, it can at times be useful as a fill-in light.The 700D has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the S1R does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the S1R is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Panasonic S1R has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 700D writes its imaging data to SDXC cards, while the S1R uses SDXC or XQD cards. The S1R features dual card slots, which can be very useful in case a memory card fails. In contrast, the 700D only has one slot. The S1R supports UHS-II cards (on both slots), while the 700D can use UHS-I cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 700D and Panasonic Lumix DC-S1R and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon 700D||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|2.||Panasonic S1R||Y||stereo / mono||Y||Y||full||3.1||Y||-||Y|
|3.||Canon 750D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|4.||Canon 760D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|5.||Canon 1200D||Y||mono / mono||-||-||mini||2.0||-||-||-|
|6.||Canon G7 X||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|7.||Canon 100D||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|8.||Canon 650D||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|9.||Canon M||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|10.||Canon 600D||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|11.||Canon 550D||Y||stereo / -||Y||-||mini||2.0||-||-||-|
|12.||Canon 500D||Y||mono / mono||-||-||mini||2.0||-||-||-|
|13.||Leica SL2||Y||stereo / mono||Y||Y||full||3.1||Y||-||Y|
|14.||Nikon Z7||Y||stereo / mono||Y||Y||micro||3.1||Y||-||Y|
|15.||Panasonic S1||Y||stereo / mono||Y||Y||full||3.1||Y||-||Y|
|16.||Panasonic S1H||Y||stereo / mono||Y||Y||full||3.1||Y||-||Y|
|17.||Sony A99 II||Y||stereo / mono||Y||Y||micro||2.0||Y||Y||Y|
It is notable that the S1R offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 700D does not provide wifi capability.
Studio photographers will appreciate that the Panasonic S1R (unlike the 700D) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The S1R is a recent model that features in the current product line-up of Panasonic. In contrast, the 700D has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the 700D was succeeded by the Canon 750D. Further information on the features and operation of the 700D and S1R can be found, respectively, in the Canon 700D Manual (free pdf) or the online Panasonic S1R Manual.
So how do things add up? Which of the two cameras – the Canon 700D or the Panasonic S1R – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.
Advantages of the Canon EOS 700D:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- More compact: Is smaller (133x100mm vs 149x110mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 436g or 43 percent) and hence easier to carry around.
- Longer lasting: Can take more shots (440 versus 380) on a single battery charge.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More affordable: Was introduced into a lower priced category (82 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in March 2013).
Arguments in favor of the Panasonic Lumix DC-S1R:
- More detail: Has more megapixels (46.7 vs 17.9MP), which boosts linear resolution by 61%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Better image quality: Scores substantially higher (39 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (4.7 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (2.9 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (2.4 stops ISO advantage).
- Better video: Provides higher definition movie capture (4K/60p vs 1080/30p).
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.78x vs 0.53x).
- Easier setting verification: Features a control panel on top to check shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (2100k vs 1040k dots).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (9 vs 5 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Easier travel charging: Can be conveniently charged via its USB port.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More modern: Reflects 5 years and 10 months of technical progress since the 700D launch.
If the count of relative strengths (bullet points above) is taken as a measure, the S1R is the clear winner of the contest (31 : 10 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 700D and the Panasonic S1R place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the 700D and the S1R in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 700D||..||..||..||76/100||4.5/5||4.5/5||Mar 2013||649||ebay.com|
|2.||Panasonic S1R||4.5/5||..||4.6/5||89/100||4.5/5||4.5/5||Feb 2019||3,699||amazon.com|
|3.||Canon 750D||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749||ebay.com|
|4.||Canon 760D||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649||ebay.com|
|5.||Canon 1200D||3/5||+||..||..||4/5||4.5/5||Feb 2014||449||ebay.com|
|6.||Canon G7 X||4/5||+ +||..||77/100||4.5/5||4.5/5||Sep 2014||699||ebay.com|
|7.||Canon 100D||4/5||+||..||78/100||4/5||4/5||Mar 2013||549||ebay.com|
|8.||Canon 650D||4/5||+ +||..||77/100||4.5/5||4.5/5||Jun 2012||849||ebay.com|
|9.||Canon M||3/5||+||..||..||4/5||4/5||Jul 2012||599||ebay.com|
|10.||Canon 600D||3/5||o||..||77/100||4.5/5||4.5/5||Feb 2011||599||ebay.com|
|11.||Canon 550D||..||+ +||..||77/100||4/5||4.5/5||Feb 2010||699||ebay.com|
|12.||Canon 500D||..||+ +||..||74/100||4.5/5||4.5/5||Mar 2009||799||ebay.com|
|13.||Leica SL2||4/5||..||4.5/5||..||4.5/5||4/5||Nov 2019||5,999||amazon.com|
|14.||Nikon Z7||5/5||+||4.8/5||89/100||4.5/5||5/5||Aug 2018||3,399||ebay.com|
|15.||Panasonic S1||4.5/5||+ +||4.5/5||88/100||4.5/5||4/5||Feb 2019||2,499||amazon.com|
|16.||Panasonic S1H||..||..||4/5||90/100||..||..||May 2019||3,999||amazon.com|
|17.||Sony A99 II||..||..||4.5/5||85/100||4.5/5||4.5/5||Sep 2016||3,199||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 30D vs Canon 700D
- Canon 700D vs Fujifilm X100V
- Canon 700D vs Nikon D5000
- Canon 700D vs Olympus E-510
- Canon 700D vs Olympus E-PL5
- Canon 700D vs Panasonic LX5
- Nikon D5300 vs Panasonic S1R
- Nikon D7000 vs Panasonic S1R
- Panasonic G100 vs Panasonic S1R
- Panasonic L1 vs Panasonic S1R
- Panasonic S1R vs Panasonic TZ95
- Panasonic S1R vs Sony A3000
Specifications: Canon 700D vs Panasonic S1R
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 700D||Panasonic S1R|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Leica L mount lenses|
|Launch Date||March 2013||February 2019|
|Launch Price||USD 649||USD 3,699|
|Sensor Specs||Canon 700D||Panasonic S1R|
|Sensor Format||APS-C Sensor||Full Frame Sensor|
|Sensor Size||22.3 x 14.9 mm||36.0 x 24.0 mm|
|Sensor Area||332.27 mm2||864 mm2|
|Sensor Diagonal||26.8 mm||43.3 mm|
|Sensor Resolution||17.9 Megapixels||46.7 Megapixels|
|Image Resolution||5184 x 3456 pixels||8368 x 5584 pixels|
|Pixel Pitch||4.31 μm||4.30 μm|
|Pixel Density||5.39 MP/cm2||5.41 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/30p Video||4K/60p Video|
|ISO Setting||100 - 12,800 ISO||100 - 25,600 ISO|
|ISO Boost||100 - 25,600 ISO||50 - 51,200 ISO|
|Image Processor||DIGIC 5||Venus|
|DXO Sensor Quality (score)||61||100|
|DXO Color Depth (bits)||21.7||26.4|
|DXO Dynamic Range (EV)||11.2||14.1|
|DXO Low Light (ISO)||681||3525|
|Screen Specs||Canon 700D||Panasonic S1R|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||95%||100%|
|Viewfinder Resolution||5760k dots|
|Top-Level Screen||no Top Display||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.2inch|
|LCD Resolution||1040k dots||2100k dots|
|LCD Attachment||Swivel screen||Fully flexible screen|
|Shooting Specs||Canon 700D||Panasonic S1R|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/8000s|
|Continuous Shooting||5 shutter flaps/s||9 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||400 000 actuations|
|Electronic Shutter||no E-Shutter||up to 1/8000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Built-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC or XQD cards|
|Single or Dual Card Slots||Single card slot||Dual card slots|
|UHS card support||UHS-I||Dual UHS-II|
|Connectivity Specs||Canon 700D||Panasonic S1R|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 3.1|
|HDMI Port||mini HDMI||full HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||Wifi built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Canon 700D||Panasonic S1R|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||440 shots per charge||380 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
133 x 100 x 79 mm
(5.2 x 3.9 x 3.1 in)
149 x 110 x 97 mm
(5.9 x 4.3 x 3.8 in)
|Camera Weight||580 g (20.5 oz)||1016 g (35.8 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
