Canon 700D versus Olympus E-P5

The Canon EOS 700D (called Canon T5i in some regions) and the Olympus PEN E-P5 are two digital cameras that were announced, respectively, in March 2013 and May 2013. The 700D is a DSLR, while the E-P5 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (700D) and a Four Thirds (E-P5) sensor. The Canon has a resolution of 17.9 megapixel, whereas the Olympus provides 15.9 MP. Read on to find out how these two cameras compare with respect to their size, their sensors, their features, and their reception by expert reviewers.

Body comparison: Canon 700D vs Olympus E-P5

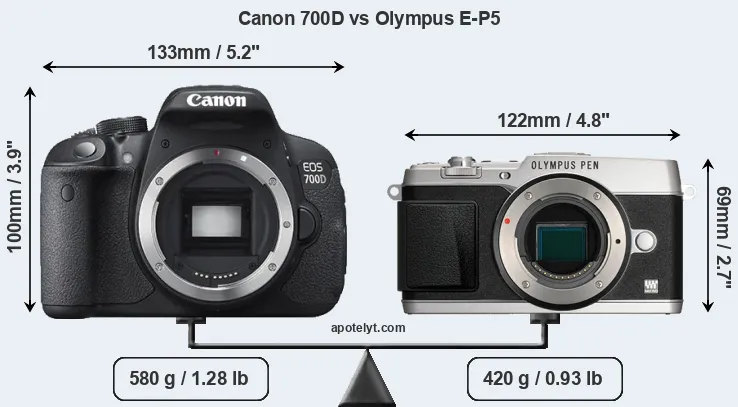

The physical size and weight of the Canon 700D and the Olympus E-P5 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter. You can also use the toggle button to switch to a percentage comparison if you prefer that the measures are being expressed in relative terms (in this case, the camera on the left – the 700D – represents the basis or 100 percent across all the size and weight measures).

Compare Canon 700D vs Olympus E-P5

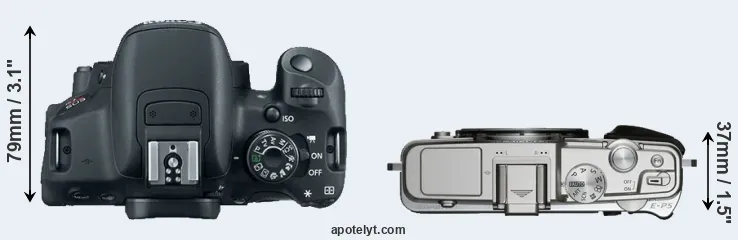

Compare 700D versus E-P5 top

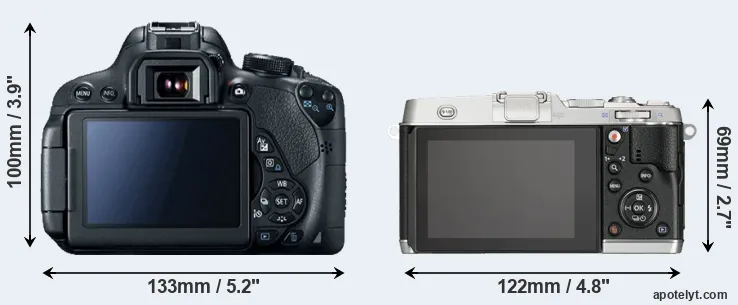

Compare 700D and E-P5 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-P5 is considerably smaller (37 percent) than the Canon 700D. Moreover, the E-P5 is markedly lighter (28 percent) than the 700D. In this context, it is worth noting that neither the 700D nor the E-P5 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can find an overview of optics for the two cameras in the Canon EF Lens Catalog (700D) and the Micro Four Thirds Lens Catalog (E-P5). Mirrorless cameras, such as the E-P5, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the 700D gets 440 shots out of its LP-E8 battery, while the E-P5 can take 330 images on a single charge of its BLN-1 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 700D» 5.2 in 3.9 in 3.1 in 20.5 oz 440 n Mar 2013 649- i Canon 700D
Olympus E-P5« 4.8 in 2.7 in 1.5 in 14.8 oz 330 n May 2013 999- i Olympus E-P5
Canon 750D« » 5.2 in 4.0 in 3.1 in 19.6 oz 440 n Feb 2015 749- i Canon 750D
Canon 7D II« » 5.9 in 4.4 in 3.1 in 32.1 oz 670 Y Sep 2014 1,799 i i Canon 7D II
Canon 1200D« » 5.1 in 3.9 in 3.1 in 16.9 oz 500 n Feb 2014 449- i Canon 1200D
Canon G7 X« » 4.1 in 2.4 in 1.6 in 10.7 oz 210 n Sep 2014 699- i Canon G7 X
Canon 100D« » 4.6 in 3.6 in 2.7 in 14.4 oz 380 n Mar 2013 549- i Canon 100D
Canon 650D« » 5.2 in 3.9 in 3.1 in 20.3 oz 440 n Jun 2012 849- i Canon 650D
Canon M« » 4.3 in 2.6 in 1.3 in 10.5 oz 230 n Jul 2012 599- i Canon M
Canon 600D« » 5.2 in 3.9 in 3.1 in 20.1 oz 440 n Feb 2011 599- i Canon 600D
Canon 550D« » 5.1 in 3.9 in 2.4 in 18.7 oz 440 n Feb 2010 699- i Canon 550D
Canon 500D« » 5.1 in 3.9 in 2.4 in 18.3 oz 400 n Mar 2009 799- i Canon 500D
Olympus PEN-F« » 4.9 in 2.8 in 1.5 in 15.1 oz 330 n Jan 2016 1,199 i i Olympus PEN-F
Olympus E-M10 II« » 4.7 in 3.3 in 1.9 in 13.8 oz 320 n Aug 2015 799- i Olympus E-M10 II
Olympus E-M10« » 4.7 in 3.2 in 1.8 in 14.0 oz 320 n Jan 2014 699- i Olympus E-M10
Olympus E-M1« » 5.1 in 3.7 in 2.5 in 17.5 oz 350 Y Sep 2013 1,399- i Olympus E-M1
Panasonic GX7« » 4.8 in 2.8 in 2.2 in 14.2 oz 350 n Aug 2013 999- i Panasonic GX7

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The 700D was launched at a markedly lower price (by 35 percent) than the E-P5, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.



Sensor comparison: Canon 700D vs Olympus E-P5

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 700D features an APS-C sensor and the Olympus E-P5 a Four Thirds sensor. The sensor area in the E-P5 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 700D has a native 3:2 aspect ratio, while the one in the E-P5 offers a 4:3 aspect.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.

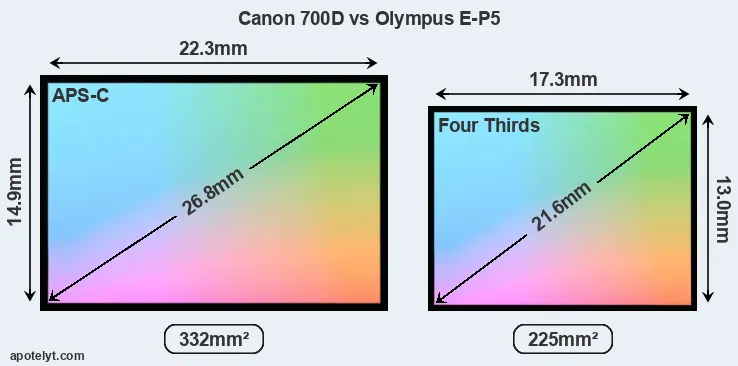

Canon 700D and Olympus E-P5 sensor measures

With 17.9MP, the 700D offers a higher resolution than the E-P5 (15.9MP), but the 700D nevertheless has larger individual pixels (pixel pitch of 4.31μm versus 3.76μm for the E-P5) due to its larger sensor. It is noteworthy in this context that the two cameras were released in close succession, so that their sensors are from the same technological generation.

The 700D has on-sensor phase detect pixels, which results in relatively fast and reliable autofocus acquisition during video recording.

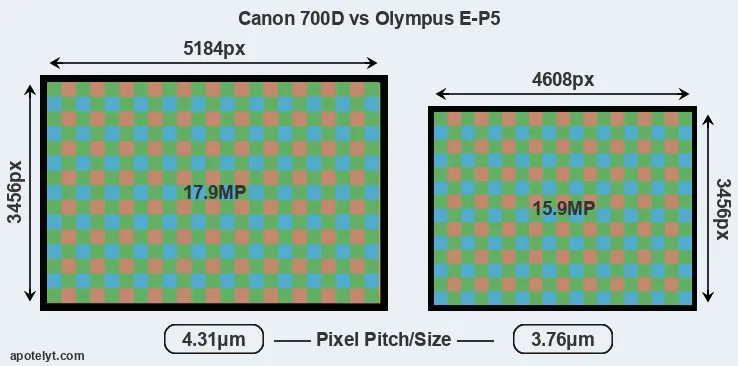

700D versus E-P5 MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the E-P5 offers substantially better image quality than the 700D (overall score 11 points higher). The advantage is based on 1.1 bits higher color depth, 1.2 EV in additional dynamic range, and 0.4 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model
Canon 700D» APS-C 17.9 5184 34561080/30p21.711.268161Canon 700D
Olympus E-P5« Four Thirds 15.9 4608 34561080/30p22.812.489572Olympus E-P5
Canon 750D« » APS-C 24.0 6000 40001080/60p22.712.091971Canon 750D
Canon 7D II« » APS-C 20.0 5472 36481080/60p22.411.8108270Canon 7D II
Canon 1200D« » APS-C 17.9 5184 34561080/30p21.911.372463Canon 1200D
Canon G7 X« » 1-inch 20.0 5472 36481080/60p23.012.755671Canon G7 X
Canon 100D« » APS-C 17.9 5184 34561080/30p21.811.384363Canon 100D
Canon 650D« » APS-C 17.9 5184 34561080/30p21.711.272262Canon 650D
Canon M« » APS-C 17.9 5184 34561080/30p22.111.282765Canon M
Canon 600D« » APS-C 17.9 5184 34561080/30p22.111.579365Canon 600D
Canon 550D« » APS-C 17.9 5184 34561080/30p22.111.578466Canon 550D
Canon 500D« » APS-C 15.1 4752 31681080/20p21.711.566363Canon 500D
Olympus PEN-F« » Four Thirds 20.2 5184 38881080/60p23.112.489474Olympus PEN-F
Olympus E-M10 II« » Four Thirds 15.9 4608 34561080/60p23.112.584273Olympus E-M10 II
Olympus E-M10« » Four Thirds 15.9 4608 34561080/30p22.812.388472Olympus E-M10
Olympus E-M1« » Four Thirds 15.9 4608 34561080/30p23.012.775773Olympus E-M1
Panasonic GX7« » Four Thirds 15.8 4592 34481080/60p22.612.271870Panasonic GX7

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (1080/30p).



Feature comparison: Canon 700D vs Olympus E-P5

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the 700D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-P5 relies on live view and the rear LCD for framing. That said, the E-P5 can be equipped with an optional viewfinder – the VF-4. The following table reports on some other key feature differences and similarities of the Canon 700D, the Olympus E-P5, and comparable cameras. If you need more detail on the specs, you can find comprehensive listings, for example, in the dpreview camera hub.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec)
Build-in
Flash
(yes/no)
Build-in
Stab
Camera
Model
Canon 700D»optical n 3.0 1040 swivel Y 4000 5.0 Y n Canon 700D
Olympus E-P5«- n 3.0 1037 tilting Y 8000 9.0 Y Y Olympus E-P5
Canon 750D« »optical n 3.0 1040 swivel Y 4000 5.0 Y n Canon 750D
Canon 7D II« »optical Y 3.0 1040 fixed n 8000 10.0 Y n Canon 7D II
Canon 1200D« »optical n 3.0 460 fixed n 4000 3.0 Y n Canon 1200D
Canon G7 X« »- n 3.0 1040 tilting Y 2000 6.5 Y Y Canon G7 X
Canon 100D« »optical n 3.0 1040 fixed Y 4000 4.9 Y n Canon 100D
Canon 650D« »optical n 3.0 1040 swivel Y 4000 5.0 Y n Canon 650D
Canon M« »- n 3.0 1040 fixed Y 4000 4.3 n n Canon M
Canon 600D« »optical n 3.0 1040 swivel n 4000 3.7 Y n Canon 600D
Canon 550D« »optical n 3.0 1040 fixed n 4000 3.7 Y n Canon 550D
Canon 500D« »optical n 3.0 920 fixed n 4000 3.4 Y n Canon 500D
Olympus PEN-F« »2360 n 3.0 1037 swivel Y 8000 10.0 n Y Olympus PEN-F
Olympus E-M10 II« »2360 n 3.0 1040 tilting Y 4000 8.0 Y Y Olympus E-M10 II
Olympus E-M10« »1440 n 3.0 1037 tilting Y 4000 8.0 Y Y Olympus E-M10
Olympus E-M1« »2360 n 3.0 1037 tilting Y 8000 10.0 n Y Olympus E-M1
Panasonic GX7« »2760 n 3.0 1040 tilting Y 8000 5.0 Y Y Panasonic GX7

One feature that differentiates the E-P5 and the 700D is in-body image stabilization (IBIS). The E-P5 reduces the risk of handshake-induced blur with all attached lenses, while the 700D has to rely on optical image stabilization in OIS-equipped lenses to achieve the same effect.

Both the 700D and the E-P5 write their imaging data to SDXC cards.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model
Canon 700D»YstereomonoY-mini2.0---Canon 700D
Olympus E-P5«Ystereomono--micro2.0Y--Olympus E-P5
Canon 750D« »YstereomonoY-mini2.0YY-Canon 750D
Canon 7D II« »YstereomonoYYmini3.0---Canon 7D II
Canon 1200D« »Ymonomono--mini2.0---Canon 1200D
Canon G7 X« »-stereomono--micro2.0YY-Canon G7 X
Canon 100D« »YmonomonoY-mini2.0---Canon 100D
Canon 650D« »YstereomonoY-mini2.0---Canon 650D
Canon M« »YstereomonoY-mini2.0---Canon M
Canon 600D« »YmonomonoY-mini2.0---Canon 600D
Canon 550D« »Ystereo-Y-mini2.0---Canon 550D
Canon 500D« »Ymonomono--mini2.0---Canon 500D
Olympus PEN-F« »Ystereomono--micro2.0Y--Olympus PEN-F
Olympus E-M10 II« »Ystereomono--micro2.0Y--Olympus E-M10 II
Olympus E-M10« »Ystereomono--micro2.0Y--Olympus E-M10
Olympus E-M1« »YstereomonoY-micro2.0Y--Olympus E-M1
Panasonic GX7« »Ystereomono--mini2.0YY-Panasonic GX7

Both the 700D and the E-P5 have been discontinued, but can regularly be found used on eBay. The 700D was replaced by the Canon 750D, while the E-P5 does not have a direct successor.

Review summary: Canon 700D vs Olympus E-P5

So what is the bottom line? Is the Canon 700D better than the Olympus E-P5 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

ilogo

Arguments in favor of the Canon EOS 700D:

  • More detail: Offers more megapixels (17.9 vs 15.9MP) with a 8% higher linear resolution.
  • Better video autofocus: Features on-sensor phase-detection for more confident movie autofocus.
  • Better sound: Can connect to an external microphone for higher quality sound recording.
  • Easier framing: Has an optical viewfinder for image framing and settings control.
  • More flexible LCD: Has swivel screen for odd-angle shots in portrait or landscape orientation.
  • Longer lasting: Can take more shots (440 versus 330) on a single battery charge.
  • More affordable: Was introduced into a lower priced category (35 percent cheaper at launch).

ilogo

Reasons to prefer the Olympus PEN E-P5:

  • Better image quality: Scores substantially higher (11 points) in the DXO overall evaluation.
  • Richer colors: Generates noticeably more natural colors (1.1 bits more color depth).
  • More dynamic range: Captures a broader range of light and dark details (1.2 EV of extra DR).
  • Better low-light sensitivity: Can shoot in dim conditions (0.4 stops ISO advantage).
  • Faster shutter: Has higher mechanical shutter speed (8000/sec vs 4000/sec) to freeze action.
  • Faster burst: Shoots at higher frequency (9 vs 5 flaps/sec) to capture the decisive moment.
  • More compact: Is smaller (122x69mm vs 133x100mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 160g or 28 percent) and is thus easier to take along.
  • Sharper images: Has stabilization technology build-in to reduce the impact of hand-shake.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • Easier file upload: Has wifi build in for automatic backup or image transfer to the web.

If the number of relative strengths (bullet points above) is taken as a guide, the E-P5 is the clear winner of the contest (11 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera.

700D 07:11 E-P5

In any case, while the specs-based evaluation of cameras is instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the 700D or the E-P5 handle or perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate. This is why expert reviews are important. The adjacent table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog). The full reviews are available by clicking on the site logo in the table header.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 700D»-76/1004.5/54.5/54.5/5 Mar 2013 649- i Canon 700D
Olympus E-P5«HiRec78/1004.5/54.5/55/5 May 2013 999- i Olympus E-P5
Canon 750D« »-75/1004.5/54.5/54.5/5 Feb 2015 749- i Canon 750D
Canon 7D II« »Rec84/1004/55/54.5/5 Sep 2014 1,799 i i Canon 7D II
Canon 1200D« »Rec-4/54/54.5/5 Feb 2014 449- i Canon 1200D
Canon G7 X« »HiRec77/1004.5/53.5/54.5/5 Sep 2014 699- i Canon G7 X
Canon 100D« »Rec78/1004/54/54/5 Mar 2013 549- i Canon 100D
Canon 650D« »HiRec77/1004.5/54.5/54.5/5 Jun 2012 849- i Canon 650D
Canon M« »Rec-4/53.5/54/5 Jul 2012 599- i Canon M
Canon 600D« »rev77/1004.5/55/54.5/5 Feb 2011 599- i Canon 600D
Canon 550D« »HiRec77/1004/55/54.5/5 Feb 2010 699- i Canon 550D
Canon 500D« »HiRec74/1004.5/55/54.5/5 Mar 2009 799- i Canon 500D
Olympus PEN-F« »-82/1004.5/54.5/55/5 Jan 2016 1,199 i i Olympus PEN-F
Olympus E-M10 II« »HiRec80/1005/55/55/5 Aug 2015 799- i Olympus E-M10 II
Olympus E-M10« »-80/1005/54.5/55/5 Jan 2014 699- i Olympus E-M10
Olympus E-M1« »HiRec84/1004.5/54.5/54.5/5 Sep 2013 1,399- i Olympus E-M1
Panasonic GX7« »Rec79/1005/54.5/55/5 Aug 2013 999- i Panasonic GX7

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
