Canon 6D Mark II vs Pentax MX-1
The Canon EOS 6D Mark II and the Pentax MX-1 are two digital cameras that were revealed to the public, respectively, in June 2017 and January 2013. The 6D Mark II is a DSLR, while the MX-1 is a fixed lens compact. The cameras are based on a full frame (6D Mark II) and a 1/1.7-inch (MX-1) sensor. The Canon has a resolution of 26 megapixels, whereas the Pentax provides 12 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 6D Mark II||Pentax MX-1|
|Digital single lens reflex||Fixed lens compact camera|
|Canon EF mount lenses||28-112mm f/1.8-2.5|
|26 MP, Full Frame Sensor||12 MP, 1/1.7" Sensor|
|1080/60p Video||1080/30p Video|
|ISO 100-40,000 (50 - 102,400)||ISO 100-12,800|
|Optical viewfinder||No viewfinder, LCD framing|
|3.0 LCD, 1040k dots||3.0 LCD, 920k dots|
|Swivel touchscreen||Tilting screen (not touch-sensitive)|
|6.5 shutter flaps per second||1 shutter flaps per second|
|Lens stabilization only||In-body stabilization|
|Weathersealed body||not weather sealed|
|1200 shots per battery charge||290 shots per battery charge|
|144 x 111 x 75 mm, 765 g||122 x 61 x 51 mm, 391 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 6D Mark II and the Pentax MX-1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

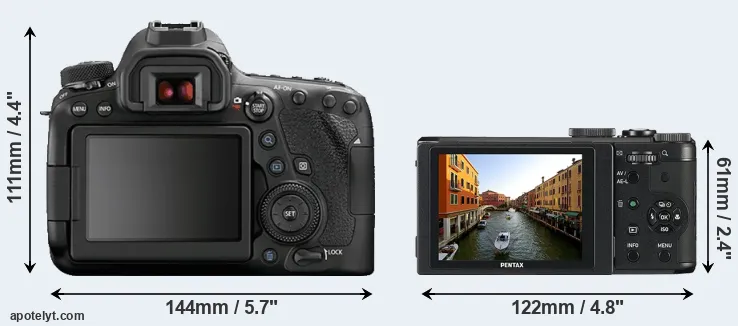

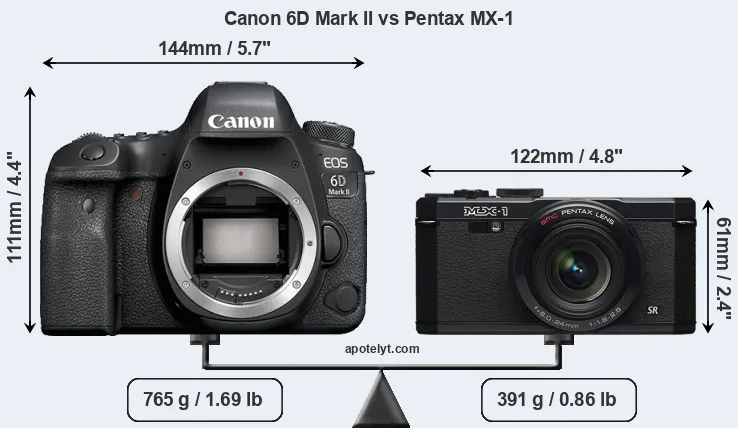

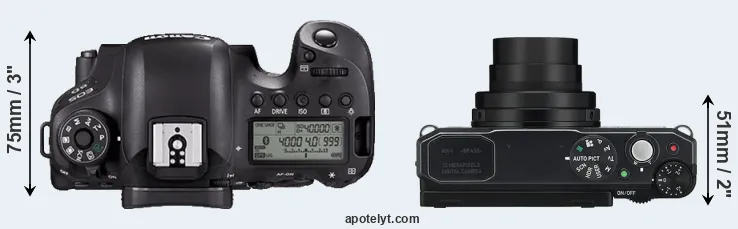

The side-by-side display below illustrates the physical size and weight of the Canon 6D Mark II and the Pentax MX-1. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax MX-1 is considerably smaller (53 percent) than the Canon 6D Mark II. It is worth mentioning in this context that the 6D Mark II is splash and dust resistant, while the MX-1 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the MX-1 has a lens built in, whereas the 6D Mark II is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 6D Mark II and their specifications in the Canon EF Lens Catalog.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Canon 6D Mark II||5.7 in||4.4 in||3.0 in||27.0 oz||1200||Y||Jun 2017||1,999|
|Pentax MX-1||4.8 in||2.4 in||2.0 in||13.8 oz||290||n||Jan 2013||499|
|Canon R||5.5 in||3.9 in||3.3 in||23.3 oz||370||Y||Sep 2018||2,299|
|Canon 5D Mark IV||5.9 in||4.6 in||3.0 in||31.4 oz||900||Y||Aug 2016||3,499|
|Canon 80D||5.5 in||4.1 in||3.1 in||25.8 oz||960||Y||Feb 2016||1,199|
|Canon G16||4.3 in||3.0 in||1.6 in||12.6 oz||360||n||Aug 2013||549|
|Canon 5D Mark III||6.0 in||4.6 in||3.0 in||33.5 oz||950||Y||Mar 2012||3,499|
|Canon 6D||5.7 in||4.4 in||2.8 in||27.2 oz||1090||Y||Sep 2012||2,099|
|Canon G15||4.2 in||3.0 in||1.6 in||12.4 oz||350||n||Sep 2012||499|
|Canon 5D Mark II||6.0 in||4.5 in||3.0 in||30.0 oz||850||Y||Sep 2008||3,499|
|Nikon D750||5.6 in||4.4 in||3.1 in||26.5 oz||1230||Y||Sep 2014||2,299|
|Nikon P7800||4.7 in||3.1 in||2.0 in||14.1 oz||350||n||Sep 2013||549|
|Nikon D610||5.6 in||4.4 in||3.2 in||30.0 oz||900||Y||Oct 2013||1,999|
|Nikon D600||5.6 in||4.4 in||3.2 in||30.0 oz||900||Y||Sep 2012||2,099|
|Olympus XZ-2||4.4 in||2.6 in||1.9 in||12.2 oz||340||n||Sep 2012||599|
|Panasonic LF1||4.1 in||2.4 in||1.1 in||6.8 oz||250||n||Apr 2013||499|
|Sony A7 III||5.0 in||3.8 in||2.9 in||22.9 oz||610||Y||Feb 2018||1,999|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The MX-1 was launched at a lower price than the 6D Mark II, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 6D Mark II features a full frame sensor and the Pentax MX-1 a 1/1.7-inch sensor. The sensor area in the MX-1 is 95 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 4.5. The sensor in the 6D Mark II has a native 3:2 aspect ratio, while the one in the MX-1 offers a 4:3 aspect.
With 26MP, the 6D Mark II offers a higher resolution than the MX-1 (12MP), but the 6D Mark II nevertheless has larger individual pixels (pixel pitch of 5.76μm versus 1.89μm for the MX-1) due to its larger sensor. Moreover, the 6D Mark II is a much more recent model (by 4 years and 5 months) than the MX-1, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon 6D Mark II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 6D Mark II for good quality output (200 dots per inch) amounts to 31.2 x 20.8 inches or 79.2 x 52.8 cm, for very good quality (250 dpi) 25 x 16.6 inches or 63.4 x 42.3 cm, and for excellent quality (300 dpi) 20.8 x 13.9 inches or 52.8 x 35.2 cm. The corresponding values for the Pentax MX-1 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.
The 6D Mark II has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 6D Mark II has a native sensitivity range from ISO 100 to ISO 40000, which can be extended to ISO 50-102400. The corresponding ISO settings for the Pentax MX-1 are ISO 100 to ISO 12800 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the 6D Mark II provides substantially higher image quality than the MX-1, with an overall score that is 36 points higher. This advantage is based on 4 bits higher color depth, 0.6 EV in additional dynamic range, and 3.8 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|Canon R||Full Frame||30.1||6720||4480||4K/30p||24.5||13.5||2742||89|
|Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|Nikon D750||Full Frame||24.2||6016||4016||1080/60p||24.8||14.5||2956||93|
|Nikon D610||Full Frame||24.2||6016||4016||1080/30p||25.1||14.4||2925||94|
|Nikon D600||Full Frame||24.2||6016||4016||1080/30p||25.1||14.2||2980||94|
|Sony A7 III||Full Frame||24.0||6000||4000||4K/30p||25.0||14.7||3730||96|
Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the 6D Mark II provides a higher frame rate than the MX-1. It can shoot video footage at 1080/60p, while the Pentax is limited to 1080/30p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the 6D Mark II has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the MX-1 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon 6D Mark II, the Pentax MX-1, and comparable cameras.
|Canon 6D Mark II||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n|
|Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n|
|Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n|
|Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
|Sony A7 III||2359||n||3.0||922||tilting||Y||1/8000s||10.0||n||Y|
One feature that is present on the 6D Mark II, but is missing on the MX-1 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The 6D Mark II has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the MX-1 does not have a selfie-screen.
The Canon 6D Mark II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the 6D Mark II and the MX-1 write their files to SDXC cards. The 6D Mark II supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the MX-1 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 6D Mark II and Pentax MX-1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Canon 6D Mark II||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y|
|Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-|
|Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
|Sony A7 III||Y||stereo||mono||Y||Y||micro||3.1||Y||Y||Y|
It is notable that the 6D Mark II has a hotshoe, while the MX-1 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
Travel and landscape photographers will find it useful that the 6D Mark II has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
The 6D Mark II is a recent model that features in the current product line-up of Canon. In contrast, the MX-1 has been discontinued (but can be found pre-owned on eBay). There has not been a direct replacement model for the MX-1 from Pentax. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Pentax websites.
So what is the bottom line? Is the Canon 6D Mark II better than the Pentax MX-1 or vice versa? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Canon EOS 6D Mark II:
- More detail: Offers more megapixels (26 vs 12MP) with a 50% higher linear resolution.
- Better image quality: Scores substantially higher (36 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (4 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (0.6 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (3.8 stops ISO advantage).
- Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (6.5 vs 1 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More flexible: Can take a variety of interchangeable lenses, including specialty optics.
- Longer lasting: Can take more shots (1200 versus 290) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 4 years and 5 months of technical progress since the MX-1 launch.
Arguments in favor of the Pentax MX-1:
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Ready to shoot: Comes with an integrated lens, while the 6D Mark II requires a separate lens.
- More compact: Is smaller (122x61mm vs 144x111mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the 6D Mark II).
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More heavily discounted: Has been around for much longer (launched in January 2013).
If the count of relative strengths (bullet points above) is taken as a measure, the 6D Mark II is the clear winner of the match-up (26 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 6D Mark II and the Pentax MX-1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the 6D Mark II and the MX-1 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 6D Mark II||+||80/100||4.5/5||4/5||4/5||Jun 2017||1,999|
|Pentax MX-1||..||74/100||4/5||3.5/5||4/5||Jan 2013||499|
|Canon R||o||79/100||4.5/5||4/5||4/5||Sep 2018||2,299|
|Canon 5D Mark IV||+ +||87/100||4.5/5||5/5||4.5/5||Aug 2016||3,499|
|Canon 80D||+ +||84/100||4.5/5||4.5/5||4.5/5||Feb 2016||1,199|
|Canon G16||+||..||4.5/5||4.5/5||4.5/5||Aug 2013||549|
|Canon 5D Mark III||+ +||82/100||4.5/5||5/5||4.5/5||Mar 2012||3,499|
|Canon 6D||+ +||83/100||4.5/5||4.5/5||4.5/5||Sep 2012||2,099|
|Canon G15||+||76/100||4.5/5||4.5/5||4.5/5||Sep 2012||499|
|Canon 5D Mark II||91/100||79/100||4/5||5/5||..||Sep 2008||3,499|
|Nikon D750||+ +||90/100||4.5/5||5/5||4.5/5||Sep 2014||2,299|
|Nikon P7800||..||..||4/5||3.5/5||4.5/5||Sep 2013||549|
|Nikon D610||+ +||87/100||4.5/5||4.5/5||4.5/5||Oct 2013||1,999|
|Nikon D600||+ +||87/100||5/5||4.5/5||4.5/5||Sep 2012||2,099|
|Olympus XZ-2||+||..||4.5/5||4/5||4.5/5||Sep 2012||599|
|Panasonic LF1||+||..||4/5||..||4.5/5||Apr 2013||499|
|Sony A7 III||+ +||89/100||5/5||5/5||5/5||Feb 2018||1,999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 1Ds vs Pentax MX-1
- Canon 500D vs Pentax MX-1
- Canon 6D Mark II vs Fujifilm X-E3
- Canon 6D Mark II vs Nikon Z6
- Canon 6D Mark II vs Panasonic GH5s
- Canon 6D Mark II vs Pentax K-3 II
- Canon M100 vs Pentax MX-1
- Canon T2i vs Pentax MX-1
- Leica D-LUX 5 vs Pentax MX-1
- Nikon D7000 vs Pentax MX-1
- Olympus E-PL2 vs Pentax MX-1
- Panasonic LX15 vs Pentax MX-1
Specifications: Canon 6D Mark II vs Pentax MX-1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 6D Mark II||Pentax MX-1|
|Camera Type||Digital single lens reflex||Fixed lens compact camera|
|Camera Lens||Canon EF mount lenses||28-112mm f/1.8-2.5|
|Launch Date||June 2017||January 2013|
|Launch Price||USD 1,999||USD 499|
|Sensor Specs||Canon 6D Mark II||Pentax MX-1|
|Sensor Format||Full Frame Sensor||1/1.7" Sensor|
|Sensor Size||35.9 x 24.0 mm||7.6 x 5.7 mm|
|Sensor Area||861.6 mm2||43.32 mm2|
|Sensor Diagonal||43.2 mm||9.5 mm|
|Sensor Resolution||26 Megapixels||12 Megapixels|
|Image Resolution||6240 x 4160 pixels||4000 x 3000 pixels|
|Pixel Pitch||5.76 μm||1.89 μm|
|Pixel Density||3.01 MP/cm2||27.70 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||1080/30p Video|
|ISO Setting||100 - 40,000 ISO||100 - 12,800 ISO|
|ISO Boost||50 - 102,400 ISO||no Enhancement|
|DXO Sensor Quality (score)||85||49|
|DXO Color Depth (bits)||24.4||20.4|
|DXO Dynamic Range (EV)||11.9||11.3|
|DXO Low Light (ISO)||2862||208|
|Screen Specs||Canon 6D Mark II||Pentax MX-1|
|Viewfinder Type||Optical viewfinder||no viewfinder|
|Viewfinder Field of View||98%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||920k dots|
|LCD Attachment||Swivel screen||Tilting screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon 6D Mark II||Pentax MX-1|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||6.5 shutter flaps/s||1 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Canon 6D Mark II||Pentax MX-1|
|External Flash||Hotshoe||no Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Geotagging||GPS built-in||no internal GPS|
|Body Specs||Canon 6D Mark II||Pentax MX-1|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||1200 shots per charge||290 shots per charge|
144 x 111 x 75 mm
(5.7 x 4.4 x 3.0 in)
122 x 61 x 51 mm
(4.8 x 2.4 x 2.0 in)
|Camera Weight||765 g (27.0 oz)||391 g (13.8 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
