Canon 650D vs SX540
The Canon EOS 650D (called Canon T4i in some regions) and the Canon PowerShot SX540 HS are two digital cameras that were revealed to the public, respectively, in June 2012 and January 2016. The 650D is a DSLR, while the SX540 is a fixed lens compact. The cameras are based on an APS-C (650D) and a 1/2.3-inch (SX540) sensor. The 650D has a resolution of 17.9 megapixels, whereas the SX540 provides 20.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 650D and the Canon PowerShot SX540 HS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison

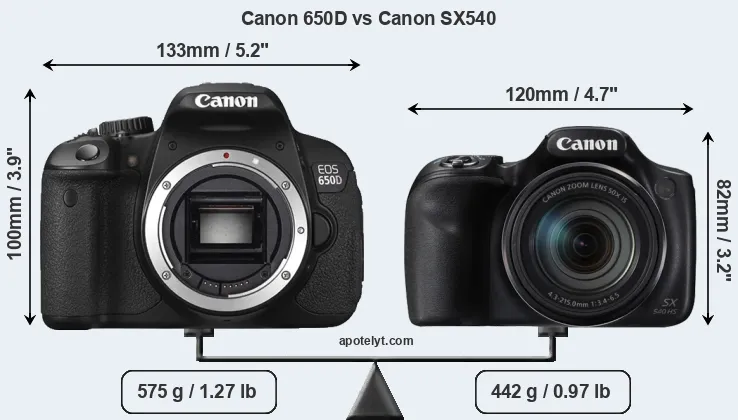

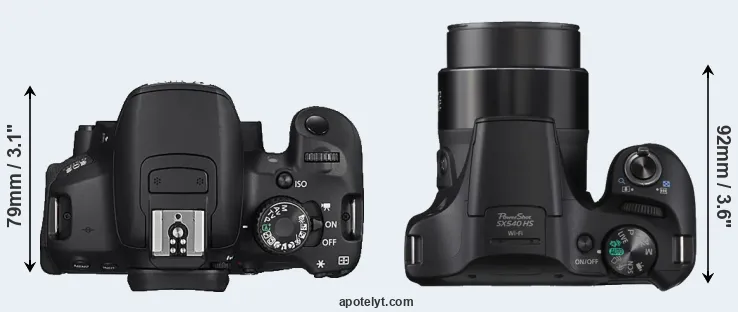

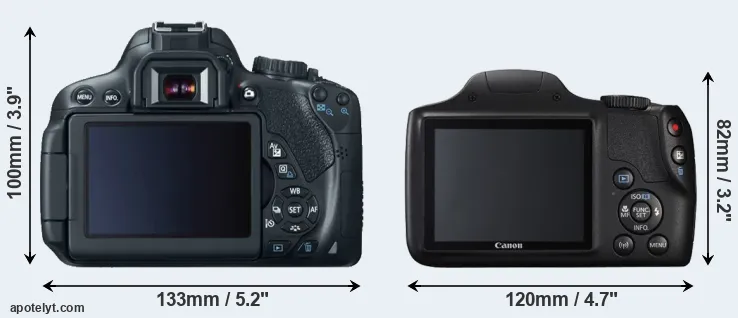

The physical size and weight of the Canon 650D and the Canon SX540 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SX540 is notably smaller (26 percent) than the Canon 650D. In this context, it is worth noting that neither the 650D nor the SX540 are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX540 has a lens built in, whereas the 650D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 650D and their specifications in the Canon EF Lens Catalog.
Concerning battery life, the 650D gets 440 shots out of its Canon LP-E8 battery, while the SX540 can take 205 images on a single charge of its Canon NB-6LH power pack.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
Camera Model |
Camera Width |
Camera Height |
Camera Depth |
Camera Weight |
Battery Life |
Weather Sealing |
Camera Launch |
Launch Price |
Street Price |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon 650D | 133 mm | 100 mm | 79 mm | 575 g | 440 | n | Jun 2012 | US$ 849 | ebay.com | |
2. | Canon SX540 | 120 mm | 82 mm | 92 mm | 442 g | 205 | n | Jan 2016 | US$ 399 | ebay.com | |
3. | Canon 100D | 117 mm | 91 mm | 69 mm | 407 g | 380 | n | Mar 2013 | US$ 549 | ebay.com | |
4. | Canon 500D | 129 mm | 98 mm | 62 mm | 520 g | 400 | n | Mar 2009 | US$ 799 | ebay.com | |
5. | Canon 550D | 129 mm | 98 mm | 62 mm | 530 g | 440 | n | Feb 2010 | US$ 699 | ebay.com | |
6. | Canon 600D | 133 mm | 100 mm | 80 mm | 570 g | 440 | n | Feb 2011 | US$ 599 | ebay.com | |
7. | Canon 700D | 133 mm | 100 mm | 79 mm | 580 g | 440 | n | Mar 2013 | US$ 649 | ebay.com | |
8. | Canon 750D | 132 mm | 101 mm | 78 mm | 555 g | 440 | n | Feb 2015 | US$ 749 | ebay.com | |
9. | Canon 760D | 132 mm | 101 mm | 78 mm | 565 g | 440 | n | Feb 2015 | US$ 649 | ebay.com | |
10. | Canon 1100D | 130 mm | 100 mm | 78 mm | 495 g | 700 | n | Feb 2011 | US$ 449 | ebay.com | |
11. | Canon 1200D | 130 mm | 100 mm | 78 mm | 480 g | 500 | n | Feb 2014 | US$ 449 | ebay.com | |
12. | Canon G1 X | 117 mm | 81 mm | 65 mm | 534 g | 250 | n | Jan 2012 | US$ 799 | ebay.com | |
13. | Canon SX530 | 120 mm | 82 mm | 92 mm | 442 g | 210 | n | Jan 2015 | US$ 429 | ebay.com | |
14. | Canon SX710 | 113 mm | 66 mm | 35 mm | 269 g | 230 | n | Jan 2015 | US$ 349 | ebay.com | |
15. | Canon SX720 | 110 mm | 64 mm | 36 mm | 270 g | 250 | n | Feb 2016 | US$ 379 | ebay.com | |
16. | Canon SX730 | 110 mm | 64 mm | 40 mm | 300 g | 250 | n | Apr 2017 | US$ 399 | ebay.com | |
17. | Canon T6 | 129 mm | 101 mm | 78 mm | 485 g | 500 | n | Mar 2016 | US$ 449 | ebay.com | |
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders. | |||||||||||
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The SX540 was launched at a lower price than the 650D, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
Sensor comparison
The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 650D features an APS-C sensor and the Canon SX540 a 1/2.3-inch sensor. The sensor area in the SX540 is 92 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 5.6. The sensor in the 650D has a native 3:2 aspect ratio, while the one in the SX540 offers a 4:3 aspect.
Technology-wise, the SX540 uses a more advanced image processing engine (DIGIC 6) than the 650D (DIGIC 5), with benefits for noise reduction, color accuracy, and processing speed.
Despite having a smaller sensor, the SX540 offers a higher resolution of 20.2 megapixels, compared with 17.9 MP of the 650D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.18μm versus 4.31μm for the 650D). However, it should be noted that the SX540 is much more recent (by 3 years and 6 months) than the 650D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the SX540 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The 650D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 650D has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Canon PowerShot SX540 HS are ISO 80 to ISO 3200 (no boost).
In terms of underlying technology, the 650D is build around a CMOS sensor, while the SX540 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
Camera Model |
Sensor Class |
Resolution (MP) |
Horiz. Pixels |
Vert. Pixels |
Video Format |
DXO Portrait |
DXO Landscape |
DXO Sports |
DXO Overall |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon 650D | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 21.7 | 11.2 | 722 | 62 | |
2. | Canon SX540 | 1/2.3 | 20.2 | 5184 | 3888 | 1080/60p | 20.3 | 11.7 | 806 | 48 | |
3. | Canon 100D | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 21.8 | 11.3 | 843 | 63 | |
4. | Canon 500D | APS-C | 15.1 | 4752 | 3168 | 1080/20p | 21.7 | 11.5 | 663 | 63 | |
5. | Canon 550D | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 22.1 | 11.5 | 784 | 66 | |
6. | Canon 600D | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 22.1 | 11.5 | 793 | 65 | |
7. | Canon 700D | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 21.7 | 11.2 | 681 | 61 | |
8. | Canon 750D | APS-C | 24.0 | 6000 | 4000 | 1080/30p | 22.7 | 12.0 | 919 | 71 | |
9. | Canon 760D | APS-C | 24.0 | 6000 | 4000 | 1080/30p | 22.6 | 12.0 | 915 | 70 | |
10. | Canon 1100D | APS-C | 12.2 | 4272 | 2848 | 720/30p | 21.9 | 11.0 | 755 | 62 | |
11. | Canon 1200D | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 21.9 | 11.3 | 724 | 63 | |
12. | Canon G1 X | 1.5-inch | 14.2 | 4352 | 3264 | 1080/24p | 21.7 | 10.8 | 644 | 60 | |
13. | Canon SX530 | 1/2.3 | 15.9 | 4608 | 3456 | 1080/30p | 20.2 | 11.6 | 712 | 47 | |
14. | Canon SX710 | 1/2.3 | 20.2 | 5184 | 3888 | 1080/60p | 20.2 | 11.6 | 712 | 47 | |
15. | Canon SX720 | 1/2.3 | 20.2 | 5184 | 3888 | 1080/60p | 20.3 | 11.8 | 817 | 48 | |
16. | Canon SX730 | 1/2.3 | 20.2 | 5184 | 3888 | 1080/60p | 20.5 | 11.9 | 924 | 50 | |
17. | Canon T6 | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 22.0 | 11.7 | 781 | 66 | |
Note: DXO values in italics represent estimates based on sensor size and age. |
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the SX540 provides a faster frame rate than the 650D. It can shoot movie footage at 1080/60p, while the 650D is limited to 1080/30p.
Feature comparison
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the 650D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the SX540 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon 650D, the Canon SX540, and comparable cameras.
Camera Model |
Viewfinder (Type or 000 dots) |
Control Panel (yes/no) |
LCD Specifications (inch/000 dots) |
LCD Attach- ment |
Touch Screen (yes/no) |
Max Shutter Speed * |
Max Shutter Flaps * |
Built-in Flash (yes/no) |
Built-in Image Stab |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon 650D | optical | n | 3.0 / 1040 | swivel | Y | 1/4000s | 5.0/s | Y | n | |
2. | Canon SX540 | none | n | 3.0 / 461 | fixed | n | 1/2000s | 5.9/s | Y | Y | |
3. | Canon 100D | optical | n | 3.0 / 1040 | fixed | Y | 1/4000s | 4.9/s | Y | n | |
4. | Canon 500D | optical | n | 3.0 / 920 | fixed | n | 1/4000s | 3.4/s | Y | n | |
5. | Canon 550D | optical | n | 3.0 / 1040 | fixed | n | 1/4000s | 3.7/s | Y | n | |
6. | Canon 600D | optical | n | 3.0 / 1040 | swivel | n | 1/4000s | 3.7/s | Y | n | |
7. | Canon 700D | optical | n | 3.0 / 1040 | swivel | Y | 1/4000s | 5.0/s | Y | n | |
8. | Canon 750D | optical | n | 3.0 / 1040 | swivel | Y | 1/4000s | 5.0/s | Y | n | |
9. | Canon 760D | optical | Y | 3.0 / 1040 | swivel | Y | 1/4000s | 5.0/s | Y | n | |
10. | Canon 1100D | optical | n | 2.7 / 230 | fixed | n | 1/4000s | 3.0/s | Y | n | |
11. | Canon 1200D | optical | n | 3.0 / 460 | fixed | n | 1/4000s | 3.0/s | Y | n | |
12. | Canon G1 X | optical | n | 3.0 / 922 | swivel | n | 1/4000s | 1.9/s | Y | Y | |
13. | Canon SX530 | none | n | 3.0 / 461 | fixed | n | 1/2000s | 1.6/s | Y | Y | |
14. | Canon SX710 | none | n | 3.0 / 922 | fixed | n | 1/3200s | 6.0/s | Y | Y | |
15. | Canon SX720 | none | n | 3.0 / 922 | fixed | n | 1/3200s | 5.9/s | Y | Y | |
16. | Canon SX730 | none | n | 3.0 / 922 | tilting | n | 1/3200s | 5.9/s | Y | Y | |
17. | Canon T6 | optical | n | 3.0 / 920 | fixed | n | 1/4000s | 3.0/s | Y | n | |
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one. |
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The 650D has a touchscreen, while the SX540 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The 650D has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the SX540 does not have a selfie-screen.Concerning the storage of imaging data, both the 650D and the SX540 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
Connectivity comparison
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 650D and Canon PowerShot SX540 HS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Camera Model |
Hotshoe Port |
Internal Mic / Speaker |
Microphone Port |
Headphone Port |
HDMI Port |
USB Port |
WiFi Support |
NFC Support |
Bluetooth Support |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon 650D | Y | stereo / mono | Y | - | mini | 2.0 | - | - | - | |
2. | Canon SX540 | - | stereo / mono | - | - | mini | 2.0 | Y | Y | - | |
3. | Canon 100D | Y | mono / mono | Y | - | mini | 2.0 | - | - | - | |
4. | Canon 500D | Y | mono / mono | - | - | mini | 2.0 | - | - | - | |
5. | Canon 550D | Y | stereo / - | Y | - | mini | 2.0 | - | - | - | |
6. | Canon 600D | Y | mono / mono | Y | - | mini | 2.0 | - | - | - | |
7. | Canon 700D | Y | stereo / mono | Y | - | mini | 2.0 | - | - | - | |
8. | Canon 750D | Y | stereo / mono | Y | - | mini | 2.0 | Y | Y | - | |
9. | Canon 760D | Y | stereo / mono | Y | - | mini | 2.0 | Y | Y | - | |
10. | Canon 1100D | Y | stereo / mono | - | - | mini | 2.0 | - | - | - | |
11. | Canon 1200D | Y | mono / mono | - | - | mini | 2.0 | - | - | - | |
12. | Canon G1 X | Y | stereo / mono | - | - | mini | 2.0 | - | - | - | |
13. | Canon SX530 | - | stereo / mono | - | - | mini | 2.0 | Y | Y | - | |
14. | Canon SX710 | - | stereo / mono | - | - | micro | 2.0 | Y | Y | - | |
15. | Canon SX720 | - | stereo / mono | - | - | micro | 2.0 | Y | Y | - | |
16. | Canon SX730 | - | stereo / mono | - | - | micro | 2.0 | Y | Y | Y | |
17. | Canon T6 | Y | mono / mono | - | - | mini | 2.0 | Y | Y | - |
It is notable that the 650D has a hotshoe, while the SX540 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
Both the 650D and the SX540 have been discontinued, but can regularly be found used on ebay. The 650D was replaced by the Canon 700D, while the SX540 does not have a direct successor. Further information on the features and operation of the 650D and SX540 can be found, respectively, in the Canon 650D Manual (free pdf) or the online Canon SX540 Manual.
Review summary
So how do things add up? Is the Canon 650D better than the Canon SX540 or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Canon EOS 650D:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 461k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
- More flexible: Can take a variety of interchangeable lenses, including specialty optics.
- Longer lasting: Can take more shots (440 versus 205) on a single battery charge.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- More heavily discounted: Has been available for much longer (launched in June 2012).
Arguments in favor of the Canon PowerShot SX540 HS:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better jpgs: Has a more modern image processing engine (DIGIC 6 vs DIGIC 5).
- Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
- Faster burst: Shoots at higher frequency (5.9 vs 5 flaps/sec) to capture the decisive moment.
- Ready to shoot: Comes with an integrated lens, while the 650D requires a separate lens.
- More compact: Is smaller (120x82mm vs 133x100mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the 650D).
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Reflects 3 years and 6 months of technical progress since the 650D launch.
If the number of relative strengths (bullet points above) is taken as a guide, the 650D is the clear winner of the match-up (17 : 12 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 650D and the Canon SX540 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 650D or the SX540. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
Expert reviews
This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
Camera Model |
AP score |
CL score |
DCW score |
DPR score |
EPZ score |
PB score |
Camera Launch |
Launch Price |
Street Price |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon 650D | 4/5 | + + | .. | 77/100 | 4.5/5 | 4.5/5 | Jun 2012 | US$ 849 | ebay.com | |
2. | Canon SX540 | .. | .. | .. | .. | .. | .. | Jan 2016 | US$ 399 | ebay.com | |
3. | Canon 100D | 4/5 | + | .. | 78/100 | 4/5 | 4/5 | Mar 2013 | US$ 549 | ebay.com | |
4. | Canon 500D | .. | + + | .. | 74/100 | 4.5/5 | 4.5/5 | Mar 2009 | US$ 799 | ebay.com | |
5. | Canon 550D | .. | + + | .. | 77/100 | 4/5 | 4.5/5 | Feb 2010 | US$ 699 | ebay.com | |
6. | Canon 600D | 3/5 | o | .. | 77/100 | 4.5/5 | 4.5/5 | Feb 2011 | US$ 599 | ebay.com | |
7. | Canon 700D | .. | .. | .. | 76/100 | 4.5/5 | 4.5/5 | Mar 2013 | US$ 649 | ebay.com | |
8. | Canon 750D | 5/5 | .. | .. | 75/100 | 4.5/5 | 4.5/5 | Feb 2015 | US$ 749 | ebay.com | |
9. | Canon 760D | 5/5 | + | .. | 77/100 | 4.5/5 | 4.5/5 | Feb 2015 | US$ 649 | ebay.com | |
10. | Canon 1100D | .. | 80/100 | .. | 69/100 | 4/5 | 4.5/5 | Feb 2011 | US$ 449 | ebay.com | |
11. | Canon 1200D | 3/5 | + | .. | .. | 4/5 | 4.5/5 | Feb 2014 | US$ 449 | ebay.com | |
12. | Canon G1 X | 5/5 | + | .. | 76/100 | 4/5 | 4.5/5 | Jan 2012 | US$ 799 | ebay.com | |
13. | Canon SX530 | .. | + + | .. | .. | 4/5 | 4/5 | Jan 2015 | US$ 429 | ebay.com | |
14. | Canon SX710 | .. | + | .. | .. | 4/5 | 3.5/5 | Jan 2015 | US$ 349 | ebay.com | |
15. | Canon SX720 | .. | + | .. | .. | 4/5 | 4.5/5 | Feb 2016 | US$ 379 | ebay.com | |
16. | Canon SX730 | .. | + | .. | .. | 4/5 | 4/5 | Apr 2017 | US$ 399 | ebay.com | |
17. | Canon T6 | 4/5 | o | 4/5 | 73/100 | 4/5 | 4/5 | Mar 2016 | US$ 449 | ebay.com | |
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available. |
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 250D vs Canon SX540
- Canon 350D vs Canon 650D
- Canon 40D vs Canon SX540
- Canon 650D vs Nikon D800
- Canon 650D vs Olympus E-500
- Canon 650D vs Olympus E-600
- Canon 650D vs Sony A6600
- Canon 650D vs Sony NEX-F3
- Canon SX540 vs Canon SX720
- Canon SX540 vs Canon XC10
- Canon SX540 vs Nikon D1H
- Canon SX540 vs Ricoh WG-6
Specifications: Canon 650D vs Canon SX540
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
Camera Model | Canon 650D | Canon SX540 |
---|---|---|
Camera Type | Digital single lens reflex | Fixed lens compact camera |
Camera Lens | Canon EF mount lenses | 24-1200mm f/3.4-6.5 |
Launch Date | June 2012 | January 2016 |
Launch Price | USD 849 | USD 399 |
Sensor Specs | Canon 650D | Canon SX540 |
Sensor Technology | CMOS | BSI-CMOS |
Sensor Format | APS-C Sensor | 1/2.3" Sensor |
Sensor Size | 22.3 x 14.9 mm | 6.17 x 4.55 mm |
Sensor Area | 332.27 mm2 | 28.0735 mm2 |
Sensor Diagonal | 26.8 mm | 7.7 mm |
Crop Factor | 1.6x | 5.6x |
Sensor Resolution | 17.9 Megapixels | 20.2 Megapixels |
Image Resolution | 5184 x 3456 pixels | 5184 x 3888 pixels |
Pixel Pitch | 4.31 μm | 1.18 μm |
Pixel Density | 5.39 MP/cm2 | 71.80 MP/cm2 |
Moiré control | Anti-Alias filter | no AA filter |
Movie Capability | 1080/30p Video | 1080/60p Video |
ISO Setting | 100 - 12,800 ISO | 80 - 3,200 ISO |
ISO Boost | 100 - 25,600 ISO | no Enhancement |
Image Processor | DIGIC 5 | DIGIC 6 |
DXO Sensor Quality (score) | 62 | .. |
DXO Color Depth (bits) | 21.7 | .. |
DXO Dynamic Range (EV) | 11.2 | .. |
DXO Low Light (ISO) | 722 | .. |
Screen Specs | Canon 650D | Canon SX540 |
Viewfinder Type | Optical viewfinder | no viewfinder |
Viewfinder Field of View | 95% | |
Viewfinder Magnification | 0.53x | |
LCD Framing | Live View | Live View |
Rear LCD Size | 3.0inch | 3.0inch |
LCD Resolution | 1040k dots | 461k dots |
LCD Attachment | Swivel screen | Fixed screen |
Touch Input | Touchscreen | no Touchscreen |
Shooting Specs | Canon 650D | Canon SX540 |
Focus System | Phase-detect AF | Contrast-detect AF |
Continuous Shooting | 5 shutter flaps/s | 5.9 shutter flaps/s |
Fill Flash | Built-in Flash | Built-in Flash |
Storage Medium | SDXC cards | SDXC cards |
Single or Dual Card Slots | Single card slot | Single card slot |
UHS card support | UHS-I | UHS-I |
Connectivity Specs | Canon 650D | Canon SX540 |
External Flash | Hotshoe | no Hotshoe |
USB Connector | USB 2.0 | USB 2.0 |
HDMI Port | mini HDMI | mini HDMI |
Microphone Port | External MIC port | no MIC socket |
Wifi Support | no Wifi | Wifi built-in |
Near-Field Communication | no NFC | NFC built-in |
Body Specs | Canon 650D | Canon SX540 |
Battery Type | Canon LP-E8 | Canon NB-6LH |
Battery Life (CIPA) | 440 shots per charge | 205 shots per charge |
Body Dimensions |
133 x 100 x 79 mm (5.2 x 3.9 x 3.1 in) |
120 x 82 x 92 mm (4.7 x 3.2 x 3.6 in) |
Camera Weight | 575 g (20.3 oz) | 442 g (15.6 oz) |
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
