Canon 5D vs Nikon D5
The Canon EOS 5D and the Nikon D5 are two professional cameras that were revealed to the public, respectively, in August 2005 and January 2016. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with a full frame sensor. The Canon has a resolution of 12.7 megapixels, whereas the Nikon provides 20.7 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D and the Nikon D5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The physical size and weight of the Canon 5D and the Nikon D5 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D5 is considerably larger (48 percent) than the Canon 5D. Moreover, the D5 is substantially heavier (58 percent) than the 5D. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Yet, since both cameras are based around a full frame sensor, their respective lenses will tend to have similar dimensions and heft. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (5D) and the Nikon Lens Catalog (D5).
Concerning battery life, the 5D gets 400 shots out of its BP-511A battery, while the D5 can take 3780 images on a single charge of its EN-EL18a power pack. As can be seen in the images above, the D5 has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the 5D, Canon provides the BG-E4 vertical grip as an optional accessory (see here on eBay).
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon 5D||152 mm||113 mm||75 mm||895 g||400||Y||Aug 2005||3,299|
|2.||Nikon D5||160 mm||159 mm||92 mm||1415 g||3780||Y||Jan 2016||6,499|
|3.||Canon 6D Mark II||144 mm||111 mm||75 mm||765 g||1200||Y||Jun 2017||1,999|
|4.||Canon 1D X Mark II||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999|
|5.||Canon 5D Mark IV||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499|
|6.||Canon 5DS||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|7.||Canon 5DS R||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|8.||Canon 5D Mark III||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499|
|9.||Canon 6D||145 mm||111 mm||71 mm||770 g||1090||Y||Sep 2012||2,099|
|10.||Canon 5D Mark II||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499|
|11.||Canon 50D||146 mm||108 mm||74 mm||822 g||800||Y||Aug 2008||1,299|
|12.||Canon 1D Mark II N||156 mm||158 mm||80 mm||1565 g||1200||Y||Aug 2005||3,999|
|13.||Nikon D6||160 mm||163 mm||92 mm||1270 g||3580||Y||Feb 2020||6,499|
|14.||Nikon D4S||160 mm||157 mm||91 mm||1350 g||3020||Y||Feb 2014||6,499|
|15.||Nikon D4||160 mm||157 mm||91 mm||1340 g||2600||Y||Jan 2012||5,999|
|16.||Nikon D3X||160 mm||157 mm||88 mm||1260 g||4400||Y||Dec 2008||7,999|
|17.||Nikon D700||147 mm||123 mm||77 mm||1074 g||1000||Y||Jul 2008||2,999|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The 5D was launched at a markedly lower price (by 49 percent) than the D5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature a full frame sensor, but their sensors differ slightly in size. The sensor area in the D5 is 1 percent smaller. They nevertheless have the same format factor of 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.

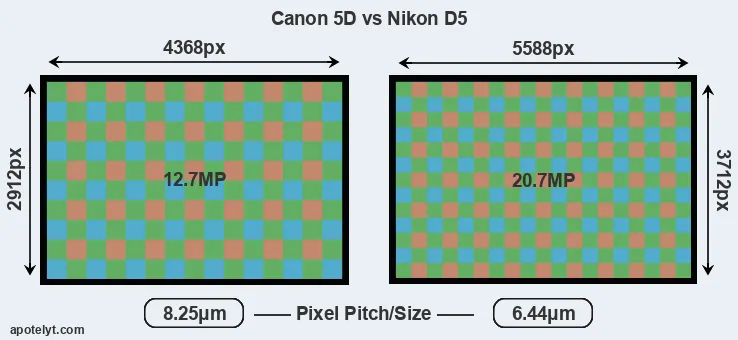

Despite having a slightly smaller sensor, the D5 offers a higher resolution of 20.7 megapixels, compared with 12.7 MP of the 5D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 6.44μm versus 8.25μm for the 5D). However, it should be noted that the D5 is much more recent (by 10 years and 4 months) than the 5D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Nikon D5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D5 for good quality output (200 dots per inch) amounts to 27.9 x 18.6 inches or 71 x 47.1 cm, for very good quality (250 dpi) 22.4 x 14.8 inches or 56.8 x 37.7 cm, and for excellent quality (300 dpi) 18.6 x 12.4 inches or 47.3 x 31.4 cm. The corresponding values for the Canon 5D are 21.8 x 14.6 inches or 55.5 x 37 cm for good quality, 17.5 x 11.6 inches or 44.4 x 29.6 cm for very good quality, and 14.6 x 9.7 inches or 37 x 24.7 cm for excellent quality prints.
The Canon EOS 5D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 50-3200. The corresponding ISO settings for the Nikon D5 are ISO 100 to ISO 102400, with the possibility to increase the ISO range to 50-3280000.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the D5 offers substantially better image quality than the 5D (overall score 17 points higher). The advantage is based on 2.2 bits higher color depth, 1.2 EV in additional dynamic range, and 0.8 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|1.||Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71|
|2.||Nikon D5||Full Frame||20.7||5588||3712||4K/30p||25.1||12.3||2343||88|
|3.||Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|4.||Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|5.||Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|6.||Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|7.||Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|8.||Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|9.||Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|10.||Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|12.||Canon 1D Mark II N||APS-H||8.2||3504||2336||none||22.3||11.2||975||66|
|13.||Nikon D6||Full Frame||20.7||5568||3712||4K/30p||..||..||..||..|
|14.||Nikon D4S||Full Frame||16.2||4928||3280||1080/60p||24.4||13.3||3074||89|
|15.||Nikon D4||Full Frame||16.2||4928||3280||1080/30p||24.7||13.1||2965||89|
|16.||Nikon D3X||Full Frame||24.4||6048||4032||none||24.7||13.7||1992||88|
|17.||Nikon D700||Full Frame||12.1||4256||2832||none||23.5||12.2||2303||80|
Many modern cameras are not only capable of taking still images, but can also record movies. The D5 indeed provides for movie recording, while the 5D does not. The highest resolution format that the D5 can use is 4K/30p.
Beyond body and sensor, cameras can and do differ across a range of features. The 5D and the D5 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the D5 offers a wider field of view (100%) than the one in the 5D (96%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the D5 has a higher magnification (0.72x vs 0.71x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 5D and Nikon D5 in connection with corresponding information for a sample of similar cameras.
|3.||Canon 6D Mark II||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n|
|4.||Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|5.||Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n|
|7.||Canon 5DS R||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n|
|8.||Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n|
|10.||Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
|12.||Canon 1D Mark II N||optical||Y||2.5||230||fixed||n||1/8000s||8.5||n||n|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The D5 has a touchscreen, while the 5D has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The Nikon D5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 5D writes its imaging data to Compact Flash cards, while the D5 uses Compact Flash or XQD cards. The D5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the 5D only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D and Nikon D5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|3.||Canon 6D Mark II||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y|
|4.||Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|5.||Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-|
|7.||Canon 5DS R||Y||mono||mono||Y||-||mini||3.0||-||-||-|
|8.||Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|10.||Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
|12.||Canon 1D Mark II N||Y||-||-||-||-||-||1.1||-||-||-|
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
Both the 5D and the D5 have been discontinued, but can regularly be found used on eBay. The 5D was replaced by the Canon 5D Mark II, while the D5 was followed by the Nikon D6. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Nikon websites.
So how do things add up? Is there a clear favorite between the Canon 5D and the Nikon D5? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Canon EOS 5D:
- More compact: Is smaller (152x113mm vs 160x159mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 520g or 37 percent) and hence easier to carry around.
- More affordable: Was introduced into a lower priced category (49 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in August 2005).
Reasons to prefer the Nikon D5:
- More detail: Has more megapixels (20.7 vs 12.7MP), which boosts linear resolution by 28%.
- Better image quality: Scores substantially higher (17 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (2.2 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (1.2 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (0.8 stops ISO advantage).
- Broader imaging potential: Can capture not only stills but also 4K/30p video.
- More complete view: Has a viewfinder with a larger field of view (100% vs 96%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.72x vs 0.71x).
- Larger screen: Has a bigger rear LCD (3.2" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (2359k vs 230k dots).
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster burst: Shoots at higher frequency (14 vs 3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Gets more shots (3780 versus 400) out of a single battery charge.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More modern: Reflects 10 years and 4 months of technical progress since the 5D launch.
If the count of relative strengths (bullet points above) is taken as a measure, the D5 is the clear winner of the contest (18 : 4 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5D and the Nikon D5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the 5D and the D5 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 5D||..||88/100||+ +||o||..||Aug 2005||3,299|
|2.||Nikon D5||..||..||89/100||4.5/5||5/5||Jan 2016||6,499|
|3.||Canon 6D Mark II||4/5||+||80/100||4.5/5||4/5||Jun 2017||1,999|
|4.||Canon 1D X Mark II||..||..||89/100||4.5/5||4.5/5||Feb 2016||5,999|
|5.||Canon 5D Mark IV||4.5/5||+ +||87/100||4.5/5||4.5/5||Aug 2016||3,499|
|6.||Canon 5DS||..||+||83/100||4.5/5||4.5/5||Feb 2015||3,699|
|7.||Canon 5DS R||5/5||+||83/100||5/5||4.5/5||Feb 2015||3,699|
|8.||Canon 5D Mark III||..||+ +||82/100||4.5/5||4.5/5||Mar 2012||3,499|
|9.||Canon 6D||5/5||+ +||83/100||4.5/5||4.5/5||Sep 2012||2,099|
|10.||Canon 5D Mark II||4/5||91/100||79/100||4/5||..||Sep 2008||3,499|
|11.||Canon 50D||..||+ +||+ +||4.5/5||4.5/5||Aug 2008||1,299|
|12.||Canon 1D Mark II N||..||..||..||..||..||Aug 2005||3,999|
|13.||Nikon D6||..||..||..||4.5/5||4.5/5||Feb 2020||6,499|
|14.||Nikon D4S||5/5||..||..||4.5/5||4.5/5||Feb 2014||6,499|
|15.||Nikon D4||..||..||..||4.5/5||4.5/5||Jan 2012||5,999|
|16.||Nikon D3X||..||..||86/100||4/5||5/5||Dec 2008||7,999|
|17.||Nikon D700||..||89/100||+ +||4.5/5||4.5/5||Jul 2008||2,999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon 5D vs Nikon D5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 5D||Nikon D5|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Nikon F mount lenses|
|Launch Date||August 2005||January 2016|
|Launch Price||USD 3,299||USD 6,499|
|Sensor Specs||Canon 5D||Nikon D5|
|Sensor Format||Full Frame Sensor||Full Frame Sensor|
|Sensor Size||36.0 x 24.0 mm||35.9 x 23.9 mm|
|Sensor Area||864 mm2||858.01 mm2|
|Sensor Diagonal||43.3 mm||43.1 mm|
|Sensor Resolution||12.7 Megapixels||20.7 Megapixels|
|Image Resolution||4368 x 2912 pixels||5588 x 3712 pixels|
|Pixel Pitch||8.25 μm||6.44 μm|
|Pixel Density||1.47 MP/cm2||2.42 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||4K/30p Video|
|ISO Setting||100 - 1,600 ISO||100 - 102,400 ISO|
|ISO Boost||50 - 3,200 ISO||50 - 3,280,000 ISO|
|Image Processor||DIGIC 2||EXPEED 5|
|DXO Sensor Quality (score)||71||88|
|DXO Color Depth (bits)||22.9||25.1|
|DXO Dynamic Range (EV)||11.1||12.3|
|DXO Low Light (ISO)||1368||2343|
|Screen Specs||Canon 5D||Nikon D5|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||96%||100%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View|
|Rear LCD Size||2.5inch||3.2inch|
|LCD Resolution||230k dots||2359k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 5D||Nikon D5|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||3 shutter flaps/s||14 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||400 000 actuations|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||CF cards||CF or XQD cards|
|Second Storage Option||Single card slot||Dual card slots|
|Connectivity Specs||Canon 5D||Nikon D5|
|Studio Flash||PC Sync socket||PC Sync socket|
|USB Connector||USB 2.0||USB 3.0|
|HDMI Port||no HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 5D||Nikon D5|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Life (CIPA)||400 shots per charge||3780 shots per charge|
152 x 113 x 75 mm
(6.0 x 4.4 x 3.0 in)
160 x 159 x 92 mm
(6.3 x 6.3 x 3.6 in)
|Camera Weight||895 g (31.6 oz)||1415 g (49.9 oz)|
