Canon 5D vs SX420
The Canon EOS 5D and the Canon PowerShot SX420 IS are two digital cameras that were revealed to the public, respectively, in August 2005 and January 2016. The 5D is a DSLR, while the SX420 is a fixed lens compact. The cameras are based on a full frame (5D) and a 1/2.3-inch (SX420) sensor. The 5D has a resolution of 12.7 megapixels, whereas the SX420 provides 19.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D and the Canon PowerShot SX420 IS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

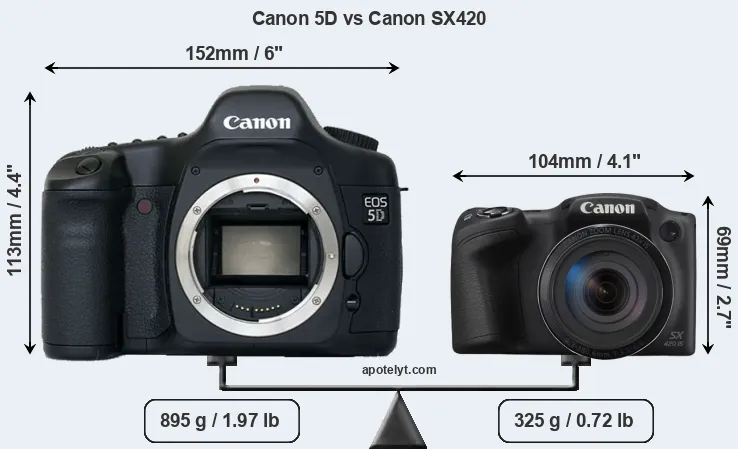

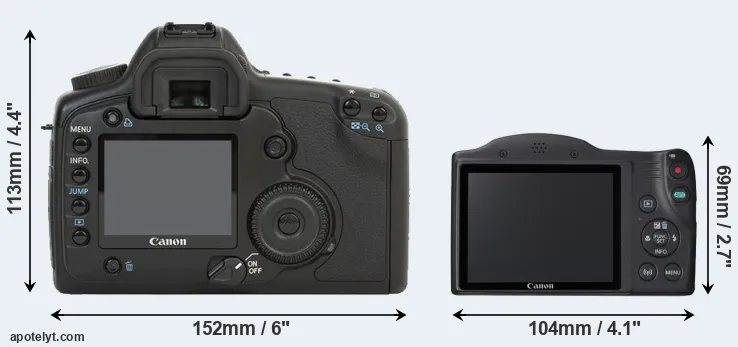

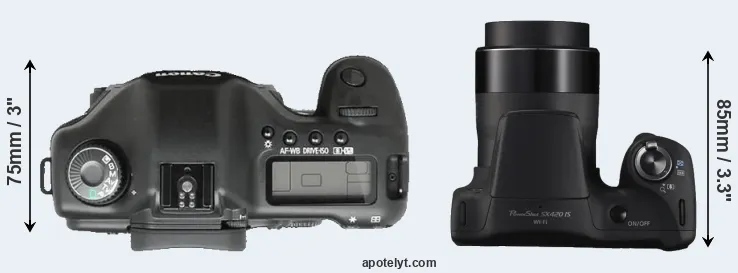

The side-by-side display below illustrates the physical size and weight of the Canon 5D and the Canon SX420. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
The SX420 can be obtained in two different colors (black, red), while the 5D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SX420 is considerably smaller (58 percent) than the Canon 5D. It is worth mentioning in this context that the 5D is splash and dust resistant, while the SX420 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX420 has a lens built in, whereas the 5D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 5D and their specifications in the Canon EF Lens Catalog.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon 5D||152 mm||113 mm||75 mm||895 g||400||Y||Aug 2005||3,299||ebay.com|
|2.||Canon SX420||104 mm||69 mm||85 mm||325 g||195||n||Jan 2016||299||ebay.com|
|3.||Canon SX430||104 mm||69 mm||85 mm||323 g||195||n||Jan 2017||299||amazon.com|
|4.||Canon 6D Mark II||144 mm||111 mm||75 mm||765 g||1200||Y||Jun 2017||1,999||amazon.com|
|5.||Canon SX730||110 mm||64 mm||40 mm||300 g||250||n||Apr 2017||399||ebay.com|
|6.||Canon 5DS||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699||amazon.com|
|7.||Canon 5DS R||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699||amazon.com|
|8.||Canon SX410||104 mm||69 mm||85 mm||325 g||185||n||Feb 2015||279||ebay.com|
|9.||Canon SX610||105 mm||61 mm||27 mm||191 g||270||n||Jan 2015||249||ebay.com|
|10.||Canon SX710||113 mm||66 mm||35 mm||269 g||230||n||Jan 2015||349||ebay.com|
|11.||Canon 5D Mark III||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499||ebay.com|
|12.||Canon 6D||145 mm||111 mm||71 mm||770 g||1090||Y||Sep 2012||2,099||ebay.com|
|13.||Canon 5D Mark II||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499||ebay.com|
|14.||Canon 1D Mark II N||156 mm||158 mm||80 mm||1565 g||1200||Y||Aug 2005||3,999||ebay.com|
|15.||Canon 1Ds Mark II||156 mm||158 mm||80 mm||1215 g||1200||Y||Sep 2004||7,999||ebay.com|
|16.||Canon 1Ds||156 mm||158 mm||80 mm||1265 g||600||Y||Sep 2002||8,999||ebay.com|
|17.||Nikon D700||147 mm||123 mm||77 mm||1074 g||1000||Y||Jul 2008||2,999||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX420 was launched at a lower price than the 5D, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

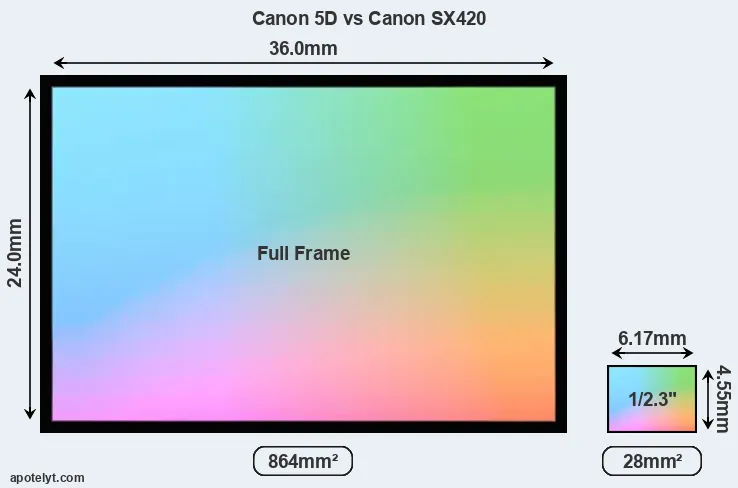

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 5D features a full frame sensor and the Canon SX420 a 1/2.3-inch sensor. The sensor area in the SX420 is 97 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 5.6. The sensor in the 5D has a native 3:2 aspect ratio, while the one in the SX420 offers a 4:3 aspect.
Technology-wise, the SX420 uses a more advanced image processing engine (DIGIC 4+) than the 5D (DIGIC 2), with benefits for noise reduction, color accuracy, and processing speed.

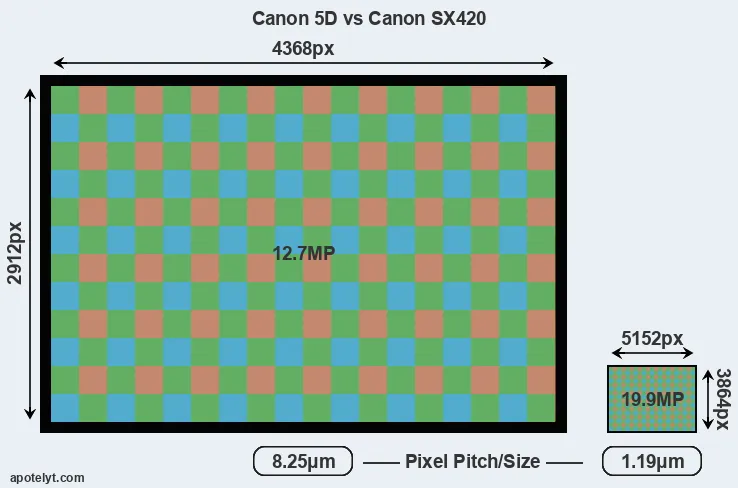

Despite having a smaller sensor, the SX420 offers a higher resolution of 19.9 megapixels, compared with 12.7 MP of the 5D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.19μm versus 8.25μm for the 5D). However, it should be noted that the SX420 is much more recent (by 10 years and 4 months) than the 5D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the SX420 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon SX420 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX420 for good quality output (200 dots per inch) amounts to 25.8 x 19.3 inches or 65.4 x 49.1 cm, for very good quality (250 dpi) 20.6 x 15.5 inches or 52.3 x 39.3 cm, and for excellent quality (300 dpi) 17.2 x 12.9 inches or 43.6 x 32.7 cm. The corresponding values for the Canon 5D are 21.8 x 14.6 inches or 55.5 x 37 cm for good quality, 17.5 x 11.6 inches or 44.4 x 29.6 cm for very good quality, and 14.6 x 9.7 inches or 37 x 24.7 cm for excellent quality prints.
The Canon EOS 5D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 50-3200. The corresponding ISO settings for the Canon PowerShot SX420 IS are ISO 100 to ISO 1600 (no boost).
In terms of underlying technology, the 5D is build around a CMOS sensor, while the SX420 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|1.||Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71|
|4.||Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|6.||Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|7.||Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|11.||Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|12.||Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|13.||Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|14.||Canon 1D Mark II N||APS-H||8.2||3504||2336||none||22.3||11.2||975||66|
|15.||Canon 1Ds Mark II||Full Frame||16.6||4992||3328||none||23.3||11.3||1480||74|
|16.||Canon 1Ds||Full Frame||11.0||4064||2704||none||21.8||11.0||954||63|
|17.||Nikon D700||Full Frame||12.1||4256||2832||none||23.5||12.2||2303||80|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but can also record movies. The SX420 indeed provides for movie recording, while the 5D does not. The highest resolution format that the SX420 can use is 720/25p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the 5D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the SX420 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon 5D and Canon SX420 in connection with corresponding information for a sample of similar cameras.
|1.||Canon 5D||optical||Y||2.5 / 230||fixed||n||1/8000s||3.0/s||n||n|
|2.||Canon SX420||none||n||3.0 / 230||fixed||n||1/4000s||0.5/s||Y||Y|
|3.||Canon SX430||none||n||3.0 / 230||fixed||n||1/4000s||0.5/s||Y||Y|
|4.||Canon 6D Mark II||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.5/s||n||n|
|5.||Canon SX730||none||n||3.0 / 922||tilting||n||1/3200s||5.9/s||Y||Y|
|6.||Canon 5DS||optical||Y||3.2 / 1040||fixed||n||1/8000s||5.0/s||n||n|
|7.||Canon 5DS R||optical||Y||3.2 / 1040||fixed||n||1/8000s||5.0/s||n||n|
|8.||Canon SX410||none||n||3.0 / 230||fixed||n||1/4000s||0.5/s||Y||Y|
|9.||Canon SX610||none||n||3.0 / 922||fixed||n||1/2000s||2.5/s||Y||Y|
|10.||Canon SX710||none||n||3.0 / 922||fixed||n||1/3200s||6.0/s||Y||Y|
|11.||Canon 5D Mark III||optical||Y||3.2 / 1040||fixed||n||1/8000s||6.0/s||n||n|
|12.||Canon 6D||optical||Y||3.0 / 1040||fixed||n||1/4000s||4.5/s||n||n|
|13.||Canon 5D Mark II||optical||Y||3.0 / 920||fixed||n||1/8000s||3.9/s||n||n|
|14.||Canon 1D Mark II N||optical||Y||2.5 / 230||fixed||n||1/8000s||8.5/s||n||n|
|15.||Canon 1Ds Mark II||optical||Y||2.0 / 230||fixed||n||1/8000s||4.0/s||n||n|
|16.||Canon 1Ds||optical||Y||2.0 / 120||fixed||n||1/8000s||3.0/s||n||n|
|17.||Nikon D700||optical||Y||3.0 / 922||fixed||n||1/8000s||8.0/s||Y||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One feature that is present on the 5D, but is missing on the SX420 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The 5D writes its imaging data to Compact Flash cards, while the SX420 uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D and Canon PowerShot SX420 IS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon 5D||Y||- / -||-||-||-||2.0||-||-||-|
|2.||Canon SX420||-||mono / mono||-||-||-||2.0||Y||Y||-|
|3.||Canon SX430||-||mono / mono||-||-||-||2.0||Y||Y||-|
|4.||Canon 6D Mark II||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|5.||Canon SX730||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|6.||Canon 5DS||Y||mono / mono||Y||-||mini||3.0||-||-||-|
|7.||Canon 5DS R||Y||mono / mono||Y||-||mini||3.0||-||-||-|
|8.||Canon SX410||-||stereo / mono||-||-||-||2.0||-||-||-|
|9.||Canon SX610||-||- / -||-||-||micro||2.0||Y||Y||-|
|10.||Canon SX710||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|11.||Canon 5D Mark III||Y||mono / mono||Y||Y||mini||2.0||-||-||-|
|12.||Canon 6D||Y||mono / mono||Y||-||mini||2.0||Y||-||-|
|13.||Canon 5D Mark II||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|14.||Canon 1D Mark II N||Y||- / -||-||-||-||1.1||-||-||-|
|15.||Canon 1Ds Mark II||Y||- / -||-||-||-||2.0||-||-||-|
|16.||Canon 1Ds||Y||- / -||-||-||-||FW||-||-||-|
|17.||Nikon D700||Y||- / -||-||-||mini||2.0||-||-||-|
It is notable that the 5D has a hotshoe, while the SX420 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
Studio photographers will appreciate that the Canon 5D (unlike the SX420) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 5D and the SX420 have been discontinued, but can regularly be found used on ebay. The 5D was replaced by the Canon 5D Mark II, while the SX420 was followed by the Canon SX430. Further information on the features and operation of the 5D and SX420 can be found, respectively, in the Canon 5D Manual (free pdf) or the online Canon SX420 Manual.
So what conclusions can be drawn? Which of the two cameras – the Canon 5D or the Canon SX420 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Advantages of the Canon EOS 5D:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (3 vs 0.5 flaps/sec) to capture the decisive moment.
- More flexible: Can take a variety of interchangeable lenses, including specialty optics.
- Longer lasting: Can take more shots (400 versus 195) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in August 2005).
Reasons to prefer the Canon PowerShot SX420 IS:
- More detail: Has more megapixels (19.9 vs 12.7MP), which boosts linear resolution by 23%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better jpgs: Has a more modern image processing engine (DIGIC 4+ vs DIGIC 2).
- Broader imaging potential: Can capture not only stills but also 720/25p video.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- Ready to shoot: Comes with an integrated lens, while the 5D requires a separate lens.
- More compact: Is smaller (104x69mm vs 152x113mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the 5D).
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Reflects 10 years and 4 months of technical progress since the 5D launch.
If the count of relative strengths (bullet points above) is taken as a measure, the 5D comes out slightly ahead of the SX420 (15 : 14 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5D and the Canon SX420 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the 5D or the SX420 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 5D||..||88/100||..||+ +||o||..||Aug 2005||3,299||ebay.com|
|2.||Canon SX420||..||..||..||..||..||3/5||Jan 2016||299||ebay.com|
|3.||Canon SX430||..||..||..||..||3.5/5||3.5/5||Jan 2017||299||amazon.com|
|4.||Canon 6D Mark II||4/5||+||4/5||80/100||4.5/5||4/5||Jun 2017||1,999||amazon.com|
|5.||Canon SX730||..||+||..||..||4/5||4/5||Apr 2017||399||ebay.com|
|6.||Canon 5DS||..||+||..||83/100||4.5/5||4.5/5||Feb 2015||3,699||amazon.com|
|7.||Canon 5DS R||5/5||+||..||83/100||5/5||4.5/5||Feb 2015||3,699||amazon.com|
|8.||Canon SX410||..||o||..||..||..||..||Feb 2015||279||ebay.com|
|9.||Canon SX610||..||..||..||..||4/5||4/5||Jan 2015||249||ebay.com|
|10.||Canon SX710||..||+||..||..||4/5||3.5/5||Jan 2015||349||ebay.com|
|11.||Canon 5D Mark III||..||+ +||..||82/100||4.5/5||4.5/5||Mar 2012||3,499||ebay.com|
|12.||Canon 6D||5/5||+ +||..||83/100||4.5/5||4.5/5||Sep 2012||2,099||ebay.com|
|13.||Canon 5D Mark II||4/5||91/100||..||79/100||4/5||..||Sep 2008||3,499||ebay.com|
|14.||Canon 1D Mark II N||..||..||..||..||..||..||Aug 2005||3,999||ebay.com|
|15.||Canon 1Ds Mark II||..||..||..||+ +||..||..||Sep 2004||7,999||ebay.com|
|16.||Canon 1Ds||..||..||..||+ +||..||..||Sep 2002||8,999||ebay.com|
|17.||Nikon D700||..||89/100||..||+ +||4.5/5||4.5/5||Jul 2008||2,999||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon 5D vs Canon SX420
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 5D||Canon SX420|
|Camera Type||Digital single lens reflex||Fixed lens compact camera|
|Camera Lens||Canon EF mount lenses||24-1008mm f/3.5-6.6|
|Launch Date||August 2005||January 2016|
|Launch Price||USD 3,299||USD 299|
|Sensor Specs||Canon 5D||Canon SX420|
|Sensor Format||Full Frame Sensor||1/2.3" Sensor|
|Sensor Size||36.0 x 24.0 mm||6.17 x 4.55 mm|
|Sensor Area||864 mm2||28.0735 mm2|
|Sensor Diagonal||43.3 mm||7.7 mm|
|Sensor Resolution||12.7 Megapixels||19.9 Megapixels|
|Image Resolution||4368 x 2912 pixels||5152 x 3864 pixels|
|Pixel Pitch||8.25 μm||1.19 μm|
|Pixel Density||1.47 MP/cm2||70.91 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||no Video||720/25p Video|
|ISO Setting||100 - 1,600 ISO||100 - 1,600 ISO|
|ISO Boost||50 - 3,200 ISO||no Enhancement|
|Image Processor||DIGIC 2||DIGIC 4+|
|DXO Sensor Quality (score)||71||..|
|DXO Color Depth (bits)||22.9||..|
|DXO Dynamic Range (EV)||11.1||..|
|DXO Low Light (ISO)||1368||..|
|Screen Specs||Canon 5D||Canon SX420|
|Viewfinder Type||Optical viewfinder||no viewfinder|
|Viewfinder Field of View||96%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View|
|Rear LCD Size||2.5inch||3.0inch|
|LCD Resolution||230k dots||230k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon 5D||Canon SX420|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||3 shutter flaps/s||0.5 shutter flaps/s|
|Fill Flash||no On-Board Flash||Built-in Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon 5D||Canon SX420|
|External Flash||Hotshoe||no Hotshoe|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||no HDMI|
|Wifi Support||no Wifi||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Body Specs||Canon 5D||Canon SX420|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||400 shots per charge||195 shots per charge|
152 x 113 x 75 mm
(6.0 x 4.4 x 3.0 in)
104 x 69 x 85 mm
(4.1 x 2.7 x 3.3 in)
|Camera Weight||895 g (31.6 oz)||325 g (11.5 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
