Canon 5D vs Sony HX80
The Canon EOS 5D and the Sony Cyber-shot DSC-HX80 are two digital cameras that were announced, respectively, in August 2005 and March 2016. The 5D is a DSLR, while the HX80 is a fixed lens compact. The cameras are based on a full frame (5D) and a 1/2.3-inch (HX80) sensor. The Canon has a resolution of 12.7 megapixels, whereas the Sony provides 18 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D and the Sony Cyber-shot DSC-HX80? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

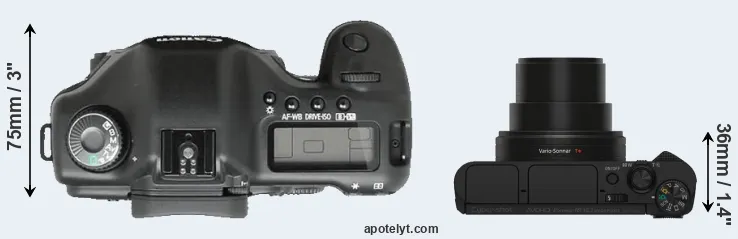

An illustration of the physical size and weight of the Canon 5D and the Sony HX80 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony HX80 is considerably smaller (66 percent) than the Canon 5D. It is worth mentioning in this context that the 5D is splash and dust resistant, while the HX80 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the HX80 has a lens built in, whereas the 5D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 5D and their specifications in the Canon EF Lens Catalog.
Concerning battery life, the 5D gets 400 shots out of its BP-511A battery, while the HX80 can take 390 images on a single charge of its NP-BX1 power pack. The power pack in the HX80 can be charged via the USB port, which can be very convenient when travelling.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon 5D||152 mm||113 mm||75 mm||895 g||400||Y||Aug 2005||3,299|
|2.||Sony HX80||102 mm||58 mm||36 mm||245 g||390||n||Mar 2016||349|
|3.||Canon 6D Mark II||144 mm||111 mm||75 mm||765 g||1200||Y||Jun 2017||1,999|
|4.||Canon 5D Mark IV||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499|
|5.||Canon SX720||110 mm||64 mm||36 mm||270 g||250||n||Feb 2016||379|
|6.||Canon 5DS||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|7.||Canon 5DS R||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|8.||Canon SX710||113 mm||66 mm||35 mm||269 g||230||n||Jan 2015||349|
|9.||Canon 5D Mark III||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499|
|10.||Canon 6D||145 mm||111 mm||71 mm||770 g||1090||Y||Sep 2012||2,099|
|11.||Canon 5D Mark II||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499|
|12.||Canon 50D||146 mm||108 mm||74 mm||822 g||800||Y||Aug 2008||1,299|
|13.||Canon 1D Mark II N||156 mm||158 mm||80 mm||1565 g||1200||Y||Aug 2005||3,999|
|14.||Nikon D700||147 mm||123 mm||77 mm||1074 g||1000||Y||Jul 2008||2,999|
|15.||Sony WX800||102 mm||58 mm||36 mm||233 g||370||n||Oct 2018||399|
|16.||Sony RX100 V||102 mm||58 mm||41 mm||299 g||220||n||Oct 2016||999|
|17.||Sony RX100 IV||102 mm||58 mm||41 mm||298 g||280||n||Jun 2015||999|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The HX80 was launched at a lower price than the 5D, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

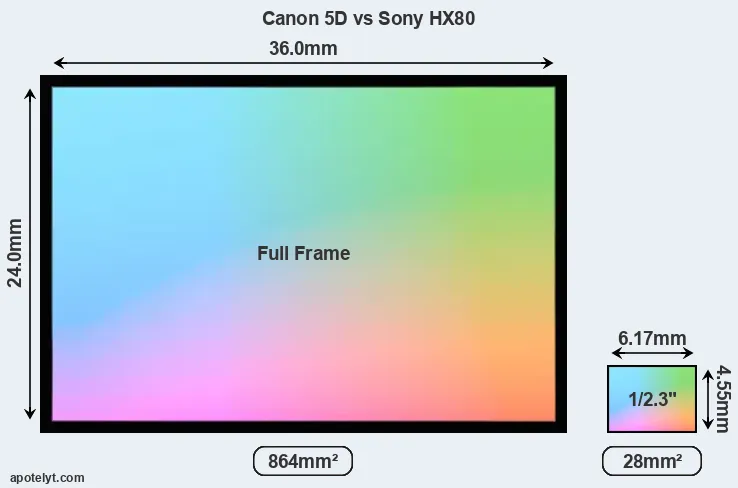

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 5D features a full frame sensor and the Sony HX80 a 1/2.3-inch sensor. The sensor area in the HX80 is 97 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 5.6. The sensor in the 5D has a native 3:2 aspect ratio, while the one in the HX80 offers a 4:3 aspect.
Despite having a smaller sensor, the HX80 offers a higher resolution of 18 megapixels, compared with 12.7 MP of the 5D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.25μm versus 8.25μm for the 5D). However, it should be noted that the HX80 is much more recent (by 10 years and 6 months) than the 5D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the HX80 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Sony HX80 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the HX80 for good quality output (200 dots per inch) amounts to 24.5 x 18.4 inches or 62.2 x 46.6 cm, for very good quality (250 dpi) 19.6 x 14.7 inches or 49.7 x 37.3 cm, and for excellent quality (300 dpi) 16.3 x 12.2 inches or 41.5 x 31.1 cm. The corresponding values for the Canon 5D are 21.8 x 14.6 inches or 55.5 x 37 cm for good quality, 17.5 x 11.6 inches or 44.4 x 29.6 cm for very good quality, and 14.6 x 9.7 inches or 37 x 24.7 cm for excellent quality prints.
The Canon EOS 5D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 50-3200. The corresponding ISO settings for the Sony Cyber-shot DSC-HX80 are ISO 80 to ISO 3200, with the possibility to increase the ISO range to 80-12800.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|1.||Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71|
|3.||Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|4.||Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|6.||Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|7.||Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|9.||Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|10.||Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|11.||Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|13.||Canon 1D Mark II N||APS-H||8.2||3504||2336||none||22.3||11.2||975||66|
|14.||Nikon D700||Full Frame||12.1||4256||2832||none||23.5||12.2||2303||80|
|16.||Sony RX100 V||1-inch||20.0||5472||3648||4K/30p||22.8||12.4||586||70|
|17.||Sony RX100 IV||1-inch||20.0||5472||3648||4K/30p||22.8||12.6||591||70|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The HX80 indeed provides for movie recording, while the 5D does not. The highest resolution format that the HX80 can use is 1080/60p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the HX80 has an electronic viewfinder (638k dots), while the 5D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The adjacent table lists some of the other core features of the Canon 5D and Sony HX80 along with similar information for a selection of comparators.
|1.||Canon 5D||optical||Y||2.5 / 230||fixed||n||1/8000s||3.0||n||n|
|2.||Sony HX80||638||n||3.0 / 922||tilting||n||1/2000s||10.0||Y||Y|
|3.||Canon 6D Mark II||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.5||n||n|
|4.||Canon 5D Mark IV||optical||Y||3.2 / 1620||fixed||Y||1/8000s||7.0||n||n|
|5.||Canon SX720||none||n||3.0 / 922||fixed||n||1/3200s||5.9||Y||Y|
|6.||Canon 5DS||optical||Y||3.2 / 1040||fixed||n||1/8000s||5.0||n||n|
|7.||Canon 5DS R||optical||Y||3.2 / 1040||fixed||n||1/8000s||5.0||n||n|
|8.||Canon SX710||none||n||3.0 / 922||fixed||n||1/3200s||6.0||Y||Y|
|9.||Canon 5D Mark III||optical||Y||3.2 / 1040||fixed||n||1/8000s||6.0||n||n|
|10.||Canon 6D||optical||Y||3.0 / 1040||fixed||n||1/4000s||4.5||n||n|
|11.||Canon 5D Mark II||optical||Y||3.0 / 920||fixed||n||1/8000s||3.9||n||n|
|12.||Canon 50D||optical||Y||3.0 / 920||fixed||n||1/8000s||6.3||Y||n|
|13.||Canon 1D Mark II N||optical||Y||2.5 / 230||fixed||n||1/8000s||8.5||n||n|
|14.||Nikon D700||optical||Y||3.0 / 922||fixed||n||1/8000s||8.0||Y||n|
|15.||Sony WX800||none||n||3.0 / 922||tilting||Y||1/2000s||10.0||Y||Y|
|16.||Sony RX100 V||2359||n||3.0 / 1229||tilting||n||1/2000s||24.0||Y||Y|
|17.||Sony RX100 IV||2359||n||3.0 / 1228||tilting||n||1/2000s||16.0||Y||Y|
One feature that is present on the 5D, but is missing on the HX80 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The HX80 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 5D does not have a selfie-screen.
The 5D writes its imaging data to Compact Flash cards, while the HX80 uses SDXC or Memory Stick PRO Duo cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D and Sony Cyber-shot DSC-HX80 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon 5D||Y||- / -||-||-||-||2.0||-||-||-|
|2.||Sony HX80||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|3.||Canon 6D Mark II||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|4.||Canon 5D Mark IV||Y||mono / mono||Y||Y||mini||3.0||Y||Y||-|
|5.||Canon SX720||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|6.||Canon 5DS||Y||mono / mono||Y||-||mini||3.0||-||-||-|
|7.||Canon 5DS R||Y||mono / mono||Y||-||mini||3.0||-||-||-|
|8.||Canon SX710||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|9.||Canon 5D Mark III||Y||mono / mono||Y||Y||mini||2.0||-||-||-|
|10.||Canon 6D||Y||mono / mono||Y||-||mini||2.0||Y||-||-|
|11.||Canon 5D Mark II||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|12.||Canon 50D||Y||- / -||-||-||mini||2.0||-||-||-|
|13.||Canon 1D Mark II N||Y||- / -||-||-||-||1.1||-||-||-|
|14.||Nikon D700||Y||- / -||-||-||mini||2.0||-||-||-|
|15.||Sony WX800||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|16.||Sony RX100 V||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|17.||Sony RX100 IV||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
It is notable that the 5D has a hotshoe, while the HX80 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
Studio photographers will appreciate that the Canon 5D (unlike the HX80) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The HX80 is a recent model that features in the current product line-up of Sony. In contrast, the 5D has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the 5D was succeeded by the Canon 5D Mark II. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Sony websites.
So what conclusions can be drawn? Is the Canon 5D better than the Sony HX80 or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Canon EOS 5D:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
- More flexible: Can take a variety of interchangeable lenses, including specialty optics.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in August 2005).
Advantages of the Sony Cyber-shot DSC-HX80:
- More detail: Has more megapixels (18 vs 12.7MP), which boosts linear resolution by 17%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Broader imaging potential: Can capture not only stills but also 1080/60p video.
- More framing info: Has an electronic viewfinder that displays shooting data.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (922k vs 230k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (10 vs 3 flaps/sec) to capture the decisive moment.
- Ready to shoot: Comes with an integrated lens, while the 5D requires a separate lens.
- More compact: Is smaller (102x58mm vs 152x113mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the 5D).
- Easier travel charging: Can be conveniently charged via its USB port.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Reflects 10 years and 6 months of technical progress since the 5D launch.
If the count of individual advantages (bullet points above) is taken as a guide, the HX80 is the clear winner of the contest (19 : 13 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5D and the Sony HX80 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the 5D and the HX80 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 5D||..||88/100||..||+ +||o||..||Aug 2005||3,299|
|2.||Sony HX80||..||..||..||..||..||..||Mar 2016||349|
|3.||Canon 6D Mark II||4/5||+||4/5||80/100||4.5/5||4/5||Jun 2017||1,999|
|4.||Canon 5D Mark IV||4.5/5||+ +||4/5||87/100||4.5/5||4.5/5||Aug 2016||3,499|
|5.||Canon SX720||..||+||..||..||4/5||4.5/5||Feb 2016||379|
|6.||Canon 5DS||..||+||..||83/100||4.5/5||4.5/5||Feb 2015||3,699|
|7.||Canon 5DS R||5/5||+||..||83/100||5/5||4.5/5||Feb 2015||3,699|
|8.||Canon SX710||..||+||..||..||4/5||3.5/5||Jan 2015||349|
|9.||Canon 5D Mark III||..||+ +||..||82/100||4.5/5||4.5/5||Mar 2012||3,499|
|10.||Canon 6D||5/5||+ +||..||83/100||4.5/5||4.5/5||Sep 2012||2,099|
|11.||Canon 5D Mark II||4/5||91/100||..||79/100||4/5||..||Sep 2008||3,499|
|12.||Canon 50D||..||+ +||..||+ +||4.5/5||4.5/5||Aug 2008||1,299|
|13.||Canon 1D Mark II N||..||..||..||..||..||..||Aug 2005||3,999|
|14.||Nikon D700||..||89/100||..||+ +||4.5/5||4.5/5||Jul 2008||2,999|
|15.||Sony WX800||..||..||..||..||..||..||Oct 2018||399|
|16.||Sony RX100 V||4.5/5||+ +||..||83/100||4/5||4.5/5||Oct 2016||999|
|17.||Sony RX100 IV||4.5/5||+ +||..||85/100||4/5||4.5/5||Jun 2015||999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Canon 5D vs Sony HX80
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 5D||Sony HX80|
|Camera Type||Digital single lens reflex||Fixed lens compact camera|
|Camera Lens||Canon EF mount lenses||24-720mm f/3.5-6.4|
|Launch Date||August 2005||March 2016|
|Launch Price||USD 3,299||USD 349|
|Sensor Specs||Canon 5D||Sony HX80|
|Sensor Format||Full Frame Sensor||1/2.3" Sensor|
|Sensor Size||36.0 x 24.0 mm||6.17 x 4.55 mm|
|Sensor Area||864 mm2||28.0735 mm2|
|Sensor Diagonal||43.3 mm||7.7 mm|
|Sensor Resolution||12.7 Megapixels||18 Megapixels|
|Image Resolution||4368 x 2912 pixels||4896 x 3672 pixels|
|Pixel Pitch||8.25 μm||1.25 μm|
|Pixel Density||1.47 MP/cm2||64.04 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||no Video||1080/60p Video|
|ISO Setting||100 - 1,600 ISO||80 - 3,200 ISO|
|ISO Boost||50 - 3,200 ISO||80 - 12,800 ISO|
|Image Processor||DIGIC 2||BIONZ X|
|DXO Sensor Quality (score)||71||..|
|DXO Color Depth (bits)||22.9||..|
|DXO Dynamic Range (EV)||11.1||..|
|DXO Low Light (ISO)||1368||..|
|Screen Specs||Canon 5D||Sony HX80|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||96%||100%|
|Viewfinder Resolution||638k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View|
|Rear LCD Size||2.5inch||3.0inch|
|LCD Resolution||230k dots||922k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Shooting Specs||Canon 5D||Sony HX80|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||3 shutter flaps/s||10 shutter flaps/s|
|Fill Flash||no On-Board Flash||Built-in Flash|
|Storage Medium||CF cards||MS or SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon 5D||Sony HX80|
|External Flash||Hotshoe||no Hotshoe|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||micro HDMI|
|Wifi Support||no Wifi||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Body Specs||Canon 5D||Sony HX80|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||400 shots per charge||390 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
152 x 113 x 75 mm
(6.0 x 4.4 x 3.0 in)
102 x 58 x 36 mm
(4.0 x 2.3 x 1.4 in)
|Camera Weight||895 g (31.6 oz)||245 g (8.6 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
