Canon 5D vs 60D
The Canon EOS 5D and the Canon EOS 60D are two digital cameras that were officially introduced, respectively, in August 2005 and August 2010. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (5D) and an APS-C (60D) sensor. The 5D has a resolution of 12.7 megapixels, whereas the 60D provides 17.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 5D||Canon 60D|
|Digital single lens reflex||Digital single lens reflex|
|Canon EF mount lenses||Canon EF mount lenses|
|12.7 MP, Full Frame Sensor||17.9 MP, APS-C Sensor|
|no Video||1080/30p Video|
|ISO 100-1600 (50-3200)||ISO 100-6400 (100-12800)|
|Optical viewfinder||Optical viewfinder|
|2.5" LCD, 230k dots||3.0" LCD, 1040k dots|
|Fixed screen (not touch-sensitive)||Swivel screen (not touch-sensitive)|
|3 shutter flaps per second||5.3 shutter flaps per second|
|Weathersealed body||Weathersealed body|
|400 shots per battery charge||1100 shots per battery charge|
|152 x 113 x 75 mm, 895 g||145 x 106 x 79 mm, 755 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D and the Canon EOS 60D? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
An illustration of the physical size and weight of the Canon 5D and the Canon 60D is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 60D is notably smaller (11 percent) than the Canon 5D. Moreover, the 60D is markedly lighter (16 percent) than the 5D. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the 5D) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (60D). You can compare the optics available in the Canon EF Lens Catalog.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Canon 5D»||152 mm||113 mm||75 mm||895 g||400||Y||Aug 2005||3,299||Canon 5D|
|Canon 60D«||145 mm||106 mm||79 mm||755 g||1100||Y||Aug 2010||1,399||Canon 60D|
|Canon 6D Mark II« »||144 mm||111 mm||75 mm||765 g||1200||Y||Jun 2017||1,999||Canon 6D Mark II|
|Canon 5D Mark IV« »||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499||Canon 5D Mark IV|
|Canon 80D« »||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199||Canon 80D|
|Canon 5DS« »||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699||Canon 5DS|
|Canon 5DS R« »||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699||Canon 5DS R|
|Canon 7D II« »||149 mm||112 mm||78 mm||910 g||670||Y||Sep 2014||1,799||Canon 7D II|
|Canon 70D« »||139 mm||104 mm||79 mm||755 g||920||Y||Jul 2013||1,199||Canon 70D|
|Canon 5D Mark III« »||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499||Canon 5D Mark III|
|Canon 6D« »||145 mm||111 mm||71 mm||770 g||1090||Y||Sep 2012||2,099||Canon 6D|
|Canon 7D« »||148 mm||111 mm||74 mm||860 g||800||Y||Sep 2009||1,699||Canon 7D|
|Canon 5D Mark II« »||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499||Canon 5D Mark II|
|Canon 50D« »||146 mm||108 mm||74 mm||822 g||800||Y||Aug 2008||1,299||Canon 50D|
|Canon 1D Mark II N« »||156 mm||158 mm||80 mm||1565 g||1200||Y||Aug 2005||3,999||Canon 1D Mark II N|
|Nikon D700« »||147 mm||123 mm||77 mm||1074 g||1000||Y||Jul 2008||2,999||Nikon D700|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 60D was launched at a markedly lower price (by 58 percent) than the 5D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 5D features a full frame sensor and the Canon 60D an APS-C sensor. The sensor area in the 60D is 62 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, the 60D uses a more advanced image processing engine (DIGIC 4) than the 5D (DIGIC 2), with benefits for noise reduction, color accuracy, and processing speed.

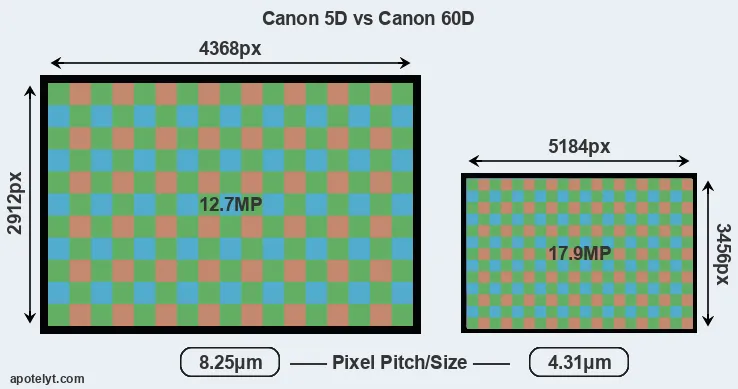

Despite having a smaller sensor, the 60D offers a higher resolution of 17.9 megapixels, compared with 12.7 MP of the 5D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.31μm versus 8.25μm for the 5D). However, it should be noted that the 60D is much more recent (by 5 years) than the 5D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Canon 60D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 60D for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inch or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inch or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inch or 43.9 x 29.3 cm. The corresponding values for the Canon 5D are 21.8 x 14.6 inch or 55.5 x 37 cm for good quality, 17.5 x 11.6 inch or 44.4 x 29.6 cm for very good quality, and 14.6 x 9.7 inch or 37 x 24.7 cm for excellent quality prints.
The Canon EOS 5D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 50-3200. The corresponding ISO settings for the Canon EOS 60D are ISO 100 to ISO 6400, with the possibility to increase the ISO range to 100-12800.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the 5D has a notably higher overall DXO score than the 60D (overall score 5 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.7 bits higher color depth, 0.4 EV of lower dynamic range, and 0.8 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71||Canon 5D|
|Canon 60D||APS-C||17.9||5184||3456||1080/30p||22.2||11.5||813||66||Canon 60D|
|Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85||Canon 6D Mark II|
|Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91||Canon 5D Mark IV|
|Canon 80D||APS-C||24.0||6000||4000||1080/60p||23.6||13.2||1135||79||Canon 80D|
|Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87||Canon 5DS|
|Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86||Canon 5DS R|
|Canon 7D II||APS-C||20.0||5472||3648||1080/60p||22.4||11.8||1082||70||Canon 7D II|
|Canon 70D||APS-C||20.0||5472||3648||1080/30p||22.5||11.6||926||68||Canon 70D|
|Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81||Canon 5D Mark III|
|Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82||Canon 6D|
|Canon 7D||APS-C||17.9||5184||3456||1080/30p||22.0||11.7||854||66||Canon 7D|
|Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79||Canon 5D Mark II|
|Canon 50D||APS-C||15.1||4752||3168||none||21.8||11.4||696||63||Canon 50D|
|Canon 1D Mark II N||APS-H||8.2||3504||2336||none||22.3||11.2||975||66||Canon 1D Mark II N|
|Nikon D700||Full Frame||12.1||4256||2832||none||23.5||12.2||2303||80||Nikon D700|
Many modern cameras cannot only take still pictures, but also record videos. The 60D indeed provides for movie recording, while the 5D does not. The highest resolution format that the 60D can use is 1080/30p.
Beyond body and sensor, cameras can and do differ across a range of features. The 5D and the 60D are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (96%), but the viewfinder of the 5D has a higher magnification than the one of the 60D (0.71x vs 0.59x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 5D and Canon 60D in connection with corresponding information for a sample of similar cameras.
|Canon 5D||optical||Y||2.5||230||fixed||n||1/8000s||3.0||n||n||Canon 5D|
|Canon 60D||optical||Y||3.0||1040||swivel||n||1/8000s||5.3||Y||n||Canon 60D|
|Canon 6D Mark II||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n||Canon 6D Mark II|
|Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n||Canon 5D Mark IV|
|Canon 80D||optical||Y||3.0||1040||swivel||Y||1/8000s||7.0||Y||n||Canon 80D|
|Canon 5DS||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n||Canon 5DS|
|Canon 5DS R||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n||Canon 5DS R|
|Canon 7D II||optical||Y||3.0||1040||fixed||n||1/8000s||10.0||Y||n||Canon 7D II|
|Canon 70D||optical||Y||3.0||1040||swivel||Y||1/8000s||7.0||Y||n||Canon 70D|
|Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n||Canon 5D Mark III|
|Canon 6D||optical||Y||3.0||1040||fixed||n||1/4000s||4.5||n||n||Canon 6D|
|Canon 7D||optical||Y||3.0||920||fixed||n||1/8000s||8.0||Y||n||Canon 7D|
|Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n||Canon 5D Mark II|
|Canon 50D||optical||Y||3.0||920||fixed||n||1/8000s||6.3||Y||n||Canon 50D|
|Canon 1D Mark II N||optical||Y||2.5||230||fixed||n||1/8000s||8.5||n||n||Canon 1D Mark II N|
|Nikon D700||optical||Y||3.0||922||fixed||n||1/8000s||8.0||Y||n||Nikon D700|
One difference between the cameras concerns the presence of an on-board flash. The 60D has one, while the 5D does not. While the built-in flash of the 60D is not very powerful, it can at times be useful as a fill-in light.The 60D has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 5D does not have a selfie-screen.
The 5D writes its imaging data to Compact Flash cards, while the 60D uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D and Canon EOS 60D and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Canon 5D||Y||none||none||-||-||none||2.0||-||-||-||Canon 5D|
|Canon 60D||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon 60D|
|Canon 6D Mark II||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon 6D Mark II|
|Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-||Canon 5D Mark IV|
|Canon 80D||Y||stereo||mono||Y||Y||mini||2.0||Y||Y||-||Canon 80D|
|Canon 5DS||Y||mono||mono||Y||-||mini||3.0||-||-||-||Canon 5DS|
|Canon 5DS R||Y||mono||mono||Y||-||mini||3.0||-||-||-||Canon 5DS R|
|Canon 7D II||Y||stereo||mono||Y||Y||mini||3.0||-||-||-||Canon 7D II|
|Canon 70D||Y||stereo||mono||Y||-||mini||2.0||Y||-||-||Canon 70D|
|Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-||Canon 5D Mark III|
|Canon 6D||Y||mono||mono||Y||-||mini||2.0||Y||-||-||Canon 6D|
|Canon 7D||Y||mono||none||Y||-||mini||2.0||-||-||-||Canon 7D|
|Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon 5D Mark II|
|Canon 50D||Y||none||none||-||-||mini||2.0||-||-||-||Canon 50D|
|Canon 1D Mark II N||Y||none||none||-||-||none||1.1||-||-||-||Canon 1D Mark II N|
|Nikon D700||Y||none||none||-||-||mini||2.0||-||-||-||Nikon D700|
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
Both the 5D and the 60D have been discontinued, but can regularly be found used on eBay. The 5D was replaced by the Canon 5D Mark II, while the 60D was followed by the Canon 70D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So what conclusions can be drawn? Which of the two cameras – the Canon 5D or the Canon 60D – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Canon EOS 5D:
- Better image quality: Scores markedly higher (5 points) in the DXO overall assessment.
- Better low-light sensitivity: Requires less light for good images (0.8 stops ISO advantage).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.71x vs 0.59x).
- More heavily discounted: Has been available for much longer (launched in August 2005).
Advantages of the Canon EOS 60D:
- More detail: Has more megapixels (17.9 vs 12.7MP), which boosts linear resolution by 19%.
- Better jpgs: Has a more modern image processing engine (DIGIC 4 vs DIGIC 2).
- Broader imaging potential: Can capture not only stills but also 1080/30p video.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (5.3 vs 3 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (145x106mm vs 152x113mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 140g or 16 percent) and is thus easier to take along.
- Longer lasting: Gets more shots (1100 versus 400) out of a single battery charge.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More affordable: Was introduced into a lower priced category (58 percent cheaper at launch).
- More modern: Reflects 5 years of technical progress since the 5D launch.
If the count of individual advantages (bullet points above) is taken as a guide, the 60D is the clear winner of the contest (14 : 4 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5D and the Canon 60D place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the 5D or the 60D perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 5D Mark II vs Canon 5D Mark III
- Canon 5D Mark II vs Olympus E-400
- Canon 5D Mark II vs Olympus E-PL3
- Canon 5D Mark II vs Panasonic GX850
- Canon 5D Mark II vs Panasonic L10
- Canon 5D Mark III vs Canon 600D
- Canon 5D Mark III vs Nikon D90
- Canon 5D Mark III vs Ricoh WG-6
- Canon 5D Mark IV vs Fujifilm GFX 50R
- Canon 5D Mark IV vs Nikon D3200
- Canon 5D vs Nikon D3500
- Canon 60D vs Panasonic TZ100
Specifications: Canon 5D vs Canon 60D
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 5D||Canon 60D|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Canon EF mount lenses|
|Launch Date||August 2005||August 2010|
|Launch Price||USD 3299||USD 1399|
|Sensor Specs||Canon 5D||Canon 60D|
|Sensor Format||Full Frame Sensor||APS-C Sensor|
|Sensor Size||36.0 x 24.0 mm||22.3 x 14.9 mm|
|Sensor Area||864 mm2||332.27 mm2|
|Sensor Diagonal||43.3 mm||26.8 mm|
|Sensor Resolution||12.7 Megapixels||17.9 Megapixels|
|Image Resolution||4368 x 2912 pixels||5184 x 3456 pixels|
|Pixel Pitch||8.25 μm||4.31 μm|
|Pixel Density||1.47 MP/cm2||5.39 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||1080/30p Video|
|ISO Setting||100-1600 ISO||100-6400 ISO|
|ISO Boost||50-3200 ISO||100-12800 ISO|
|Image Processor||DIGIC 2||DIGIC 4|
|DXO Sensor Quality (score)||71||66|
|DXO Color Depth (bits)||22.9||22.2|
|DXO Dynamic Range (EV)||11.1||11.5|
|DXO Low Light (ISO)||1368||813|
|Screen Specs||Canon 5D||Canon 60D|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||96%||96%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View|
|Rear LCD Size||2.5 inch||3.0 inch|
|LCD Resolution||230k dots||1040k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Shooting Specs||Canon 5D||Canon 60D|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||3 shutter flaps/s||5.3 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||100 000 actuations|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon 5D||Canon 60D|
|Studio Flash||PC Sync socket||PC Sync socket|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 5D||Canon 60D|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Life (CIPA)||400 shots per charge||1100 shots per charge|
152 x 113 x 75 mm
(6.0 x 4.4 x 3.0 in)
145 x 106 x 79 mm
(5.7 x 4.2 x 3.1 in)
|Camera Weight||895 g (31.6 oz)||755 g (26.6 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
