Canon 5D Mark IV vs Nikon D300
The Canon EOS 5D Mark IV and the Nikon D300 are two digital cameras that were revealed to the public, respectively, in August 2016 and August 2007. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (5D Mark IV) and an APS-C (D300) sensor. The Canon has a resolution of 30.1 megapixels, whereas the Nikon provides 12.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 5D Mark IV||Nikon D300|
|Digital single lens reflex||Digital single lens reflex|
|Canon EF mount lenses||Nikon F mount lenses|
|30.1 MP, Full Frame Sensor||12.2 MP, APS-C Sensor|
|4K/30p Video||no Video|
|ISO 100-32,000 (50 - 102,400)||ISO 200-3,200 (100 - 6,400)|
|Optical viewfinder||Optical viewfinder|
|3.2 LCD, 1620k dots||3.0 LCD, 922k dots|
|Fixed touchscreen||Fixed screen (not touch-sensitive)|
|7 shutter flaps per second||6 shutter flaps per second|
|Weathersealed body||Weathersealed body|
|900 shots per battery charge||1000 shots per battery charge|
|151 x 116 x 76 mm, 890 g||147 x 114 x 74 mm, 925 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D Mark IV and the Nikon D300? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

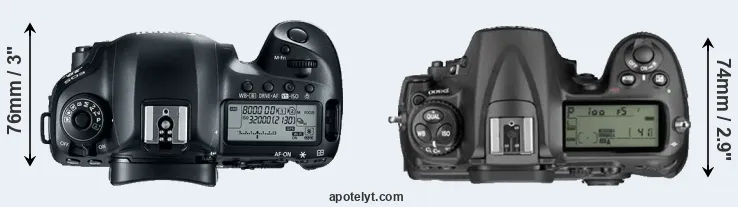

An illustration of the physical size and weight of the Canon 5D Mark IV and the Nikon D300 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D300 is somewhat smaller (4 percent) than the Canon 5D Mark IV. However, the D300 is slightly heavier (4 percent) than the 5D Mark IV. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (5D Mark IV) and the Nikon Lens Catalog (D300).
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Canon 5D Mark IV||5.9 in||4.6 in||3.0 in||31.4 oz||900||Y||Aug 2016||3,499|
|Nikon D300||5.8 in||4.5 in||2.9 in||32.6 oz||1000||Y||Aug 2007||1,799|
|Canon 6D Mark II||5.7 in||4.4 in||3.0 in||27.0 oz||1200||Y||Jun 2017||1,999|
|Canon 1D X Mark II||6.2 in||6.6 in||3.3 in||54.0 oz||1210||Y||Feb 2016||5,999|
|Canon 5DS||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699|
|Canon 5DS R||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699|
|Canon 5D Mark III||6.0 in||4.6 in||3.0 in||33.5 oz||950||Y||Mar 2012||3,499|
|Canon 5D Mark II||6.0 in||4.5 in||3.0 in||30.0 oz||850||Y||Sep 2008||3,499|
|Canon 5D||6.0 in||4.4 in||3.0 in||31.6 oz||400||Y||Aug 2005||3,299|
|Nikon D850||5.7 in||4.9 in||3.1 in||35.5 oz||1840||Y||Jul 2017||3,299|
|Nikon D800||5.7 in||4.8 in||3.2 in||35.3 oz||900||Y||Feb 2012||2,999|
|Nikon D800E||5.7 in||4.8 in||3.2 in||35.3 oz||900||Y||Feb 2012||3,299|
|Nikon D7000||5.2 in||4.1 in||3.0 in||27.5 oz||1050||Y||Sep 2010||1,499|
|Nikon D300S||5.8 in||4.5 in||3.2 in||33.1 oz||950||Y||Jul 2009||1,799|
|Nikon D700||5.8 in||4.8 in||3.0 in||37.9 oz||1000||Y||Jul 2008||2,999|
|Nikon D2Xs||6.2 in||5.9 in||3.4 in||44.2 oz||3800||Y||Jun 2006||4,699|
|Nikon D200||5.8 in||4.4 in||2.9 in||32.5 oz||400||Y||Nov 2005||1,699|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The D300 was launched at a markedly lower price (by 49 percent) than the 5D Mark IV, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 5D Mark IV features a full frame sensor and the Nikon D300 an APS-C sensor. The sensor area in the D300 is 57 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
In terms of underlying technology, both cameras are build around CMOS sensors.
With 30.1MP, the 5D Mark IV offers a higher resolution than the D300 (12.2MP), but the 5D Mark IV has smaller individual pixels (pixel pitch of 5.36μm versus 5.53μm for the D300). However, the 5D Mark IV is a much more recent model (by 9 years) than the D300, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon 5D Mark IV implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5D Mark IV for good quality output (200 dots per inch) amounts to 33.6 x 22.4 inches or 85.3 x 56.9 cm, for very good quality (250 dpi) 26.9 x 17.9 inches or 68.3 x 45.5 cm, and for excellent quality (300 dpi) 22.4 x 14.9 inches or 56.9 x 37.9 cm. The corresponding values for the Nikon D300 are 21.4 x 14.2 inches or 54.5 x 36.2 cm for good quality, 17.2 x 11.4 inches or 43.6 x 28.9 cm for very good quality, and 14.3 x 9.5 inches or 36.3 x 24.1 cm for excellent quality prints.
The 5D Mark IV has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 5D Mark IV has a native sensitivity range from ISO 100 to ISO 32000, which can be extended to ISO 50-102400. The corresponding ISO settings for the Nikon D300 are ISO 200 to ISO 3200, with the possibility to increase the ISO range to 100-6400.
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the 5D Mark IV provides substantially higher image quality than the D300, with an overall score that is 24 points higher. This advantage is based on 2.7 bits higher color depth, 1.6 EV in additional dynamic range, and 2.1 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71|
|Nikon D850||Full Frame||45.4||8256||5504||4K/30p||26.4||14.8||2660||100|
|Nikon D800||Full Frame||36.2||7360||4912||1080/30p||25.3||14.4||2853||95|
|Nikon D800E||Full Frame||36.2||7360||4912||1080/30p||25.6||14.3||2979||96|
|Nikon D700||Full Frame||12.1||4256||2832||none||23.5||12.2||2303||80|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The 5D Mark IV indeed provides movie recording capabilities, while the D300 does not. The highest resolution format that the 5D Mark IV can use is 4K/30p.
Beyond body and sensor, cameras can and do differ across a range of features. The 5D Mark IV and the D300 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the 5D Mark IV has a higher magnification than the one of the D300 (0.71x vs 0.63x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 5D Mark IV, the Nikon D300, and comparable cameras.
|Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n|
|Canon 6D Mark II||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n|
|Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|Canon 5DS R||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n|
|Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n|
|Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The 5D Mark IV has a touchscreen, while the D300 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The Canon 5D Mark IV and the Nikon D300 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 5D Mark IV writes its imaging data to Compact Flash or SDXC cards, while the D300 uses Compact Flash cards. The 5D Mark IV features dual card slots, which can be very useful in case a memory card fails. In contrast, the D300 only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D Mark IV and Nikon D300 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-|
|Canon 6D Mark II||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y|
|Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|Canon 5DS R||Y||mono||mono||Y||-||mini||3.0||-||-||-|
|Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
It is notable that the 5D Mark IV offers wifi support, while the D300 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
Travel and landscape photographers will find it useful that the 5D Mark IV has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
The 5D Mark IV is a recent model that features in the current product line-up of Canon. In contrast, the D300 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the D300 was succeeded by the Nikon D300S. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Nikon websites.
So how do things add up? Is the Canon 5D Mark IV better than the Nikon D300 or vice versa? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Canon EOS 5D Mark IV:
- More detail: Offers more megapixels (30.1 vs 12.2MP) with a 57% higher linear resolution.
- Better image quality: Scores substantially higher (24 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (2.7 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (1.6 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (2.1 stops ISO advantage).
- Broader imaging potential: Can record not only still images but also 4K/30p movies.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.71x vs 0.63x).
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 922k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster burst: Shoots at higher frequency (7 vs 6 flaps/sec) to capture the decisive moment.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More modern: Reflects 9 years of technical progress since the D300 launch.
Arguments in favor of the Nikon D300:
- Longer lasting: Gets more shots (1000 versus 900) out of a single battery charge.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More affordable: Was introduced into a lower priced category (49 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in August 2007).
If the count of relative strengths (bullet points above) is taken as a measure, the 5D Mark IV is the clear winner of the match-up (18 : 4 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5D Mark IV and the Nikon D300 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the 5D Mark IV or the D300 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 5D Mark IV||+ +||87/100||4.5/5||5/5||4.5/5||Aug 2016||3,499|
|Nikon D300||+ +||+ +||5/5||o||4.5/5||Aug 2007||1,799|
|Canon 6D Mark II||+||80/100||4.5/5||4/5||4/5||Jun 2017||1,999|
|Canon 1D X Mark II||..||89/100||4.5/5||5/5||4.5/5||Feb 2016||5,999|
|Canon 5DS||+||83/100||4.5/5||5/5||4.5/5||Feb 2015||3,699|
|Canon 5DS R||+||83/100||5/5||5/5||4.5/5||Feb 2015||3,699|
|Canon 5D Mark III||+ +||82/100||4.5/5||5/5||4.5/5||Mar 2012||3,499|
|Canon 5D Mark II||91/100||79/100||4/5||5/5||..||Sep 2008||3,499|
|Canon 5D||88/100||+ +||o||o||..||Aug 2005||3,299|
|Nikon D850||+ +||89/100||4.5/5||5/5||5/5||Jul 2017||3,299|
|Nikon D800||+ +||82/100||5/5||5/5||5/5||Feb 2012||2,999|
|Nikon D800E||..||84/100||5/5||4.5/5||5/5||Feb 2012||3,299|
|Nikon D7000||..||80/100||4.5/5||5/5||4.5/5||Sep 2010||1,499|
|Nikon D300S||+ +||82/100||4/5||5/5||4.5/5||Jul 2009||1,799|
|Nikon D700||89/100||+ +||4.5/5||5/5||4.5/5||Jul 2008||2,999|
|Nikon D2Xs||..||..||..||o||..||Jun 2006||4,699|
|Nikon D200||+ +||+ +||o||5/5||..||Nov 2005||1,699|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 5D Mark IV vs Canon T4i
- Canon 5D Mark IV vs Fujifilm X100S
- Canon 5D Mark IV vs Leica X Vario
- Canon 5D Mark IV vs Nikon D200
- Canon 5D Mark IV vs Panasonic S5
- Canon 5D Mark IV vs Sony A77
- Canon M3 vs Nikon D300
- Canon T1i vs Nikon D300
- Canon T5 vs Nikon D300
- Leica D-LUX 5 vs Nikon D300
- Nikon D300 vs Panasonic GF6
- Nikon D300 vs Sony RX100 IV
Specifications: Canon 5D Mark IV vs Nikon D300
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 5D Mark IV||Nikon D300|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Nikon F mount lenses|
|Launch Date||August 2016||August 2007|
|Launch Price||USD 3,499||USD 1,799|
|Sensor Specs||Canon 5D Mark IV||Nikon D300|
|Sensor Format||Full Frame Sensor||APS-C Sensor|
|Sensor Size||36.0 x 24.0 mm||23.6 x 15.8 mm|
|Sensor Area||864 mm2||372.88 mm2|
|Sensor Diagonal||43.3 mm||28.4 mm|
|Sensor Resolution||30.1 Megapixels||12.2 Megapixels|
|Image Resolution||6720 x 4480 pixels||4288 x 2848 pixels|
|Pixel Pitch||5.36 μm||5.53 μm|
|Pixel Density||3.48 MP/cm2||3.28 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||4K/30p Video||no Video|
|ISO Setting||100 - 32,000 ISO||200 - 3,200 ISO|
|ISO Boost||50 - 102,400 ISO||100 - 6,400 ISO|
|Image Processor||DIGIC 6+||EXPEED|
|DXO Sensor Quality (score)||91||67|
|DXO Color Depth (bits)||24.8||22.1|
|DXO Dynamic Range (EV)||13.6||12.0|
|DXO Low Light (ISO)||2995||679|
|Screen Specs||Canon 5D Mark IV||Nikon D300|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||100%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.0inch|
|LCD Resolution||1620k dots||922k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon 5D Mark IV||Nikon D300|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||7 shutter flaps/s||6 shutter flaps/s|
|Shutter Life Expectancy||150 000 actuations||150 000 actuations|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||CF or SDXC cards||CF cards|
|Second Storage Option||Dual card slots||Single card slot|
|Connectivity Specs||Canon 5D Mark IV||Nikon D300|
|Studio Flash||PC Sync socket||PC Sync socket|
|USB Connector||USB 3.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Geotagging||GPS built-in||no internal GPS|
|Body Specs||Canon 5D Mark IV||Nikon D300|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Life (CIPA)||900 shots per charge||1000 shots per charge|
151 x 116 x 76 mm
(5.9 x 4.6 x 3.0 in)
147 x 114 x 74 mm
(5.8 x 4.5 x 2.9 in)
|Camera Weight||890 g (31.4 oz)||925 g (32.6 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
