Canon 5D Mark II vs Nikon D3300
The Canon EOS 5D Mark II and the Nikon D3300 are two digital cameras that were officially introduced, respectively, in September 2008 and January 2014. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (5D Mark II) and an APS-C (D3300) sensor. The Canon has a resolution of 21 megapixels, whereas the Nikon provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 5D Mark II||Nikon D3300|
|Digital single lens reflex||Digital single lens reflex|
|Canon EF mount lenses||Nikon F mount lenses|
|21 MP, Full Frame Sensor||24 MP, APS-C Sensor|
|1080/30p Video||1080/60p Video|
|ISO 100-6,400 (50 - 25,600)||ISO 100-12,800 (100 - 25,600)|
|Optical viewfinder||Optical viewfinder|
|3.0 LCD, 920k dots||3.0 LCD, 921k dots|
|Fixed screen (not touch-sensitive)||Fixed screen (not touch-sensitive)|
|3.9 shutter flaps per second||5 shutter flaps per second|
|Weathersealed body||not weather sealed|
|850 shots per battery charge||700 shots per battery charge|
|152 x 114 x 75 mm, 850 g||124 x 98 x 76 mm, 430 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D Mark II and the Nikon D3300? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The side-by-side display below illustrates the physical size and weight of the Canon 5D Mark II and the Nikon D3300. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
The D3300 can be obtained in three different colors (black, grey, red), while the 5D Mark II is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D3300 is considerably smaller (30 percent) than the Canon 5D Mark II. Moreover, the D3300 is substantially lighter (49 percent) than the 5D Mark II. It is worth mentioning in this context that the 5D Mark II is splash and dust resistant, while the D3300 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (5D Mark II) and the Nikon Lens Catalog (D3300).
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Canon 5D Mark II||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499|
|Nikon D3300||124 mm||98 mm||76 mm||430 g||700||n||Jan 2014||499|
|Canon 6D Mark II||144 mm||111 mm||75 mm||765 g||1200||Y||Jun 2017||1,999|
|Canon 5D Mark IV||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499|
|Canon 80D||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199|
|Canon 5DS||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|Canon 5DS R||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|Canon 5D Mark III||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499|
|Canon 6D||145 mm||111 mm||71 mm||770 g||1090||Y||Sep 2012||2,099|
|Canon 7D||148 mm||111 mm||74 mm||860 g||800||Y||Sep 2009||1,699|
|Canon 1Ds Mark III||150 mm||160 mm||80 mm||1385 g||1800||Y||Aug 2007||7,999|
|Canon 5D||152 mm||113 mm||75 mm||895 g||400||Y||Aug 2005||3,299|
|Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699|
|Nikon D3400||124 mm||98 mm||76 mm||445 g||1200||n||Aug 2016||499|
|Nikon D5500||124 mm||97 mm||70 mm||420 g||820||n||Jan 2015||899|
|Nikon D5300||125 mm||98 mm||76 mm||480 g||600||n||Oct 2013||799|
|Nikon D3200||125 mm||96 mm||77 mm||505 g||540||n||Apr 2012||599|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The D3300 was launched at a markedly lower price (by 86 percent) than the 5D Mark II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 5D Mark II features a full frame sensor and the Nikon D3300 an APS-C sensor. The sensor area in the D3300 is 58 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
In terms of underlying technology, both cameras are build around CMOS sensors.

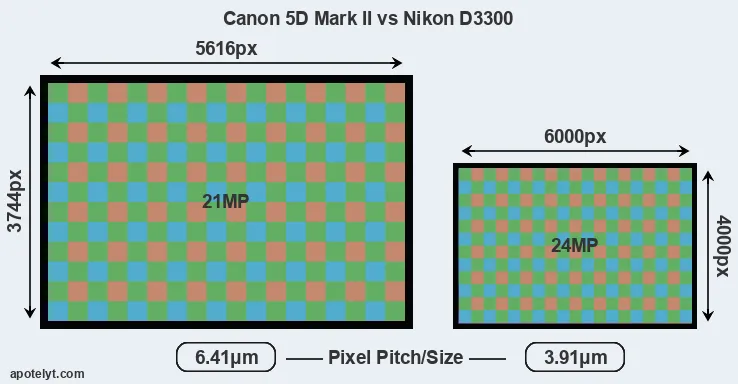

Despite having a smaller sensor, the D3300 offers a higher resolution of 24 megapixels, compared with 21 MP of the 5D Mark II. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.91μm versus 6.41μm for the 5D Mark II). However, it should be noted that the D3300 is much more recent (by 5 years and 3 months) than the 5D Mark II, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the D3300 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Nikon D3300 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D3300 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon 5D Mark II are 28.1 x 18.7 inches or 71.3 x 47.5 cm for good quality, 22.5 x 15 inches or 57.1 x 38 cm for very good quality, and 18.7 x 12.5 inches or 47.5 x 31.7 cm for excellent quality prints.
The Canon EOS 5D Mark II has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 50-25600. The corresponding ISO settings for the Nikon D3300 are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 100-25600.
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|Canon 1Ds Mark III||Full Frame||21.0||5616||3744||none||24.0||12.0||1663||80|
|Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the D3300 provides a faster frame rate than the 5D Mark II. It can shoot movie footage at 1080/60p, while the Canon is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. The 5D Mark II and the D3300 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 5D Mark II offers a wider field of view (98%) than the one in the D3300 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the 5D Mark II has a higher magnification (0.71x vs 0.57x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 5D Mark II and Nikon D3300 along with similar information for a selection of comparators.
|Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
|Canon 6D Mark II||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n|
|Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n|
|Canon 5DS R||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n|
|Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n|
|Canon 1Ds Mark III||optical||Y||3.0||230||fixed||n||1/8000s||5.0||n||n|
One feature that is present on the 5D Mark II, but is missing on the D3300 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The 5D Mark II writes its imaging data to Compact Flash cards, while the D3300 uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D Mark II and Nikon D3300 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
|Canon 6D Mark II||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y|
|Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-|
|Canon 5DS R||Y||mono||mono||Y||-||mini||3.0||-||-||-|
|Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|Canon 1Ds Mark III||Y||-||-||-||-||-||2.0||-||-||-|
Studio photographers will appreciate that the Canon 5D Mark II (unlike the D3300) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 5D Mark II and the D3300 have been discontinued, but can regularly be found used on eBay. The 5D Mark II was replaced by the Canon 5D Mark III, while the D3300 was followed by the Nikon D3400. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Nikon websites.
So how do things add up? Is there a clear favorite between the Canon 5D Mark II and the Nikon D3300? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Canon EOS 5D Mark II:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better low-light sensitivity: Requires less light for good images (0.4 stops ISO advantage).
- More complete view: Has a viewfinder with a larger field of view (98% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.71x vs 0.57x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Longer lasting: Can take more shots (850 versus 700) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in September 2008).
Arguments in favor of the Nikon D3300:
- More detail: Has more megapixels (24 vs 21MP), which boosts linear resolution by 7%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- More dynamic range: Captures a broader range of light and dark details (0.9 EV of extra DR).
- Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
- Faster burst: Shoots at higher frequency (5 vs 3.9 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (124x98mm vs 152x114mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 420g or 49 percent) and is thus easier to take along.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More affordable: Was introduced into a lower priced category (86 percent cheaper at launch).
- More modern: Reflects 5 years and 3 months of technical progress since the 5D Mark II launch.
If the count of relative strengths (bullet points above) is taken as a measure, the match-up finishes in a tie (10 points each). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5D Mark II and the Nikon D3300 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 5D Mark II or the D3300. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 5D Mark II||91/100||79/100||4/5||5/5||..||Sep 2008||3,499|
|Nikon D3300||+||77/100||4.5/5||4.5/5||4.5/5||Jan 2014||499|
|Canon 6D Mark II||+||80/100||4.5/5||4/5||4/5||Jun 2017||1,999|
|Canon 5D Mark IV||+ +||87/100||4.5/5||5/5||4.5/5||Aug 2016||3,499|
|Canon 80D||+ +||84/100||4.5/5||4.5/5||4.5/5||Feb 2016||1,199|
|Canon 5DS||+||83/100||4.5/5||5/5||4.5/5||Feb 2015||3,699|
|Canon 5DS R||+||83/100||5/5||5/5||4.5/5||Feb 2015||3,699|
|Canon 5D Mark III||+ +||82/100||4.5/5||5/5||4.5/5||Mar 2012||3,499|
|Canon 6D||+ +||83/100||4.5/5||4.5/5||4.5/5||Sep 2012||2,099|
|Canon 7D||+ +||84/100||4.5/5||5/5||4.5/5||Sep 2009||1,699|
|Canon 1Ds Mark III||..||+ +||4.5/5||..||..||Aug 2007||7,999|
|Canon 5D||88/100||+ +||o||o||..||Aug 2005||3,299|
|Nikon D5600||..||79/100||4.5/5||4.5/5||4/5||Nov 2016||699|
|Nikon D3400||+||76/100||4/5||4.5/5||4.5/5||Aug 2016||499|
|Nikon D5500||+||79/100||4.5/5||5/5||4.5/5||Jan 2015||899|
|Nikon D5300||+ +||79/100||4.5/5||4.5/5||4.5/5||Oct 2013||799|
|Nikon D3200||+ +||73/100||4.5/5||4.5/5||4.5/5||Apr 2012||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 1000D vs Canon 5D Mark II
- Canon 5D Mark II vs Canon SX50
- Canon 5D Mark II vs Nikon P1000
- Canon 5D Mark II vs Panasonic GH3
- Canon 5D Mark II vs Panasonic S1R
- Canon 5D Mark II vs Sony A5100
- Canon 5D Mark II vs Sony A6100
- Canon 5D Mark II vs Sony NEX-5R
- Canon 5D Mark II vs Sony NEX-6
- Canon XS vs Nikon D3300
- Nikon D3300 vs Panasonic GH5
- Nikon D3300 vs Sony RX1R II
Specifications: Canon 5D Mark II vs Nikon D3300
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 5D Mark II||Nikon D3300|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Nikon F mount lenses|
|Launch Date||September 2008||January 2014|
|Launch Price||USD 3,499||USD 499|
|Sensor Specs||Canon 5D Mark II||Nikon D3300|
|Sensor Format||Full Frame Sensor||APS-C Sensor|
|Sensor Size||36.0 x 24.0 mm||23.5 x 15.6 mm|
|Sensor Area||864 mm2||366.6 mm2|
|Sensor Diagonal||43.3 mm||28.2 mm|
|Sensor Resolution||21 Megapixels||24 Megapixels|
|Image Resolution||5616 x 3744 pixels||6000 x 4000 pixels|
|Pixel Pitch||6.41 μm||3.91 μm|
|Pixel Density||2.43 MP/cm2||6.55 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/30p Video||1080/60p Video|
|ISO Setting||100 - 6,400 ISO||100 - 12,800 ISO|
|ISO Boost||50 - 25,600 ISO||100 - 25,600 ISO|
|Image Processor||DIGIC 4||EXPEED 4|
|DXO Sensor Quality (score)||79||82|
|DXO Color Depth (bits)||23.7||24.3|
|DXO Dynamic Range (EV)||11.9||12.8|
|DXO Low Light (ISO)||1815||1385|
|Screen Specs||Canon 5D Mark II||Nikon D3300|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||98%||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||920k dots||921k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon 5D Mark II||Nikon D3300|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||3.9 shutter flaps/s||5 shutter flaps/s|
|Shutter Life Expectancy||150 000 actuations||100 000 actuations|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon 5D Mark II||Nikon D3300|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||External MIC port|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 5D Mark II||Nikon D3300|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||850 shots per charge||700 shots per charge|
152 x 114 x 75 mm
(6.0 x 4.5 x 3.0 in)
124 x 98 x 76 mm
(4.9 x 3.9 x 3.0 in)
|Camera Weight||850 g (30.0 oz)||430 g (15.2 oz)|
