Canon 5D Mark II vs XC10
The Canon EOS 5D Mark II and the Canon XC10 are two digital cameras that were officially introduced, respectively, in September 2008 and April 2015. The 5D Mark II is a DSLR, while the XC10 is a fixed lens compact. The cameras are based on a full frame (5D Mark II) and an one-inch (XC10) sensor. The 5D Mark II has a resolution of 21 megapixels, whereas the XC10 provides 12 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D Mark II and the Canon XC10? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

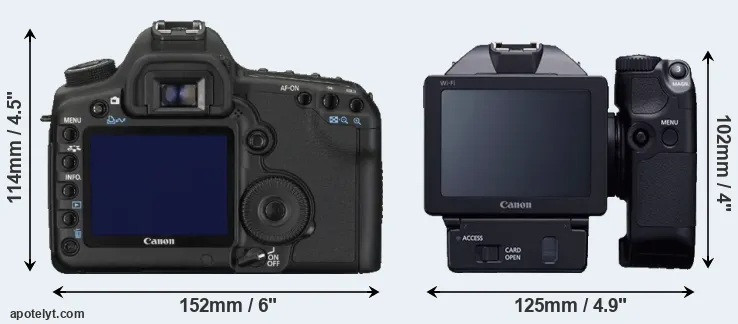

An illustration of the physical size and weight of the Canon 5D Mark II and the Canon XC10 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon XC10 is notably smaller (26 percent) than the Canon 5D Mark II. It is worth mentioning in this context that the 5D Mark II is splash and dust resistant, while the XC10 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the XC10 has a lens built in, whereas the 5D Mark II is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 5D Mark II and their specifications in the Canon EF Lens Catalog.
Concerning battery life, the 5D Mark II gets 850 shots out of its LP-E6 battery, while the XC10 can take 370 images on a single charge of its LP-E6N power pack. The power pack in the XC10 can be charged via the USB port, which can be very convenient when travelling.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon 5D Mark II||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499|
|2.||Canon XC10||125 mm||102 mm||122 mm||1040 g||370||n||Apr 2015||2,499|
|3.||Canon 6D Mark II||144 mm||111 mm||75 mm||765 g||1200||Y||Jun 2017||1,999|
|4.||Canon 5D Mark IV||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499|
|5.||Canon 80D||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199|
|6.||Canon G7 X Mark II||106 mm||61 mm||42 mm||319 g||265||n||Feb 2016||699|
|7.||Canon 5DS||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|8.||Canon 5DS R||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|9.||Canon G5 X||112 mm||76 mm||44 mm||353 g||210||n||Oct 2015||799|
|10.||Canon G1 X Mark II||116 mm||74 mm||66 mm||553 g||240||n||Feb 2014||799|
|11.||Canon G7 X||103 mm||60 mm||40 mm||304 g||210||n||Sep 2014||699|
|12.||Canon SX60||128 mm||93 mm||114 mm||650 g||340||n||Sep 2014||549|
|13.||Canon 5D Mark III||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499|
|14.||Canon 6D||145 mm||111 mm||71 mm||770 g||1090||Y||Sep 2012||2,099|
|15.||Canon 7D||148 mm||111 mm||74 mm||860 g||800||Y||Sep 2009||1,699|
|16.||Canon 1Ds Mark III||150 mm||160 mm||80 mm||1385 g||1800||Y||Aug 2007||7,999|
|17.||Canon 5D||152 mm||113 mm||75 mm||895 g||400||Y||Aug 2005||3,299|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The XC10 was launched at a lower price than the 5D Mark II, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 5D Mark II features a full frame sensor and the Canon XC10 an one-inch sensor. The sensor area in the XC10 is 86 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 2.75. The sensor in the 5D Mark II has a native 3:2 aspect ratio, while the one in the XC10 offers a 4:3 aspect.
With 21MP, the 5D Mark II offers a higher resolution than the XC10 (12MP), but the 5D Mark II nevertheless has larger individual pixels (pixel pitch of 6.41μm versus 3.20μm for the XC10) due to its larger sensor. However, the XC10 is a much more recent model (by 6 years and 6 months) than the 5D Mark II, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon 5D Mark II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5D Mark II for good quality output (200 dots per inch) amounts to 28.1 x 18.7 inches or 71.3 x 47.5 cm, for very good quality (250 dpi) 22.5 x 15 inches or 57.1 x 38 cm, and for excellent quality (300 dpi) 18.7 x 12.5 inches or 47.5 x 31.7 cm. The corresponding values for the Canon XC10 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.
The Canon EOS 5D Mark II has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 50-25600. The corresponding ISO settings for the Canon XC10 are ISO 160 to ISO 20000 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
|1.||Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|3.||Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|4.||Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|6.||Canon G7 X Mark II||1-inch||20.0||5472||3648||1080/60p||..||..||..||..|
|7.||Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|8.||Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|9.||Canon G5 X||1-inch||20.0||5472||3648||1080/60p||..||..||..||..|
|10.||Canon G1 X Mark II||1.5-inch||13.0||4160||3120||1080/30p||21.5||10.8||581||58|
|11.||Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71|
|13.||Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|14.||Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|16.||Canon 1Ds Mark III||Full Frame||21.0||5616||3744||none||24.0||12.0||1663||80|
|17.||Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the XC10 provides a better video resolution than the 5D Mark II. It can shoot movie footage at 4K/30p, while the 5D Mark II is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the 5D Mark II has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the XC10 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon 5D Mark II and Canon XC10 along with similar information for a selection of comparators.
|1.||Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
|3.||Canon 6D Mark II||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n|
|4.||Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n|
|6.||Canon G7 X Mark II||none||n||3.0||1040||tilting||Y||1/2000s||8.0||Y||Y|
|8.||Canon 5DS R||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n|
|9.||Canon G5 X||2360||n||3.0||1040||swivel||Y||1/2000s||5.9||Y||Y|
|10.||Canon G1 X Mark II||optional||n||3.0||1040||tilting||Y||1/4000s||5.2||Y||Y|
|11.||Canon G7 X||none||n||3.0||1040||tilting||Y||1/2000s||6.5||Y||Y|
|13.||Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n|
|16.||Canon 1Ds Mark III||optical||Y||3.0||230||fixed||n||1/8000s||5.0||n||n|
One feature that is present on the 5D Mark II, but is missing on the XC10 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The Canon XC10 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 5D Mark II writes its imaging data to Compact Flash cards, while the XC10 uses CFast or SDXC cards. The XC10 features dual card slots, which can be very useful in case a memory card fails. In contrast, the 5D Mark II only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D Mark II and Canon XC10 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|1.||Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
|3.||Canon 6D Mark II||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y|
|4.||Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-|
|6.||Canon G7 X Mark II||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
|8.||Canon 5DS R||Y||mono||mono||Y||-||mini||3.0||-||-||-|
|9.||Canon G5 X||Y||stereo||mono||-||-||mini||2.0||Y||Y||-|
|10.||Canon G1 X Mark II||Y||stereo||mono||-||-||mini||2.0||Y||Y||-|
|11.||Canon G7 X||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
|13.||Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|16.||Canon 1Ds Mark III||Y||mono||-||-||-||-||2.0||-||-||-|
It is notable that the XC10 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 5D Mark II does not provide wifi capability.
Studio photographers will appreciate that the Canon 5D Mark II (unlike the XC10) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 5D Mark II and the XC10 have been discontinued, but can regularly be found used on eBay. The 5D Mark II was replaced by the Canon 5D Mark III, while the XC10 was followed by the Canon XC15. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So what is the bottom line? Is the Canon 5D Mark II better than the Canon XC10 or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Canon EOS 5D Mark II:
- More detail: Offers more megapixels (21 vs 12MP) with a 35% higher linear resolution.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
- More flexible: Can take a variety of interchangeable lenses, including specialty optics.
- Longer lasting: Can take more shots (850 versus 370) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in September 2008).
Advantages of the Canon XC10:
- Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- More detailed LCD: Has a higher resolution rear screen (1030k vs 920k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Ready to shoot: Comes with an integrated lens, while the 5D Mark II requires a separate lens.
- More compact: Is smaller (125x102mm vs 152x114mm) and will fit more readily into a bag.
- Easier travel charging: Can be conveniently charged via its USB port.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Reflects 6 years and 6 months of technical progress since the 5D Mark II launch.
If the number of relative strengths (bullet points above) is taken as a guide, the XC10 is the clear winner of the contest (15 : 9 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5D Mark II and the Canon XC10 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the 5D Mark II or the XC10 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 5D Mark II||4/5||91/100||79/100||4/5||..||Sep 2008||3,499|
|2.||Canon XC10||..||..||80/100||..||..||Apr 2015||2,499|
|3.||Canon 6D Mark II||4/5||+||80/100||4.5/5||4/5||Jun 2017||1,999|
|4.||Canon 5D Mark IV||4.5/5||+ +||87/100||4.5/5||4.5/5||Aug 2016||3,499|
|5.||Canon 80D||4/5||+ +||84/100||4.5/5||4.5/5||Feb 2016||1,199|
|6.||Canon G7 X Mark II||4.5/5||+ +||81/100||4.5/5||4.5/5||Feb 2016||699|
|7.||Canon 5DS||..||+||83/100||4.5/5||4.5/5||Feb 2015||3,699|
|8.||Canon 5DS R||5/5||+||83/100||5/5||4.5/5||Feb 2015||3,699|
|9.||Canon G5 X||5/5||+ +||78/100||4.5/5||4.5/5||Oct 2015||799|
|10.||Canon G1 X Mark II||3/5||+||77/100||4/5||4.5/5||Feb 2014||799|
|11.||Canon G7 X||4/5||+ +||77/100||4.5/5||4.5/5||Sep 2014||699|
|12.||Canon SX60||3/5||+ +||75/100||4/5||4.5/5||Sep 2014||549|
|13.||Canon 5D Mark III||..||+ +||82/100||4.5/5||4.5/5||Mar 2012||3,499|
|14.||Canon 6D||5/5||+ +||83/100||4.5/5||4.5/5||Sep 2012||2,099|
|15.||Canon 7D||5/5||+ +||84/100||4.5/5||4.5/5||Sep 2009||1,699|
|16.||Canon 1Ds Mark III||..||..||+ +||4.5/5||..||Aug 2007||7,999|
|17.||Canon 5D||..||88/100||+ +||o||..||Aug 2005||3,299|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon 5D Mark II vs Canon XC10
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 5D Mark II||Canon XC10|
|Camera Type||Digital single lens reflex||Fixed lens compact camera|
|Camera Lens||Canon EF mount lenses||24-240mm f/2.8-5.6|
|Launch Date||September 2008||April 2015|
|Launch Price||USD 3,499||USD 2,499|
|Sensor Specs||Canon 5D Mark II||Canon XC10|
|Sensor Format||Full Frame Sensor||1" Sensor|
|Sensor Size||36.0 x 24.0 mm||12.8 x 9.6 mm|
|Sensor Area||864 mm2||122.88 mm2|
|Sensor Diagonal||43.3 mm||16 mm|
|Sensor Resolution||21 Megapixels||12 Megapixels|
|Image Resolution||5616 x 3744 pixels||4000 x 3000 pixels|
|Pixel Pitch||6.41 μm||3.20 μm|
|Pixel Density||2.43 MP/cm2||9.77 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||4K/30p Video|
|ISO Setting||100 - 6,400 ISO||160 - 20,000 ISO|
|ISO Boost||50 - 25,600 ISO||no Enhancement|
|Image Processor||DIGIC 4||DIGIC DV5|
|DXO Sensor Quality (score)||79||..|
|DXO Color Depth (bits)||23.7||..|
|DXO Dynamic Range (EV)||11.9||..|
|DXO Low Light (ISO)||1815||..|
|Screen Specs||Canon 5D Mark II||Canon XC10|
|Viewfinder Type||Optical viewfinder||no viewfinder|
|Viewfinder Field of View||98%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||920k dots||1030k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 5D Mark II||Canon XC10|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/2000s|
|Continuous Shooting||3.9 shutter flaps/s||3.8 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||CF cards||CFAST or SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|Connectivity Specs||Canon 5D Mark II||Canon XC10|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Body Specs||Canon 5D Mark II||Canon XC10|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||850 shots per charge||370 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
152 x 114 x 75 mm
(6.0 x 4.5 x 3.0 in)
125 x 102 x 122 mm
(4.9 x 4.0 x 4.8 in)
|Camera Weight||850 g (30.0 oz)||1040 g (36.7 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
