Canon 30D vs Panasonic GX800
The Canon EOS 30D and the Panasonic Lumix DMC-GX800 (labelled Panasonic GX850 in some countries) are two digital cameras that were revealed to the public, respectively, in February 2006 and January 2017. The 30D is a DSLR, while the GX800 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (30D) and a Four Thirds (GX800) sensor. The Canon has a resolution of 8.2 megapixels, whereas the Panasonic provides 15.8 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 30D and the Panasonic Lumix DMC-GX800? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

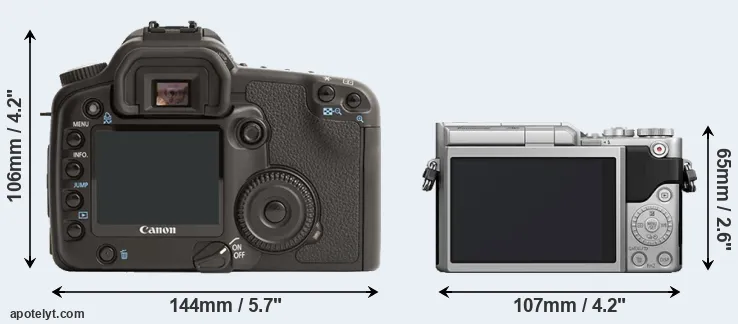

The side-by-side display below illustrates the physical size and weight of the Canon 30D and the Panasonic GX800. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
The GX800 can be obtained in three different colors (black, silver, red), while the 30D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GX800 is considerably smaller (54 percent) than the Canon 30D. Moreover, the GX800 is substantially lighter (66 percent) than the 30D. In this context, it is worth noting that neither the 30D nor the GX800 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (30D) and the Micro Four Thirds Lens Catalog (GX800). Mirrorless cameras, such as the GX800, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon 30D||144 mm||106 mm||74 mm||785 g||750||n||Feb 2006||1,399|
|2.||Panasonic GX800||107 mm||65 mm||33 mm||269 g||210||n||Jan 2017||549|
|3.||Canon M10||108 mm||67 mm||35 mm||301 g||255||n||Oct 2015||499|
|4.||Canon 70D||139 mm||104 mm||79 mm||755 g||920||Y||Jul 2013||1,199|
|5.||Canon 60D||145 mm||106 mm||79 mm||755 g||1100||Y||Aug 2010||1,399|
|6.||Canon 7D||148 mm||111 mm||74 mm||860 g||800||Y||Sep 2009||1,699|
|7.||Canon 50D||146 mm||108 mm||74 mm||822 g||800||Y||Aug 2008||1,299|
|8.||Canon 40D||146 mm||108 mm||74 mm||822 g||750||n||Aug 2007||1,299|
|9.||Canon XTi||127 mm||84 mm||65 mm||556 g||370||n||Aug 2006||799|
|10.||Canon XT||127 mm||94 mm||64 mm||540 g||400||n||Feb 2005||899|
|11.||Canon 20D||144 mm||106 mm||72 mm||770 g||700||n||Aug 2004||1,499|
|12.||Canon 10D||150 mm||107 mm||75 mm||850 g||500||n||Feb 2003||1,999|
|13.||Canon Rebel||142 mm||99 mm||72 mm||649 g||400||n||Aug 2003||899|
|14.||Panasonic GF7||107 mm||65 mm||33 mm||266 g||230||n||Jan 2015||499|
|15.||Panasonic G6||122 mm||85 mm||71 mm||390 g||340||n||Apr 2013||599|
|16.||Panasonic GF6||111 mm||65 mm||38 mm||323 g||340||n||Apr 2013||499|
|17.||Panasonic GF5||108 mm||67 mm||37 mm||267 g||360||n||Apr 2012||499|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The GX800 was launched at a markedly lower price (by 61 percent) than the 30D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 30D features an APS-C sensor and the Panasonic GX800 a Four Thirds sensor. The sensor area in the GX800 is 33 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 30D has a native 3:2 aspect ratio, while the one in the GX800 offers a 4:3 aspect.
Despite having a smaller sensor, the GX800 offers a higher resolution of 15.8 megapixels, compared with 8.2 MP of the 30D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.77μm versus 6.42μm for the 30D). However, it should be noted that the GX800 is much more recent (by 10 years and 10 months) than the 30D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the GX800 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Panasonic GX800 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the GX800 for good quality output (200 dots per inch) amounts to 23 x 17.2 inches or 58.3 x 43.8 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.7 x 35 cm, and for excellent quality (300 dpi) 15.3 x 11.5 inches or 38.9 x 29.2 cm. The corresponding values for the Canon 30D are 17.5 x 11.7 inches or 44.5 x 29.7 cm for good quality, 14 x 9.3 inches or 35.6 x 23.7 cm for very good quality, and 11.7 x 7.8 inches or 29.7 x 19.8 cm for excellent quality prints.
The Canon EOS 30D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Panasonic Lumix DMC-GX800 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the GX800 offers substantially better image quality than the 30D (overall score 14 points higher). The advantage is based on 1.7 bits higher color depth, 2.5 EV in additional dynamic range, and 0.3 stops of reduced low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|2.||Panasonic GX800||Four Thirds||15.8||4592||3448||4K/30p||23.2||13.3||586||73|
|14.||Panasonic GF7||Four Thirds||15.8||4592||3448||1080/60p||22.7||12.3||874||70|
|15.||Panasonic G6||Four Thirds||15.9||4608||3456||1080/60p||21.3||11.5||639||61|
|16.||Panasonic GF6||Four Thirds||15.8||4592||3448||1080/60i||20.7||10.6||622||54|
|17.||Panasonic GF5||Four Thirds||12.0||4000||3000||1080/60i||21.4||11.6||618||61|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras cannot only take still pictures, but also record videos. The GX800 indeed provides for movie recording, while the 30D does not. The highest resolution format that the GX800 can use is 4K/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the 30D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the GX800 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon 30D and Panasonic GX800 along with similar information for a selection of comparators.
|1.||Canon 30D||optical||Y||2.5 / 230||fixed||n||1/8000s||5.0||Y||n|
|2.||Panasonic GX800||none||n||3.0 / 1040||tilting||Y||1/500s||10.0||Y||n|
|3.||Canon M10||none||n||3.0 / 1040||tilting||Y||1/4000s||4.6||Y||n|
|4.||Canon 70D||optical||Y||3.0 / 1040||swivel||Y||1/8000s||7.0||Y||n|
|5.||Canon 60D||optical||Y||3.0 / 1040||swivel||n||1/8000s||5.3||Y||n|
|6.||Canon 7D||optical||Y||3.0 / 920||fixed||n||1/8000s||8.0||Y||n|
|7.||Canon 50D||optical||Y||3.0 / 920||fixed||n||1/8000s||6.3||Y||n|
|8.||Canon 40D||optical||Y||3.0 / 230||fixed||n||1/8000s||6.5||Y||n|
|9.||Canon XTi||optical||n||2.5 / 230||fixed||n||1/4000s||3.0||Y||n|
|10.||Canon XT||optical||n||1.8 / 115||fixed||n||1/4000s||3.0||Y||n|
|11.||Canon 20D||optical||Y||1.8 / 118||fixed||n||1/8000s||5.0||Y||n|
|12.||Canon 10D||optical||Y||1.8 / 118||fixed||n||1/4000s||3.0||Y||n|
|13.||Canon Rebel||optical||n||1.8 / 118||fixed||n||1/4000s||2.5||Y||n|
|14.||Panasonic GF7||none||n||3.0 / 1040||tilting||Y||1/500s||5.8||Y||n|
|15.||Panasonic G6||1440||n||3.0 / 1036||swivel||Y||1/4000s||7.0||Y||n|
|16.||Panasonic GF6||none||n||3.0 / 1040||tilting||Y||1/4000s||4.2||Y||n|
|17.||Panasonic GF5||none||n||3.0 / 920||fixed||Y||1/4000s||4.0||Y||n|
One feature that is present on the 30D, but is missing on the GX800 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The GX800 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 30D does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the GX800 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Panasonic GX800 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 30D writes its imaging data to Compact Flash cards, while the GX800 uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 30D and Panasonic Lumix DMC-GX800 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon 30D||Y||- / -||-||-||-||2.0||-||-||-|
|2.||Panasonic GX800||-||stereo / mono||-||-||micro||2.0||Y||-||-|
|3.||Canon M10||-||stereo / mono||-||-||mini||2.0||Y||Y||-|
|4.||Canon 70D||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|5.||Canon 60D||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|6.||Canon 7D||Y||mono / -||Y||-||mini||2.0||-||-||-|
|7.||Canon 50D||Y||- / -||-||-||mini||2.0||-||-||-|
|8.||Canon 40D||Y||- / -||-||-||-||2.0||-||-||-|
|9.||Canon XTi||Y||- / -||-||-||-||2.0||-||-||-|
|10.||Canon XT||Y||- / -||-||-||-||2.0||-||-||-|
|11.||Canon 20D||Y||- / -||-||-||-||1.1||-||-||-|
|12.||Canon 10D||Y||- / -||-||-||-||1.1||-||-||-|
|13.||Canon Rebel||Y||- / -||-||-||-||1.1||-||-||-|
|14.||Panasonic GF7||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|15.||Panasonic G6||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|16.||Panasonic GF6||-||stereo / mono||-||-||mini||2.0||Y||Y||-|
|17.||Panasonic GF5||-||stereo / mono||-||-||mini||2.0||-||-||-|
It is notable that the 30D has a hotshoe, while the GX800 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
Studio photographers will appreciate that the Canon 30D (unlike the GX800) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The GX800 is a recent model that features in the current product line-up of Panasonic. In contrast, the 30D has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the 30D was succeeded by the Canon 40D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Panasonic websites.
So what is the bottom line? Which of the two cameras – the Canon 30D or the Panasonic GX800 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Canon EOS 30D:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better low-light sensitivity: Requires less light for good images (0.3 stops ISO advantage).
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/500s) to freeze action.
- Longer lasting: Can take more shots (750 versus 210) on a single battery charge.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in February 2006).
Advantages of the Panasonic Lumix DMC-GX800:
- More detail: Has more megapixels (15.8 vs 8.2MP), which boosts linear resolution by 36%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores substantially higher (14 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (1.7 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (2.5 EV of extra DR).
- Broader imaging potential: Can capture not only stills but also 4K/30p video.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (10 vs 5 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (107x65mm vs 144x106mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 516g or 66 percent) and is thus easier to take along.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More affordable: Was introduced into a lower priced category (61 percent cheaper at launch).
- More modern: Reflects 10 years and 10 months of technical progress since the 30D launch.
If the number of relative strengths (bullet points above) is taken as a guide, the GX800 is the clear winner of the contest (20 : 9 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 30D and the Panasonic GX800 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the 30D and the GX800 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 30D||..||+ +||..||+ +||o||..||Feb 2006||1,399|
|2.||Panasonic GX800||..||+||..||76/100||4.5/5||4.5/5||Jan 2017||549|
|3.||Canon M10||..||..||..||..||..||4/5||Oct 2015||499|
|4.||Canon 70D||5/5||+ +||..||83/100||4.5/5||5/5||Jul 2013||1,199|
|5.||Canon 60D||5/5||+||..||79/100||4/5||4.5/5||Aug 2010||1,399|
|6.||Canon 7D||5/5||+ +||..||84/100||4.5/5||4.5/5||Sep 2009||1,699|
|7.||Canon 50D||..||+ +||..||+ +||4.5/5||4.5/5||Aug 2008||1,299|
|8.||Canon 40D||..||+ +||..||+ +||4.5/5||4.5/5||Aug 2007||1,299|
|9.||Canon XTi||..||+ +||..||+ +||o||4/5||Aug 2006||799|
|10.||Canon XT||..||80/100||..||+ +||o||..||Feb 2005||899|
|11.||Canon 20D||..||..||..||+ +||..||..||Aug 2004||1,499|
|12.||Canon 10D||..||..||..||+ +||..||..||Feb 2003||1,999|
|13.||Canon Rebel||..||..||..||+ +||..||..||Aug 2003||899|
|14.||Panasonic GF7||4/5||+||..||..||4.5/5||4.5/5||Jan 2015||499|
|15.||Panasonic G6||4/5||+ +||..||..||5/5||4.5/5||Apr 2013||599|
|16.||Panasonic GF6||..||+ +||..||..||4.5/5||4.5/5||Apr 2013||499|
|17.||Panasonic GF5||3/5||..||..||..||4.5/5||4.5/5||Apr 2012||499|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 1D Mark II N vs Panasonic GX800
- Canon 30D vs Fujifilm GFX 100
- Canon 30D vs Fujifilm X-Pro2
- Canon 30D vs Leica M-E Typ 240
- Canon 30D vs Leica Q Typ 116
- Canon 30D vs Olympus E-M1 II
- Canon 30D vs Panasonic GF5
- Fujifilm X-T2 vs Panasonic GX800
- Olympus E-P5 vs Panasonic GX800
- Panasonic GX800 vs Sony A5100
- Panasonic GX800 vs Sony A58
- Panasonic GX800 vs Sony A6600
Specifications: Canon 30D vs Panasonic GX800
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 30D||Panasonic GX800|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Micro Four Thirds lenses|
|Launch Date||February 2006||January 2017|
|Launch Price||USD 1,399||USD 549|
|Sensor Specs||Canon 30D||Panasonic GX800|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.5 x 15.0 mm||17.3 x 13.0 mm|
|Sensor Area||337.5 mm2||224.9 mm2|
|Sensor Diagonal||27 mm||21.6 mm|
|Sensor Resolution||8.2 Megapixels||15.8 Megapixels|
|Image Resolution||3504 x 2336 pixels||4592 x 3448 pixels|
|Pixel Pitch||6.42 μm||3.77 μm|
|Pixel Density||2.43 MP/cm2||7.04 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||no Video||4K/30p Video|
|ISO Setting||100 - 1,600 ISO||200 - 25,600 ISO|
|ISO Boost||100 - 3,200 ISO||100 - 25,600 ISO|
|Image Processor||DIGIC 2||Venus|
|DXO Sensor Quality (score)||59||73|
|DXO Color Depth (bits)||21.5||23.2|
|DXO Dynamic Range (EV)||10.8||13.3|
|DXO Low Light (ISO)||736||586|
|Screen Specs||Canon 30D||Panasonic GX800|
|Viewfinder Type||Optical viewfinder||no viewfinder|
|Viewfinder Field of View||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View|
|Rear LCD Size||2.5inch||3.0inch|
|LCD Resolution||230k dots||1040k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 30D||Panasonic GX800|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/500s|
|Continuous Shooting||5 shutter flaps/s||10 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon 30D||Panasonic GX800|
|External Flash||Hotshoe||no Hotshoe|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||micro HDMI|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Canon 30D||Panasonic GX800|
|Battery Life (CIPA)||750 shots per charge||210 shots per charge|
144 x 106 x 74 mm
(5.7 x 4.2 x 2.9 in)
107 x 65 x 33 mm
(4.2 x 2.6 x 1.3 in)
|Camera Weight||785 g (27.7 oz)||269 g (9.5 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
