Canon 2000D vs SX520

The Canon EOS 2000D (called Canon T7 in some regions) and the Canon PowerShot SX520 HS are two digital cameras that were revealed to the public, respectively, in February 2018 and July 2014. The 2000D is a DSLR, while the SX520 is a fixed lens compact. The cameras are based on an APS-C (2000D) and a 1/2.3-inch (SX520) sensor. The 2000D has a resolution of 24 megapixels, whereas the SX520 provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon 2000D
versus
Canon SX520
Canon 2000D   Canon SX520
Digital single lens reflex Fixed lens compact camera
Canon EF mount lenses 24-1008mm f/3.4-6
24 MP – APS-C sensor 15.9 MP – 1/2.3" sensor
1080/30p Video 1080/30p Video
ISO 100-6,400 (100 - 12,800) ISO 100-3,200
Optical viewfinder No viewfinder, LCD framing
3.0" LCD – 920k dots 3.0" LCD – 461k dots
Fixed screen (not touch-sensitive) Fixed screen (not touch-sensitive)
3 shutter flaps per second 1.6 shutter flaps per second
500 shots per battery charge210 shots per battery charge
129 x 101 x 78 mm, 475 g 120 x 82 x 92 mm, 441 g
logo
Check 2000D price at
amazon.com
logo
Check SX520 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 2000D and the Canon PowerShot SX520 HS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Canon 2000D and the Canon SX520 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

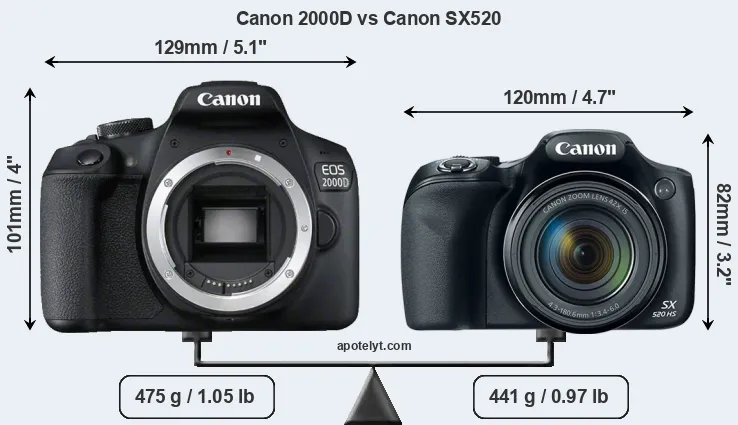

Size Canon 2000D vs Canon SX520
Compare 2000D versus SX520 top
Comparison 2000D or SX520 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SX520 is notably smaller (24 percent) than the Canon 2000D. In this context, it is worth noting that neither the 2000D nor the SX520 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX520 has a lens built in, whereas the 2000D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 2000D and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the 2000D gets 500 shots out of its LP-E10 battery, while the SX520 can take 210 images on a single charge of its NB-6LH power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

scroll hint
Body Specifications
    Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon 2000D 129 mm 101 mm 78 mm 475 g 500 n Feb 2018 449 amazon.com
2.

Canon SX520 120 mm 82 mm 92 mm 441 g 210 n Jul 2014 399ebay.com
3.

Canon 4000D 129 mm 102 mm 77 mm 436 g 500 n Feb 2018 399 amazon.com
4.

Canon 77D 131 mm 100 mm 76 mm 540 g 600 n Feb 2017 899ebay.com
5.

Canon 200D 122 mm 93 mm 70 mm 453 g 650 n Jun 2017 549ebay.com
6.

Canon 800D 131 mm 100 mm 76 mm 532 g 600 n Feb 2017 749ebay.com
7.

Canon G9 X Mark II 98 mm 58 mm 31 mm 206 g 235 n Jan 2017 529 amazon.com
8.

Canon M100 108 mm 67 mm 35 mm 302 g 295 n Aug 2017 499ebay.com
9.

Canon 1300D 129 mm 101 mm 78 mm 485 g 500 n Mar 2016 449ebay.com
10.

Canon 750D 132 mm 101 mm 78 mm 555 g 440 n Feb 2015 749ebay.com
11.

Canon 760D 132 mm 101 mm 78 mm 565 g 440 n Feb 2015 649ebay.com
12.

Canon SX530 120 mm 82 mm 92 mm 442 g 210 n Jan 2015 429ebay.com
13.

Canon SX700 113 mm 66 mm 35 mm 269 g 250 n Feb 2014 349ebay.com
14.

Canon 1200D 130 mm 100 mm 78 mm 480 g 500 n Feb 2014 449ebay.com
15.

Canon SX510 104 mm 70 mm 80 mm 349 g 250 n Aug 2013 249ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX520 was launched at a lower price than the 2000D, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon 2000D features an APS-C sensor and the Canon SX520 a 1/2.3-inch sensor. The sensor area in the SX520 is 92 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 5.6. The sensor in the 2000D has a native 3:2 aspect ratio, while the one in the SX520 offers a 4:3 aspect.

Canon 2000D and Canon SX520 sensor measures

With 24MP, the 2000D offers a higher resolution than the SX520 (15.9MP), but the 2000D nevertheless has larger individual pixels (pixel pitch of 3.72μm versus 1.33μm for the SX520) due to its larger sensor. Moreover, the 2000D is a much more recent model (by 3 years and 7 months) than the SX520, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the SX520 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon 2000D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 2000D for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon SX520 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The Canon EOS 2000D has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Canon PowerShot SX520 HS are ISO 100 to ISO 3200 (no boost).

In terms of underlying technology, the 2000D is build around a CMOS sensor, while the SX520 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

2000D versus SX520 MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

scroll hint
Sensor Characteristics
    Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon 2000D APS-C 24.0 6000 40001080/30p22.611.9100971
2.

Canon SX520 1/2.3 15.9 4608 34561080/30p20.111.567246
3.

Canon 4000D APS-C 17.9 5184 34561080/30p21.911.469563
4.

Canon 77D APS-C 24.0 6000 40001080/60p23.613.397178
5.

Canon 200D APS-C 24.0 6000 40001080/60p23.613.4104179
6.

Canon 800D APS-C 24.0 6000 40001080/60p23.713.1158680
7.

Canon G9 X Mark II 1-inch 20.0 5472 36481080/60p21.912.552265
8.

Canon M100 APS-C 24.0 6000 40001080/60p23.512.9127278
9.

Canon 1300D APS-C 17.9 5184 34561080/30p22.011.778166
10.

Canon 750D APS-C 24.0 6000 40001080/30p22.712.091971
11.

Canon 760D APS-C 24.0 6000 40001080/30p22.612.091570
12.

Canon SX530 1/2.3 15.9 4608 34561080/30p20.211.671247
13.

Canon SX700 1/2.3 15.9 4608 34561080/60p20.111.462945
14.

Canon 1200D APS-C 17.9 5184 34561080/30p21.911.372463
15.

Canon SX510 1/2.3 15.9 4608 34561080/24p20.011.358645
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (1080/30p).

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the 2000D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the SX520 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon 2000D, the Canon SX520, and comparable cameras.

scroll hint
Core Features
    Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon 2000Doptical n3.0 / 920 fixed n 1/4000s 3.0/s Y n
2.

Canon SX520none n3.0 / 461 fixed n 1/2000s 1.6/s Y Y
3.

Canon 4000Doptical n2.7 / 230 fixed n 1/4000s 3.0/s Y n
4.

Canon 77Doptical Y3.0 / 1040 swivel Y 1/4000s 6.0/s Y n
5.

Canon 200Doptical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
6.

Canon 800Doptical n3.0 / 1040 swivel Y 1/4000s 6.0/s Y n
7.

Canon G9 X Mark IInone n3.0 / 1040 fixed Y 1/2000s 8.2/s Y Y
8.

Canon M100none n3.0 / 1040 tilting Y 1/4000s 6.1/s Y n
9.

Canon 1300Doptical n3.0 / 920 fixed n 1/4000s 3.0/s Y n
10.

Canon 750Doptical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
11.

Canon 760Doptical Y3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
12.

Canon SX530none n3.0 / 461 fixed n 1/2000s 1.6/s Y Y
13.

Canon SX700none n3.0 / 922 fixed n 1/3200s 8.5/s Y Y
14.

Canon 1200Doptical n3.0 / 460 fixed n 1/4000s 3.0/s Y n
15.

Canon SX510none n3.0 / 461 fixed n 1/1600s 3.8/s Y Y
Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

Concerning the storage of imaging data, both the 2000D and the SX520 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 2000D and Canon PowerShot SX520 HS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
    Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon 2000DYmono / mono--mini2.0YY-
2.

Canon SX520-stereo / mono--mini2.0---
3.

Canon 4000DYmono / mono--mini2.0YY-
4.

Canon 77DYstereo / monoY-mini2.0YYY
5.

Canon 200DYstereo / monoY-mini2.0YYY
6.

Canon 800DYstereo / monoY-mini2.0YYY
7.

Canon G9 X Mark II-stereo / mono--micro2.0YYY
8.

Canon M100-stereo / mono--micro2.0YYY
9.

Canon 1300DYmono / mono--mini2.0YY-
10.

Canon 750DYstereo / monoY-mini2.0YY-
11.

Canon 760DYstereo / monoY-mini2.0YY-
12.

Canon SX530-stereo / mono--mini2.0YY-
13.

Canon SX700-stereo / mono--micro2.0YY-
14.

Canon 1200DYmono / mono--mini2.0---
15.

Canon SX510-stereo / mono--mini2.0Y--

It is notable that the 2000D has a hotshoe, while the SX520 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

The 2000D is a recent model that features in the current product line-up of Canon. In contrast, the SX520 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the SX520 was succeeded by the Canon SX530. Further information on the features and operation of the 2000D and SX520 can be found, respectively, in the Canon 2000D Manual (free pdf) or the online Canon SX520 Manual.

Review summary

So how do things add up? Which of the two cameras – the Canon 2000D or the Canon SX520 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.


Arguments in favor of the Canon EOS 2000D:

  • More detail: Offers more megapixels (24 vs 15.9MP) with a 25% higher linear resolution.
  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Better image quality: Features a larger and more technologically advanced imaging sensor.
  • Richer colors: The sensor size advantage translates into images with better, more accurate colors.
  • More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
  • Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
  • Easier framing: Has an optical viewfinder for image composition and settings control.
  • More detailed LCD: Has a higher resolution rear screen (920k vs 461k dots).
  • Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
  • Faster burst: Shoots at higher frequency (3 vs 1.6 flaps/sec) to capture the decisive moment.
  • More flexible: Can take a variety of interchangeable lenses, including specialty optics.
  • Longer lasting: Can take more shots (500 versus 210) on a single battery charge.
  • Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • More modern: Reflects 3 years and 7 months of technical progress since the SX520 launch.


Reasons to prefer the Canon PowerShot SX520 HS:

  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Ready to shoot: Comes with an integrated lens, while the 2000D requires a separate lens.
  • More compact: Is smaller (120x82mm vs 129x101mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight even though it has a lens built in (unlike the 2000D).
  • Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
  • More affordable: Was introduced at a lower price, despite coming with a built-in lens.
  • More heavily discounted: Has been around for much longer (launched in July 2014).

If the count of individual advantages (bullet points above) is taken as a guide, the 2000D is the clear winner of the match-up (16 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

2000D 16:07 SX520

How about other alternatives? Do the specifications of the Canon 2000D and the Canon SX520 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 2000D or the SX520. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
     Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon 2000D3/5o3.5/5..3.5/53.5/5 Feb 2018 449 amazon.com
2.

Canon SX520..+....3.5/53.5/5 Jul 2014 399ebay.com
3.

Canon 4000D2.5/5o3/5..3.5/53.5/5 Feb 2018 399 amazon.com
4.

Canon 77D4.5/5..4/582/1004.5/54/5 Feb 2017 899ebay.com
5.

Canon 200D4/5+ +4/578/1004.5/54.5/5 Jun 2017 549ebay.com
6.

Canon 800D4.5/5..3.5/580/1004.5/54/5 Feb 2017 749ebay.com
7.

Canon G9 X Mark II4/5..4/575/1004.5/54.5/5 Jan 2017 529 amazon.com
8.

Canon M1003/5+....4/53.5/5 Aug 2017 499ebay.com
9.

Canon 1300D4/5o4/573/1004/54/5 Mar 2016 449ebay.com
10.

Canon 750D5/5....75/1004.5/54.5/5 Feb 2015 749ebay.com
11.

Canon 760D5/5+..77/1004.5/54.5/5 Feb 2015 649ebay.com
12.

Canon SX530..+ +....4/54/5 Jan 2015 429ebay.com
13.

Canon SX700..+ +....4/54/5 Feb 2014 349ebay.com
14.

Canon 1200D3/5+....4/54.5/5 Feb 2014 449ebay.com
15.

Canon SX510..+ +....4.5/54/5 Aug 2013 249ebay.com
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.

logo
Check 2000D price at
amazon.com
logo
Check SX520 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~
    loader

    Specifications: Canon 2000D vs Canon SX520

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon 2000D Canon SX520
    Camera Type Digital single lens reflex Fixed lens compact camera
    Camera Lens Canon EF mount lenses 24-1008mm f/3.4-6
    Launch Date February 2018 July 2014
    Launch Price USD 449 USD 399
    Sensor Specs Canon 2000D Canon SX520
    Sensor Technology CMOS BSI-CMOS
    Sensor Format APS-C Sensor 1/2.3" Sensor
    Sensor Size 22.3 x 14.9 mm 6.17 x 4.55 mm
    Sensor Area 332.27 mm2 28.0735 mm2
    Sensor Diagonal 26.8 mm 7.7 mm
    Crop Factor 1.6x 5.6x
    Sensor Resolution 24 Megapixels 15.9 Megapixels
    Image Resolution 6000 x 4000 pixels 4608 x 3456 pixels
    Pixel Pitch 3.72 μm 1.33 μm
    Pixel Density 7.22 MP/cm2 56.73 MP/cm2
    Moiré control Anti-Alias filter no AA filter
    Movie Capability 1080/30p Video 1080/30p Video
    ISO Setting 100 - 6,400 ISO 100 - 3,200 ISO
    ISO Boost 100 - 12,800 ISO no Enhancement
    Image Processor DIGIC 4+ DIGIC 4+
    DXO Sensor Quality (score) 71 ..
    DXO Color Depth (bits) 22.6 ..
    DXO Dynamic Range (EV) 11.9 ..
    DXO Low Light (ISO) 1009 ..
    Screen Specs Canon 2000D Canon SX520
    Viewfinder Type Optical viewfinder no viewfinder
    Viewfinder Field of View 95%
    Viewfinder Magnification 0.50x
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.0inch
    LCD Resolution 920k dots 461k dots
    LCD Attachment Fixed screen Fixed screen
    Shooting Specs Canon 2000D Canon SX520
    Focus System Phase-detect AF Contrast-detect AF
    Continuous Shooting 3 shutter flaps/s 1.6 shutter flaps/s
    Fill Flash Built-in Flash Built-in Flash
    Storage Medium SDXC cards SDXC cards
    Single or Dual Card Slots Single card slot Single card slot
    UHS card support no no
    Connectivity Specs Canon 2000D Canon SX520
    External Flash Hotshoe no Hotshoe
    USB Connector USB 2.0 USB 2.0
    HDMI Port mini HDMI mini HDMI
    Wifi Support Wifi built-in no Wifi
    Near-Field Communication NFC built-in no NFC
    Body Specs Canon 2000D Canon SX520
    Battery Type LP-E10 NB-6LH
    Battery Life (CIPA)500 shots per charge210 shots per charge
    Body Dimensions 129 x 101 x 78 mm
    (5.1 x 4.0 x 3.1 in)
    120 x 82 x 92 mm
    (4.7 x 3.2 x 3.6 in)
    Camera Weight 475 g (16.8 oz) 441 g (15.6 oz)
    logo
    Check 2000D price at
    amazon.com
    logo
    Check SX520 offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon 2000D vs Canon SX520
