Canon 1D X vs Pentax K-1
The Canon EOS-1D X and the Pentax K-1 are two digital cameras that were revealed to the public, respectively, in October 2011 and February 2016. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with a full frame sensor. The Canon has a resolution of 17.9 megapixels, whereas the Pentax provides 36.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-1D X and the Pentax K-1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

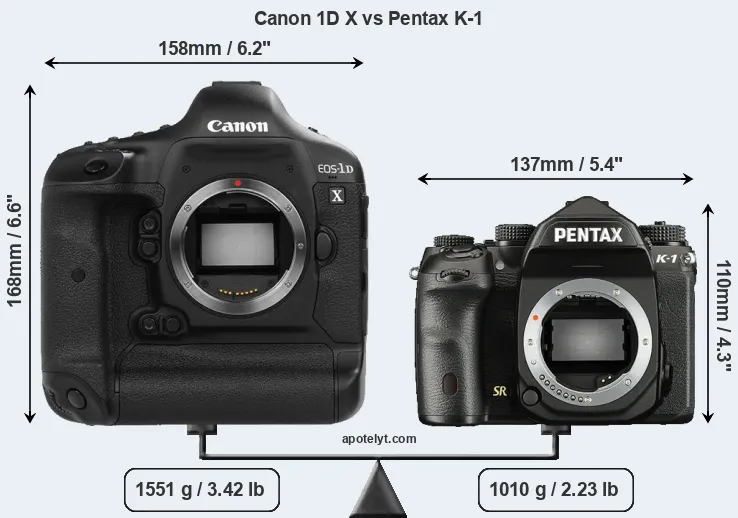

The physical size and weight of the Canon 1D X and the Pentax K-1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The K-1 can be obtained in two different colors (black, silver), while the 1DX is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax K-1 is considerably smaller (43 percent) than the Canon 1D X. Moreover, the K-1 is substantially lighter (35 percent) than the 1DX. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
Concerning battery life, the 1DX gets 1120 shots out of its LP-E4N battery, while the K-1 can take 760 images on a single charge of its D-LI90 power pack. As can be seen in the images above, the 1DX has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the K-1, Pentax provides the D-BG6 vertical grip as an optional accessory (see here on eBay).
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon 1D X||158 mm||168 mm||83 mm||1551 g||1120||Y||Oct 2011||6,799|
|2.||Pentax K-1||137 mm||110 mm||86 mm||1010 g||760||Y||Feb 2016||1,799|
|3.||Canon 1D X Mark III||158 mm||168 mm||83 mm||1440 g||2850||Y||Jan 2020||6,499|
|4.||Canon 1D X Mark II||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999|
|5.||Canon 5D Mark IV||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499|
|6.||Canon 1D C||158 mm||164 mm||83 mm||1545 g||1120||Y||Apr 2012||14,999|
|7.||Canon 5D Mark III||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499|
|8.||Canon 6D||145 mm||111 mm||71 mm||770 g||1090||Y||Sep 2012||2,099|
|9.||Canon 5D Mark II||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499|
|10.||Canon 1Ds Mark III||150 mm||160 mm||80 mm||1385 g||1800||Y||Aug 2007||7,999|
|11.||Canon 1Ds Mark II||156 mm||158 mm||80 mm||1215 g||1200||Y||Sep 2004||7,999|
|12.||Nikon D500||147 mm||115 mm||81 mm||860 g||1240||Y||Jan 2016||1,999|
|13.||Nikon D4S||160 mm||157 mm||91 mm||1350 g||3020||Y||Feb 2014||6,499|
|14.||Nikon D4||160 mm||157 mm||91 mm||1340 g||2600||Y||Jan 2012||5,999|
|15.||Olympus E-M1 II||134 mm||91 mm||67 mm||574 g||440||Y||Sep 2016||1,999|
|16.||Pentax K-1 II||137 mm||110 mm||86 mm||1010 g||670||Y||Feb 2018||1,999|
|17.||Sony A99 II||143 mm||104 mm||76 mm||849 g||490||Y||Sep 2016||3,199|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The K-1 was launched at a markedly lower price (by 74 percent) than the 1DX, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature a full frame sensor, but their sensors differ slightly in size. They nevertheless have the same format factor of 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
In terms of underlying technology, both cameras are build around CMOS sensors.
Despite having a slightly smaller sensor, the K-1 offers a higher resolution of 36.2 megapixels, compared with 17.9 MP of the 1DX. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.88μm versus 6.95μm for the 1DX). However, it should be noted that the K-1 is much more recent (by 4 years and 4 months) than the 1DX, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the K-1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Pentax K-1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the K-1 for good quality output (200 dots per inch) amounts to 36.8 x 24.6 inches or 93.5 x 62.4 cm, for very good quality (250 dpi) 29.4 x 19.6 inches or 74.8 x 49.9 cm, and for excellent quality (300 dpi) 24.5 x 16.4 inches or 62.3 x 41.6 cm. The corresponding values for the Canon 1D X are 25.9 x 17.3 inches or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inches or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inches or 43.9 x 29.3 cm for excellent quality prints.
Unlike the 1DX, the K-1 has the capacity to capture high quality composite images by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Canon EOS-1D X has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-204800. The corresponding ISO settings for the Pentax K-1 are ISO 100 to ISO 204800 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the K-1 offers substantially better image quality than the 1DX (overall score 14 points higher). The advantage is based on 1.6 bits higher color depth, 2.8 EV in additional dynamic range, and 0.2 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|1.||Canon 1D X||Full Frame||17.9||5184||3456||1080/30p||23.8||11.8||2786||82|
|2.||Pentax K-1||Full Frame||36.2||7360||4912||1080/60i||25.4||14.6||3280||96|
|3.||Canon 1D X Mark III||Full Frame||20.0||5472||3648||4K/60p||24.2||14.5||3248||91|
|4.||Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|5.||Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|6.||Canon 1D C||Full Frame||17.9||5184||3456||4K/24p||..||..||..||..|
|7.||Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|8.||Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|9.||Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|10.||Canon 1Ds Mark III||Full Frame||21.0||5616||3744||none||24.0||12.0||1663||80|
|11.||Canon 1Ds Mark II||Full Frame||16.6||4992||3328||none||23.3||11.3||1480||74|
|13.||Nikon D4S||Full Frame||16.2||4928||3280||1080/60p||24.4||13.3||3074||89|
|14.||Nikon D4||Full Frame||16.2||4928||3280||1080/30p||24.7||13.1||2965||89|
|15.||Olympus E-M1 II||Four Thirds||20.2||5184||3888||4K/30p||23.7||12.8||1312||80|
|16.||Pentax K-1 II||Full Frame||36.2||7360||4912||1080/60i||..||..||..||..|
|17.||Sony A99 II||Full Frame||42.2||7952||5304||4K/30p||25.4||13.4||2317||92|
Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the K-1 provides a faster frame rate than the 1DX. It can shoot movie footage at 1080/60i, while the Canon is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. The 1DX and the K-1 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the 1DX has a higher magnification than the one of the K-1 (0.76x vs 0.70x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 1D X and Pentax K-1 along with similar information for a selection of comparators.
|1.||Canon 1D X||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n|
|3.||Canon 1D X Mark III||optical||Y||3.2||2100||fixed||Y||1/8000s||20.0||n||n|
|4.||Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|5.||Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n|
|6.||Canon 1D C||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n|
|7.||Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n|
|9.||Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
|10.||Canon 1Ds Mark III||optical||Y||3.0||230||fixed||n||1/8000s||5.0||n||n|
|11.||Canon 1Ds Mark II||optical||Y||2.0||230||fixed||n||1/8000s||4.0||n||n|
|15.||Olympus E-M1 II||2360||n||3.0||1037||swivel||Y||1/8000s||18.0||n||Y|
|16.||Pentax K-1 II||optical||Y||3.2||1037||full-flex||n||1/8000s||4.4||n||Y|
|17.||Sony A99 II||2400||Y||3.0||1229||full-flex||n||1/8000s||12.0||n||Y|
One feature that differentiates the K-1 and the 1DX is in-body image stabilization (IBIS). The K-1 reduces the risk of handshake-induced blur with all attached lenses, while the 1DX offers no blur reduction with lenses that themselves do not provide optical image stabilization.
The Pentax K-1 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 1DX writes its imaging data to Compact Flash cards, while the K-1 uses SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D X and Pentax K-1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|1.||Canon 1D X||Y||mono||-||Y||-||mini||2.0||-||-||-|
|3.||Canon 1D X Mark III||Y||mono||mono||Y||Y||mini||3.1||Y||-||Y|
|4.||Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|5.||Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-|
|6.||Canon 1D C||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|7.||Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|9.||Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
|10.||Canon 1Ds Mark III||Y||mono||-||-||-||-||2.0||-||-||-|
|11.||Canon 1Ds Mark II||Y||-||-||-||-||-||2.0||-||-||-|
|15.||Olympus E-M1 II||Y||stereo||mono||Y||Y||micro||3.0||Y||-||-|
|16.||Pentax K-1 II||Y||stereo||mono||Y||Y||micro||2.0||Y||-||-|
|17.||Sony A99 II||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||Y|
It is notable that the K-1 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 1DX does not provide wifi capability.
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
Travel and landscape photographers will find it useful that the K-1 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
Both the 1DX and the K-1 have been discontinued, but can regularly be found used on eBay. The 1DX was replaced by the Canon 1DX Mark II, while the K-1 was followed by the Pentax K-1 II. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Pentax websites.
So what conclusions can be drawn? Is the Canon 1D X better than the Pentax K-1 or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Canon EOS-1D X:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.76x vs 0.70x).
- Faster burst: Shoots at higher frequency (14 vs 4.4 flaps/sec) to capture the decisive moment.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Can take more shots (1120 versus 760) on a single battery charge.
- More heavily discounted: Has been available for much longer (launched in October 2011).
Arguments in favor of the Pentax K-1:
- More detail: Has more megapixels (36.2 vs 17.9MP), which boosts linear resolution by 42%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Better image quality: Scores substantially higher (14 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (1.6 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (2.8 EV of extra DR).
- Better video: Provides higher movie framerates (1080/60i versus 1080/30p).
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- More flexible LCD: Has a full-flex screen for odd-angle shots in portrait or landscape orientation.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (137x110mm vs 158x168mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 541g or 35 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More affordable: Was introduced into a lower priced category (74 percent cheaper at launch).
- More modern: Reflects 4 years and 4 months of technical progress since the 1DX launch.
If the count of individual advantages (bullet points above) is taken as a guide, the K-1 is the clear winner of the contest (17 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 1D X and the Pentax K-1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the 1DX or the K-1 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 1D X||5/5||..||..||4.5/5||4.5/5||Oct 2011||6,799|
|2.||Pentax K-1||5/5||..||84/100||5/5||5/5||Feb 2016||1,799|
|3.||Canon 1D X Mark III||..||+ +||..||4.5/5||4/5||Jan 2020||6,499|
|4.||Canon 1D X Mark II||..||..||89/100||4.5/5||4.5/5||Feb 2016||5,999|
|5.||Canon 5D Mark IV||4.5/5||+ +||87/100||4.5/5||4.5/5||Aug 2016||3,499|
|6.||Canon 1D C||..||..||..||..||..||Apr 2012||14,999|
|7.||Canon 5D Mark III||..||+ +||82/100||4.5/5||4.5/5||Mar 2012||3,499|
|8.||Canon 6D||5/5||+ +||83/100||4.5/5||4.5/5||Sep 2012||2,099|
|9.||Canon 5D Mark II||4/5||91/100||79/100||4/5||..||Sep 2008||3,499|
|10.||Canon 1Ds Mark III||..||..||+ +||4.5/5||..||Aug 2007||7,999|
|11.||Canon 1Ds Mark II||..||..||+ +||..||..||Sep 2004||7,999|
|12.||Nikon D500||5/5||+ +||91/100||4.5/5||5/5||Jan 2016||1,999|
|13.||Nikon D4S||5/5||..||..||4.5/5||4.5/5||Feb 2014||6,499|
|14.||Nikon D4||..||..||..||4.5/5||4.5/5||Jan 2012||5,999|
|15.||Olympus E-M1 II||5/5||+ +||85/100||4.5/5||4.5/5||Sep 2016||1,999|
|16.||Pentax K-1 II||..||..||79/100||4.5/5||4.5/5||Feb 2018||1,999|
|17.||Sony A99 II||..||..||85/100||4.5/5||4.5/5||Sep 2016||3,199|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Canon 1D X vs Pentax K-1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 1D X||Pentax K-1|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Pentax K mount lenses|
|Launch Date||October 2011||February 2016|
|Launch Price||USD 6,799||USD 1,799|
|Sensor Specs||Canon 1D X||Pentax K-1|
|Sensor Format||Full Frame Sensor||Full Frame Sensor|
|Sensor Size||36.0 x 24.0 mm||35.9 x 24.0 mm|
|Sensor Area||864 mm2||861.6 mm2|
|Sensor Diagonal||43.3 mm||43.2 mm|
|Sensor Resolution||17.9 Megapixels||36.2 Megapixels|
|Image Resolution||5184 x 3456 pixels||7360 x 4912 pixels|
|Pixel Pitch||6.95 μm||4.88 μm|
|Pixel Density||2.07 MP/cm2||4.20 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/30p Video||1080/60i Video|
|ISO Setting||100 - 51,200 ISO||100 - 204,800 ISO|
|ISO Boost||50 - 204,800 ISO||no Enhancement|
|Image Processor||DIGIC 5+ (Dual)||PRIME IV|
|DXO Sensor Quality (score)||82||96|
|DXO Color Depth (bits)||23.8||25.4|
|DXO Dynamic Range (EV)||11.8||14.6|
|DXO Low Light (ISO)||2786||3280|
|Screen Specs||Canon 1D X||Pentax K-1|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||100%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.2inch|
|LCD Resolution||1040k dots||1037k dots|
|LCD Attachment||Fixed screen||Fully flexible screen|
|Shooting Specs||Canon 1D X||Pentax K-1|
|Focus System||Phase-detect AF||Phase-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/8000s|
|Continuous Shooting||14 shutter flaps/s||4.4 shutter flaps/s|
|Shutter Life Expectancy||400 000 actuations||300 000 actuations|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Dual card slots||Dual card slots|
|Connectivity Specs||Canon 1D X||Pentax K-1|
|Studio Flash||PC Sync socket||PC Sync socket|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||Wifi built-in|
|Geotagging||no internal GPS||GPS built-in|
|Body Specs||Canon 1D X||Pentax K-1|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Life (CIPA)||1120 shots per charge||760 shots per charge|
158 x 168 x 83 mm
(6.2 x 6.6 x 3.3 in)
137 x 110 x 86 mm
(5.4 x 4.3 x 3.4 in)
|Camera Weight||1551 g (54.7 oz)||1010 g (35.6 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
