Canon 1D X Mark III vs Nikon D810
The Canon EOS-1D X Mark III and the Nikon D810 are two professional cameras that were announced, respectively, in January 2020 and June 2014. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with a full frame sensor. The Canon has a resolution of 20 megapixels, whereas the Nikon provides 36.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-1D X Mark III and the Nikon D810? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

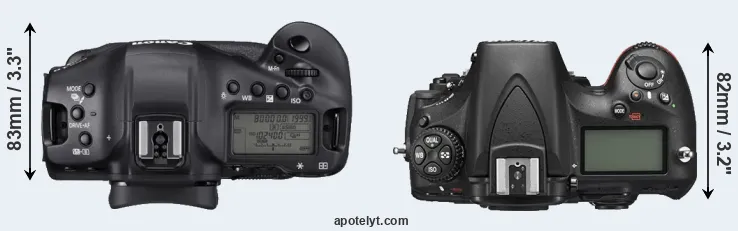

An illustration of the physical size and weight of the Canon 1D X Mark III and the Nikon D810 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D810 is considerably smaller (32 percent) than the Canon 1D X Mark III. Moreover, the D810 is markedly lighter (32 percent) than the 1DX Mark III. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Yet, since both cameras are based around a full frame sensor, their respective lenses will tend to have similar dimensions and heft. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (1DX Mark III) and the Nikon Lens Catalog (D810).
Concerning battery life, the 1DX Mark III gets 2850 shots out of its LP-E19 battery, while the D810 can take 1200 images on a single charge of its EN-EL15 power pack. As can be seen in the images above, the 1DX Mark III has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the D810, Nikon provides the MB-D12 vertical grip as an optional accessory (see here on eBay).
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon 1D X Mark III||158 mm||168 mm||83 mm||1440 g||2850||Y||Jan 2020||6,499|
|2.||Nikon D810||146 mm||123 mm||82 mm||980 g||1200||Y||Jun 2014||3,299|
|3.||Canon 1D X Mark II||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999|
|4.||Canon 1D C||158 mm||164 mm||83 mm||1545 g||1120||Y||Apr 2012||14,999|
|5.||Canon 5D Mark III||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499|
|6.||Canon 1D X||158 mm||168 mm||83 mm||1551 g||1120||Y||Oct 2011||6,799|
|7.||Canon 1D Mark IV||156 mm||157 mm||80 mm||1230 g||1500||Y||Oct 2009||4,999|
|8.||Canon 5D Mark II||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499|
|9.||Canon 1Ds Mark III||150 mm||160 mm||80 mm||1385 g||1800||Y||Aug 2007||7,999|
|10.||Canon 1Ds Mark II||156 mm||158 mm||80 mm||1215 g||1200||Y||Sep 2004||7,999|
|11.||Canon 1D||156 mm||158 mm||80 mm||1585 g||500||Y||Sep 2001||6,499|
|12.||Nikon D6||160 mm||163 mm||92 mm||1270 g||3580||Y||Feb 2020||6,499|
|13.||Nikon D850||146 mm||124 mm||79 mm||1005 g||1840||Y||Jul 2017||3,299|
|14.||Nikon Df||144 mm||110 mm||67 mm||760 g||1400||Y||Nov 2013||2,749|
|15.||Nikon D610||141 mm||113 mm||82 mm||850 g||900||Y||Oct 2013||1,999|
|16.||Nikon D800||146 mm||123 mm||82 mm||1000 g||900||Y||Feb 2012||2,999|
|17.||Nikon D800E||146 mm||123 mm||82 mm||1000 g||900||Y||Feb 2012||3,299|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The D810 was launched at a markedly lower price (by 49 percent) than the 1DX Mark III, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature a full frame sensor, but their sensors differ slightly in size. They nevertheless have the same format factor of 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
In terms of underlying technology, both cameras are build around CMOS sensors.

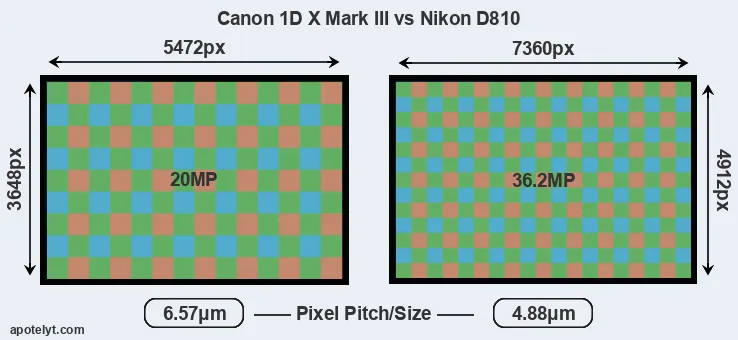

Despite having a slightly smaller sensor, the D810 offers a higher resolution of 36.2 megapixels, compared with 20 MP of the 1DX Mark III. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.88μm versus 6.57μm for the 1DX Mark III). Moreover, it should be noted that the 1DX Mark III is much more recent (by 5 years and 6 months) than the D810, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the D810 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Nikon D810 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D810 for good quality output (200 dots per inch) amounts to 36.8 x 24.6 inches or 93.5 x 62.4 cm, for very good quality (250 dpi) 29.4 x 19.6 inches or 74.8 x 49.9 cm, and for excellent quality (300 dpi) 24.5 x 16.4 inches or 62.3 x 41.6 cm. The corresponding values for the Canon 1D X Mark III are 27.4 x 18.2 inches or 69.5 x 46.3 cm for good quality, 21.9 x 14.6 inches or 55.6 x 37.1 cm for very good quality, and 18.2 x 12.2 inches or 46.3 x 30.9 cm for excellent quality prints.
The 1DX Mark III has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS-1D X Mark III has a native sensitivity range from ISO 100 to ISO 102400, which can be extended to ISO 50-819200. The corresponding ISO settings for the Nikon D810 are ISO 64 to ISO 12800, with the possibility to increase the ISO range to 32-51200.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the D810 has a markedly higher DXO score than the 1DX Mark III (overall score 6 points higher), which will translate into better image quality. The advantage is based on 1.5 bits higher color depth, 0.3 EV in additional dynamic range, and 0.2 stops of reduced low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|1.||Canon 1D X Mark III||Full Frame||20.0||5472||3648||4K/60p||24.2||14.5||3248||91|
|2.||Nikon D810||Full Frame||36.2||7360||4912||1080/60p||25.7||14.8||2853||97|
|3.||Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|4.||Canon 1D C||Full Frame||17.9||5184||3456||4K/24p||..||..||..||..|
|5.||Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|6.||Canon 1D X||Full Frame||17.9||5184||3456||1080/30p||23.8||11.8||2786||82|
|7.||Canon 1D Mark IV||APS-H||16.0||4896||3264||1080/30p||22.8||12.0||1320||74|
|8.||Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|9.||Canon 1Ds Mark III||Full Frame||21.0||5616||3744||none||24.0||12.0||1663||80|
|10.||Canon 1Ds Mark II||Full Frame||16.6||4992||3328||none||23.3||11.3||1480||74|
|12.||Nikon D6||Full Frame||20.7||5568||3712||4K/30p||..||..||..||..|
|13.||Nikon D850||Full Frame||45.4||8256||5504||4K/30p||26.4||14.8||2660||100|
|14.||Nikon Df||Full Frame||16.2||4928||3280||none||24.6||13.1||3279||89|
|15.||Nikon D610||Full Frame||24.2||6016||4016||1080/30p||25.1||14.4||2925||94|
|16.||Nikon D800||Full Frame||36.2||7360||4912||1080/30p||25.3||14.4||2853||95|
|17.||Nikon D800E||Full Frame||36.2||7360||4912||1080/30p||25.6||14.3||2979||96|
Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the 1DX Mark III provides a higher video resolution than the D810. It can shoot video footage at 4K/60p, while the Nikon is limited to 1080/60p.
Apart from body and sensor, cameras can and do differ across a range of features. The 1DX Mark III and the D810 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the 1DX Mark III has a higher magnification than the one of the D810 (0.76x vs 0.70x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 1D X Mark III and Nikon D810 in connection with corresponding information for a sample of similar cameras.
|1.||Canon 1D X Mark III||optical||Y||3.2||2100||fixed||Y||1/8000s||20.0||n||n|
|3.||Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|4.||Canon 1D C||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n|
|5.||Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n|
|6.||Canon 1D X||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n|
|7.||Canon 1D Mark IV||optical||Y||3.0||920||fixed||n||1/8000s||10.0||n||n|
|8.||Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
|9.||Canon 1Ds Mark III||optical||Y||3.0||230||fixed||n||1/8000s||5.0||n||n|
|10.||Canon 1Ds Mark II||optical||Y||2.0||230||fixed||n||1/8000s||4.0||n||n|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The 1DX Mark III has a touchscreen, while the D810 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The Canon 1D X Mark III and the Nikon D810 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 1DX Mark III writes its imaging data to CFexpress cards, while the D810 uses Compact Flash or SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D X Mark III and Nikon D810 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|1.||Canon 1D X Mark III||Y||mono||mono||Y||Y||mini||3.1||Y||-||Y|
|3.||Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|4.||Canon 1D C||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|5.||Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|6.||Canon 1D X||Y||mono||-||Y||-||mini||2.0||-||-||-|
|7.||Canon 1D Mark IV||Y||stereo||-||Y||-||mini||2.0||-||-||-|
|8.||Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
|9.||Canon 1Ds Mark III||Y||mono||-||-||-||-||2.0||-||-||-|
|10.||Canon 1Ds Mark II||Y||-||-||-||-||-||2.0||-||-||-|
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
Travel and landscape photographers will find it useful that the 1DX Mark III has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
The 1DX Mark III is a recent model that features in the current product line-up of Canon. In contrast, the D810 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the D810 was succeeded by the Nikon D850. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Nikon websites.
So how do things add up? Is there a clear favorite between the Canon 1D X Mark III and the Nikon D810? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Canon EOS-1D X Mark III:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better video: Provides higher definition movie capture (4K/60p vs 1080/60p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.76x vs 0.70x).
- More detailed LCD: Has a higher resolution rear screen (2100k vs 1229k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster burst: Shoots at higher frequency (20 vs 5 flaps/sec) to capture the decisive moment.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Can take more shots (2850 versus 1200) on a single battery charge.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More modern: Reflects 5 years and 6 months of technical progress since the D810 launch.
Advantages of the Nikon D810:
- More detail: Has more megapixels (36.2 vs 20MP), which boosts linear resolution by 35%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores markedly higher (6 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (1.5 bits more color depth).
- More compact: Is smaller (146x123mm vs 158x168mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 460g or 32 percent) and is thus easier to take along.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More affordable: Was introduced into a lower priced category (49 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in June 2014).
If the count of individual advantages (bullet points above) is taken as a guide, the 1DX Mark III emerges as the winner of the contest (12 : 9 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 1D X Mark III and the Nikon D810 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 1DX Mark III or the D810. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 1D X Mark III||..||+ +||..||4.5/5||4/5||Jan 2020||6,499|
|2.||Nikon D810||5/5||..||86/100||5/5||4.5/5||Jun 2014||3,299|
|3.||Canon 1D X Mark II||..||..||89/100||4.5/5||4.5/5||Feb 2016||5,999|
|4.||Canon 1D C||..||..||..||..||..||Apr 2012||14,999|
|5.||Canon 5D Mark III||..||+ +||82/100||4.5/5||4.5/5||Mar 2012||3,499|
|6.||Canon 1D X||5/5||..||..||4.5/5||4.5/5||Oct 2011||6,799|
|7.||Canon 1D Mark IV||5/5||..||89/100||..||..||Oct 2009||4,999|
|8.||Canon 5D Mark II||4/5||91/100||79/100||4/5||..||Sep 2008||3,499|
|9.||Canon 1Ds Mark III||..||..||+ +||4.5/5||..||Aug 2007||7,999|
|10.||Canon 1Ds Mark II||..||..||+ +||..||..||Sep 2004||7,999|
|11.||Canon 1D||..||..||+ +||..||..||Sep 2001||6,499|
|12.||Nikon D6||..||..||..||4.5/5||4.5/5||Feb 2020||6,499|
|13.||Nikon D850||4.5/5||+ +||89/100||4.5/5||5/5||Jul 2017||3,299|
|14.||Nikon Df||4/5||..||81/100||4/5||4/5||Nov 2013||2,749|
|15.||Nikon D610||4/5||+ +||87/100||4.5/5||4.5/5||Oct 2013||1,999|
|16.||Nikon D800||5/5||+ +||82/100||5/5||5/5||Feb 2012||2,999|
|17.||Nikon D800E||..||..||84/100||5/5||5/5||Feb 2012||3,299|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon 1D X Mark III vs Nikon D810
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 1D X Mark III||Nikon D810|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Nikon F mount lenses|
|Launch Date||January 2020||June 2014|
|Launch Price||USD 6,499||USD 3,299|
|Sensor Specs||Canon 1D X Mark III||Nikon D810|
|Sensor Format||Full Frame Sensor||Full Frame Sensor|
|Sensor Size||36.0 x 24.0 mm||35.9 x 24.0 mm|
|Sensor Area||864 mm2||861.6 mm2|
|Sensor Diagonal||43.3 mm||43.2 mm|
|Sensor Resolution||20 Megapixels||36.2 Megapixels|
|Image Resolution||5472 x 3648 pixels||7360 x 4912 pixels|
|Pixel Pitch||6.57 μm||4.88 μm|
|Pixel Density||2.31 MP/cm2||4.20 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||4K/60p Video||1080/60p Video|
|ISO Setting||100 - 102,400 ISO||64 - 12,800 ISO|
|ISO Boost||50 - 819,200 ISO||32 - 51,200 ISO|
|Image Processor||DIGIC X||EXPEED 4|
|DXO Sensor Quality (score)||91||97|
|DXO Color Depth (bits)||24.2||25.7|
|DXO Dynamic Range (EV)||14.5||14.8|
|DXO Low Light (ISO)||3248||2853|
|Screen Specs||Canon 1D X Mark III||Nikon D810|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||100%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.2inch|
|LCD Resolution||2100k dots||1229k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon 1D X Mark III||Nikon D810|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||20 shutter flaps/s||5 shutter flaps/s|
|Shutter Life Expectancy||500 000 actuations||200 000 actuations|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Fill Flash||no On-Board Flash||Built-in Flash|
|Storage Medium||CFexpress cards||CF or SDXC cards|
|Second Storage Option||Dual card slots||Dual card slots|
|Connectivity Specs||Canon 1D X Mark III||Nikon D810|
|Studio Flash||PC Sync socket||PC Sync socket|
|USB Connector||USB 3.1||USB 3.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||Headphone port||Headphone port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Geotagging||GPS built-in||no internal GPS|
|Body Specs||Canon 1D X Mark III||Nikon D810|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Life (CIPA)||2850 shots per charge||1200 shots per charge|
158 x 168 x 83 mm
(6.2 x 6.6 x 3.3 in)
146 x 123 x 82 mm
(5.7 x 4.8 x 3.2 in)
|Camera Weight||1440 g (50.8 oz)||980 g (34.6 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
