Canon 1D vs Olympus E-3
The Canon EOS-1D and the Olympus E-3 are two professional cameras that were announced, respectively, in September 2001 and October 2007. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-H (1D) and a Four Thirds (E-3) sensor. The Canon has a resolution of 4.1 megapixels, whereas the Olympus provides 10 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-1D and the Olympus E-3? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

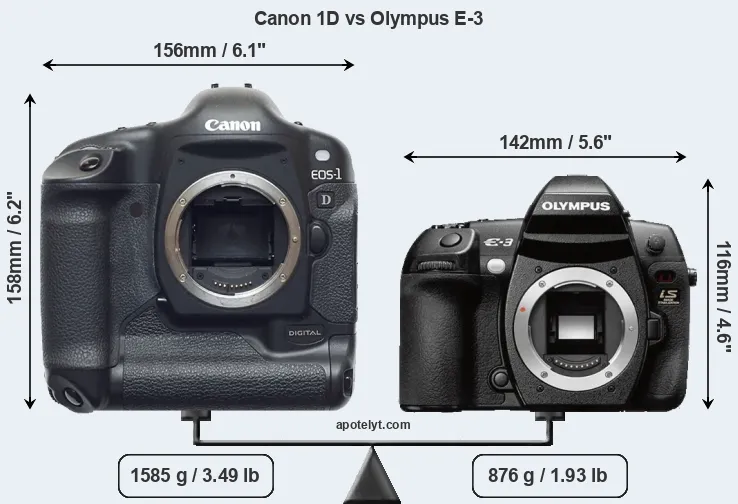

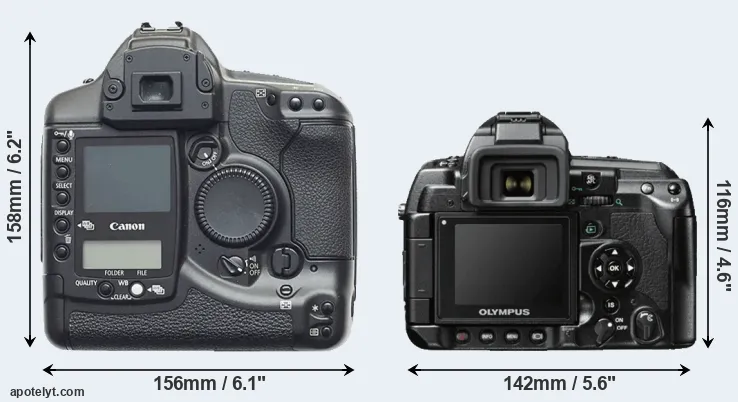

The physical size and weight of the Canon 1D and the Olympus E-3 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-3 is considerably smaller (33 percent) than the Canon 1D. Moreover, the E-3 is substantially lighter (45 percent) than the 1D. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

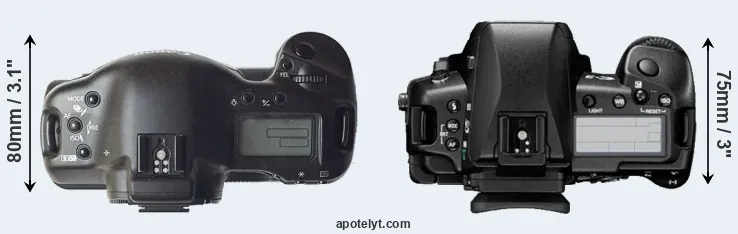

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (1D) and the Four Thirds Lens Catalog (E-3).
Concerning battery life, the 1D gets 500 shots out of its NP-E3 battery, while the E-3 can take 750 images on a single charge of its BLM-1 power pack. As can be seen in the images above, the 1D has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the E-3, Olympus provides the HLD-4 vertical grip as an optional accessory (see here on ebay).
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon 1D||156 mm||158 mm||80 mm||1585 g||500||Y||Sep 2001||6,499||ebay.com|
|2.||Olympus E-3||142 mm||116 mm||75 mm||876 g||750||Y||Oct 2007||1,699||ebay.com|
|3.||Canon 1D X Mark III||158 mm||168 mm||83 mm||1440 g||2850||Y||Jan 2020||6,499||amazon.com|
|4.||Canon 1D X Mark II||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999||ebay.com|
|5.||Canon 5D Mark IV||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499||amazon.com|
|6.||Canon 5DS||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699||ebay.com|
|7.||Canon 1D C||158 mm||164 mm||83 mm||1545 g||1120||Y||Apr 2012||14,999||ebay.com|
|8.||Canon 1D X||158 mm||168 mm||83 mm||1551 g||1120||Y||Oct 2011||6,799||ebay.com|
|9.||Canon 1Ds Mark III||150 mm||160 mm||80 mm||1385 g||1800||Y||Aug 2007||7,999||ebay.com|
|10.||Canon 1D Mark II N||156 mm||158 mm||80 mm||1565 g||1200||Y||Aug 2005||3,999||ebay.com|
|11.||Canon 1D Mark II||156 mm||158 mm||80 mm||1535 g||1200||Y||Jan 2004||4,499||ebay.com|
|12.||Canon 1Ds||156 mm||158 mm||80 mm||1265 g||600||Y||Sep 2002||8,999||ebay.com|
|13.||Olympus E-5||142 mm||117 mm||75 mm||873 g||750||Y||Sep 2010||1,699||ebay.com|
|14.||Olympus E-30||142 mm||108 mm||75 mm||701 g||750||n||Nov 2008||1,299||ebay.com|
|15.||Olympus E-520||136 mm||92 mm||68 mm||535 g||750||n||May 2008||699||ebay.com|
|16.||Olympus E-510||136 mm||92 mm||68 mm||538 g||750||n||Mar 2007||799||ebay.com|
|17.||Olympus E-1||141 mm||104 mm||81 mm||738 g||750||Y||Jun 2003||1,699||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-3 was launched at a markedly lower price (by 74 percent) than the 1D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

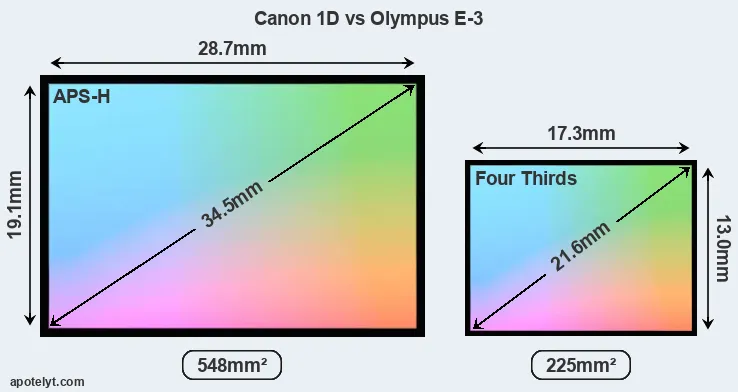

Of the two cameras under consideration, the Canon 1D features an APS-H sensor and the Olympus E-3 a Four Thirds sensor. The sensor area in the E-3 is 59 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.3 and 2.0. The sensor in the 1D has a native 3:2 aspect ratio, while the one in the E-3 offers a 4:3 aspect.

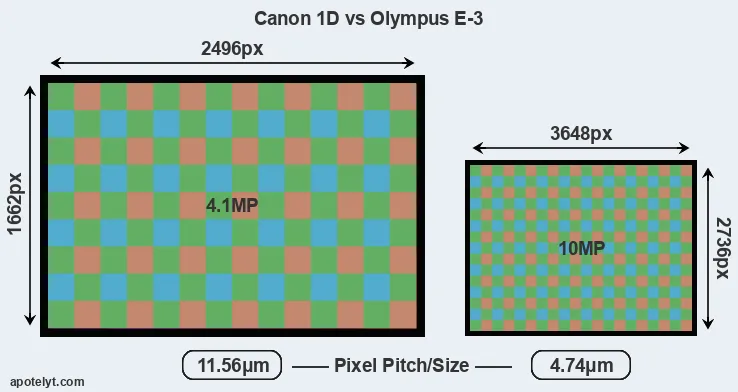

Despite having a smaller sensor, the E-3 offers a higher resolution of 10 megapixels, compared with 4.1 MP of the 1D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.74μm versus 11.56μm for the 1D). However, it should be noted that the E-3 is much more recent (by 6 years) than the 1D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Olympus E-3 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-3 for good quality output (200 dots per inch) amounts to 18.2 x 13.7 inches or 46.3 x 34.7 cm, for very good quality (250 dpi) 14.6 x 10.9 inches or 37.1 x 27.8 cm, and for excellent quality (300 dpi) 12.2 x 9.1 inches or 30.9 x 23.2 cm. The corresponding values for the Canon 1D are 12.5 x 8.3 inches or 31.7 x 21.1 cm for good quality, 10 x 6.6 inches or 25.4 x 16.9 cm for very good quality, and 8.3 x 5.5 inches or 21.1 x 14.1 cm for excellent quality prints.
The Canon EOS-1D has a native sensitivity range from ISO 200 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Olympus E-3 are ISO 100 to ISO 3200 (no boost).
In terms of underlying technology, the 1D is build around a CCD sensor, while the E-3 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|2.||Olympus E-3||Four Thirds||10.0||3648||2736||none||21.6||10.5||571||56|
|3.||Canon 1D X Mark III||Full Frame||20.0||5472||3648||4K/60p||24.2||14.5||3248||91|
|4.||Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|5.||Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|6.||Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|7.||Canon 1D C||Full Frame||17.9||5184||3456||4K/24p||24.3||13.0||2155||85|
|8.||Canon 1D X||Full Frame||17.9||5184||3456||1080/30p||23.8||11.8||2786||82|
|9.||Canon 1Ds Mark III||Full Frame||21.0||5616||3744||none||24.0||12.0||1663||80|
|10.||Canon 1D Mark II N||APS-H||8.2||3504||2336||none||22.3||11.2||975||66|
|11.||Canon 1D Mark II||APS-H||8.2||3504||2336||none||22.3||11.1||1003||66|
|12.||Canon 1Ds||Full Frame||11.0||4064||2704||none||21.8||11.0||954||63|
|13.||Olympus E-5||Four Thirds||12.2||4032||3024||720/30p||21.6||10.5||519||56|
|14.||Olympus E-30||Four Thirds||12.2||4032||3024||none||21.3||10.4||530||55|
|15.||Olympus E-520||Four Thirds||10.0||3648||2736||none||21.4||10.4||548||55|
|16.||Olympus E-510||Four Thirds||10.0||3648||2736||none||21.2||10.0||442||52|
|17.||Olympus E-1||Four Thirds||4.9||2560||1920||none||20.0||9.7||-145||44|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Apart from body and sensor, cameras can and do differ across a variety of features. The 1D and the E-3 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the E-3 has a higher magnification than the one of the 1D (0.58x vs 0.55x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 1D, the Olympus E-3, and comparable cameras.
|1.||Canon 1D||optical||Y||2.0 / 120||fixed||n||1/16000s||8.0/s||n||n|
|2.||Olympus E-3||optical||Y||2.5 / 230||swivel||n||1/8000s||5.0/s||Y||Y|
|3.||Canon 1D X Mark III||optical||Y||3.2 / 2100||fixed||Y||1/8000s||20.0/s||n||n|
|4.||Canon 1D X Mark II||optical||Y||3.2 / 1620||fixed||Y||1/8000s||16.0/s||n||n|
|5.||Canon 5D Mark IV||optical||Y||3.2 / 1620||fixed||Y||1/8000s||7.0/s||n||n|
|6.||Canon 5DS||optical||Y||3.2 / 1040||fixed||n||1/8000s||5.0/s||n||n|
|7.||Canon 1D C||optical||Y||3.2 / 1040||fixed||n||1/8000s||14.0/s||n||n|
|8.||Canon 1D X||optical||Y||3.2 / 1040||fixed||n||1/8000s||14.0/s||n||n|
|9.||Canon 1Ds Mark III||optical||Y||3.0 / 230||fixed||n||1/8000s||5.0/s||n||n|
|10.||Canon 1D Mark II N||optical||Y||2.5 / 230||fixed||n||1/8000s||8.5/s||n||n|
|11.||Canon 1D Mark II||optical||Y||2.0 / 230||fixed||n||1/8000s||8.3/s||n||n|
|12.||Canon 1Ds||optical||Y||2.0 / 120||fixed||n||1/8000s||3.0/s||n||n|
|13.||Olympus E-5||optical||Y||3.0 / 920||swivel||n||1/8000s||5.0/s||Y||Y|
|14.||Olympus E-30||optical||Y||2.7 / 230||swivel||n||1/8000s||5.0/s||Y||Y|
|15.||Olympus E-520||optical||n||2.7 / 215||fixed||n||1/4000s||3.5/s||Y||Y|
|16.||Olympus E-510||optical||n||2.5 / 215||fixed||n||1/4000s||3.0/s||Y||Y|
|17.||Olympus E-1||optical||Y||1.8 / 134||fixed||n||1/4000s||3.0/s||n||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One feature that differentiates the E-3 and the 1D is in-body image stabilization (IBIS). The E-3 reduces the risk of handshake-induced blur with all attached lenses, while the 1D offers no blur reduction with lenses that themselves do not provide optical image stabilization.The E-3 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 1D does not have a selfie-screen.
The 1D writes its imaging data to Compact Flash cards, while the E-3 uses Compact Flash or xD Picture cards. The E-3 features dual card slots, which can be very useful in case a memory card fails. In contrast, the 1D only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D and Olympus E-3 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon 1D||Y||- / -||-||-||-||FW||-||-||-|
|2.||Olympus E-3||Y||- / -||-||-||-||2.0||-||-||-|
|3.||Canon 1D X Mark III||Y||mono / mono||Y||Y||mini||3.1||Y||-||Y|
|4.||Canon 1D X Mark II||Y||mono / mono||Y||Y||mini||3.0||-||-||-|
|5.||Canon 5D Mark IV||Y||mono / mono||Y||Y||mini||3.0||Y||Y||-|
|6.||Canon 5DS||Y||mono / mono||Y||-||mini||3.0||-||-||-|
|7.||Canon 1D C||Y||mono / mono||Y||Y||mini||2.0||-||-||-|
|8.||Canon 1D X||Y||mono / -||Y||-||mini||2.0||-||-||-|
|9.||Canon 1Ds Mark III||Y||mono / -||-||-||-||2.0||-||-||-|
|10.||Canon 1D Mark II N||Y||- / -||-||-||-||1.1||-||-||-|
|11.||Canon 1D Mark II||Y||- / -||-||-||-||1.1||-||-||-|
|12.||Canon 1Ds||Y||- / -||-||-||-||FW||-||-||-|
|13.||Olympus E-5||Y||stereo / -||-||-||mini||2.0||-||-||-|
|14.||Olympus E-30||Y||- / -||-||-||-||2.0||-||-||-|
|15.||Olympus E-520||Y||- / -||-||-||-||2.0||-||-||-|
|16.||Olympus E-510||Y||- / -||-||-||-||2.0||-||-||-|
|17.||Olympus E-1||Y||- / -||-||-||-||2.0||-||-||-|
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
Both the 1D and the E-3 have been discontinued, but can regularly be found used on ebay. The 1D was replaced by the Canon 1D Mark II, while the E-3 was followed by the Olympus E-5. Further information on the features and operation of the 1D and E-3 can be found, respectively, in the Canon 1D Manual (free pdf) or the online Olympus E-3 Manual.
So what is the bottom line? Is there a clear favorite between the Canon 1D and the Olympus E-3? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Canon EOS-1D:
- Faster shutter: Has higher mechanical shutter speed (1/16000s vs 1/8000s) to freeze action.
- Faster burst: Shoots at higher frequency (8 vs 5 flaps/sec) to capture the decisive moment.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- More heavily discounted: Has been available for much longer (launched in September 2001).
Arguments in favor of the Olympus E-3:
- More detail: Has more megapixels (10 vs 4.1MP), which boosts linear resolution by 52%.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.58x vs 0.55x).
- Larger screen: Has a bigger rear LCD (2.5" vs 2.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (230k vs 120k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- More compact: Is smaller (142x116mm vs 156x158mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 709g or 45 percent) and is thus easier to take along.
- Longer lasting: Gets more shots (750 versus 500) out of a single battery charge.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More affordable: Was introduced into a lower priced category (74 percent cheaper at launch).
- More modern: Reflects 6 years of technical progress since the 1D launch.
If the count of individual advantages (bullet points above) is taken as a guide, the E-3 is the clear winner of the contest (14 : 4 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 1D and the Olympus E-3 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 1D and the E-3 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 1D||..||..||..||+ +||..||..||Sep 2001||6,499||ebay.com|
|2.||Olympus E-3||..||88/100||..||+ +||o||4/5||Oct 2007||1,699||ebay.com|
|3.||Canon 1D X Mark III||..||+ +||5/5||..||4.5/5||4/5||Jan 2020||6,499||amazon.com|
|4.||Canon 1D X Mark II||..||..||4.5/5||89/100||4.5/5||4.5/5||Feb 2016||5,999||ebay.com|
|5.||Canon 5D Mark IV||4.5/5||+ +||4/5||87/100||4.5/5||4.5/5||Aug 2016||3,499||amazon.com|
|6.||Canon 5DS||..||+||..||83/100||4.5/5||4.5/5||Feb 2015||3,699||ebay.com|
|7.||Canon 1D C||..||..||..||..||..||..||Apr 2012||14,999||ebay.com|
|8.||Canon 1D X||5/5||..||..||..||4.5/5||4.5/5||Oct 2011||6,799||ebay.com|
|9.||Canon 1Ds Mark III||..||..||..||+ +||4.5/5||..||Aug 2007||7,999||ebay.com|
|10.||Canon 1D Mark II N||..||..||..||..||..||..||Aug 2005||3,999||ebay.com|
|11.||Canon 1D Mark II||..||..||..||+ +||..||..||Jan 2004||4,499||ebay.com|
|12.||Canon 1Ds||..||..||..||+ +||..||..||Sep 2002||8,999||ebay.com|
|13.||Olympus E-5||4/5||..||..||75/100||4/5||4.5/5||Sep 2010||1,699||ebay.com|
|14.||Olympus E-30||..||..||..||71/100||4.5/5||4/5||Nov 2008||1,299||ebay.com|
|15.||Olympus E-520||..||87/100||..||+ +||4.5/5||4.5/5||May 2008||699||ebay.com|
|16.||Olympus E-510||..||89/100||..||+ +||3.5/5||4.5/5||Mar 2007||799||ebay.com|
|17.||Olympus E-1||..||..||..||+||o||..||Jun 2003||1,699||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Canon 1D vs Olympus E-3
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 1D||Olympus E-3|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Four Thirds lenses|
|Launch Date||September 2001||October 2007|
|Launch Price||USD 6,499||USD 1,699|
|Sensor Specs||Canon 1D||Olympus E-3|
|Sensor Format||APS-H Sensor||Four Thirds Sensor|
|Sensor Size||28.7 x 19.1 mm||17.3 x 13.0 mm|
|Sensor Area||548.17 mm2||224.9 mm2|
|Sensor Diagonal||34.5 mm||21.6 mm|
|Sensor Resolution||4.1 Megapixels||10 Megapixels|
|Image Resolution||2496 x 1662 pixels||3648 x 2736 pixels|
|Pixel Pitch||11.56 μm||4.74 μm|
|Pixel Density||0.76 MP/cm2||4.44 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||no Video|
|ISO Setting||200 - 1,600 ISO||100 - 3,200 ISO|
|ISO Boost||100 - 3,200 ISO||no Enhancement|
|Image Processor||DIGIC||TruePic III|
|DXO Sensor Quality (score)||..||56|
|DXO Color Depth (bits)||..||21.6|
|DXO Dynamic Range (EV)||..||10.5|
|DXO Low Light (ISO)||..||571|
|Screen Specs||Canon 1D||Olympus E-3|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||100%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View|
|Rear LCD Size||2.0inch||2.5inch|
|LCD Resolution||120k dots||230k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Shooting Specs||Canon 1D||Olympus E-3|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||8 shutter flaps/s||5 shutter flaps/s|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||no On-Board Flash||Built-in Flash|
|Storage Medium||CF cards||CF or XD cards|
|Single or Dual Card Slots||Single card slot||Dual card slots|
|Connectivity Specs||Canon 1D||Olympus E-3|
|Studio Flash||PC Sync socket||PC Sync socket|
|USB Connector||Firewire||USB 2.0|
|HDMI Port||no HDMI||no HDMI|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 1D||Olympus E-3|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Life (CIPA)||500 shots per charge||750 shots per charge|
156 x 158 x 80 mm
(6.1 x 6.2 x 3.1 in)
142 x 116 x 75 mm
(5.6 x 4.6 x 3.0 in)
|Camera Weight||1585 g (55.9 oz)||876 g (30.9 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
