Canon 1D vs Leica TL

The Canon EOS-1D and the Leica TL are two digital cameras that were officially introduced, respectively, in September 2001 and November 2016. The 1D is a DSLR, while the TL is a mirrorless interchangeable lens camera. The cameras are based on an APS-H (1D) and an APS-C (TL) sensor. The Canon has a resolution of 4.1 megapixels, whereas the Leica provides 16.1 MP. Read on to find out how these two cameras compare with respect to their body size, their sensors, their features, their input-output connections, and their reception by expert reviewers.

Headline Specifications
Canon 1D   Leica TL
Canon 1D Leica TL
Digital single lens reflex Mirrorless system camera
Canon EF mount lenses Leica T mount lenses
4.1 MP, APS-H Sensor 16.1 MP, APS-C Sensor
no Video 1080/30p Video
ISO 200-1600 (100-3200) ISO 100-12500
Optical viewfinder Viewfinder optional
2.0" LCD, 120k dots 3.7" LCD, 1230k dots
Fixed screen (not touch-sensitive) Fixed touchscreen
8 shutter flaps per second 5 shutter flaps per second
Weathersealed bodyNot weather sealed
500 shots per battery charge400 shots per battery charge
156 x 158 x 80 mm, 1585 g 134 x 69 x 33 mm, 384 g

Body comparison: Canon 1D vs Leica TL

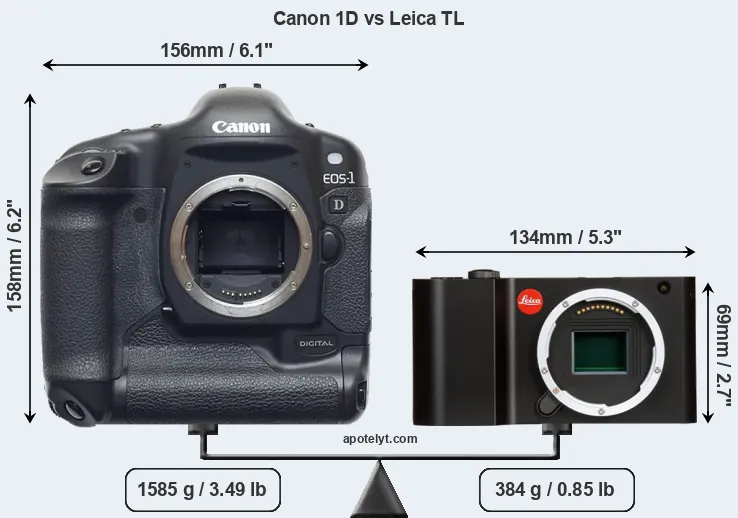

An illustration of the physical size and weight of the Canon 1D and the Leica TL is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

Compare Canon 1D and Leica TL

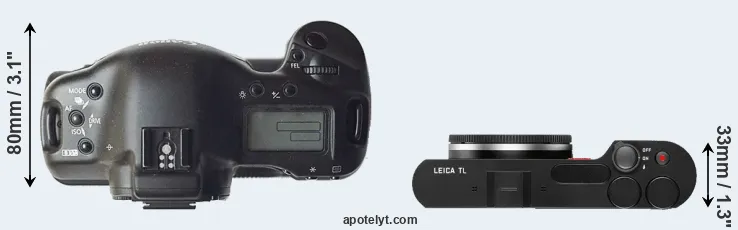

Compare 1D versus TL top

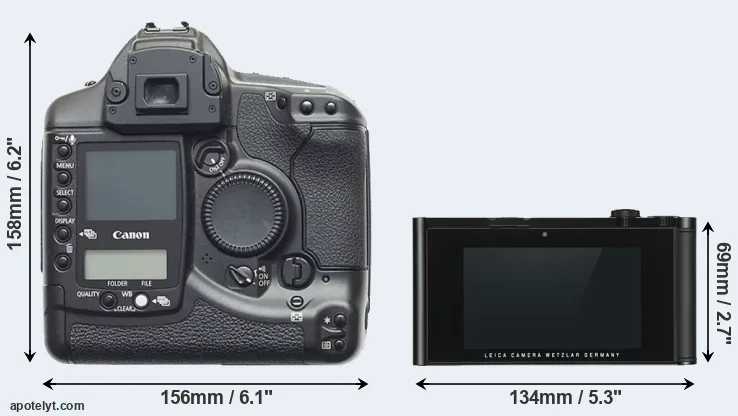

Compare 1D or TL rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica TL is considerably smaller (62 percent) than the Canon 1D. Moreover, the TL is substantially lighter (76 percent) than the 1D. It is worth mentioning in this context that the 1D is splash and dust resistant, while the TL does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

As can be seen in the images above, the 1D has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. The power pack in the TL can be charged via the USB port, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 1D» 6.1 in 6.2 in 3.1 in 55.9 oz 500 Y Sep 2001 6,499- i Canon 1D
Leica TL« 5.3 in 2.7 in 1.3 in 13.5 oz 400 n Nov 2016 1,695- i Leica TL
Canon 1D X Mark II« » 6.2 in 6.6 in 3.3 in 54.0 oz 1210 Y Feb 2016 5,999 i i Canon 1D X Mark II
Canon 5D Mark IV« » 5.9 in 4.6 in 3.0 in 31.4 oz 900 Y Aug 2016 3,499 i i Canon 5D Mark IV
Canon 1D C« » 6.2 in 6.5 in 3.3 in 54.5 oz 1120 Y Apr 2012 14,999- i Canon 1D C
Canon 1D X« » 6.2 in 6.6 in 3.3 in 54.7 oz 1120 Y Oct 2011 6,799- i Canon 1D X
Canon 1D Mark IV« » 6.1 in 6.2 in 3.1 in 43.4 oz 1500 Y Oct 2009 4,999- i Canon 1D Mark IV
Canon 1D Mark III« » 6.1 in 6.2 in 3.1 in 40.7 oz 2200 Y Feb 2007 4,499- i Canon 1D Mark III
Canon 1Ds Mark III« » 5.9 in 6.3 in 3.1 in 48.9 oz 1800 Y Aug 2007 7,999- i Canon 1Ds Mark III
Canon 1D Mark II N« » 6.1 in 6.2 in 3.1 in 55.2 oz 1200 Y Aug 2005 3,999- i Canon 1D Mark II N
Canon 1D Mark II« » 6.1 in 6.2 in 3.1 in 54.1 oz 1200 Y Jan 2004 4,499- i Canon 1D Mark II
Canon 1Ds« » 6.1 in 6.2 in 3.1 in 44.6 oz 600 Y Sep 2002 8,999- i Canon 1Ds
Fujifilm X-A10« » 4.6 in 2.6 in 1.6 in 11.7 oz 410 n Dec 2016 399- i Fujifilm X-A10
Fujifilm X-A2« » 4.6 in 2.6 in 1.6 in 12.3 oz 410 n Jan 2015 399- i Fujifilm X-A2
Fujifilm X-Pro1« » 5.5 in 3.2 in 1.7 in 15.9 oz 300 n Jan 2012 1,699- i Fujifilm X-Pro1
Leica TL2« » 5.3 in 2.7 in 1.3 in 14.1 oz 250 n Jul 2017 1,950 i i Leica TL2
Leica T« » 5.3 in 2.7 in 1.3 in 13.5 oz 400 n Apr 2014 1,850- i Leica T

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The TL was launched at a markedly lower price (by 74 percent) than the 1D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.



Sensor comparison: Canon 1D vs Leica TL

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 1D features an APS-H sensor and the Leica TL an APS-C sensor. The sensor area in the TL is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.3 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

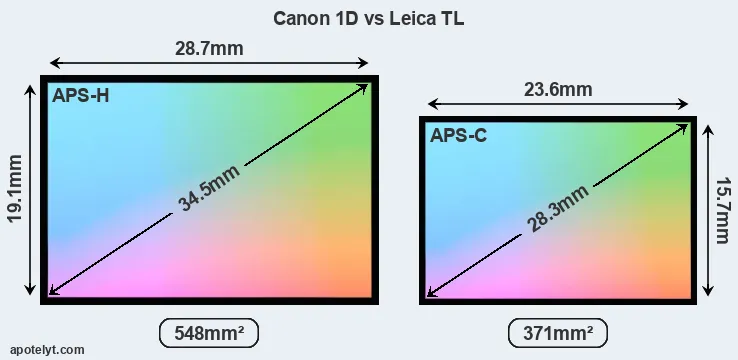

Canon 1D and Leica TL sensor measures

Despite having a smaller sensor, the TL offers a higher resolution of 16.1 megapixels, compared with 4.1 MP of the 1D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.80μm versus 11.56μm for the 1D). However, it should be noted that the TL is much more recent (by 15 years and 1 month) than the 1D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the TL has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Canon EOS-1D has a native sensitivity range from ISO 200 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Leica TL are ISO 100 to ISO 12500 (no boost).

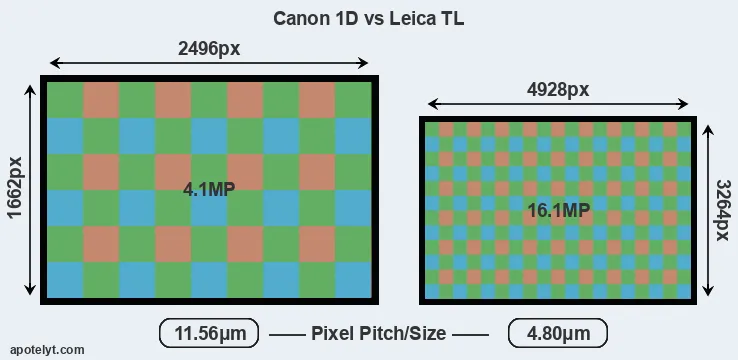

1D versus TL MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model
Canon 1D» APS-H 4.1 2496 1662-----Canon 1D
Leica TL« APS-C 16.1 4928 32641080/30p----Leica TL
Canon 1D X Mark II« » Full Frame 20.0 5472 36484K/60p24.113.5320788Canon 1D X Mark II
Canon 5D Mark IV« » Full Frame 30.1 6720 44804K/30p24.813.6299591Canon 5D Mark IV
Canon 1D C« » Full Frame 17.9 5184 34564K/24p----Canon 1D C
Canon 1D X« » Full Frame 17.9 5184 34561080/30p23.811.8278682Canon 1D X
Canon 1D Mark IV« » APS-H 16.0 4896 32641080/30p22.812.0132074Canon 1D Mark IV
Canon 1D Mark III« » APS-H 10.1 3888 2592-22.711.7107871Canon 1D Mark III
Canon 1Ds Mark III« » Full Frame 21.0 5616 3744-24.012.0166380Canon 1Ds Mark III
Canon 1D Mark II N« » APS-H 8.2 3504 2336-22.311.297566Canon 1D Mark II N
Canon 1D Mark II« » APS-H 8.2 3504 2336-22.311.1100366Canon 1D Mark II
Canon 1Ds« » Full Frame 11.0 4064 2704-21.811.095463Canon 1Ds
Fujifilm X-A10« » APS-C 16.0 4896 32641080/30p----Fujifilm X-A10
Fujifilm X-A2« » APS-C 16.0 4896 32641080/30p----Fujifilm X-A2
Fujifilm X-Pro1« » APS-C 16.0 4896 32641080/24p----Fujifilm X-Pro1
Leica TL2« » APS-C 24.1 6014 40144K/30p----Leica TL2
Leica T« » APS-C 16.2 4944 32781080/30p23.012.7108275Leica T

Many modern cameras are not only capable of taking still images, but can also record movies. The TL indeed provides for movie recording, while the 1D does not. The highest resolution format that the TL can use is 1080/30p.



Feature comparison: Canon 1D vs Leica TL

Apart from body and sensor, cameras can and do differ across a range of features. For example, the 1D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the TL relies on live view and the rear LCD for framing. That said, the TL can be equipped with an optional viewfinder – the Visoflex (Typ 020). The table below summarizes some of the other core capabilities of the Canon 1D and Leica TL in connection with corresponding information for a sample of similar cameras.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
Camera
Model
Canon 1D»optical Y 2.0 120 fixed n 16000 8.0 n n Canon 1D
Leica TL«- n 3.7 1230 fixed Y 4000 5.0 Y n Leica TL
Canon 1D X Mark II« »optical Y 3.2 1620 fixed Y 8000 16.0 n n Canon 1D X Mark II
Canon 5D Mark IV« »optical Y 3.2 1620 fixed Y 8000 7.0 n n Canon 5D Mark IV
Canon 1D C« »optical Y 3.2 1040 fixed n 8000 14.0 n n Canon 1D C
Canon 1D X« »optical Y 3.2 1040 fixed n 8000 14.0 n n Canon 1D X
Canon 1D Mark IV« »optical Y 3.0 920 fixed n 8000 10.0 n n Canon 1D Mark IV
Canon 1D Mark III« »optical Y 3.0 230 fixed n 8000 10.0 n n Canon 1D Mark III
Canon 1Ds Mark III« »optical Y 3.0 230 fixed n 8000 5.0 n n Canon 1Ds Mark III
Canon 1D Mark II N« »optical Y 2.5 230 fixed n 8000 8.5 n n Canon 1D Mark II N
Canon 1D Mark II« »optical Y 2.0 230 fixed n 8000 8.3 n n Canon 1D Mark II
Canon 1Ds« »optical Y 2.0 120 fixed n 8000 3.0 n n Canon 1Ds
Fujifilm X-A10« »- n 3.0 1040 tilting n 4000 6.0 Y n Fujifilm X-A10
Fujifilm X-A2« »- n 3.0 920 tilting n 4000 5.6 Y n Fujifilm X-A2
Fujifilm X-Pro1« »1440 n 3.0 1230 fixed n 4000 6.0 n n Fujifilm X-Pro1
Leica TL2« »- n 3.7 1230 fixed Y 4000 7.0 n n Leica TL2
Leica T« »- n 3.7 1300 fixed Y 4000 5.0 Y n Leica T

One feature that is present on the 1D, but is missing on the TL is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The 1D writes its imaging data to Compact Flash cards, while the TL uses SDXC cards. The 1D features dual card slots, which can be very useful in case a memory card fails. In contrast, the TL only has one slot.



Connectivity comparison: Canon 1D vs Leica TL

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D and Leica TL and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model
Canon 1D»Y-----FW---Canon 1D
Leica TL«Ystereomono--micro2.0Y--Leica TL
Canon 1D X Mark II« »YmonomonoYYmini3.0---Canon 1D X Mark II
Canon 5D Mark IV« »YmonomonoYYmini3.0YY-Canon 5D Mark IV
Canon 1D C« »YmonomonoYYmini2.0---Canon 1D C
Canon 1D X« »Ymono-Y-mini2.0---Canon 1D X
Canon 1D Mark IV« »Ystereo-Y-mini2.0---Canon 1D Mark IV
Canon 1D Mark III« »Y-----2.0---Canon 1D Mark III
Canon 1Ds Mark III« »Y-----2.0---Canon 1Ds Mark III
Canon 1D Mark II N« »Y-----1.1---Canon 1D Mark II N
Canon 1D Mark II« »Y-----1.1---Canon 1D Mark II
Canon 1Ds« »Y-----FW---Canon 1Ds
Fujifilm X-A10« »-stereomono--mini2.0Y--Fujifilm X-A10
Fujifilm X-A2« »Ystereomono--mini2.0Y--Fujifilm X-A2
Fujifilm X-Pro1« »Ystereomono--mini2.0---Fujifilm X-Pro1
Leica TL2« »Ystereomono--micro3.0Y--Leica TL2
Leica T« »Ystereomono---2.0Y--Leica T

It is notable that the TL offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 1D does not offer wifi capability.

Studio photographers will appreciate that the Canon 1D (unlike the TL) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the 1D and the TL have been discontinued, but can regularly be found used on eBay. The 1D was replaced by the Canon 1D Mark II, while the TL was followed by the Leica TL2.


Review summary: Canon 1D vs Leica TL

So what conclusions can be drawn? Is the Canon 1D better than the Leica TL or vice versa? The listing below highlights the relative strengths of the two models.

ilogo

Advantages of the Canon EOS-1D:

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Easier framing: Has an optical viewfinder for image framing and settings control.
  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • Faster shutter: Has higher mechanical shutter speed (16000/sec vs 4000/sec) to freeze action.
  • Faster burst: Shoots at higher frequency (8 vs 5 flaps/sec) to capture the decisive moment.
  • More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
  • Longer lasting: Can take more shots (500 versus 400) on a single battery charge.
  • Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • More heavily discounted: Has been available for much longer (launched in September 2001).

ilogo

Reasons to prefer the Leica TL:

  • More detail: Has more megapixels (16.1 vs 4.1MP), which boosts linear resolution by 97%.
  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Broader imaging potential: Can capture not only stills but also 1080/30p video.
  • Larger screen: Has a bigger rear LCD (3.7" vs 2.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (1230k vs 120k dots).
  • Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
  • More compact: Is smaller (134x69mm vs 156x158mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 1201g or 76 percent) and is thus easier to take along.
  • Easier travel charging: Can be conveniently charged via its USB port.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
  • More affordable: Was introduced into a lower priced category (74 percent cheaper at launch).
  • More modern: Reflects 15 years and 1 month of technical progress since the 1D launch.

If the number of relative strengths (bullet points above) is taken as a guide, the TL emerges as the winner of the match-up (14 : 11 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera.

1D 11:14 TL

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the 1D or the TL handle or perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews: Canon 1D vs Leica TL

This is why hands-on reviews by experts are important. The following table reports the overall rankings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog). The full reviews are available by clicking on the site logo in the table header.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 1D»-HiRec--- Sep 2001 6,499- i Canon 1D
Leica TL«----4/5 Nov 2016 1,695- i Leica TL
Canon 1D X Mark II« »-89/1004.5/55/54.5/5 Feb 2016 5,999 i i Canon 1D X Mark II
Canon 5D Mark IV« »HiRec87/1004.5/55/54.5/5 Aug 2016 3,499 i i Canon 5D Mark IV
Canon 1D C« »----- Apr 2012 14,999- i Canon 1D C
Canon 1D X« »--4.5/54.5/54.5/5 Oct 2011 6,799- i Canon 1D X
Canon 1D Mark IV« »-89/100-5/5- Oct 2009 4,999- i Canon 1D Mark IV
Canon 1D Mark III« »---rev- Feb 2007 4,499- i Canon 1D Mark III
Canon 1Ds Mark III« »-HiRec4.5/5-- Aug 2007 7,999- i Canon 1Ds Mark III
Canon 1D Mark II N« »----- Aug 2005 3,999- i Canon 1D Mark II N
Canon 1D Mark II« »-HiRec-rev- Jan 2004 4,499- i Canon 1D Mark II
Canon 1Ds« »-HiRec--- Sep 2002 8,999- i Canon 1Ds
Fujifilm X-A10« »--4/5-4/5 Dec 2016 399- i Fujifilm X-A10
Fujifilm X-A2« »--4.5/54/54.5/5 Jan 2015 399- i Fujifilm X-A2
Fujifilm X-Pro1« »HiRec79/1004.5/54/54.5/5 Jan 2012 1,699- i Fujifilm X-Pro1
Leica TL2« »--4/5-4/5 Jul 2017 1,950 i i Leica TL2
Leica T« »--4/5-4/5 Apr 2014 1,850- i Leica T

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Canon 1D:
Check Ebay offers
Leica TL:
Check Ebay offers

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

    Specifications: Canon 1D vs Leica TL

    Camera Specifications
    Camera Model Canon 1D Leica TL
    Camera Type Digital single lens reflex Mirrorless system camera
    Camera Lens Canon EF mount lenses Leica T mount lenses
    Launch Date September 2001 November 2016
    Launch Price USD 6499 USD 1695
    Sensor Specs
    Sensor Technology CCD CMOS
    Sensor Format APS-H Sensor APS-C Sensor
    Sensor Size 28.7 x 19.1 mm 23.6 x 19.1 mm
    Sensor Area 548.17 mm2 370.52 mm2
    Sensor Diagonal 34.5 mm 28.3 mm
    Crop Factor 1.3x 1.5x
    Sensor Resolution 4.1 Megapixels 16.1 Megapixels
    Image Resolution 2496 x 1662 pixels 4928 x 3264 pixels
    Pixel Pitch 11.56 μm 4.80 μm
    Pixel Density 0.76 MP/cm2 4.34 MP/cm2
    Moiré control Anti-Alias filter no AA filter
    Movie Capability no Video 1080/30p Video
    ISO Setting 200-1600 ISO 100-12500 ISO
    ISO Boost 100-3200 ISO no Enhancement
    Screen Specs
    Viewfinder Type Optical viewfinder Viewfinder optional
    Viewfinder Field of View 100% n/a
    Viewfinder Magnification 0.55x n/a
    Top-Level Screen Control Panel no Top Display
    LCD Framing n/a Live View
    Rear LCD Size 2.0 inch 3.7 inch
    LCD Resolution 120k dots 1230k dots
    LCD Attachment Fixed screen Fixed screen
    Touch Input no Touchscreen Touchscreen
    Shooting Specs
    Autofocus System Phase-detect AF Contrast-detect AF
    Maximum Shutter Speed 1/16000s 1/4000s
    Continuous Shooting 8 shutter flaps/s 5 shutter flaps/s
    Fill Flash no On-Board Flash Build-in Flash
    Storage Medium CF cards SDXC cards
    Second Storage Option Dual card slots Single card slot
    Connectivity Specs
    External Flash Hotshoe Hotshoe
    Studio Flash PC Sync socket no PC Sync
    USB Connector Firewire USB 2.0
    HDMI Port no HDMI micro HDMI
    Wifi Support no Wifi Wifi built-in
    Body Specs
    Environmental SealingWeathersealed bodyNot weather sealed
    Battery Type NP-E3 power pack BP-DC13 power pack
    Battery Life (CIPA)500 shots per charge400 shots per charge
    In-Camera Charging no USB charging USB charging
    Body Dimensions 156 x 158 x 80 mm
    (6.1 x 6.2 x 3.1 in)
    134 x 69 x 33 mm
    (5.3 x 2.7 x 1.3 in)
    Camera Weight 1585 g (55.9 oz) 384 g (13.5 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here  »   »
